45 мм 55 мм 77 мм Изолированная машина для формовки затвора двери
US $57500-$59500
Eps полистироловая проволочная сетка 3d настенная панель сварочный аппарат 3D панельная машина EPS оборудование для производства
- Категория: Other Construction Material Making Machinery >>>
- Поставщик: Yantai,Demeng,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.23 $* | 0.8 $* |
| Aug-19-2025 | 0.5 $* | 0.30 $* |
| Jul-19-2025 | 0.54 $* | 0.96 $* |
| Jun-19-2025 | 0.89 $* | 0.51 $* |
| May-19-2025 | 0.26 $* | 0.67 $* |
| Apr-19-2025 | 0.43 $* | 0.81 $* |
| Mar-19-2025 | 0.25 $* | 0.94 $* |
| Feb-19-2025 | 0.5 $* | 0.74 $* |
| Jan-19-2025 | 0.98 $* | 0.33 $* |
Характеристики

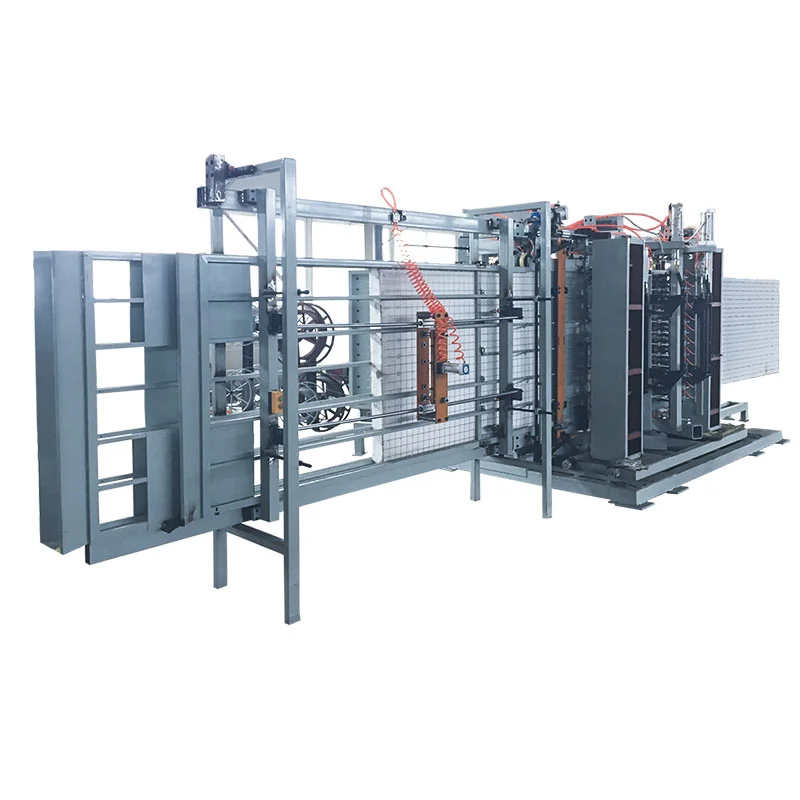

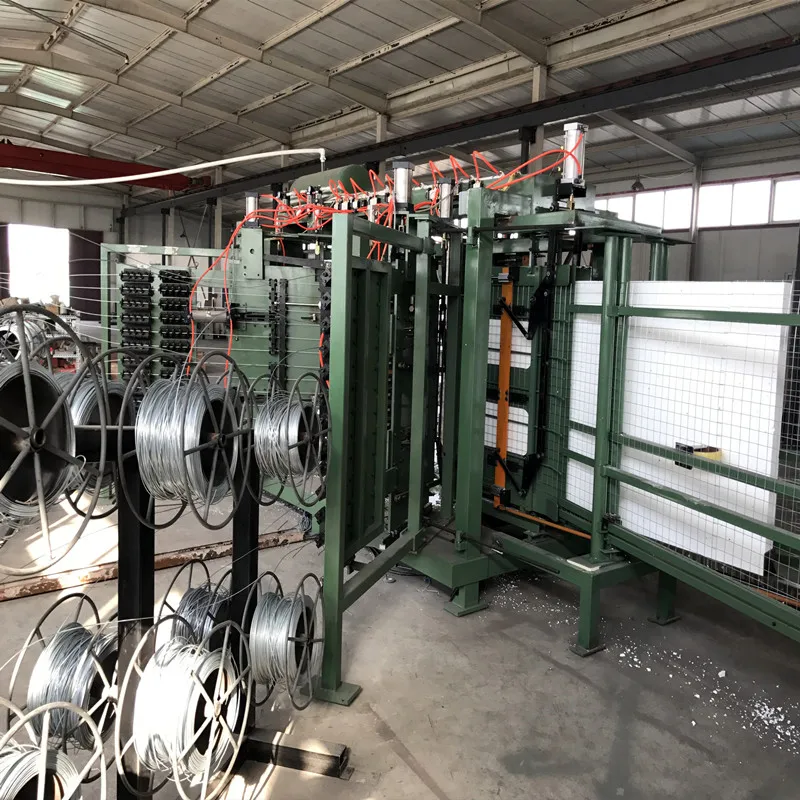

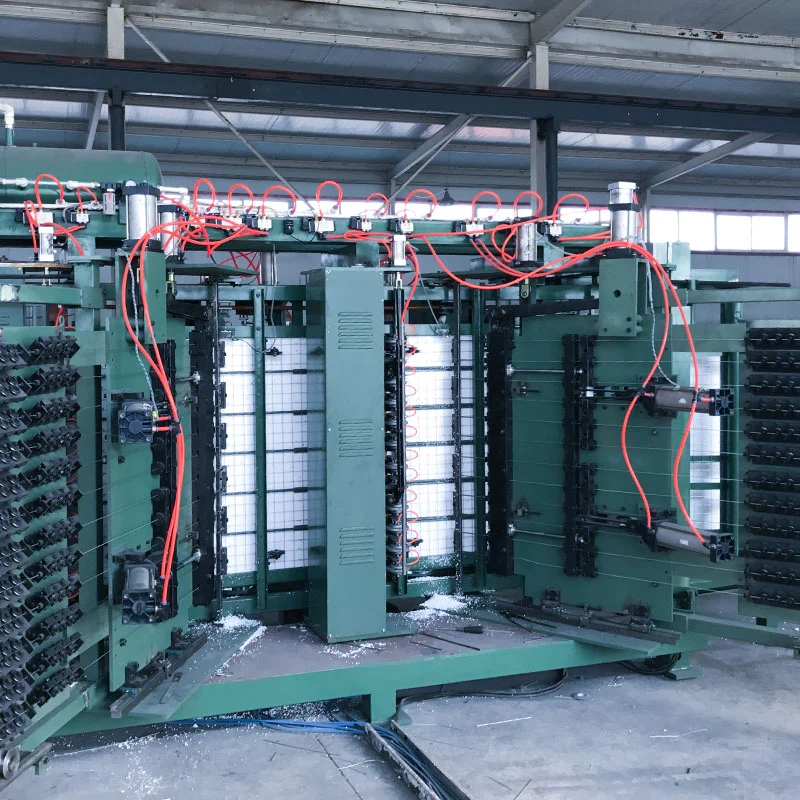

Machine introduction
Construction used Reinforcing mesh expanded polystyrene 3D Welded EPS wall Panel making machine
The Vertical 3D panel production line is a fully automatic plant with electronic process control, producing 3D panels of varying thickness and length accurately, with high precision and strong welds to give the builder a product of outstanding quality.
Especially, the vertical 3D panel machines has features as below:
1. It can produce produce both single-layer and double-layers 3D panels for external wall insulation systemand with high capacity .
2. it has the integrated pneumatic system for the equipment to ensure its stable operation, high reliability and long life span.
3. The Steel Wire Feeder of the A type equipment has the pneumatic system and the welding angle is not adjustable.
4. The Steel wire Feeder of the B type equipment has the pneumatic clamping device and the welding angle can be adjusted.
5. the mahine is easy to operate and maintenance with the self-testing capability and automatic alarm system.
6. It can also produce the mineral wool 3D panel.
Especially, the vertical 3D panel machines has features as below:
1. It can produce produce both single-layer and double-layers 3D panels for external wall insulation systemand with high capacity .
2. it has the integrated pneumatic system for the equipment to ensure its stable operation, high reliability and long life span.
3. The Steel Wire Feeder of the A type equipment has the pneumatic system and the welding angle is not adjustable.
4. The Steel wire Feeder of the B type equipment has the pneumatic clamping device and the welding angle can be adjusted.
5. the mahine is easy to operate and maintenance with the self-testing capability and automatic alarm system.
6. It can also produce the mineral wool 3D panel.
Equipment Parameter
Plate width | 1200～1220mm | ||||||
Benzene board thickness | 40~250mm | ||||||
Abdominal wire | diameter Φ2.0-3.5mm | ||||||
Productivity | 800 m2—1100m2/8h | ||||||
Outline dimension of the equipment | 8500×6800×3900mm | ||||||
Air pressure required | 0.7Mpa | ||||||
Production Process
Details Image
Product introduction

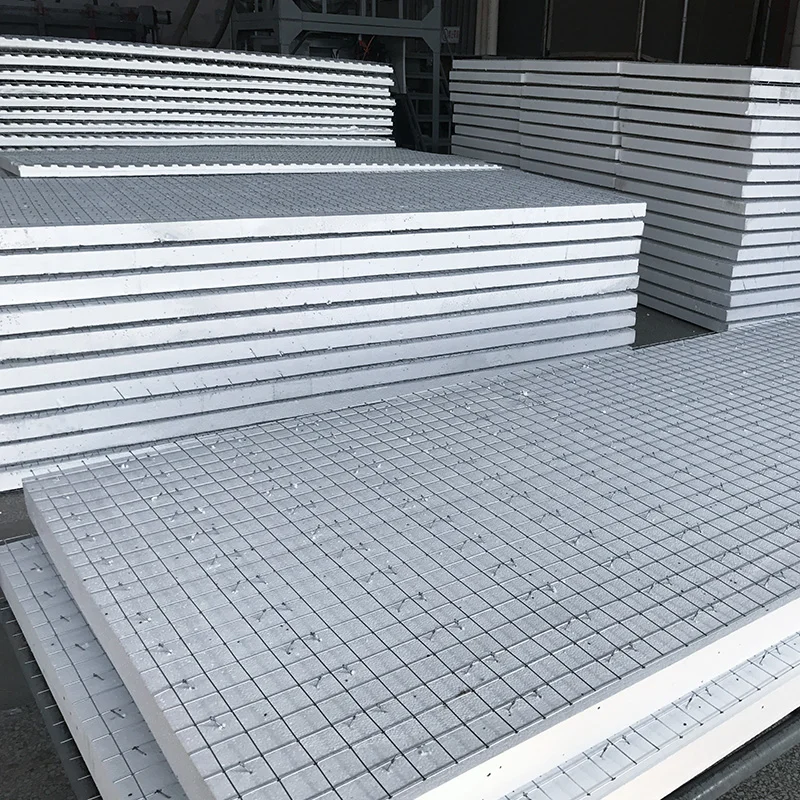

3D wire mesh panel is a new kind of construction material with good insulation performance, light weight and high strength. It can replace the brisk wall to be kinds of main wall, non-main wall, and boundary etc. It adopts 3-dimensional spatial steel wire mesh and trusses as the framework, EPS or rock wool panel as heat insulation core layer. this product is widely used in Europe and the United States in the construction system to replace the wood framework wall, metal or prefabricated plate, has a flexible structure, simple construction, improve efficiency, save labor characteristics. Park wall arch corners, curved wall using this product with camber free construction simply and quickly, modeling beautiful and so on as their characteristics. Interior lining insulation material with insulation strong characteristics of small occupied area so that the indoor space more labor-saving and time-saving structural integrity of the wall.
Product Photo
About Us
FAQ
Q:. Why I choose your company?
A: a) We are the Leading EPS panel production line Manufacturer in China.
b) We have made foam machine about 30 years with strong experience and advanced technics.
c) Best Quality & Best Service with Competitive price.
d) 100% inspection Before Shipment, and got CE certificate.
e) We have Professional technical team, supply 24 hours service.
f) One year guarantee and lifetime maintenance..
Q: What should we prepare except material?
A: You should prepare workshop, water line, electric line, compress air (if you need, we can help you buy air compressor). We can supply workshop layout drawing according to your workshop. Q: Where is your factory located? How can I visit there? A: Our factory is located in Longkou city, Shandong province, you can fly to Yantai or Qingdao airport, Yantai airport is nearer than Qingdao airport.
b) We have made foam machine about 30 years with strong experience and advanced technics.
c) Best Quality & Best Service with Competitive price.
d) 100% inspection Before Shipment, and got CE certificate.
e) We have Professional technical team, supply 24 hours service.
f) One year guarantee and lifetime maintenance..
Q: What should we prepare except material?
A: You should prepare workshop, water line, electric line, compress air (if you need, we can help you buy air compressor). We can supply workshop layout drawing according to your workshop. Q: Where is your factory located? How can I visit there? A: Our factory is located in Longkou city, Shandong province, you can fly to Yantai or Qingdao airport, Yantai airport is nearer than Qingdao airport.
