Характеристики



Products Description


You are welcome to customize the POE modules of various sizes and appearances and function.The layout is required to receive the initial research and development expenses.After ordering a certain number of modules (usually 5000 pieces), the r&d cost can be deducted.After the sample is qualified, batch production.


DESCRIPTION

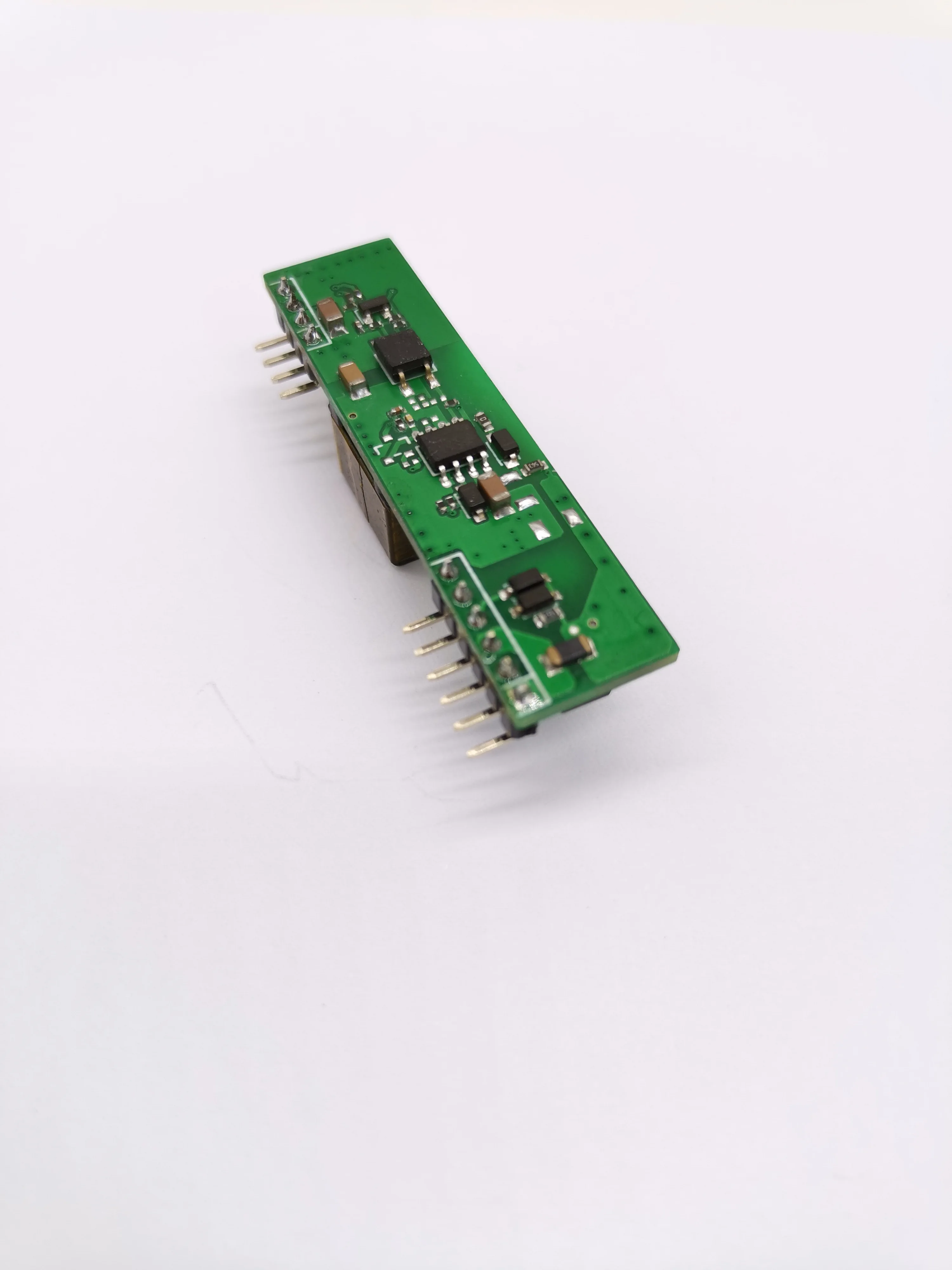

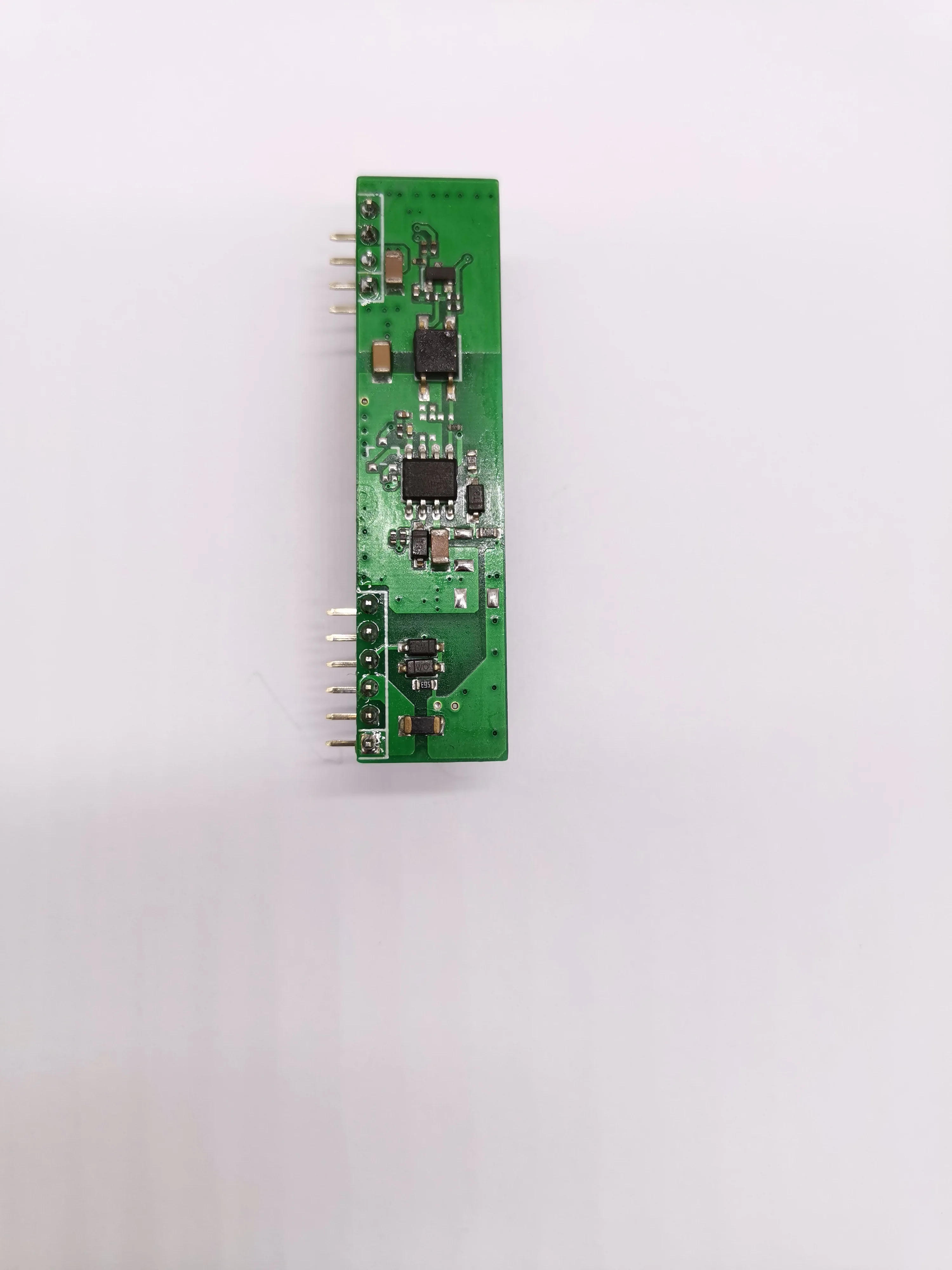

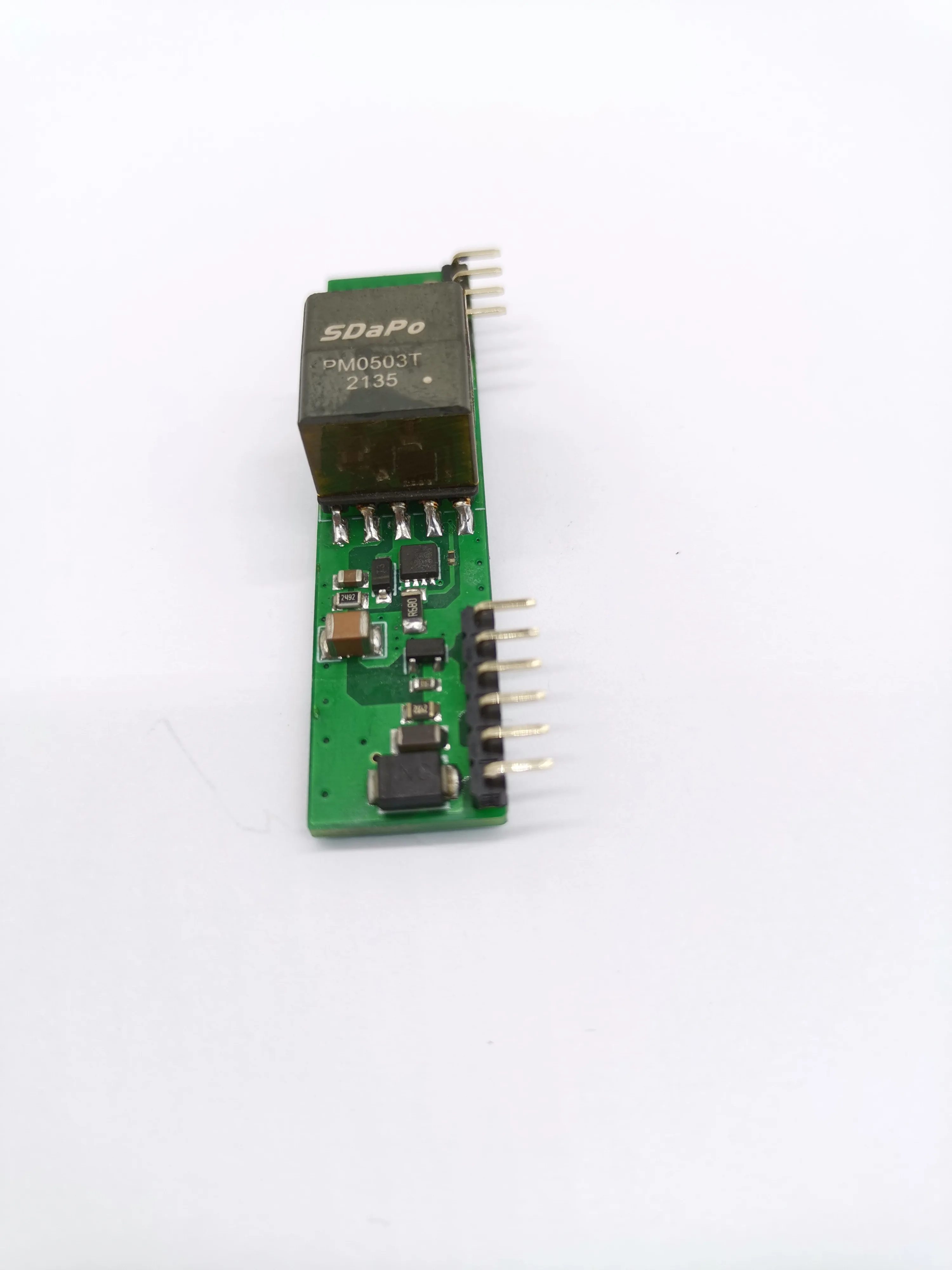

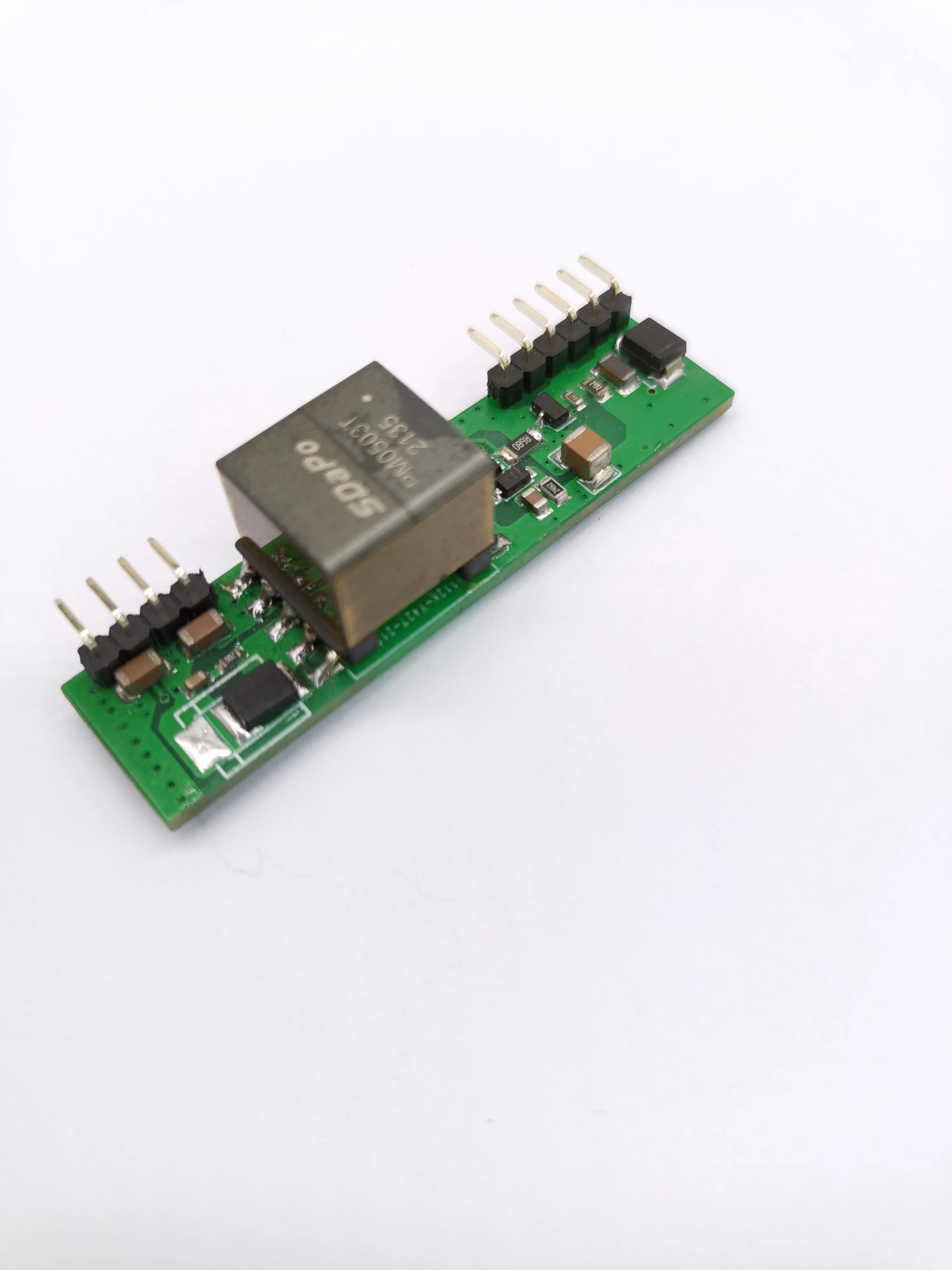

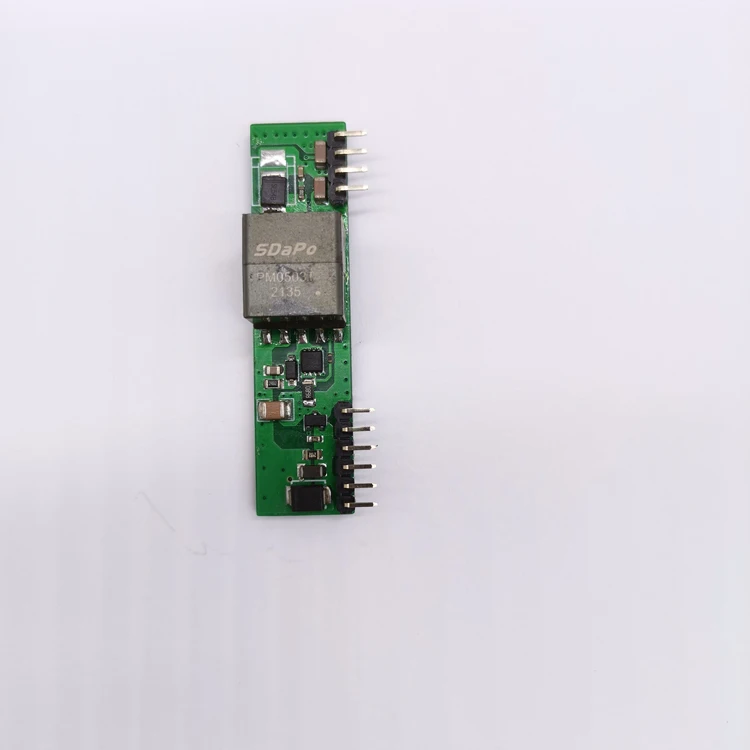

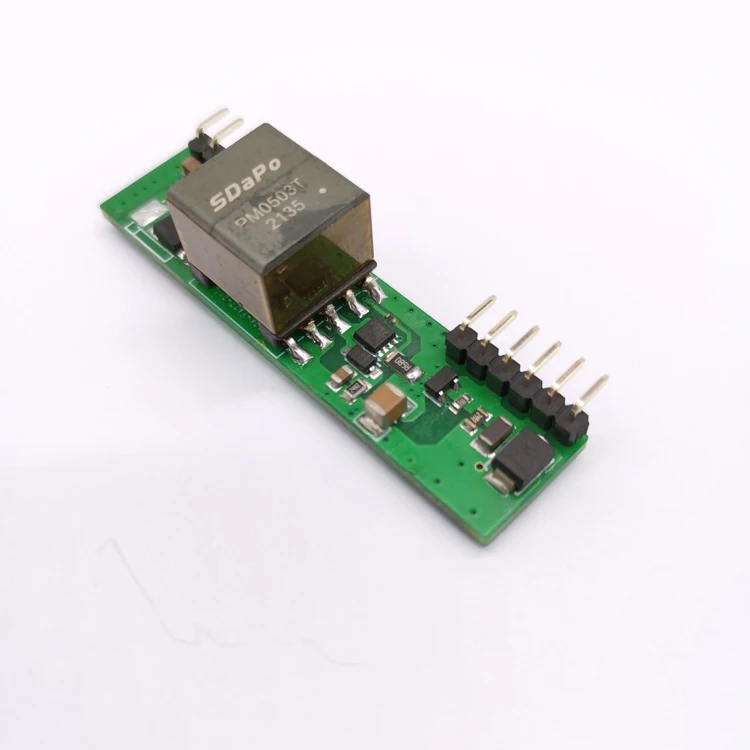

5V, 13W PD(Powered Device) Integrated Module (Isolation Type)

FEATURES
* Fully supports IEEE802.3af
* Small Single In-Line (SIL) package size –56mm (L) x 14mm (H)
* Input Voltage Range 37V to 57V
* Support PoE applications in both of Fast / Gigabit Ethernet environments.
* Short Circuit Protection
* Over-temperature Protection
* Programmable Classification (Default:Class 0)
* High Efficiency
* Isolation level 1.5KVrms.
* Easy Installation and Low Cost (Isolation Type, Minimum External Devices required)
* Low Output Ripple and Noise
* Adjustable Output Voltage
* 1500Vrms Isolation (Input-Output)




PIN ASSIGNMENT


1
VIN+
POE Direct Input +. This pin connects to the positive (+) output of the input bridge rectifiers (internally connected to pin 3).
2
VIN-
POE Direct Input -. This pin connects to the negative (-) output of the input bridge rectifiers (internally connected to pins 4
and 5).
3
VIN+
POE Direct Input +. Internally connected to pin 1.
4
VIN-
POE Direct Input -. Internally connected to pin 2.
5
NC
NC. Do not connect to this pin.
6
NC
NC. Do not connect to this pin.
7
-VDC
Negative DC Output. The ground return for the +VDC output.
8
+VDC
Positive DC Output. This pin provides the regulated output from the DC/DC converter.
9
ADJ
Output Adjust. The output voltage can be adjusted from its
nominal value, by connecting an external resistor from this pin to either the +VDC pin or the -VDC pin.
10
NC
NC. Do not connect to this pin.


TYPICAL SYSTEM DIAGRAM




Typical Application




TEST DATA


Model
Input Voltage（after bridge）
Input Current
Output Voltage
Output Current
Efficiency
Ripple Output Noise
V
mA
V
A
%
mV
DP9200
50.39
284
5.0
2.5
87.52%
150
50.5
226
5.0
2
87.79%
120
50.48
170
5.0
1.5
87.57%
95
50.58
115
5.0
1
86.13%
75
50.68
60
5.0
0.5
82.38%
50
50.91
8
5.0
0
0.00%


ELECTRICAL SPECIFICATIONS


No.
Parameter
Symbol
Min
Typical values
Max
Unit
1
Input Voltage
Vin
37

48

57
V
2
output voltage
+VDC
4.9
5
5.1
V
3
output Current
PWR
0.05
2
2.6
A
4
Isolation Voltage
VISO
1.5
KV
5
Ripple Output Noise
VRN
120
mVp-p@2A
6
Storage Temperature
Tj
-40
25
85
℃
7
Operating Temperature
Tstg
-40
25
80
℃
