Сепаратор литий-ионной батареи для обменной мембраны 25 мкм
US $1.00-$4.00
Вращающиеся промышленные центробежные фильтры из нержавеющей стали марки
- Категория: >>>
- Поставщик: Xinxiang,Yuecheng,Machinery,Co.,ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.65 $* | 0.68 $* |
| Aug-18-2025 | 0.81 $* | 0.21 $* |
| Jul-18-2025 | 0.41 $* | 0.66 $* |
| Jun-18-2025 | 0.64 $* | 0.18 $* |
| May-18-2025 | 0.13 $* | 0.37 $* |
| Apr-18-2025 | 0.49 $* | 0.33 $* |
| Mar-18-2025 | 0.85 $* | 0.4 $* |
| Feb-18-2025 | 0.81 $* | 0.86 $* |
| Jan-18-2025 | 0.59 $* | 0.43 $* |
Характеристики
Working principle:

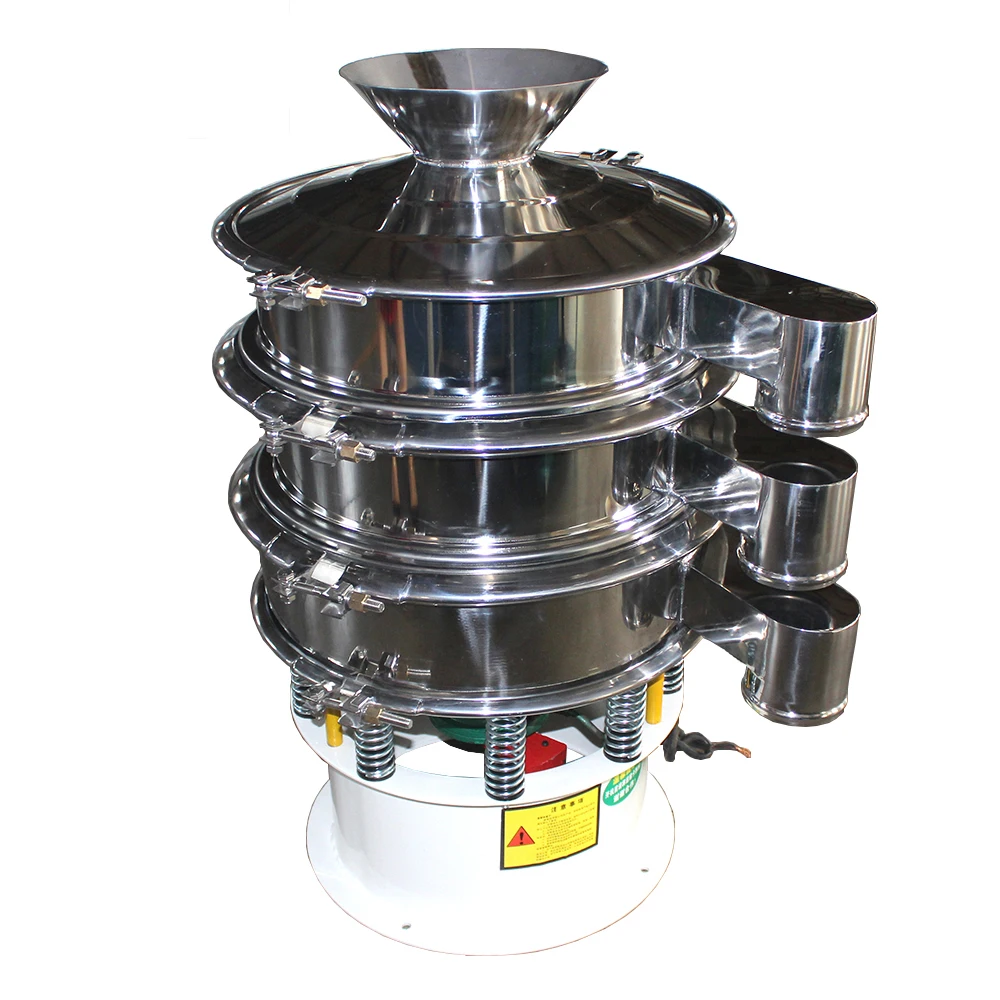

Vertical motor is used as the excitation source, and the upper and lower ends of the motor are installed with eccentric weight which can transform the rotation force of the motor into horizontal, vertical, and inclined directions, meanwhile transfer this motion to the screen surface, then the screen drive the material do same motion as sieve do, it is also called rotary vibrating screen.
Adjust the phase angle of the upper and lower counterweight to change the trajectory of material on the screen.
Adjust the phase angle of the upper and lower counterweight to change the trajectory of material on the screen.
Feature.
1.The parts in contact with the material can be made of high-quality Q235 carbon steel, stainless steel 304, stainless steel 316L
2.The unique automatic flanging design prevents the storage of materials between the mesh frame and the screen frame, which is especially suitable for food, medicine and other industries.
2.The unique automatic flanging design prevents the storage of materials between the mesh frame and the screen frame, which is especially suitable for food, medicine and other industries.
3.Discharge port can be adjusted in 360 degrees. machine structure has no dead ends, easy to clean and disinfect thoroughly.
4. The mesh can be customer made, 500 mesh is available, slurry filtration can reach 25 microns. 5. Special grid design. It can be used in single or multiple layers.
6. The screening process is fully enclosed, no powder and liquid spillage, production environment highly improved.
4. The mesh can be customer made, 500 mesh is available, slurry filtration can reach 25 microns. 5. Special grid design. It can be used in single or multiple layers.
6. The screening process is fully enclosed, no powder and liquid spillage, production environment highly improved.
7.The machine is automatic operation, no specialties required, easy assemble and disassemble, suitable for assemble line production.
Parameters:
Model No. | Power(Kw) | Screen surface diameter (mm) | Effective area (m2) | Dimension (mm) | Layer |
SC-600-1S SC-600-2S SC-600-3S | 0.55 | 550 | 0.2374 | 800*800*680 800*800*780 800*800*880 | 1-3 |
SC-800-1S SC-800-2S SC-800-3S | 0.75 | 750 | 0.4415 | 900*900*780 900*900*930 900*900*1080 | 1-3 |
SC-1000-1S SC-1000-2S SC-1000-3S | 0.75 | 950 | 0.7084 | 1160*1160*880 1160*1160*1030 1160*1160*1180 | 1-3 |
SC-1200-1S SC-1200-2S SC-1200-3S | 1.5/2.2 | 1150 | 1.0380 | 1360*1360*980 1360*1360*1160 1360*1360*1360 | 1-3 |
SC-1500-1S SC-1500-2S SC-1500-3S | 1.5/2.2 | 1450 | 1.6500 | 1850*1850*1130 1850*1850*1330 1850*1850*1550 | 1-3 |
SC-1800-1S SC-1800-2S SC-1800-3S | 2.2 | 1750 | 2.4041 | 1-3 |
Application
l: Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder
lI: Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce, syrup
lII: Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder.
lV: Medicinal industry: all kinds of medicine
V: Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon
lI: Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce, syrup
lII: Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder.
lV: Medicinal industry: all kinds of medicine
V: Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon
Title goes here.
Xinxiang Yuecheng Machinery Co., LTD is a standardized enterprise, specializing in kinds of vibrating screen equipment.
Our main products are three dimensional vibration sieve, linear vibrating screen, ultrasonic vibrating screen,
Tumbler sieve,airflow sieve high frequency sieve, sieve, strokes, mud testing screen, vibration motor, conveyor and other
mechanical equipment vibration.
In addition to the conventional series of products, but also provide customers with personalized products and equipment type selection service, widely used in food, medicine, chemical industry, resin, ceramic, metal powder mining and metallurgy, paper-making, ore processing and other industries
Our main products are three dimensional vibration sieve, linear vibrating screen, ultrasonic vibrating screen,
Tumbler sieve,airflow sieve high frequency sieve, sieve, strokes, mud testing screen, vibration motor, conveyor and other
mechanical equipment vibration.
In addition to the conventional series of products, but also provide customers with personalized products and equipment type selection service, widely used in food, medicine, chemical industry, resin, ceramic, metal powder mining and metallurgy, paper-making, ore processing and other industries
Export wooden case.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.
FAQ
Q:What factors I need to get a quotation?
A: Material bulk density, mesh size,deck numbers & ideal capacity for proper type, granularity distribution is recommended.
product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of
Sanchen for most of our customers at home or abroad.Skilled workers and strict quality control system can ensure every machine with best working performance.
Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of
cost.(note: Vulnerable parts do not include.)
Q: How could I trust your promise?
A: Firstly, you may check the assessment on our website certified by the appraisal agency Bureau Veritas;
Secondly, we attend at least 4 to 6 international industry exhibitions held in China annually, like the Food Ingredients China,
China International Battery Fair, CPhI, ICSE BioPh China, ICIF China, etc. We usually met our customers there for negotiation;
Thirdly, company inspection always available, if you have any representative or you would like to come to our site, we offer free shuttle from Zhengzhou airport to our company, welcome your visit.
A: Material bulk density, mesh size,deck numbers & ideal capacity for proper type, granularity distribution is recommended.
product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of
Sanchen for most of our customers at home or abroad.Skilled workers and strict quality control system can ensure every machine with best working performance.
Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of
cost.(note: Vulnerable parts do not include.)
Q: How could I trust your promise?
A: Firstly, you may check the assessment on our website certified by the appraisal agency Bureau Veritas;
Secondly, we attend at least 4 to 6 international industry exhibitions held in China annually, like the Food Ingredients China,
China International Battery Fair, CPhI, ICSE BioPh China, ICIF China, etc. We usually met our customers there for negotiation;
Thirdly, company inspection always available, if you have any representative or you would like to come to our site, we offer free shuttle from Zhengzhou airport to our company, welcome your visit.
