Характеристики
Specification
Product Name: | Ultra Low Liquor Ratio Jet Dyeing Machine |
Machine capacity: | 200kg-1200kg |
Liquor ratio starts at: | 1:4.5 |
Max temperature: | 140℃ |
Material: | Stainless Steel |
Heating mode | Steam |
Product Description

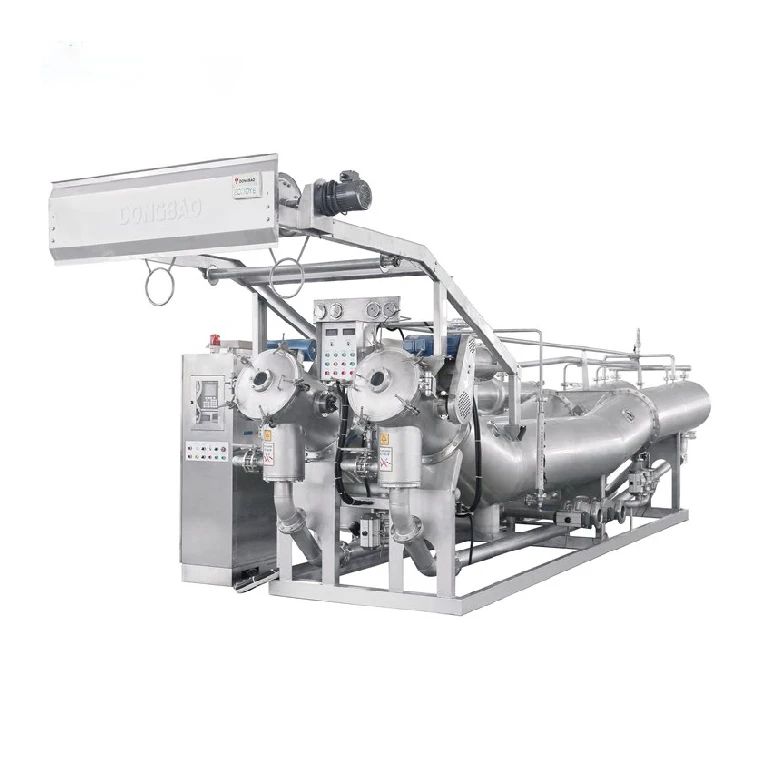

Ultra Low Liquor Ratio Jet Dyeing Machine
Product Description
The innovative JED PRO ultra low liquor ratio jet dyeing machine is a high temperature high pressure jet dyeing machine. This new design with its swimming material transport and low tension of the goods avoids crease marks and provide high quality for a wide range of fabrics: Polyester, Rayon, Nylon, Cotton, tencel, T/R, T/C and many more.
High efficient and economic, the JED PRO type HTHP jet dyeing machine saves over 30% water, 30% auxiliaries and steam compare to traditional jet dyeing machines.
Special Features
- Innovative machine body, ensures a very low liquor ratio and saves up to 1/3 water, auxiliaries & steam compare to traditional jet dyeing machines
- Ultra low lifting reel for very low tension of the fabric
- Fabric opening device to avoid crease marks
- Anti-twisting device
Technical Details
- Main tank & liquor carrying parts are made of stainless steels 316L
- Chamber capacity around 250 kg
- Available with up to 4 chambers per machine
- Liquor ratio starts at 1:4.5
- Fabric winch drive max. 600m/min, depending on fabric properties
- Adjustable winch speed
- Maximum operating temperature 140℃
- Touch screen controller
- Electro-pneumatic operated valves
- Frequency controlled pump motor & winch
- Control cabinet in stainless steel
- Adjustable nozzle pressure
- Adjustable round nozzle
- Automatic seam detector
- Rope circulation control
- Water meter Fully automatic dosing
- Unloading winch & plaiter
Optional
- Second service tank
- 100% Hot water stock tank, preparation of the complete process bath
- Auto self-cleaning filter
- Fast dosing system, bypass function
Product Description
The innovative JED PRO ultra low liquor ratio jet dyeing machine is a high temperature high pressure jet dyeing machine. This new design with its swimming material transport and low tension of the goods avoids crease marks and provide high quality for a wide range of fabrics: Polyester, Rayon, Nylon, Cotton, tencel, T/R, T/C and many more.
High efficient and economic, the JED PRO type HTHP jet dyeing machine saves over 30% water, 30% auxiliaries and steam compare to traditional jet dyeing machines.
Special Features
- Innovative machine body, ensures a very low liquor ratio and saves up to 1/3 water, auxiliaries & steam compare to traditional jet dyeing machines
- Ultra low lifting reel for very low tension of the fabric
- Fabric opening device to avoid crease marks
- Anti-twisting device
Technical Details
- Main tank & liquor carrying parts are made of stainless steels 316L
- Chamber capacity around 250 kg
- Available with up to 4 chambers per machine
- Liquor ratio starts at 1:4.5
- Fabric winch drive max. 600m/min, depending on fabric properties
- Adjustable winch speed
- Maximum operating temperature 140℃
- Touch screen controller
- Electro-pneumatic operated valves
- Frequency controlled pump motor & winch
- Control cabinet in stainless steel
- Adjustable nozzle pressure
- Adjustable round nozzle
- Automatic seam detector
- Rope circulation control
- Water meter Fully automatic dosing
- Unloading winch & plaiter
Optional
- Second service tank
- 100% Hot water stock tank, preparation of the complete process bath
- Auto self-cleaning filter
- Fast dosing system, bypass function
Technical Specifications
Model Item | JED PRO I | JED PRO II | JED PRO IV | Blower Power(kw) | ||||
Max Pressure（kg/cm²） | 4 | 4 | 4 | |||||
Max Temperature（℃） | 140 | 140 | 140 | 15 | ||||
Capacity（kg） | 125-250 | 250-500 | 500-1000 | 18.5 | ||||
Main Pump Power（kw） | 15 | 37 | 55 | 45 | ||||
Fabric Speed（m/min） | 150-600 | 150-600 | 150-600 | 75 | ||||
Dimension | Length | L1 | 9140 | 9140 | 9140 | |||
L2 | 10800 | 10800 | 10800 | |||||
Width | W | 1520 | 2680 | 5120 | ||||
Height | H1 | 1720 | 1720 | 1720 | ||||
H2 | 3060 | 3060 | 3060 | |||||
Note: Specifications of above machines are only for reference. The company reserves the right of alteration.
