Характеристики

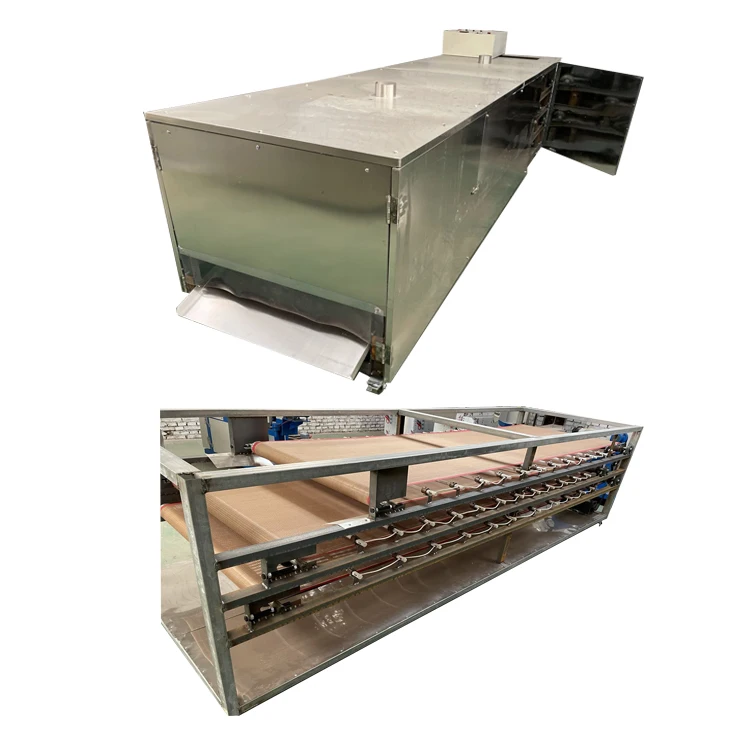

Industrial dry pet food belt dryer drying machine
Product Description
Industrial dry pet food belt dryer drying machine dryer is a continuous drying equipment for mass production. It is used for drying flake, strip, granular and partial paste materials with good air permeability.
It is especially suitable for materials with high moisture content and heat sensitivity such as dehydrated vegetables and Chinese herbal medicine pieces. It has the advantages of high drying rate, high evaporation intensity, and good product quality.
The belt dryer is composed of conveying device, drying box, frame, air supply device, variable speed transmission device, dehumidification device, waste heat recovery device, electric control cabinet, vibrating screen and so on.
There are multiple sets of stainless steel mesh belts running back and forth in the drying box, and the box body is composed of metal components with built-in thermal insulation materials. The material is sent to the mesh belt on the top layer of the drying box through the conveying device, and it rotates in opposite directions. The material falls from the upper layer to the lower layer one by one, and is discharged from the discharge port by the last layer of the mesh belt.
When the material to be dried is running in the box, the hot air flows through the mesh belt from top to bottom to fully contact with the material to exchange mass and heat to achieve the purpose of drying the material.
Under normal circumstances, the main body is a stainless steel mesh belt with a penetration rate of about 70%, and the hot air flow penetrates the material almost vertically, so the heat exchange is relatively sufficient.
The air medium is divided into upper, middle and lower layers to contact the materials, and the upper layer is the high-temperature air flow in contact with the materials with high moisture content, so that it can achieve the purpose of rapid dehydration;
The wet material is evenly distributed on the conveyor belt by the feeding device, and the conveyor belt is driven by the speed regulating device to make the dried material move from the feeding end to the discharging end. The dry air is conveyed by a fan, passing through the material layer from top to bottom or bottom to top. After drying, the humidity of the air increases, part of which is discharged from the drying box, and the other part is mixed with fresh air. After being heated to the required temperature by the heater, it passes through the material layer vertically from the upper part, and the dried product is discharged from the material mouth discharge.
Belt dryers are widely used in food, chemical fiber, forestry, pharmaceutical, leather and chemical industries, and are especially suitable for drying granular, flake and fibrous materials.
Product Advantages

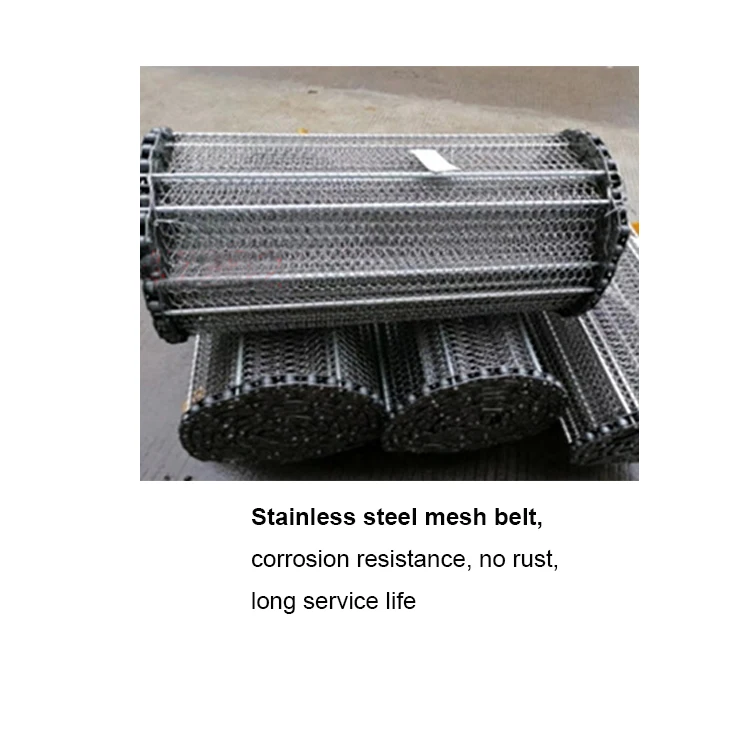

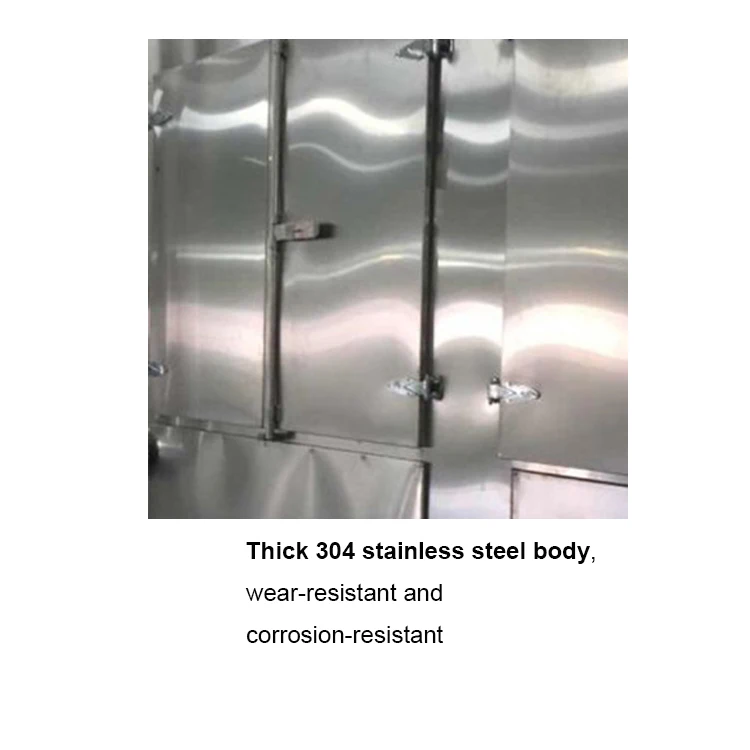

1.Stainless steel material, wear-resistant and corrosion-resistant
2.Machine size, function, material, etc. can be customized on demand

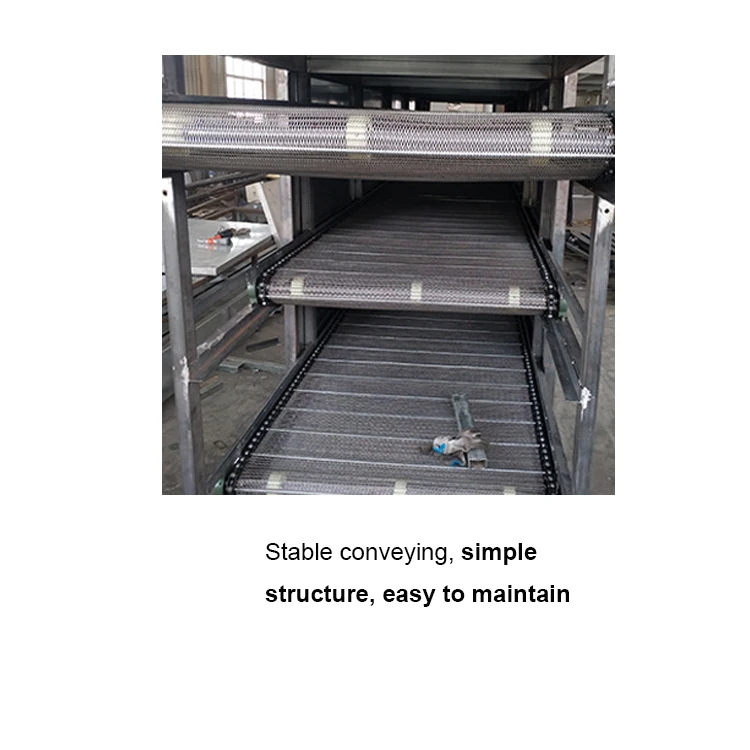

3.Stable conveying, simple structure, easy to maintain
4.Multi-layer mesh belt, high drying efficiency
5.The air volume, heating temperature, material residence time and feeding speed can be adjusted to achieve the ideal drying effect
6.The equipment configuration is flexible, and the mesh belt washing system and material cooling system can be used
7.Most of the air is recycled, highly energy saving

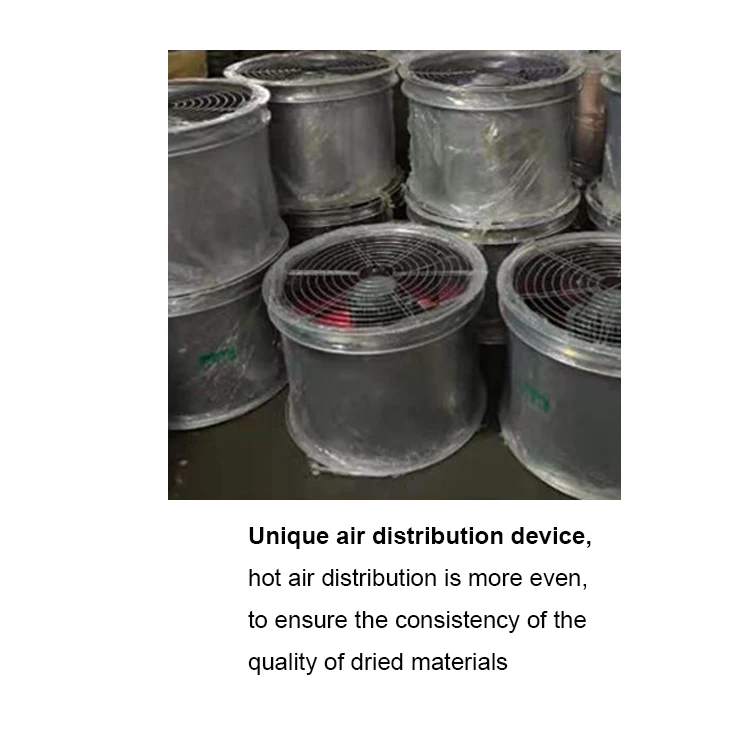

8.Unique air distribution device, hot air distribution is more even, to ensure the consistency of the quality of dried materials
9.The heat source can be matched with steam, heat transfer oil, electricity, coal-fired hot blast stove
10.High drying efficiency, low energy consumption, stable operation
11.The whole machine is easy to operate and easy to clean
86% Visitors Enquired Us and Got the Following Gifts Freely:
1. 2021 Full Catalogue
2. 2021 Full Price List
3. Technical Brochure
4. Operation Manual
5. A Surprising Discount
6. Some Free Accessories
Specification
Model | Capacity | Power | Weight | Dimension |
Three-layer electrical dryer | 150kg/h | 18KW | 500KG | 5000*1300*1500MM |
Note:For more models, please contact us
Packing & Delivery
1. 5 layers of plastic film wrapped around the body to prevent moisture and rain during transportation
2. Export thick wooden box, 5-15 cm thick, to ensure the safety of the machine during transportation
3. Trucks and centralized boxes directly transport the machines from the factory to the port for loading
2. Export thick wooden box, 5-15 cm thick, to ensure the safety of the machine during transportation
3. Trucks and centralized boxes directly transport the machines from the factory to the port for loading
Establish cooperation with dozens of logistics companies,goods can be transported by sea,rail and air,to ensure timely delivery to customers.
86% Visitors Enquired Us and Got the Following Gifts Freely:
1. 2021 Full Catalogue
2. 2021 Full Price List
3. Technical Brochure
4. Operation Manual
5. A Surprising Discount
6. Some Free Accessories
Company Profile
Founded in 2010, Anyang Ainuok Machinery Equipment Co., Ltd is specialised in the research&development, production and sales of Food Machinery for more than 10 years. The products include Bone grinder,Mixer machine,Food Extruder machine,Flavoring machine,Dryer,Meat processing machine,Fryer machine,Packing machine,etc.
We have got quality certifications of ISO9001, SGS, and CE etc. Machine color, logo, design, package, carton mark, and manual etc can be customized! With production ability of 5000 sets per month, AINUOK is the largest Food Machinery factory in China.
Bone Crusher Machine, Food Extruder Machine, Meat Processing Machine and Packing Machine etc have been exported England, Russia, Sweden, Poland, Romania, Malaysia, Indonesia, Vietnam etc 120 countries and districts. Warmly welcome clients at home and abroad to visit AINUOK company.
Our team
Customer visit
Certificate
Feedbacks
86% Visitors Enquired Us and Got the Following Gifts Freely:
1. 2021 Full Catalogue
2. 2021 Full Price List
3. Technical Brochure
4. Operation Manual
5. A Surprising Discount
6. Some Free Accessories
FAQ
Q:Are you a trade company or a manufacturer?
A:We are a manufacturer,welcome to visit our factory and feel machine quality.
Q: Can the logo or company name to be printed on the products or package?
A: Sure. Customer's logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
Q: What is the guarantee time ?
A: Guarantee time is for one year from Machine arrive customer sea port.
Q: After guarantee time, if we need spare parts, can you provided it ?
A: Yes,we can provide spare part with a low price.
Q:Will you send engineers to install production line in customer plant?
A:Yes, We have 15 after-sales engineers to serve our customers,but installation will have extra cost payable by the customer.
A:We are a manufacturer,welcome to visit our factory and feel machine quality.
Q: Can the logo or company name to be printed on the products or package?
A: Sure. Customer's logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
Q: What is the guarantee time ?
A: Guarantee time is for one year from Machine arrive customer sea port.
Q: After guarantee time, if we need spare parts, can you provided it ?
A: Yes,we can provide spare part with a low price.
Q:Will you send engineers to install production line in customer plant?
A:Yes, We have 15 after-sales engineers to serve our customers,but installation will have extra cost payable by the customer.
Q: Which kind of package you will use ?
A: For export , we usually use plywood box. which meet export standard.
A: For export , we usually use plywood box. which meet export standard.
