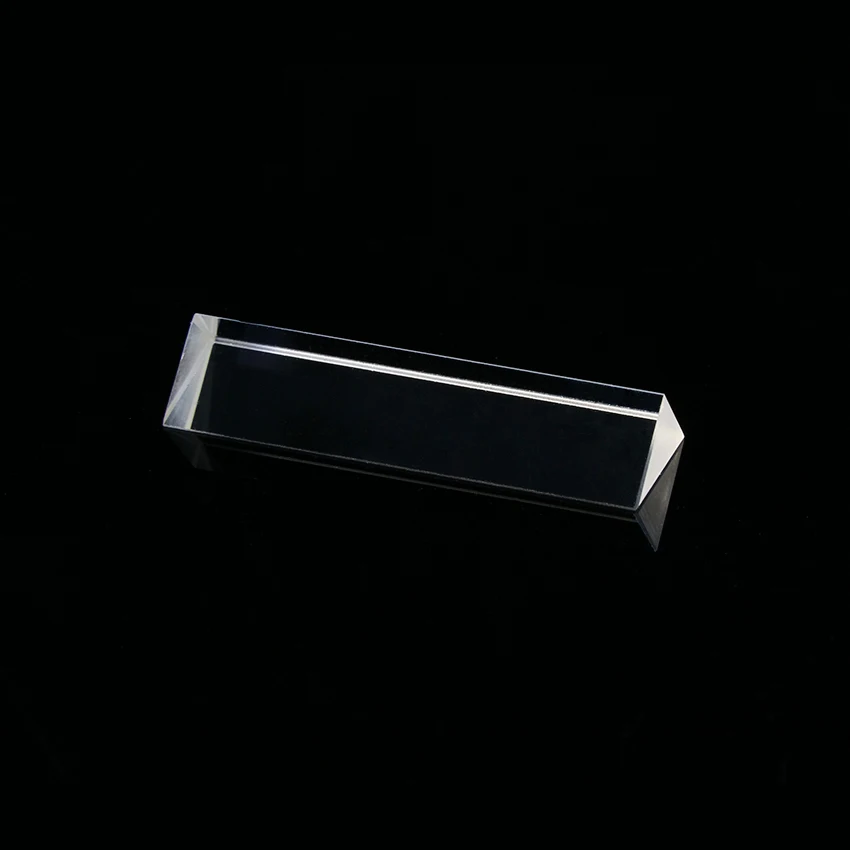

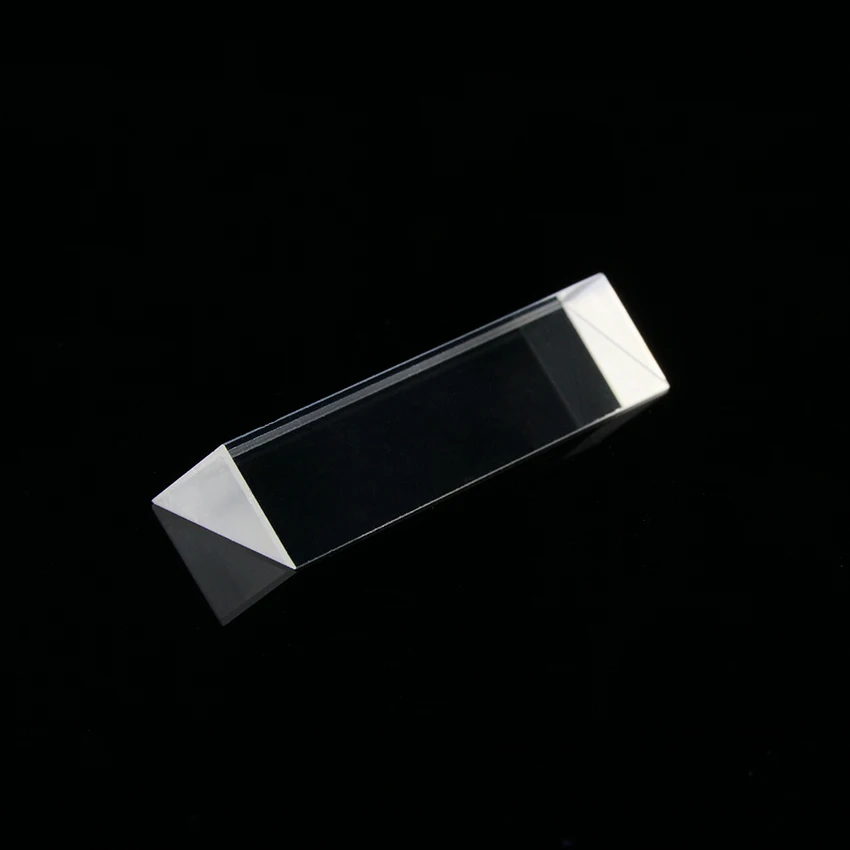

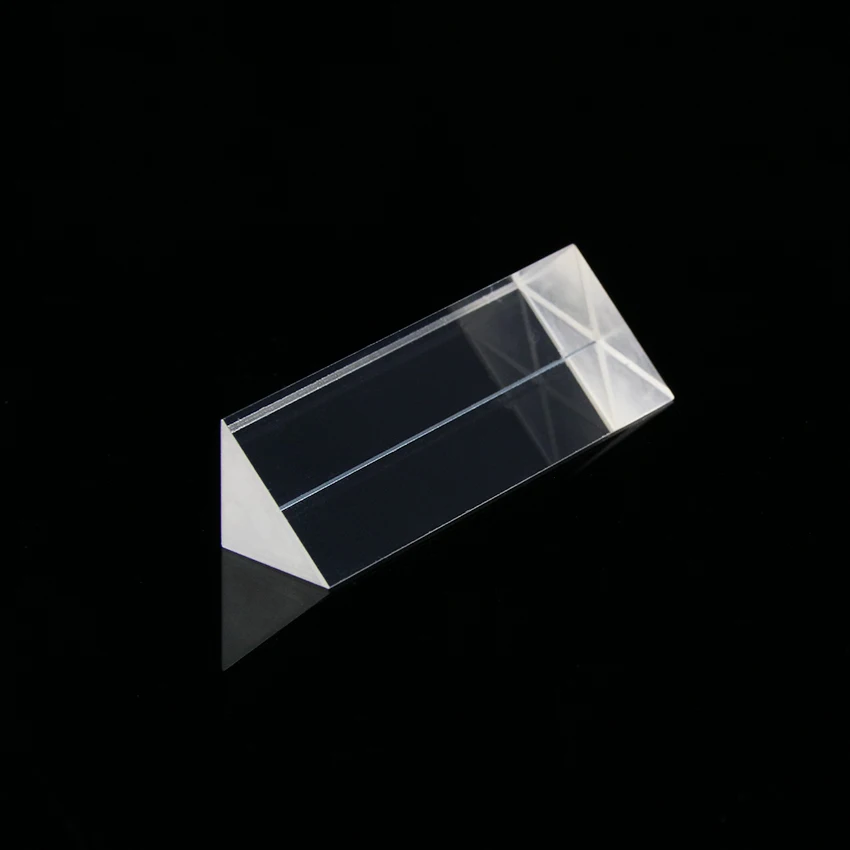

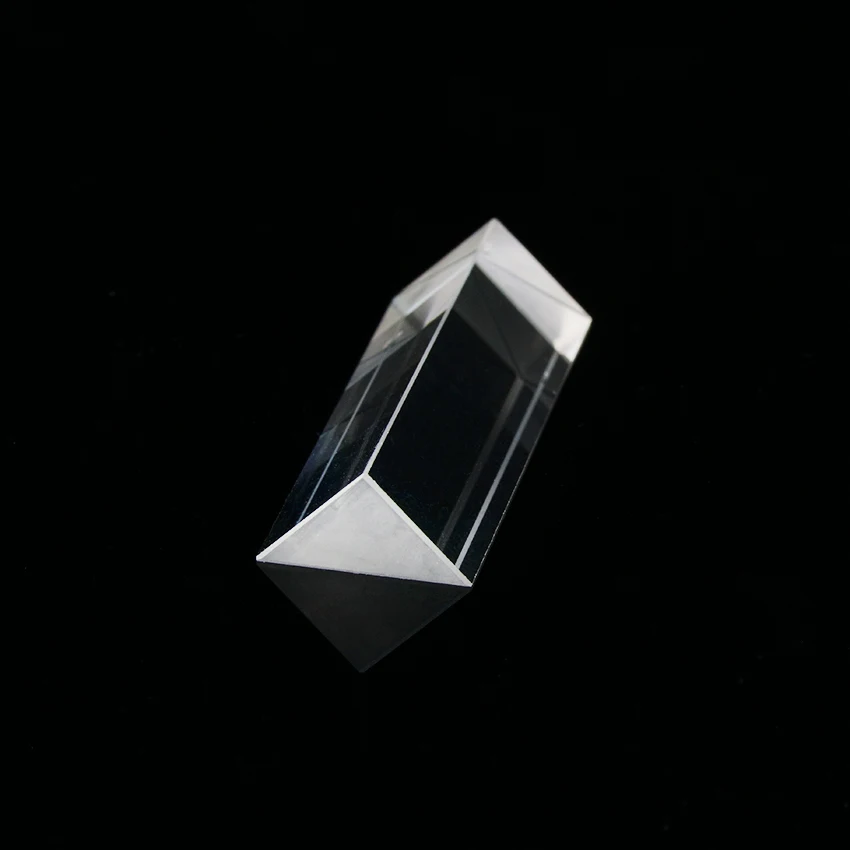

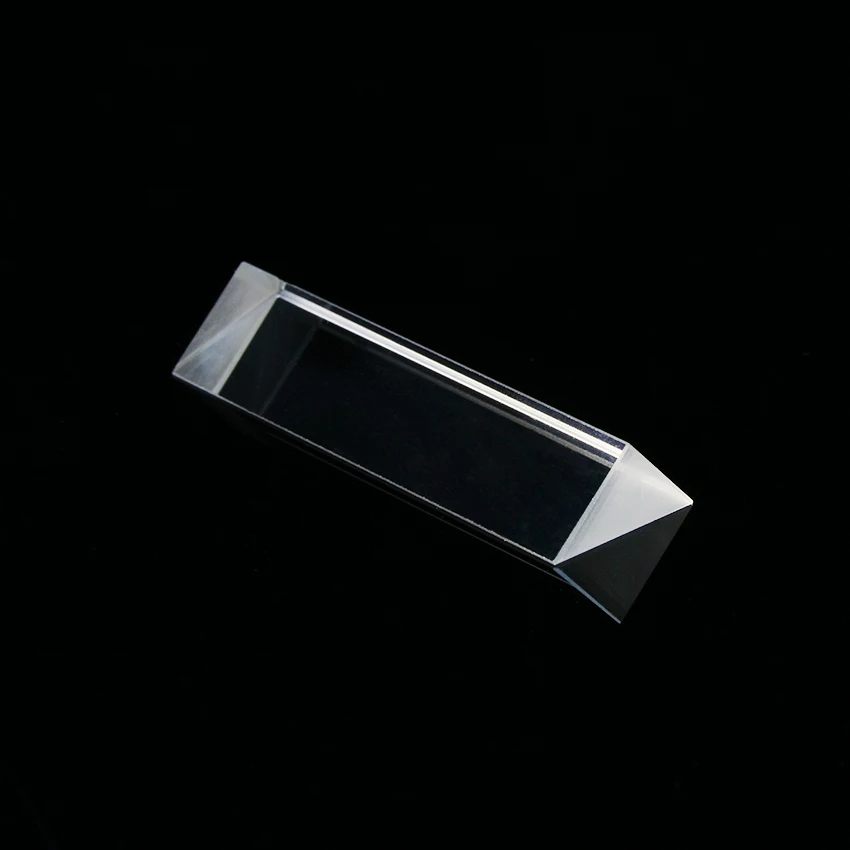

Хит продаж отражатель 10*10*40 мм стеклянная треугольная линза призма

 Optoical Glass Lens Parameters

Powell  Prism

     Right angle prisms are generally used to bend image paths or redirect light at 90°. This produces a left handed image and depending on the orientation of the prism, the image may be inverted or reverted. Right angle prisms can also be used in combination for image/beam displacement. N-BK7 Right Angle Prisms are made from precision N-BK7 for use in a variety of visible light applications.

Packaging:

Inner packing:Plastic dust-free vacuum packaging.

Outer packing:Shock absorption material, bubble wrap and corrugated tile carton box.

Or according to customer's requirements.

Delivery:

A.For samples, normally ship within 1-3 days after payment.

B.Samples or large order quantities will delivery by air DHL/EMS/TNT/FedEx/UPS/SF or by sea.We can arrange it for you if you have no preference on the express carrier.

C. Normally the samples or large order quantities will be shipped within 5 days after we received the payments,we are not responsible for any accidents,import duties or other import matters.For customized products need 7-30 days.

Cross line laser lens→powell lens→concave-convex lens→plano convex lens→optical glass lens→double convex lens→biconcave lens→double agglutination lens→window glass for protect lens→linear optical glass lens→dot laser→optical prism→spherical lens→collimating laser lens→conical mirror→cylindrical rod lens→aspherical lens→broadband electric lens→circular plano-convex cylindrical lenses and etc.

We service OEM or ODM,and also could design or make according to customer's draft drawing.

Details:

The Powell lens is an optical scribe prism,It enables the laser beam to be optimized to be a straight line with uniform optical density, good stability and straight line.The Powell prism is better than that of the cylindrical lens.Can eliminate the central hot spot and fade edge distribution of gaussian beam.Suitable for laser marking, line positioning, etc. From biomedicine and automobile assembly to chocolate biscuit production.IT’S Ideal for Alignment and Machine Vision Applications.The light through the powell len is linear light.

Through an aspheric lens, Powell lens, the laser beam is uniform light density optimum straight, good stability was partitioned good linearity. Cylindrical lens Powell lens dash dash pattern than is, you can eliminate the hot spots or discoloration of the edge of the logistics center of the Gaussian beam.

• Use

• Laser scriber


• Machining scribe positioning


• reticle the target of building


• Laser scanning system


•  Powell lens 90º

If there is anything you are interested in, please click on my profile and contact me in time.
