Характеристики
Product Description
Main features:
1. Flash freezing of food products by immersing in a bath of -30 ℃ ethanol-based liquid
2. Freezing chamber volume: 100-1000 L
3. Freezing time: 5-30 min/batch
4. Freezing medium: -30 ℃ ethanol-based liquid
Working Principle:
SD series industrial liquid immersion freezer is designed for flash / quick freezing of food products, such as red meat, fish, poultry, fruits, vegetables etc.
Food products loaded by wire baskets are directly immersed in a bath of -30 ℃ ethanol-based liquid. Because of very high thermal conductivity and evenly freezing the products from all sides, the very short freezing time can easily surpasses the maximum temperature zone of crystallization -1 to -5 ℃ at a high speed. Thus, smaller ice crystals are formed, causing less damage to cell membranes. The original taste, nutrition and color can be perfectly preserved.

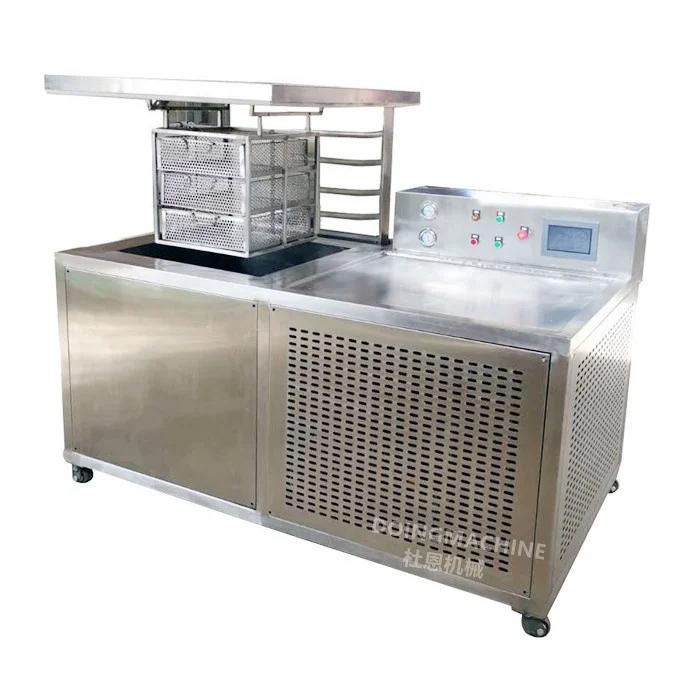

Batch freezer
Continuous tunnel freezer
Technical advantages
1) The flash/quick freezing process can perfectly preserve the original quality of food products.
2) Food product is submerged in -30 ℃ ethanol-based liquid, so the products are evenly frozen from all size with very high thermal conductivity.
3) The cooling medium (ethanol-based fluid) is food grade and can be recycled for very long time.
4) The ethanol-based fluid can sterilize the food packages at the same time.
5) Much easier process and low operation cost than freezers working with liquid nitrogen or dry ice.
Main Technical parameters
Model | SD-100 | SD-250 | SD-1000 | SD-5000 |
Operation type | Batch | Batch | Batch | Continuous |
Freezing chamber size mm | 980x300x320 | 600x700x600 | 1700x700x700 | 17000x1200x1400 |
Working volume L | 95 | 252 | 833 | 5000 |
Loading capacity kg/h | 5-10 | 30-50 | 150-200 | 500-1000 |
Working temperature ℃ | -10 to -40 | -10 to -40 | -10 to -40 | -10 to -40 |
Refrigerating output KW | 5 | 12 | 70 | 276 |
Total power KW | 3 | 7 | 30 | 120 |
Cooling medium kg | 75 | 200 | 750 | 4000 |
Outer dimension mm | 1230x760x1230 | 1800x1080x1230 | 2260x900x1000 2100x1000x1800 | 3200x1500x2400 |
Gross weight kg | 188 | 420 | 830 | 4000 |

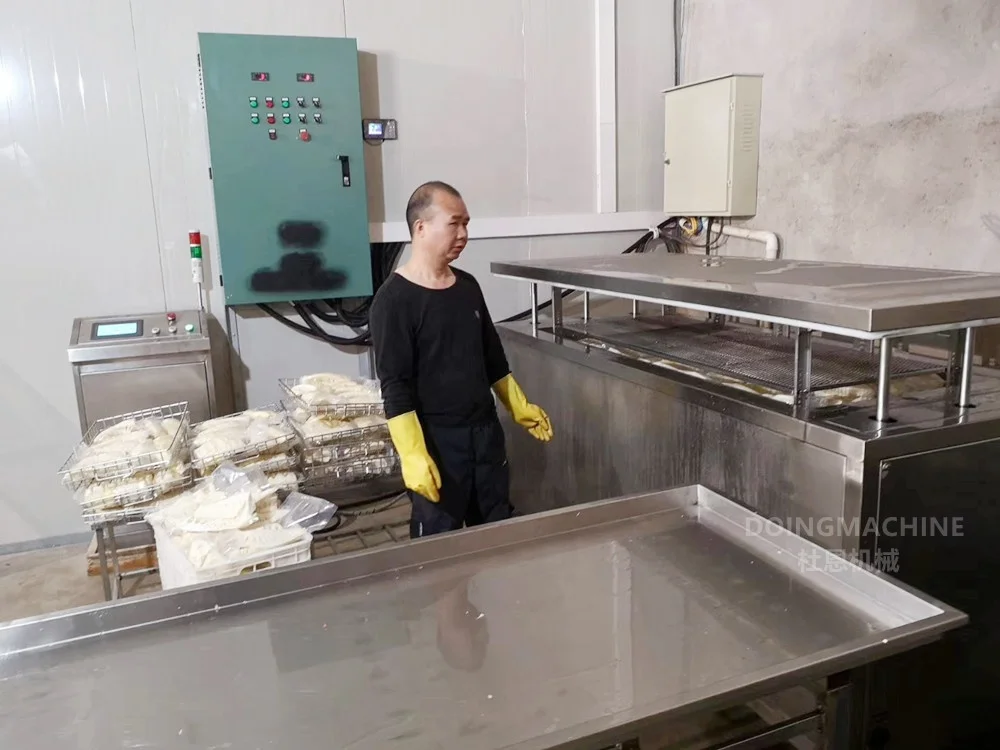

Installed projects
