Экструдер для пластиковых нитей с маленькой 3D печатью
US $400.00-$700.00
Greenplandplast пластиковый экструдер для изготовления труб
- Категория: Plastic Extruders >>>
- Поставщик: Zhangjiagang,Greenlandplast,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 40460.64 $* | 42483.22 $* |
| Aug-16-2025 | 40120.52 $* | 42126.58 $* |
| Jul-16-2025 | 33660.40 $* | 35343.56 $* |
| Jun-16-2025 | 39440.92 $* | 41412.80 $* |
| May-16-2025 | 34340.44 $* | 36057.57 $* |
| Apr-16-2025 | 38760.93 $* | 40698.0 $* |
| Mar-16-2025 | 38420.6 $* | 40341.17 $* |
| Feb-16-2025 | 38080.88 $* | 39984.30 $* |
| Jan-16-2025 | 37740.18 $* | 39627.39 $* |
Характеристики
Product Overview

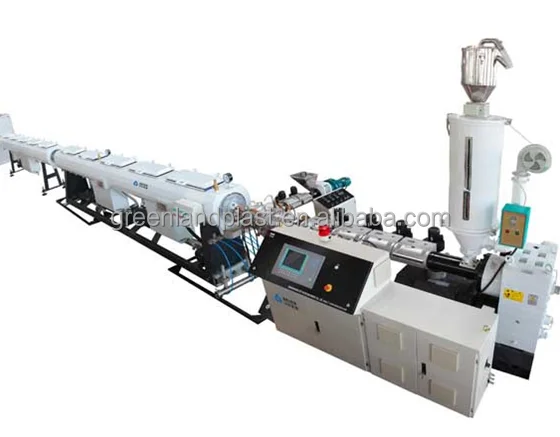

Greenlandplast Plastic Extruder Machine For PPR Pipe Making
PPR pipe production line is mainly used in the production of PPR cold &hot water pipe. The unit is composed of vacuum setting table, tractor, cutting machine, turning frame, etc. The single-screw extruder and traction machine adopt AC frequency conversion adjustment device, and the vacuum pump and traction motor adopt high-quality products. The unit has reliable performance and high production efficiency
FEATURES AT A GLANCE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | Pipe diameter (mm) | Main extruder | Co-extruder | Linear speed (m/min) | Max.ouput(kg/h) | Total power(kw) |
GLPPR-63 | 16-63 | SJ-65/33 | SJ-25X25 | 0.2-16 | 120 | 65 |
GLPPR-110 | 20-110 | SJ-65/33 | SJ-25X25 | 0.2-20 | 150 | 115 |
GLPPR-160 | 63-110 | SJ-75/33 | SJ-25X25 | 0.2-6 | 300 | 160 |
PRODUCT CONFIGURATION
Single screw extruder
38CrMoAl screw&barrel with nitrogen treatmentCast-Aluminum heating ,each heating zone is
controlled independently
equip with fan cooling for each heating zone
controlled independently
equip with fan cooling for each heating zone
Extrusion mold &die head
high quality 40Cr quality material mold

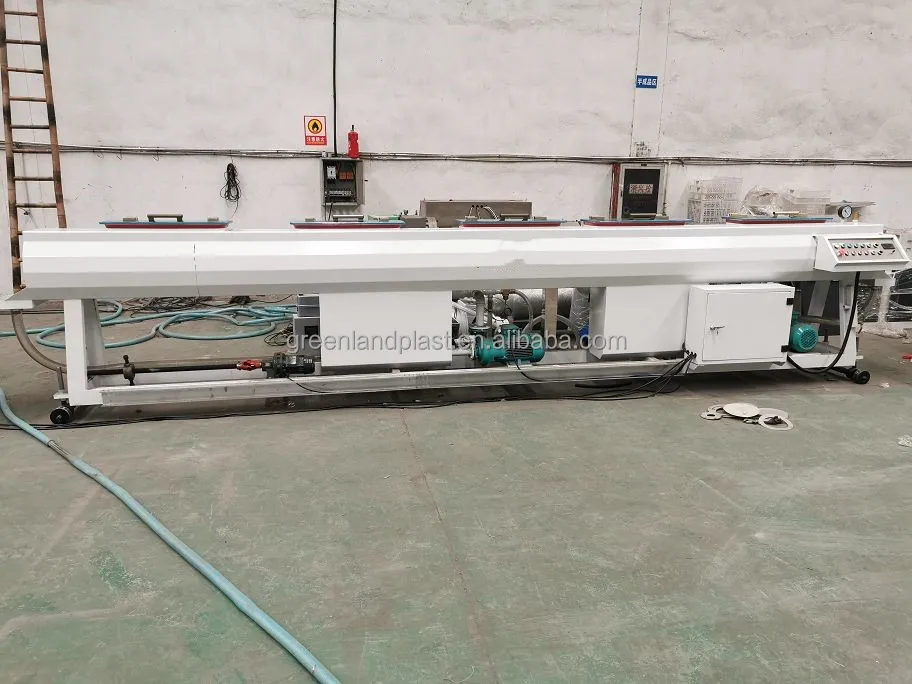

Vacuum forming tank
Stainless steel304 quality material
For forming &cooling pipe fast

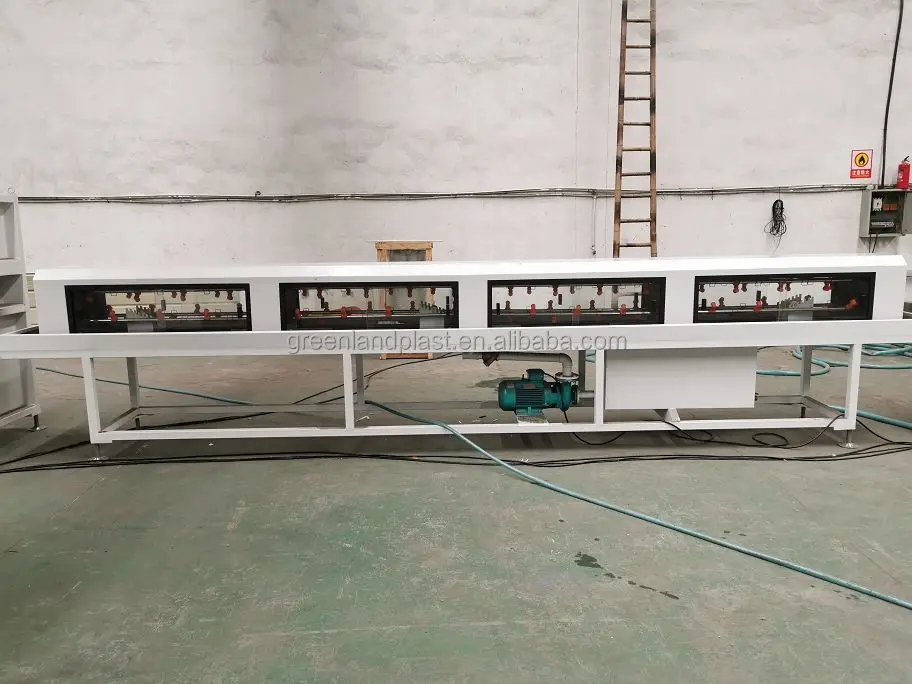

Water spray cooling tank
to cool pipe by water spraying ,stainless steel 304 quality material
Hauling Machine
frequency speed control ,pneumatic clamping

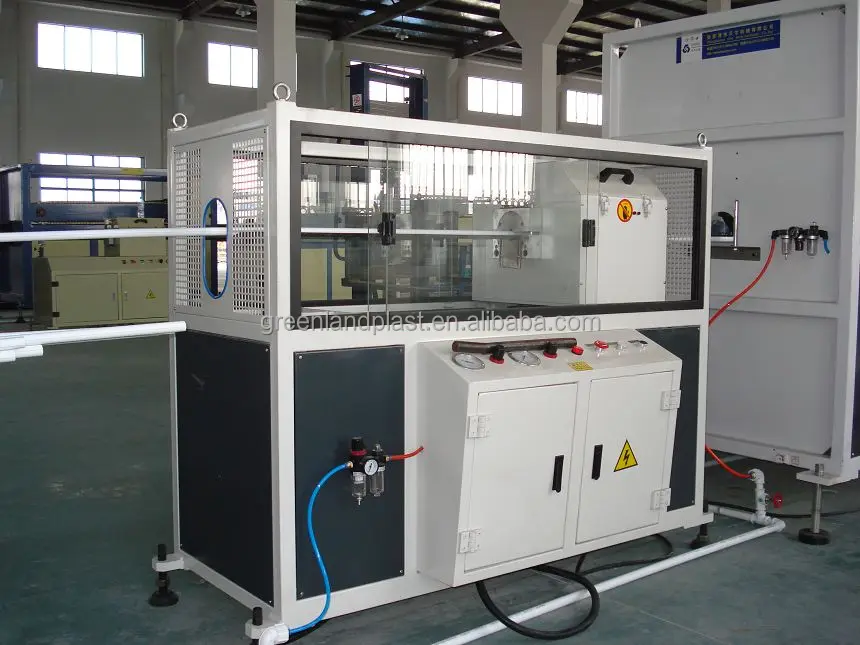

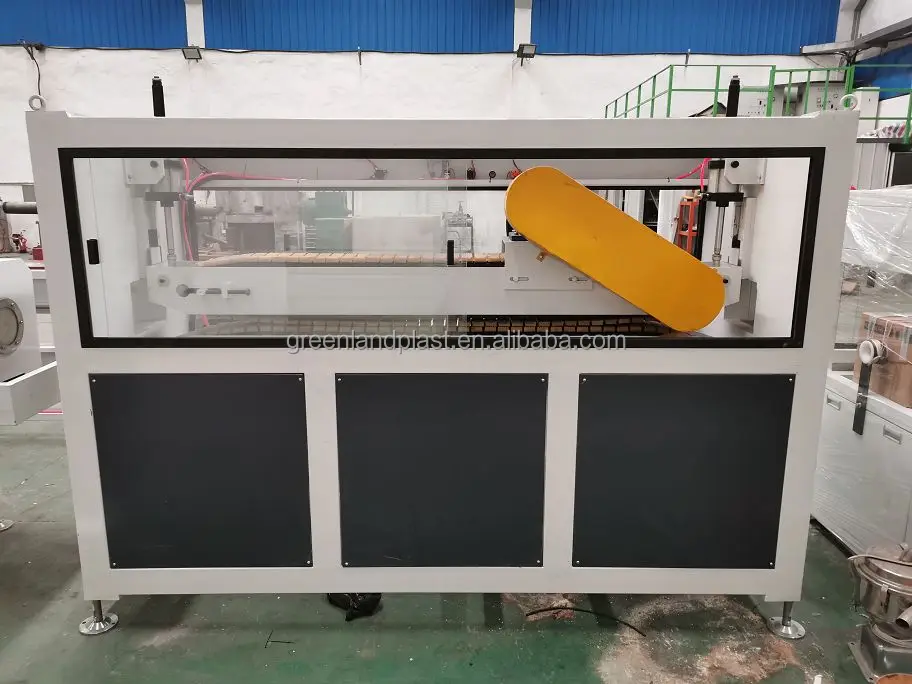

Dust-free cutter machine
dust-free, beautiful cutting edge
Double station winding/coiling machine
stainless steel304 ,pneumatic driven
Product packaging
SIMILAR PRODUCTS
Why Choose Us
Technical innovation ,Quality first
Greenlandplast Machinery pays attention to technology research & development and product quality. Based on the company's mature R&D design team, we carry out technical reforms on traditional plastic recycling equipment. It insists on high-quality configuration for each component and detail of the equipment, compared with traditional recycling equipment ,more stable, high performance and efficiency, increase the economic benefits of recycling manufacturers!
Offer different customers customized solutions of plastic recycling
Greenlandplast Machinery provides customized and integrated crushing washing and pelletizing solutions according to different recycling materials and capacity requirements of customers, which can help customers recycle various of materials and different pollution levels.Includ PET bottles, PP/PE Films/plastic bags/bottle, waste plastic packages agricultural film greenhouse film, jumpo bag, home appliance plastic, etc.
One-stop turnkey project concept
Since the customer consider setting up recycling project, we will design the most suitable production line process and installation plan according to the customer's capacity demand, workshop condition, etc. Our design and engineering team will provide customers with one-stop turnkey plastic recycling project. With complete pre-sale and after-sales service
Installation ,training & Good after-sales service
We have professional technicians who can come to customer's factory provide installation and commissioning, train operators, so that ensure the correct operation and maintenance of the equipment! We have dedicated after-sales personnel and spare parts warehouse to ensure the timely supply of some conventional accessories parts!
