Портативная плазменная машина с ЧПУ для двойной резки труб и пластин из
- Категория: Pipe Cutting Machines >>>
- Поставщик: Shandong,Jiaxin,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 4760.75 $* | 4998.45 $* |
| Aug-20-2025 | 4720.23 $* | 4956.58 $* |
| Jul-20-2025 | 3960.29 $* | 4158.18 $* |
| Jun-20-2025 | 4640.38 $* | 4872.2 $* |
| May-20-2025 | 4040.95 $* | 4242.30 $* |
| Apr-20-2025 | 4560.63 $* | 4788.99 $* |
| Mar-20-2025 | 4520.96 $* | 4746.79 $* |
| Feb-20-2025 | 4480.75 $* | 4704.40 $* |
| Jan-20-2025 | 4440.14 $* | 4662.36 $* |
Характеристики
CNC Plasma Flame Metal Automatic Pipe Cutting Machine Plasma Cutting Machine
parameter
New Portable type Plasma Metal Pipe cutter machine, CNC metal tube cutting machine
| Model | JX-1330GB | |
| 1 | Power source | AC 220±10%VAC 50/60Hz |
| 2 | Cutting mode | O2/C3H8 or C2H2 |
| 3 | Effective cutting range(mm) | 1300*3000 for metal sheets, 40--300mm diameter for tubes |
| 4 | Input Voltage | 220V, 50HZ |
| 5 | Length of tubes | Max. 3000mm |
| 6 | The ovality of tubes | Less than 2% |
| 7 | Cutting speed(mm/min) | 0-8000mm/min |
| 8 | Cutting thickness(Flame) | 6-160 mm (O2/C3H8 or C2H2) |
| 9 | Cutting thickness(Plasma) | According to plasma power source; |
| 10 | Move precision | ±0.2mm/m |
| 11 | Cutting system | Shanghai Fangling control system |
| 12 | Plasma source | Huayuan brand 40A--160A |
| 13 | Gas pressure(Mpa) | Max.0.1 |
| 14 | Oxygen pressure(Mpa) | Max.0.7 |
| 15 | Type of gas | C3H8 C2H2 |
| 16 | Emergency stop | Yes |
| 17 | Working temperature | -5~45℃ |
| 18 | Power | 8.5kw |
| 19 | ARC | Untouched arc striking |
| 20 | Processing Materials | Iron, steel aluminum sheets, galvanized sheets, Titanium plates and other kinds metal |
Applications
New Portable type Plasma Metal Pipe cutter machine, CNC metal tube cutting machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other non-ferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Suitable for sheet processing, do word, etc., and other advertising equipment (vacuum molding machine, engraving machine, slotting machine, etc.,) the formation of advertising word processing line. Dozens of times higher than that of traditional craft processing efficiency.
Main produce process
Samples show

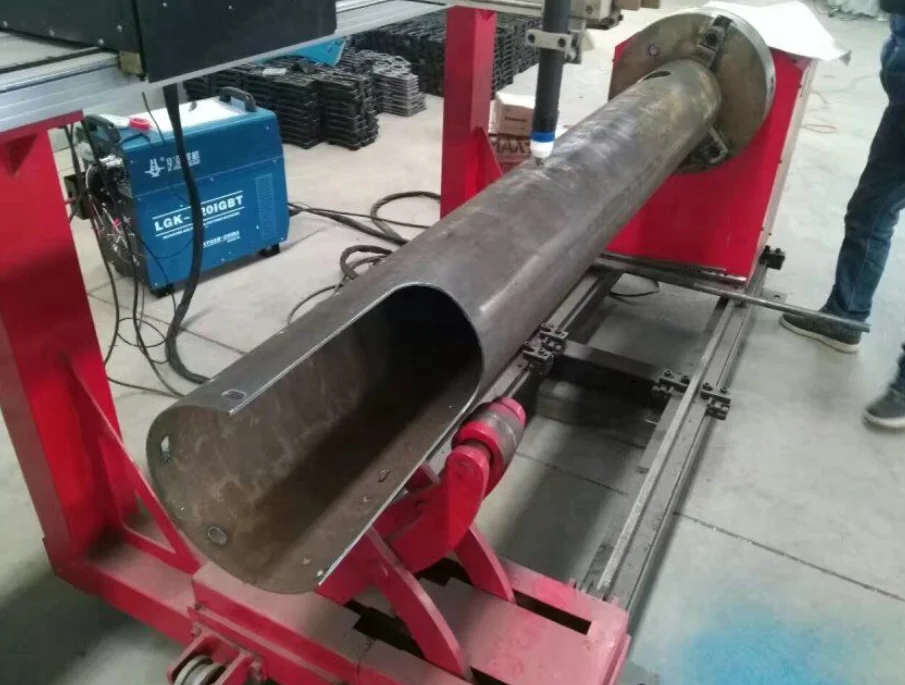

New Portable type Plasma Metal Pipe cutter machine, CNC metal tube cutting machine;
This machine could cut both metal tube and metal sheets.
Packing&shipping
FAQ
Q: What's the delivery time?
A: 10-15 working days to delivery port.
Q: What's the usually delivery terms?
A: FOB, CNF, CIF, Exworks will be OK.
Q: What's the MOQ?
A: 1 set.
Q: What’s the payment term?
A: We accept T/T, L/C or Cash.
Q: What's your delivery port?
A: Usually Qingdao port, Shanghai port.
Q: What's the packing?
A: Iron Pallet and Plywood cases or carton or depending on your requires.
Q: Can I change the motor to my local voltage and frequency, Is thereany extra charge?
A: Yes, we can supply motor with frequency and voltage according to local standard. Such as 220V/380V/410V/415V/440V, and 50HZ/60HZ without extra charge.
Q: Can you place OEM orders?
A: Yes,OEM orders are acceptable. We can manufacture machines according to your requirement with your design,logo,color,materials or brand information.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai.
