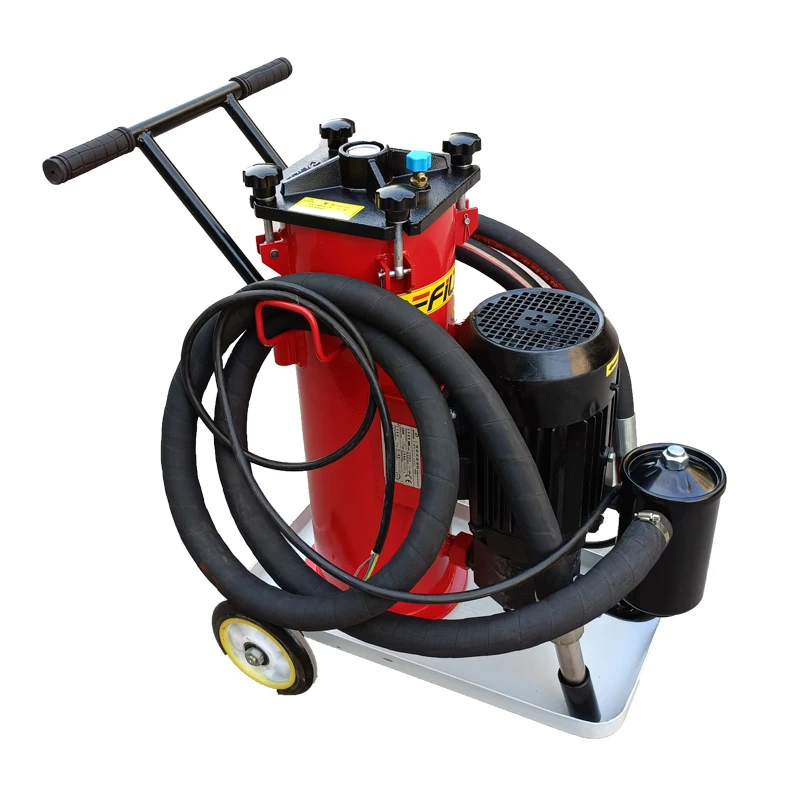

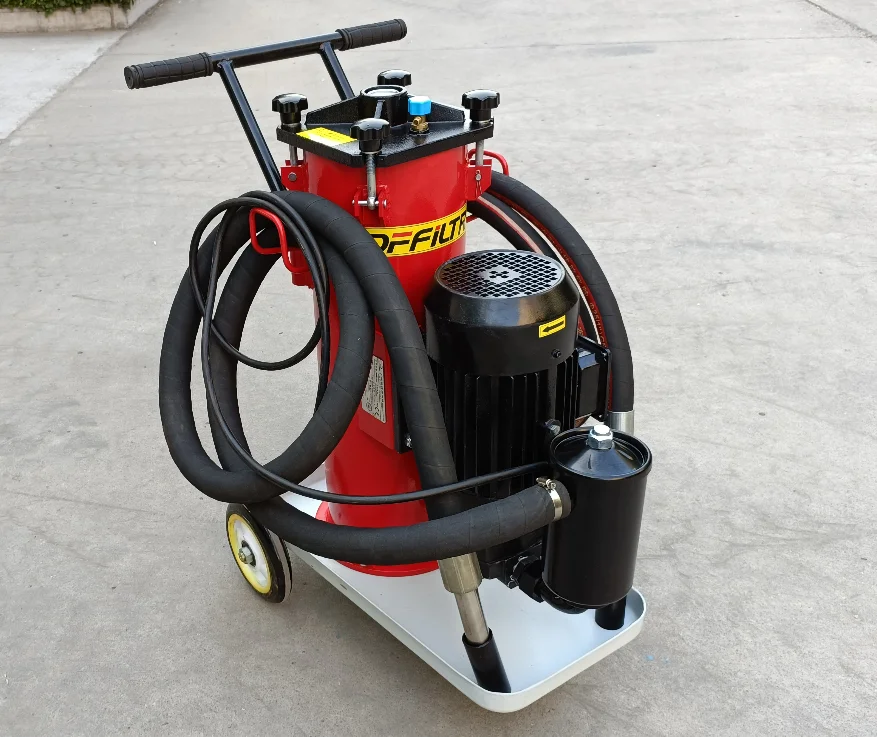

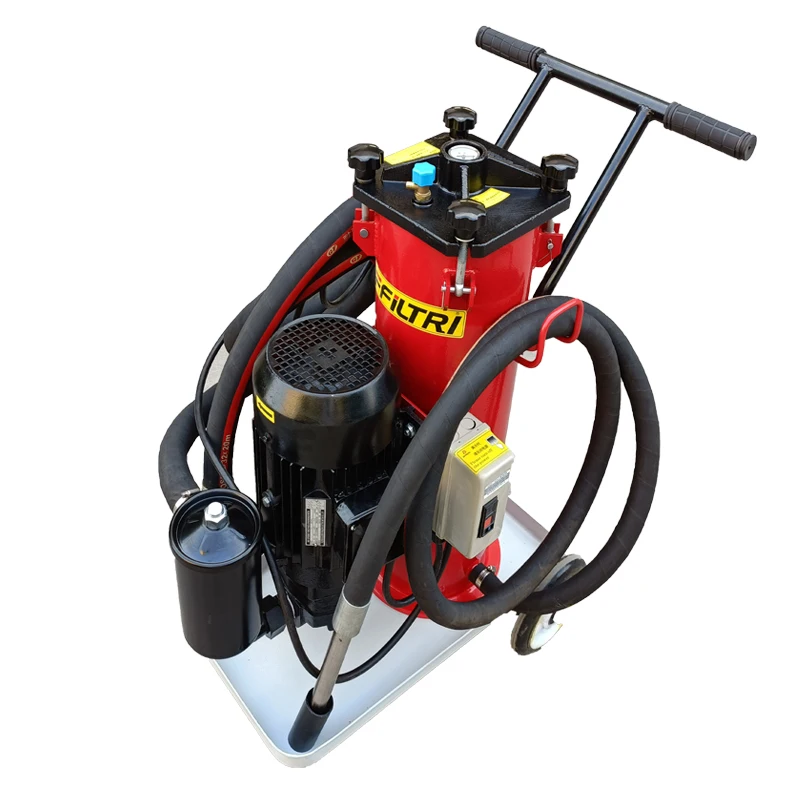

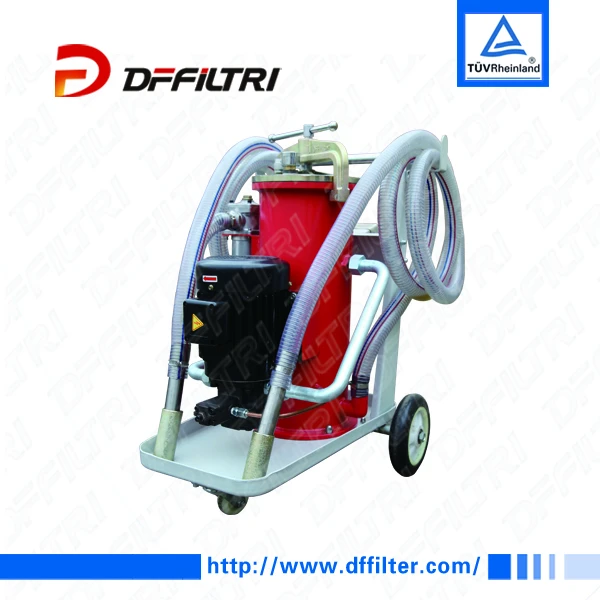

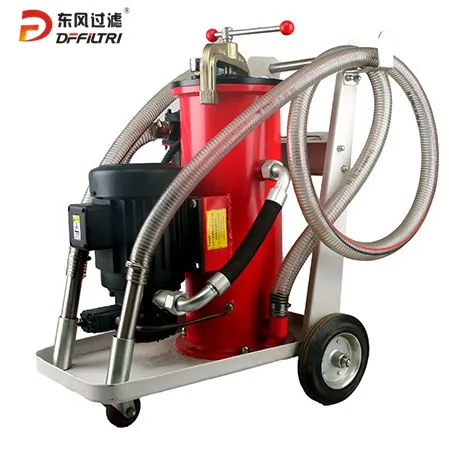

Гидравлический масляный насос с фильтром фильтр для
- Категория: Machine Oil Purifier >>>
- Поставщик: Xinxiang,Dongfeng,Filter,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.99 $* | 0.95 $* |
| Aug-17-2025 | 0.50 $* | 0.32 $* |
| Jul-17-2025 | 0.11 $* | 0.10 $* |
| Jun-17-2025 | 0.33 $* | 0.1 $* |
| May-17-2025 | 0.6 $* | 0.84 $* |
| Apr-17-2025 | 0.69 $* | 0.7 $* |
| Mar-17-2025 | 0.84 $* | 0.12 $* |
| Feb-17-2025 | 0.66 $* | 0.86 $* |
| Jan-17-2025 | 0.81 $* | 0.19 $* |
Характеристики
1. Flow rate:40; 50; 63; 100L/min
2. Filtration rating of line element (μm):3; 5; 10; 20....
3. Power of motor/voltage:1.5;2.2 KW/V
4. Filter Device Object:1.5 KW/380V
5. Features:High Efficiency
Model | DLYJ-40 | DLYJ-63 | DLYJ-100 | ||
Overall size L*W*H(mm) | 740*530*770 | 740*530*870 | 740*530*970 | ||
Drift diamter | （Inlet）DN32 （Outlet）DN25 | ||||
Total weight | 95Kg | 110Kg | |||
Rough filter element | DLYJX-110*100W | DLYJX-160*100W | |||
Fine filter element | DLYJX40-*BN | DLYJX60-*BN | DLYJX100-*BN | ||
Rated flow rate | 40 | 63 | 100 | ||
Working pressure | ≤0.6Mpa | ||||
Filtration rating of rough filter element | 100 | ||||
Filtration rating of fine filter element | 3、5、10、20 | ||||
Initial △P | ≤0.02Mpa | ||||
Motor power/voltage | 1.5KW/380V | 2.2KW/380V | |||
