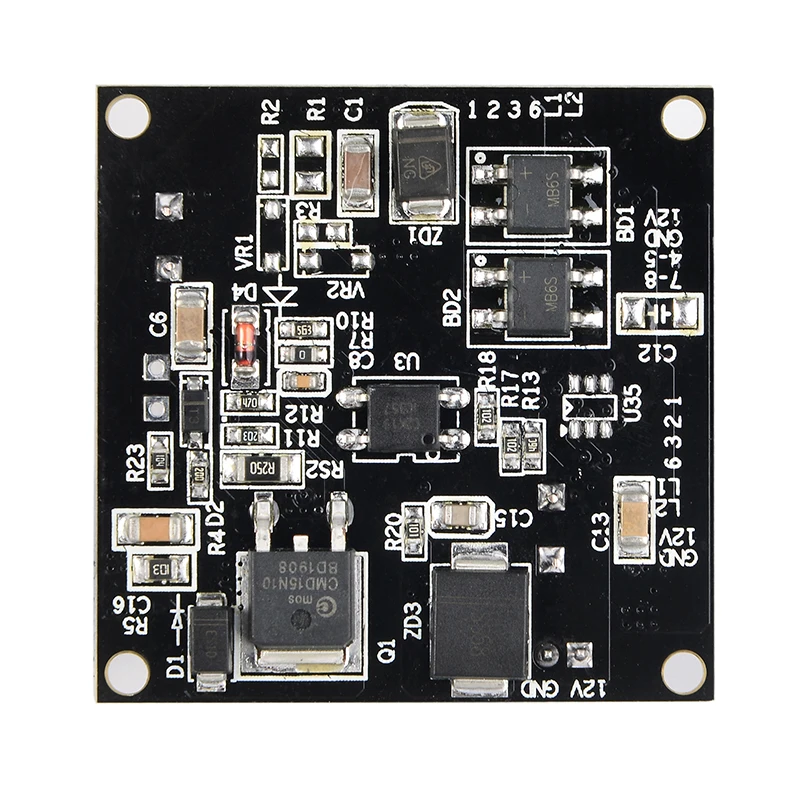

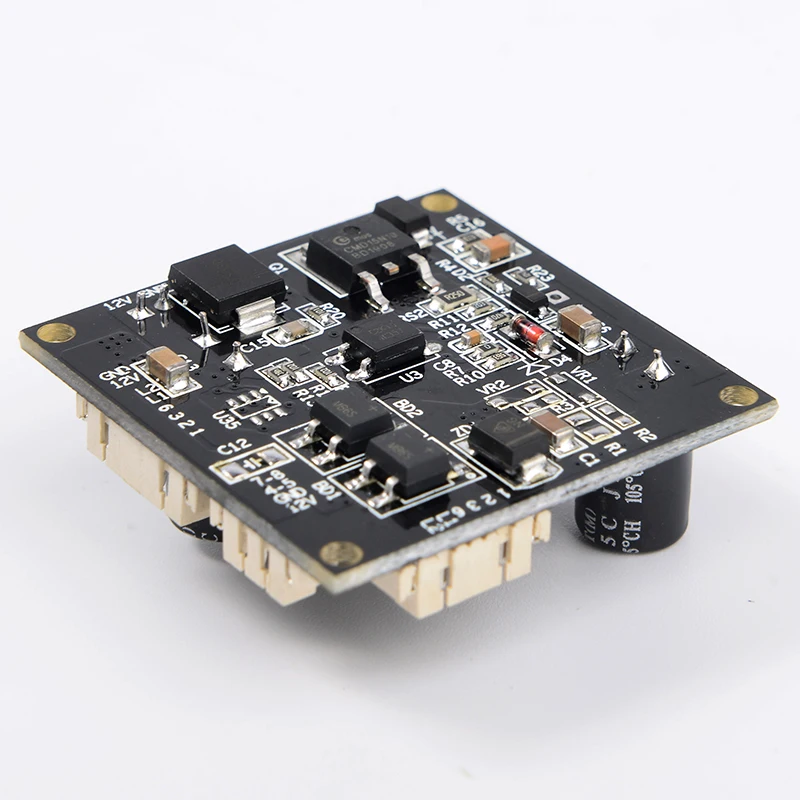

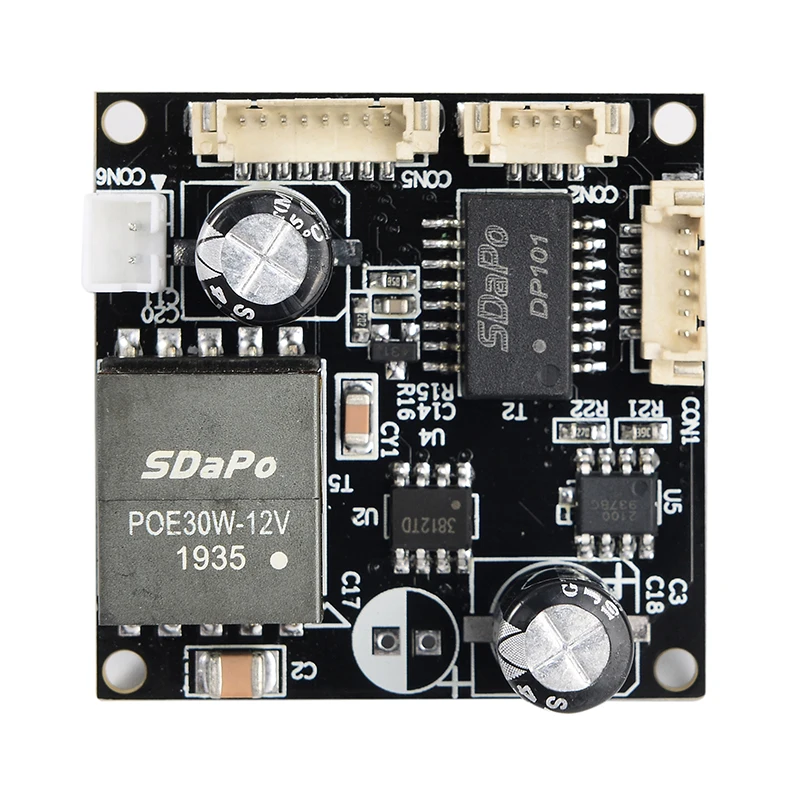

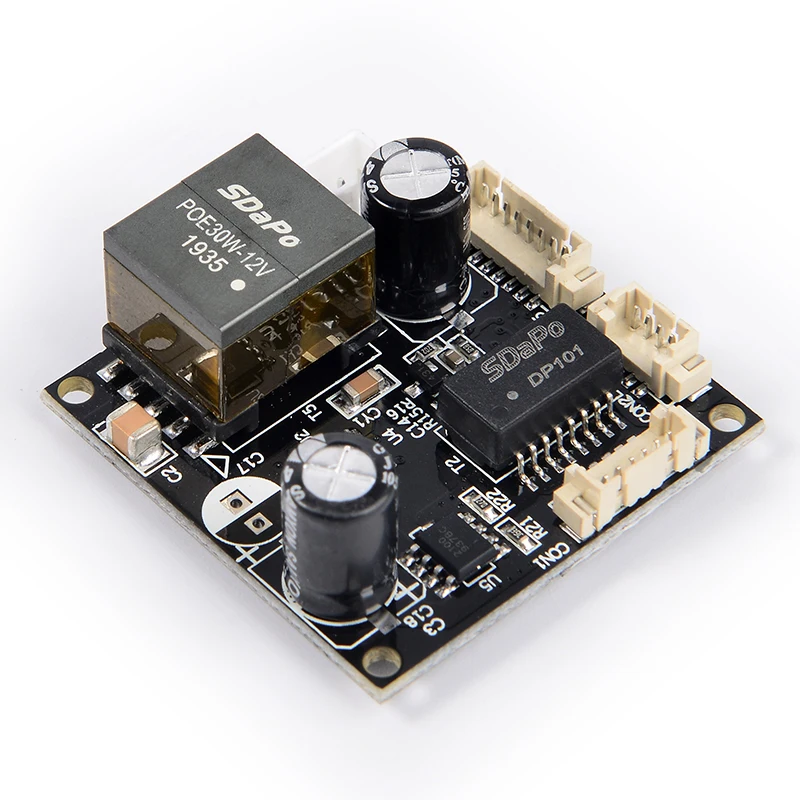

Промышленный температурный модуль Power over Ethernet IEEE802.3af /at Стандартный 12 В 2 а 44-57 в (30 Вт) pd SDAPO
- Категория: Ethernet & Communication Modules >>>
- Поставщик: Shenzhen,Dapo,Communication,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 4.65 $* | 4.64 $* |
| Jul-15-2025 | 3.72 $* | 3.70 $* |
| Jun-15-2025 | 4.51 $* | 4.61 $* |
| May-15-2025 | 4.60 $* | 4.22 $* |
| Apr-15-2025 | 3.31 $* | 3.69 $* |
| Mar-15-2025 | 4.11 $* | 4.65 $* |
| Feb-15-2025 | 4.38 $* | 4.72 $* |
| Jan-15-2025 | 4.36 $* | 4.45 $* |
Характеристики
Products Description
You are welcome to customize the POE modules of various sizes and appearances and function.The layout is required to receive the initial research and development expenses.After ordering a certain number of modules (usually 5000 pieces), the r&d cost can be deducted.After the sample is qualified, batch production.
1.product features：
* Specification：with IEEE802.3af/atstandard
* Security：Has a perfect short circuit protection, 1500V high voltage isolation
* Size :38*38mm
* Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes
2. Applications：All IP Camera
3. The main parameters：
* Specification：with IEEE802.3af/atstandard
* Security：Has a perfect short circuit protection, 1500V high voltage isolation
* Size :38*38mm
* Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes
2. Applications：All IP Camera
3. The main parameters：
No. | Parameter | Symbol | Min | Typical values | Max | Unit |
1 | Input Voltage | Vin | 44 | 48 | 57 | V |
2 | output voltage | +VDC | 11.8 | 12 | 12.3 | V |
3 | output Current | PWR | 2 | 2.3 | A | |
4 | Isolation Voltage | ISO | 1.48 | 1.5 | 1.52 | KV |
5 | Storage Temperature | Tj | -40 | 25 | 120 | ℃ |
6 | Operating Temperature | Tstg | -40 | 25 | 85 | ℃ |
* is typically 25 ℃, measured under the 48V power supply environment, only for reference design
3.2 Do not exceed the recommended load value of 1800mA (not included IR-cut switch) to adapt to different environments
4. Interface Definition：
3.2 Do not exceed the recommended load value of 1800mA (not included IR-cut switch) to adapt to different environments
4. Interface Definition：
