IEEE802.3af стандарт PoE: 37-57 вольт постоянного тока (15 4 W) 12V/1A объединения модулей PoE для IPC sdapo
- Категория: Ethernet & Communication Modules >>>
- Поставщик: Shenzhen,Dapo,Communication,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2.33 $* | 2.81 $* |
| Aug-16-2025 | 2.77 $* | 2.82 $* |
| Jul-16-2025 | 2.37 $* | 2.1 $* |
| Jun-16-2025 | 2.68 $* | 2.92 $* |
| May-16-2025 | 2.23 $* | 2.33 $* |
| Apr-16-2025 | 2.87 $* | 2.55 $* |
| Mar-16-2025 | 2.85 $* | 2.65 $* |
| Feb-16-2025 | 2.79 $* | 2.85 $* |
| Jan-16-2025 | 2.19 $* | 2.60 $* |
Характеристики

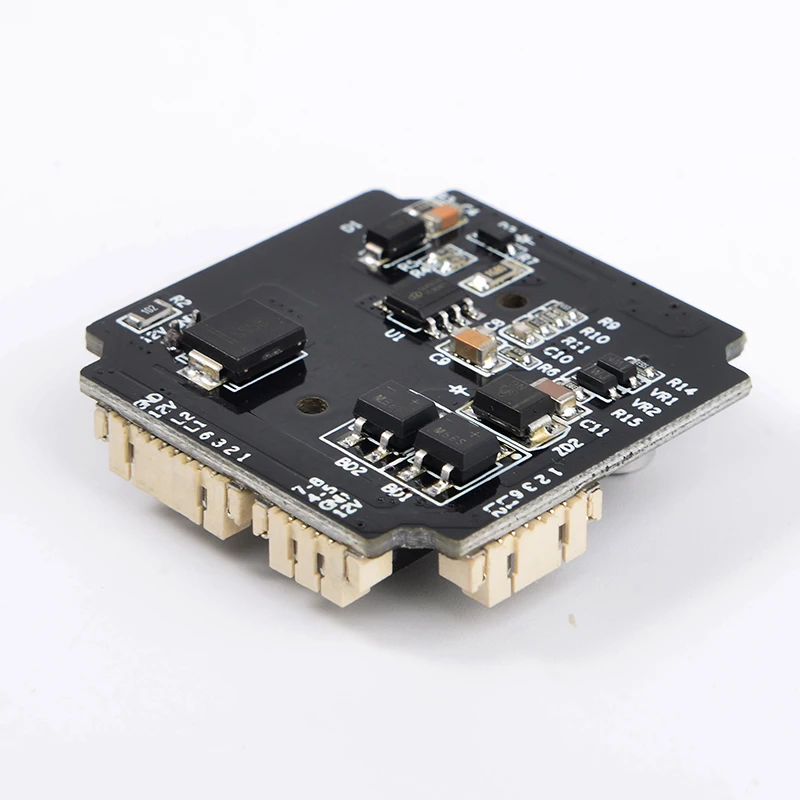

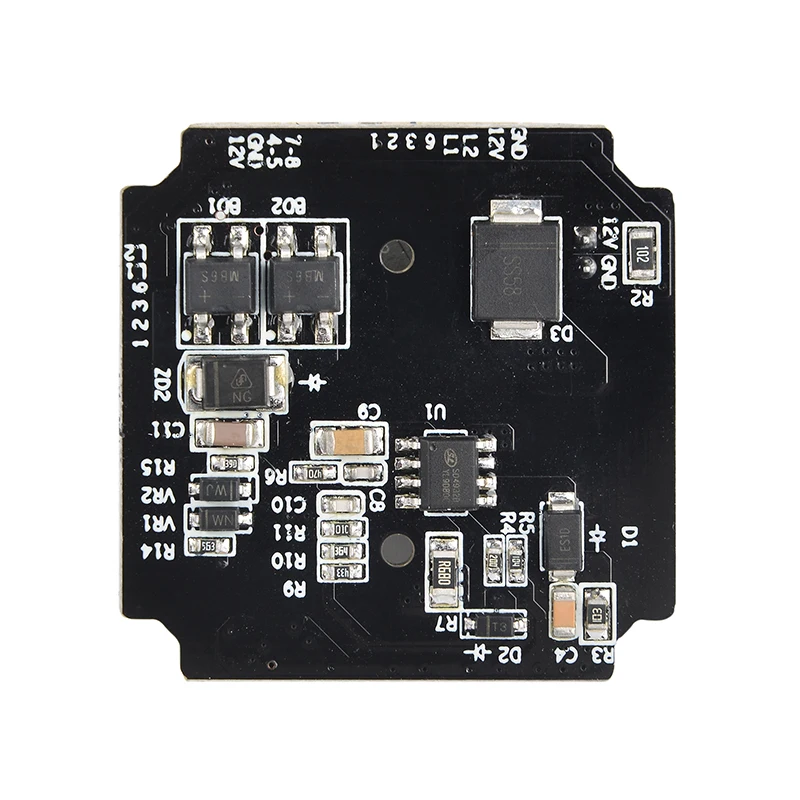

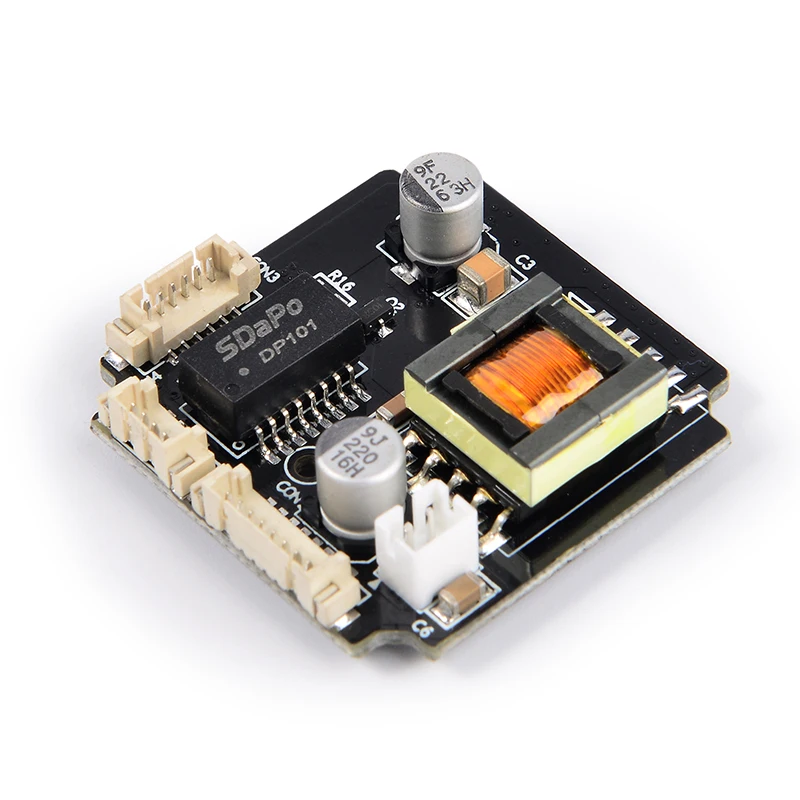

Products Description
You are welcome to customize the POE modules of various sizes and appearances and function.The layout is required to receive the initial research and development expenses.After ordering a certain number of modules (usually 5000 pieces), the r&d cost can be deducted.After the sample is qualified, batch production.
1.product features：
* Specification：with IEEE802.3af standard
* Security：Has a perfect short circuit protection, 1500V high voltage isolation
* Size :38*38mm
* Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes

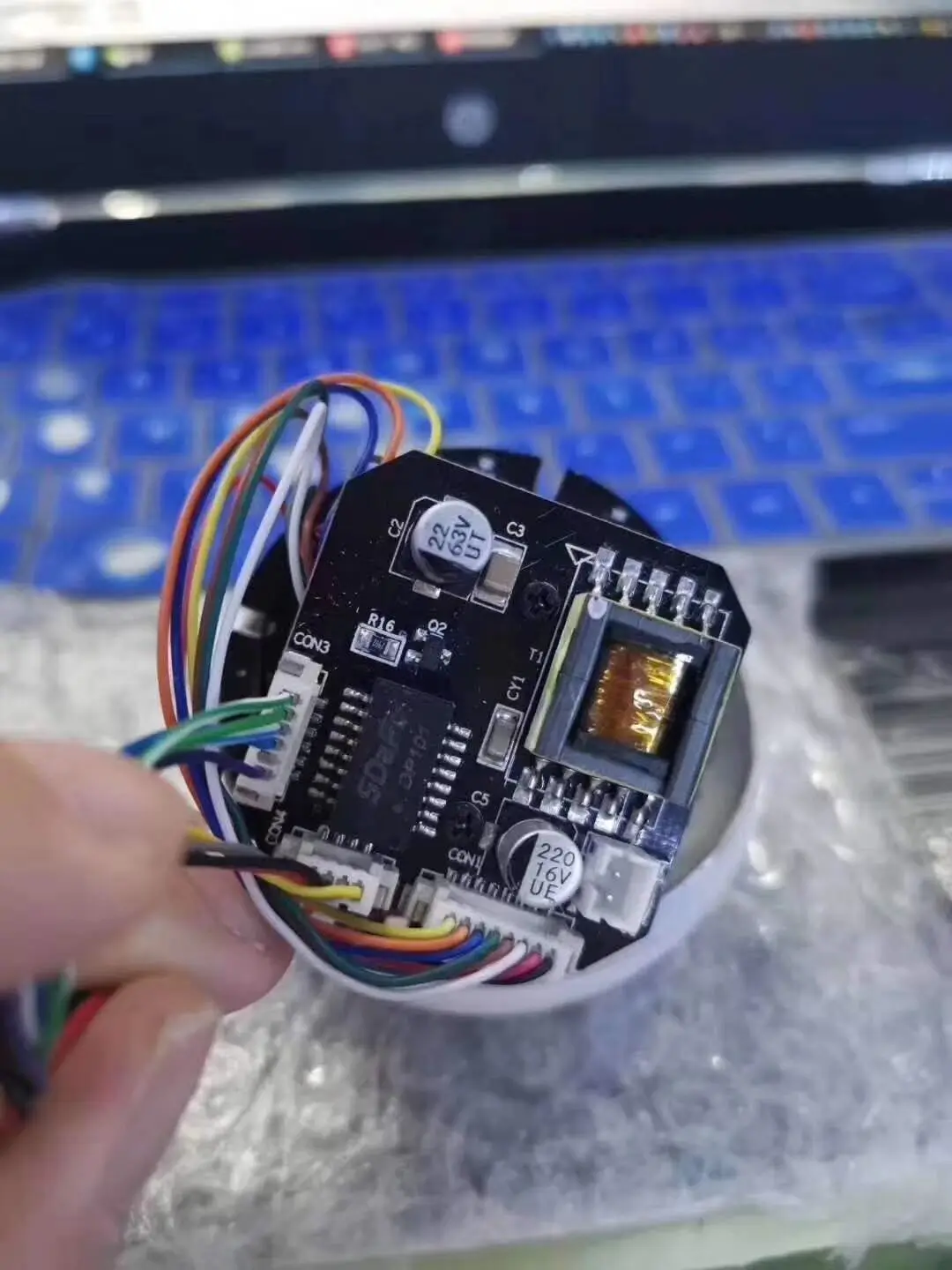

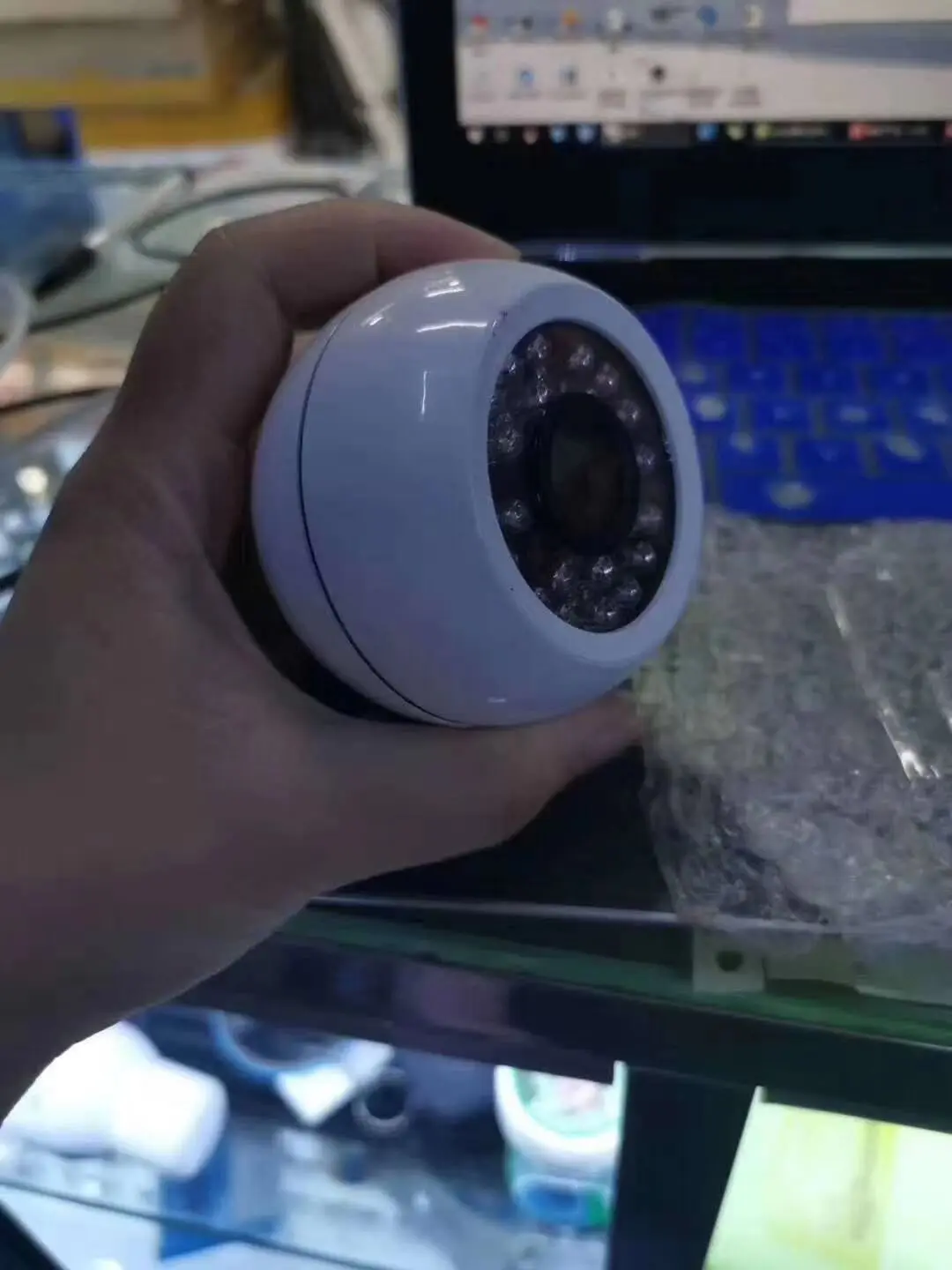

* use for min dome IP camera case.Ultrathin modules.The highest to lowest is only 9mm
2. Applications：All IP Camera
3. The main parameters：
* Specification：with IEEE802.3af standard
* Security：Has a perfect short circuit protection, 1500V high voltage isolation
* Size :38*38mm
* Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes
* use for min dome IP camera case.Ultrathin modules.The highest to lowest is only 9mm
2. Applications：All IP Camera
3. The main parameters：
No. | Parameter | Symbol | Min | Typical values | Max | Unit |
1 | Input Voltage | Vin | 37 | 48 | 57 | V |
2 | output voltage | +VDC | 11.8 | 12 | 12.3 | V |
3 | output Current | PWR | 1 | 1.08 | A | |
4 | Isolation Voltage | ISO | 1.48 | 1.5 | 1.52 | KV |
5 | Storage Temperature | Tj | -40 | 25 | 120 | ℃ |
6 | Operating Temperature | Tstg | -20 | 25 | 65 | ℃ |
* is typically 25 ℃, measured under the 48V power supply environment, only for reference design
3.2 Do not exceed the recommended load value of 850mA (not included IR-cut switch) to adapt to different environments
4. Interface Definition：
3.2 Do not exceed the recommended load value of 850mA (not included IR-cut switch) to adapt to different environments
4. Interface Definition：
