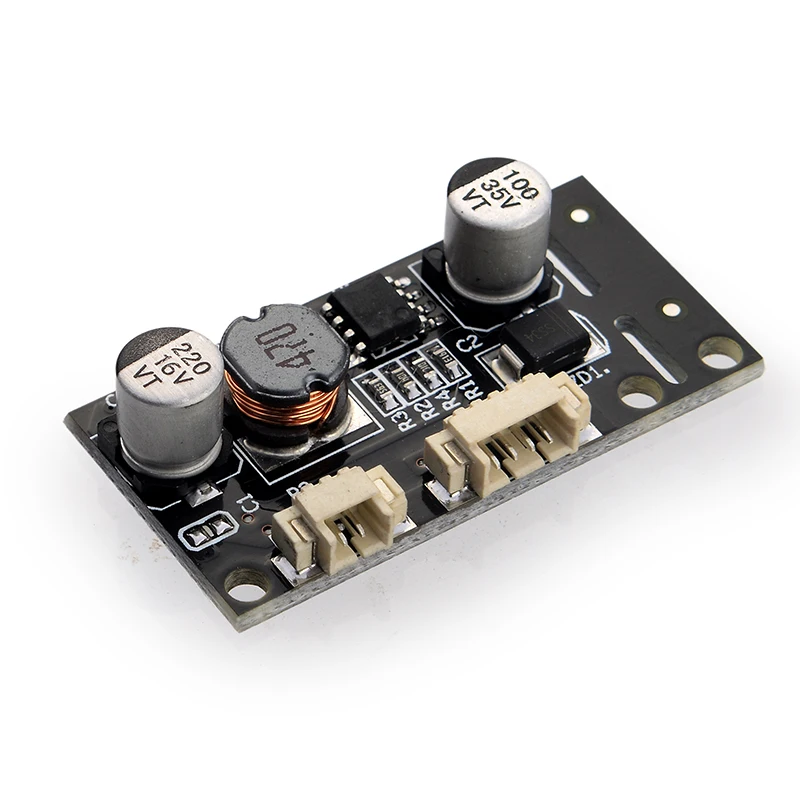

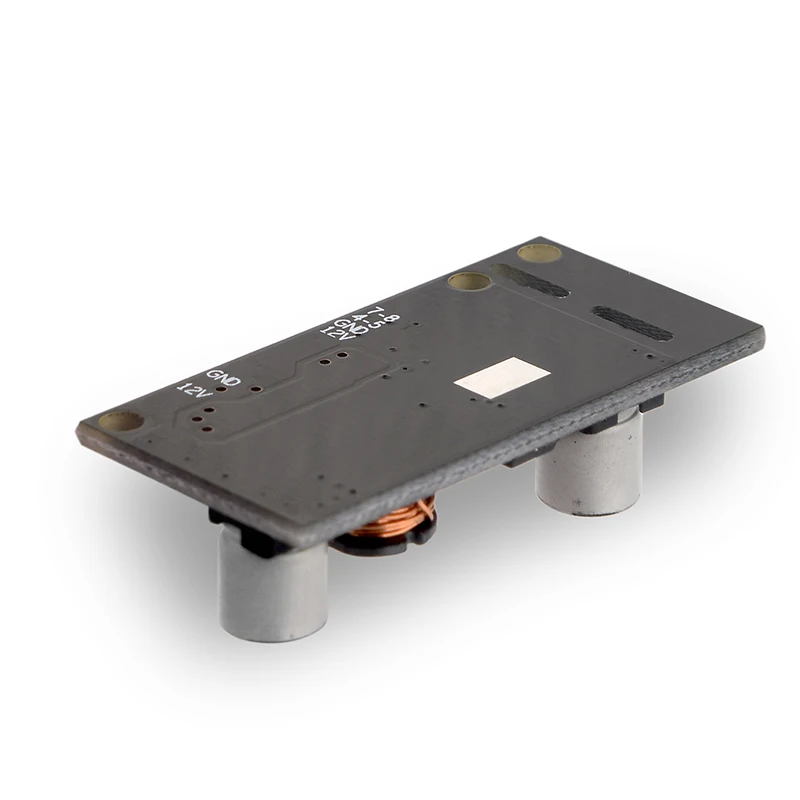

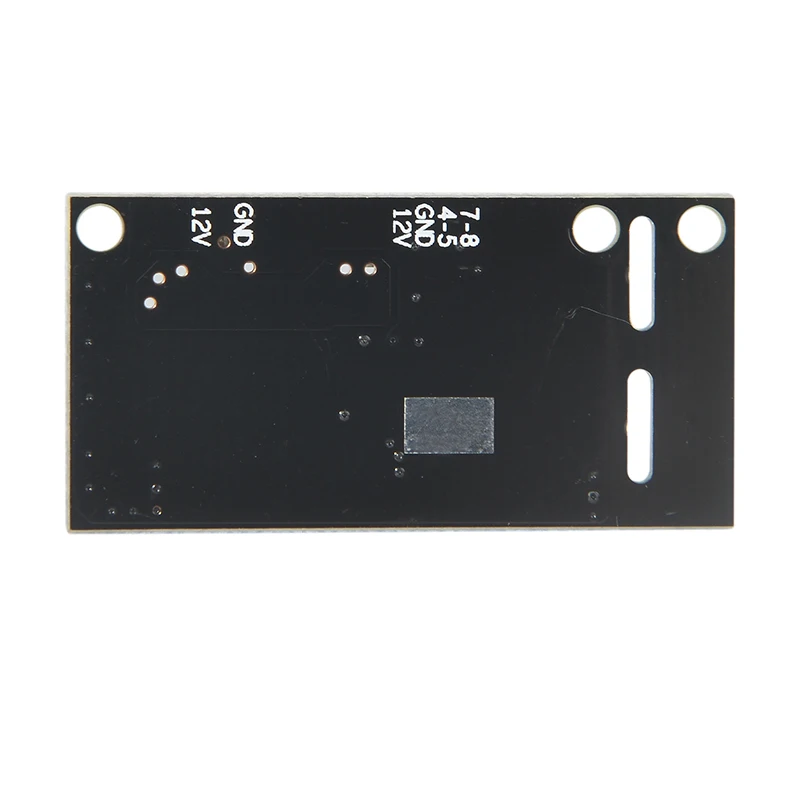

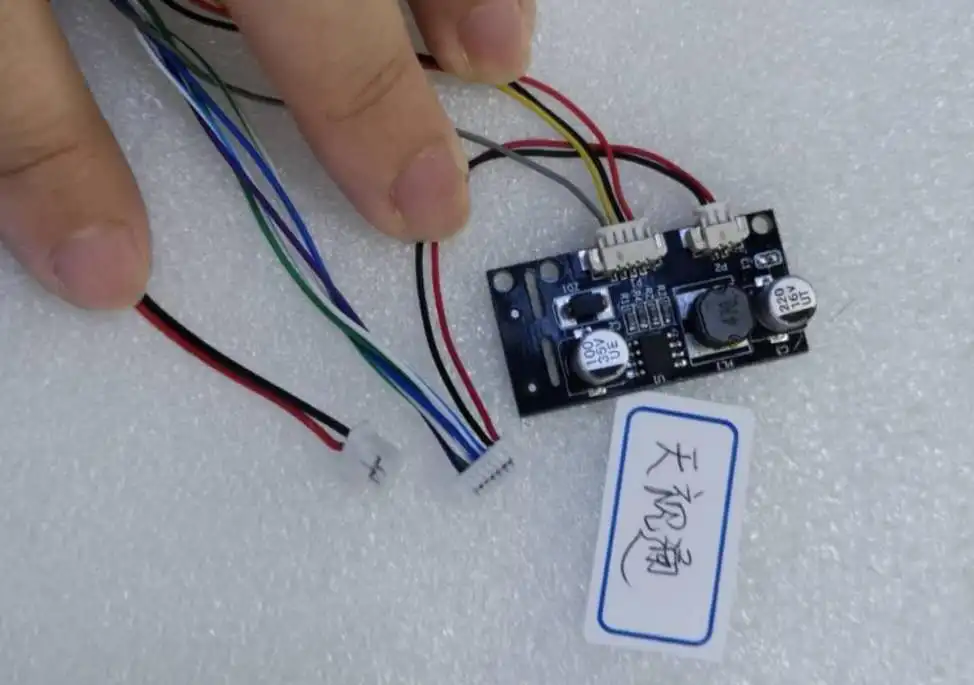

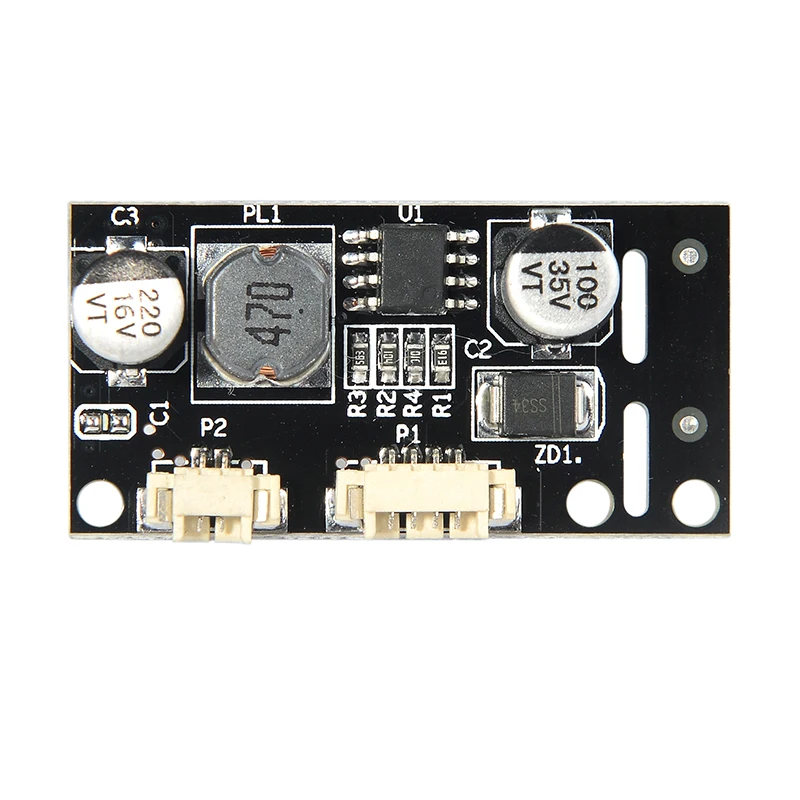

Высокоэффективный 24В макс. 2 а/24 Вт поддерживает только режим B(4578) все IPC могут использовать poe Модуль
- Категория: Ethernet & Communication Modules >>>
- Поставщик: Shenzhen,Dapo,Communication,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.35 $* | 0.26 $* |
| Aug-16-2025 | 0.69 $* | 0.90 $* |
| Jul-16-2025 | 0.27 $* | 0.27 $* |
| Jun-16-2025 | 0.39 $* | 0.26 $* |
| May-16-2025 | 0.52 $* | 0.39 $* |
| Apr-16-2025 | 0.55 $* | 0.34 $* |
| Mar-16-2025 | 0.86 $* | 0.17 $* |
| Feb-16-2025 | 0.53 $* | 0.1 $* |
| Jan-16-2025 | 0.31 $* | 0.99 $* |
Характеристики
Products Description
You are welcome to customize the POE modules of various sizes and appearances and function.The layout is required to receive the initial research and development expenses.After ordering a certain number of modules (usually 5000 pieces), the r&d cost can be deducted.After the sample is qualified, batch production.
1.product features:
1.1 Specification:Short circuit protection
1.2 Security:15-28V input to 12V
1.3 Size :38*19mm
2.Applications:24V POE power supply
3. The main parameters:
1.1 Specification:Short circuit protection
1.2 Security:15-28V input to 12V
1.3 Size :38*19mm
2.Applications:24V POE power supply
3. The main parameters:
No. | Parameter | Symbol | Min | Typical values | Max | Unit |
1 | Input Voltage | Vin | 12 | 24 | 30 | V |
2 | output voltage | +VDC | 11.8 | 12.3 | 12.8 | V |
3 | output Current | PWR | 1 | 2 | A | |
5 | Storage Temperature | Tj | -40 | 25 | 105 | ℃ |
6 | Operating Temperature | Tstg | -20 | 25 | 70 | ℃ |
3.1 is typically 25 ℃, measured under the 24V power supply environment, only for reference design
