Pls Contact me to get video, quotation and more onformation



Main machine character

1.Adopt unique press spring type FRONT LAY design which low rate of break down And with intelligent control can laminate paper in right position.

2.Adopt frequency convertor for speed regulation , PLC control , run and control rightly .

3.Double servo control are used to make bottom paper send to front lay timely and accurately . to promise machine working accuracy when machine run

4.Glue roller and doctor roller work together to improve homogeneity of glue . will low cost glue for customer .

5.Steel roller through balanced processing and testing, with tight assembly process effectively improve the mechanical stability, combined with the main transmission . adopts the timing belt drive, bottom paper suction feeder directly, effectively improve the precision and speed of mechanical operation.

6.Glue level control system , automatic glue recycle , reduce worker labor .

7.Material are used for this machine according to ISO90001 . good quality material , key part like bearing is imported

Electric part used all world famous brand and China well-known brand .

8.Self-develop high strength feeder compliant with high configuration electric system.

9.Suit 150-450 gsm face paper with A,B,C,D,,E,F flute  3 ply, 5ply cardboard (thickness less than 8mm )

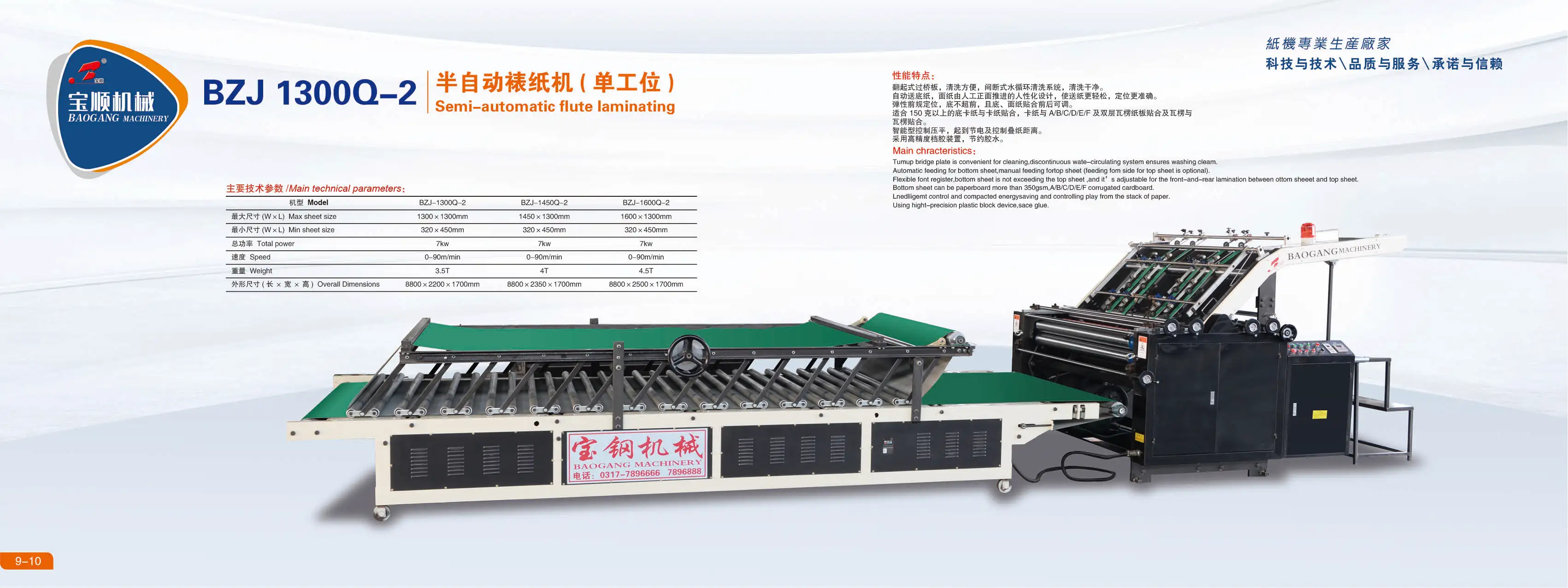

Machine  Name	BZJ automatic flute laminator machine
Machine Model	BZJ-1300L		BZJ-1450L		BZJ-1600L
Max size	1300*1300mm		1450*1300mm		1600*1300mm
min size	400mm*400mm		400mm*400mm		400mm*400mm
speed	0-100/min		0-100/min		0-100/min
total power	13kw		13kw		13kw
overall size	12.0m*2.25m*2.655m		12.0m*2.40m*2.655m		12.0m*2.55m*2.655m
paper request	Bottom paper : 350-800 800g/m2 , Max thickness: 10mm Face paper : 150-450 g/m2
Name	Origin and brand	Name		Origin and brand		Note
Face paper feeder type	Beijing
Proximity Sensor	Omron, Japan	Contactor		Schneider , France
Bearing	NSK ,japan	Button		Chint ,China		Suction to feeder bottom paper ,run smooth and steady . photoelectric control, in case of single paper run This machine use FRONT LAY design. Thick paper +thick paper : tolerance ±1.0mm Thick paper +corrugated paper tolerance ±1.5mm
PLC	Panasonic , Japan	liquid level relay		Tai Wan ,
inverter	Delta	Vacuum pump		Tai Wan
Touch liquid crystal display	Kunlun, China	Vortex pump		Zheng Jiang , China
Timing belt	Gates, America	Transformer		Zhe Jiang, china
Press convey belt	Italy	Servo motor		INVT
Chain	Japan
Motor	Heng shui , China
Reduce motor	Jiang su , China
Suction belt	Janpan
