10/100/1000 Мбит/с макетная плата IEEE802.3af 12V/1A 5V2.4A 3.3V2A может выбрать объединения модулей POE sdapo
- Категория: Ethernet & Communication Modules >>>
- Поставщик: Shenzhen,Sdapo,Communication,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 4.29 $* | 4.95 $* |
| Jul-16-2025 | 3.99 $* | 3.37 $* |
| Jun-16-2025 | 4.57 $* | 4.58 $* |
| May-16-2025 | 4.95 $* | 4.63 $* |
| Apr-16-2025 | 3.68 $* | 3.66 $* |
| Mar-16-2025 | 4.94 $* | 4.83 $* |
| Feb-16-2025 | 4.21 $* | 4.93 $* |
| Jan-16-2025 | 4.99 $* | 4.35 $* |
Характеристики
Products Description
You are welcome to customize the POE modules of various sizes and appearances and function.The layout is required to receive the initial research and development expenses.After ordering a certain number of modules (usually 5000 pieces), the r&d cost can be deducted.After the sample is qualified, batch production.
This one link photo is expensive one no have capacitance and ripple is small about 100mv.and we have cheap version have capacitance and ripple is larger about 300-400mv .The detals please ask customer service
DESCRIPTION

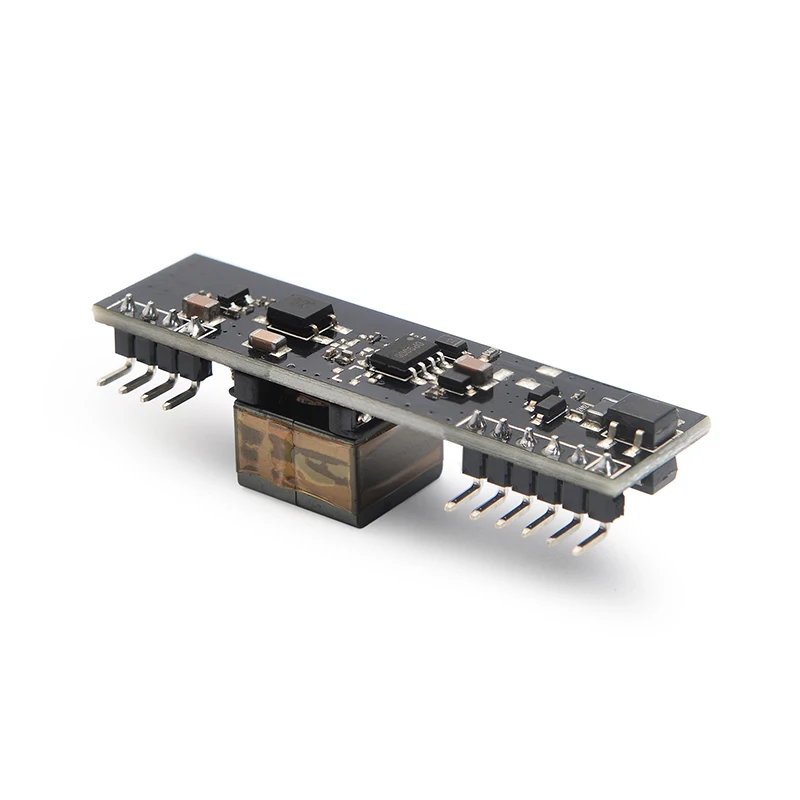

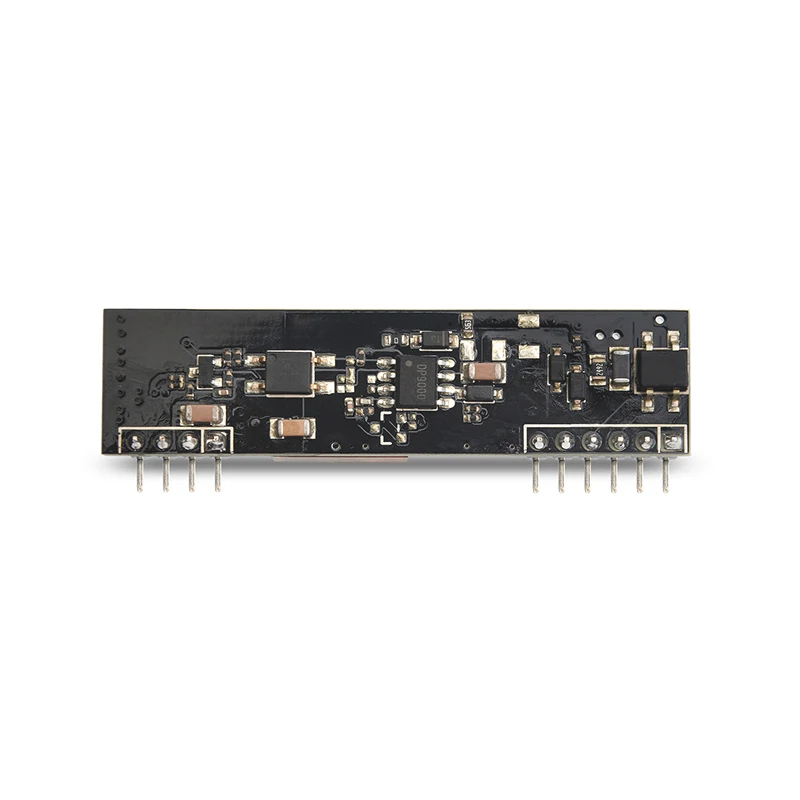

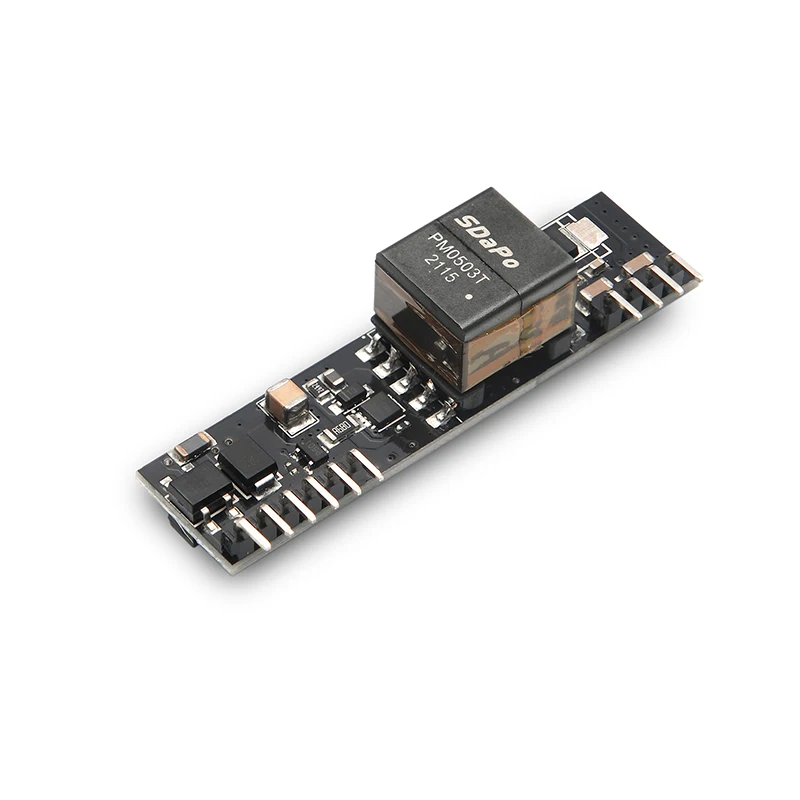

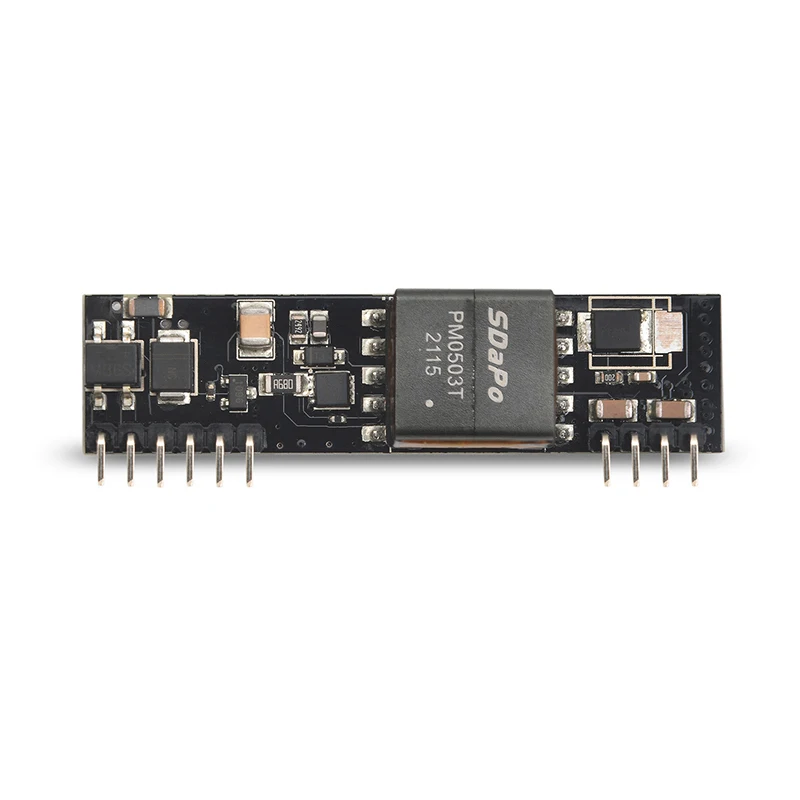

13W PD(Powered Device) Integrated Module (Isolation Type)
FEATURES
* 3af compliant.
* Low cost.
* Support PoE applications in both of Fast / Gigabit Ethernet environments.
* Support wide input voltage range 37Vdc to 57
* Thermal cut off.
* Short circuit protection.
* Over current protection
* High DC/DC converting efficiency.
* Less external component one output decoupling capacitor.
* Isolation level 1.5KVrms.
* Enhanced surge protection
* Internal build in 2 channel bridge rectifiers
Product List
DESCRIPTION
13W PD(Powered Device) Integrated Module (Isolation Type)
FEATURES
* 3af compliant.
* Low cost.
* Support PoE applications in both of Fast / Gigabit Ethernet environments.
* Support wide input voltage range 37Vdc to 57
* Thermal cut off.
* Short circuit protection.
* Over current protection
* High DC/DC converting efficiency.
* Less external component one output decoupling capacitor.
* Isolation level 1.5KVrms.
* Enhanced surge protection
* Internal build in 2 channel bridge rectifiers
Product List
Part Number | Nominal Output Voltage / Current | Maximum Output Power | Nominal Input Voltage | Marking |
DP9705 | 5.1Vdc / 2.4A | 13W @ 25°C | 48Vdc | DP9705 |
DP9712 | 12.1Vdc / 1.1A | 13W @ 25°C | 48Vdc | DP9712 |
DP9703 | 3.3Vdc/2A | 6.6W @ 25°C | 48Vdc | DP9703 |
PIN ASSIGNMENT
Pin | Name | Description |
1 | VA1 | RX Input (1). This input pin is used in conjunction with VA2 and connects to the centre tap of the transformer connected to pins 1 & 2 of the RJ45 connector (RX) - it is not polarity sensitive. |
2 | VA2 | TX Input (2). This input pin is used in conjunction with VA1 and connects to the centre tap of the transformer connected to pins 3 & 6 of the RJ45 connector (TX) - it is not polarity sensitive. |
3 | VB1 | Direct Input (1). This input pin is used in conjunction with VB2 and connects to pin 4 & 5 of the RJ45 connector - it is not polarity sensitive. |
4 | VB2 | Direct Input (2). This input pin is used in conjunction with VB1 and connects to pin 7 & 8 of the RJ45 connector - it is not polarity sensitive. |
5,6 | NC | No Connection |
7 | -VDC | DC Return. This pin is the return path for the +VDC output. |
8 | +VDC | DC Output. This pin provides the regulated output from the DC/DC converter. |
9,10 | NC | No Connection |
Typical Application
ELECTRICAL SPECIFICATIONS
No | Item | Specification | Comment |
1 | Input Voltage | 44~57V | |
2 | Output Voltage | 12.1V Typ. | DP9712 |
5.1V Typ. | DP9705 | ||
3.3V Typ. | DP9703 | ||
3 | Output Current (Vin=56V) | 1.3A Max. | DP9712 |
3A Max. | DP9705 | ||
4 | Line Regulation | 5% | |
5 | Load Regulation | 5% | |
6 | Ripple & Noise | 200mVp-p max. | |
7 | Efficiency | 88% max. | DP9712 |
84% max | DP9705 | ||
80% max | DP9703 | ||
8 | Input to Output Isolation | 1.5 KV | |
9 | Type of DC/DC Converter | Flyback Type | |
10 | Operating Temperature | -40 ~ +85 ℃ |
package
