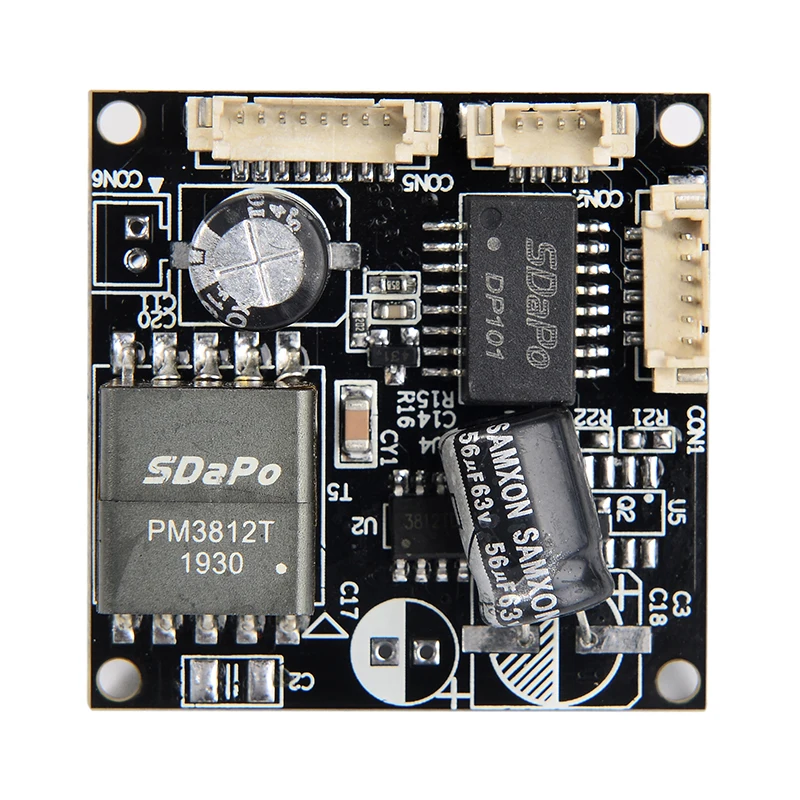

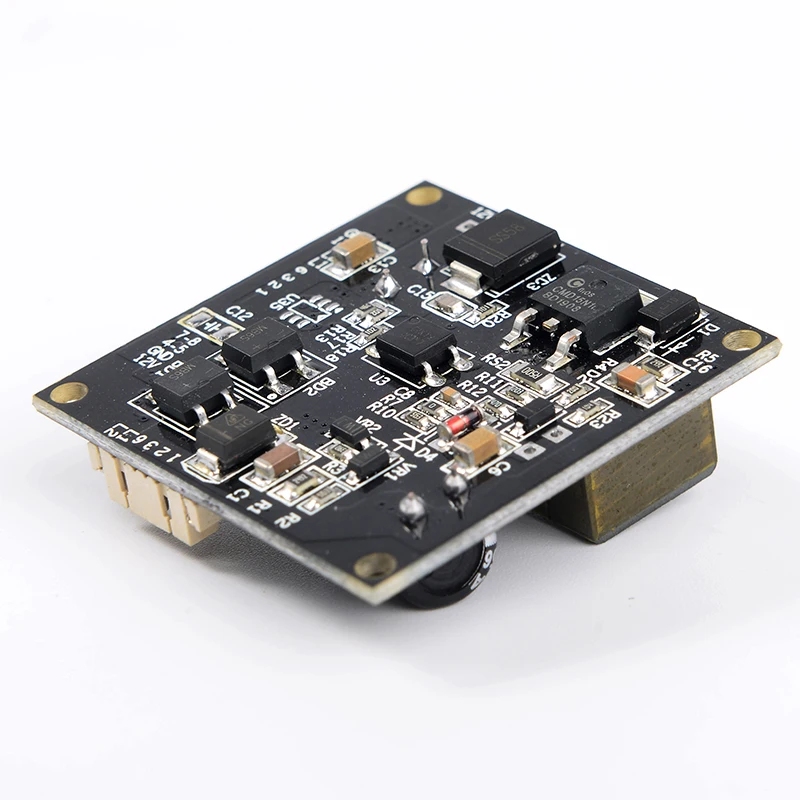

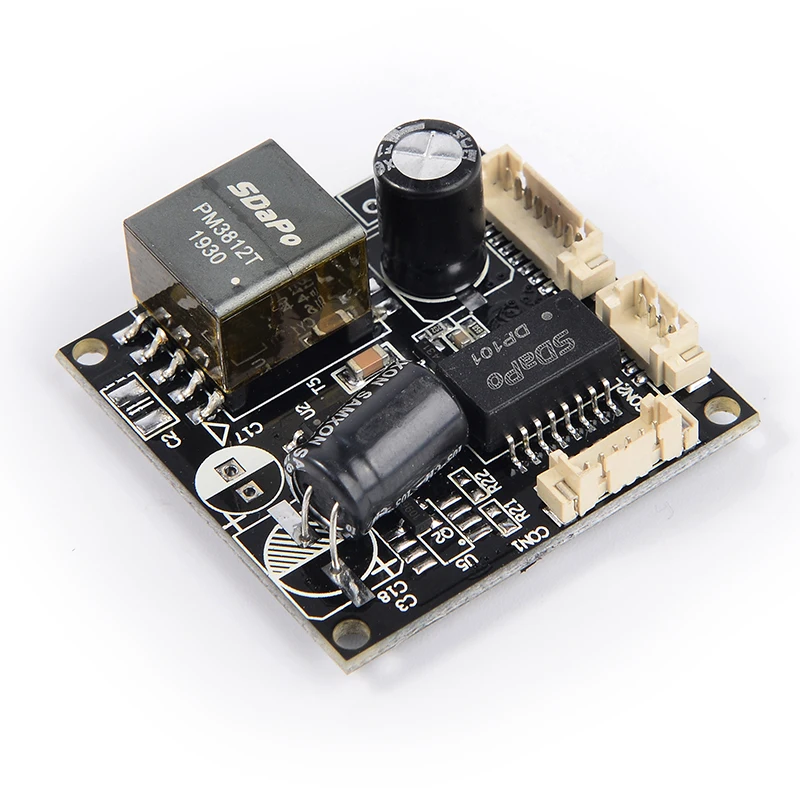

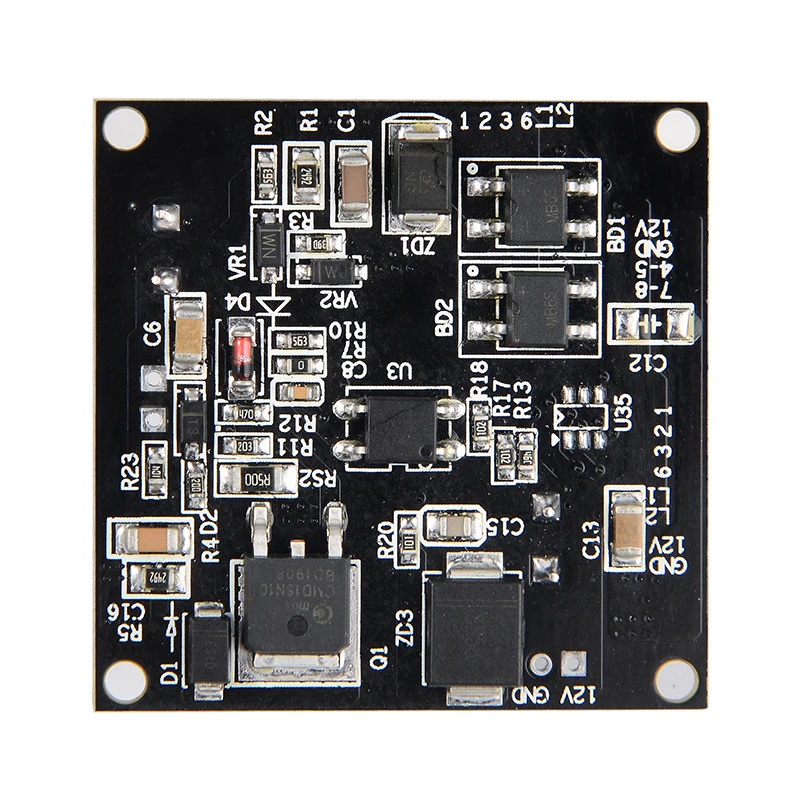

Плата poe SDAPO PM3812T V7S промышленная Температура 12 В 1 А стандарт IEEE802.3af общая мощность 13 Вт 38*38 мм
- Категория: Ethernet & Communication Modules >>>
- Поставщик: Shenzhen,Dapo,Communication,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2.91 $* | 2.94 $* |
| Aug-16-2025 | 2.67 $* | 2.52 $* |
| Jul-16-2025 | 2.73 $* | 2.42 $* |
| Jun-16-2025 | 2.35 $* | 2.66 $* |
| May-16-2025 | 2.41 $* | 2.23 $* |
| Apr-16-2025 | 2.1 $* | 2.4 $* |
| Mar-16-2025 | 2.45 $* | 2.22 $* |
| Feb-16-2025 | 2.76 $* | 2.30 $* |
| Jan-16-2025 | 2.13 $* | 2.2 $* |
Характеристики
Products Description
You are welcome to customize the POE modules of various sizes and appearances and function.The layout is required to receive the initial research and development expenses.After ordering a certain number of modules (usually 5000 pieces), the r&d cost can be deducted.After the sample is qualified, batch production.
1.product features：
* Compliance with IEEE802.3af standard, Class 0.
* 38V~57V wide operating voltage range.
* Maximum output power up to 13W; Ratedoutput: 12V/1.1A.
* Conversion efficiency can be as high as 88% (input: 48V output:12V@1.1A).
* With over current short circuit under
* Voltage surge and other excellent
* Reliability and circuit protection.
* PCBA standard size: 38mm*38mm*17mm
* Input/Output: isolate 1500Vdc.
2. Applications：IP Camera
3. The main parameters：
* Compliance with IEEE802.3af standard, Class 0.
* 38V~57V wide operating voltage range.
* Maximum output power up to 13W; Ratedoutput: 12V/1.1A.
* Conversion efficiency can be as high as 88% (input: 48V output:12V@1.1A).
* With over current short circuit under
* Voltage surge and other excellent
* Reliability and circuit protection.
* PCBA standard size: 38mm*38mm*17mm
* Input/Output: isolate 1500Vdc.
2. Applications：IP Camera
3. The main parameters：
No. | Parameter | Symbol | Min | Typical values | Max | Unit |
1 | Input Voltage | Vin | 38 | 48 | 57 | V |
2 | output voltage | +VDC | 12 | 12.2 | 12.3 | V |
3 | output Current | PWR | 0.03 | 1 | 1.1 | A |
4 | Isolation Voltage | VISO | 1.5 | KV | ||
5 | Ripple Output Noise | VRN | 150 | 200 | mVp-p | |
6 | Storage Temperature | Tj | -40 | 25 | 85 | ℃ |
7 | Operating Temperature | Tstg | -40 | 25 | 80 | ℃ |
1: Typical number is 25 ℃, nominal voltage is 48V, for auxiliary design only.
2: If operated under the specified minimum load, the module may emits audible noise and cause PSE malfunction.
3:Do not exceed the recommended load value of 850mA (not included IR-cut switch) to adapt to different environments
4. Interface Definition：
2: If operated under the specified minimum load, the module may emits audible noise and cause PSE malfunction.
3:Do not exceed the recommended load value of 850mA (not included IR-cut switch) to adapt to different environments
4. Interface Definition：
COM | PIN | Name | describe | ||
CON1 | 1 | 12V+ | Connect IPC Cable | PoE Power input RJ4/5 and RJ7/8(Midspan)； 12V Power Input or output | |
2 | GND | ||||
3 | RJ4/5 | ||||
4 | RJ7/8 | ||||
CON2 | 1 | Tx+ | PoE power input (Endspan) and RJ45 data interface. LED1/2 is connected to LED1/2 of CON3, | ||
2 | Tx- | ||||
3 | Rx+ | ||||
4 | Rx- | ||||
5 | LED1 | ||||
6 | LED2 | ||||
CON3 | 1 | Tx+ | Connect IPC Module | Network data connection port and 12V Power out | |
2 | Tx- | ||||
3 | Rx+ | ||||
4 | Rx- | ||||
5 | LED1 | ||||
6 | LED2 | ||||
7 | 12V+ | ||||
8 | GND | ||||
