Оптовая продажа Высококачественные Оптические Призмы луча 5 мм/10 мм/15 мм/20 мм/25 мм/30 мм/50
- Категория: Prisms >>>
- Поставщик: Zoolied,Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.50 $* | 0.68 $* |
| Aug-16-2025 | 0.70 $* | 0.7 $* |
| Jul-16-2025 | 0.18 $* | 0.43 $* |
| Jun-16-2025 | 0.72 $* | 0.81 $* |
| May-16-2025 | 0.30 $* | 0.77 $* |
| Apr-16-2025 | 0.51 $* | 0.71 $* |
| Mar-16-2025 | 0.72 $* | 0.83 $* |
| Feb-16-2025 | 0.22 $* | 0.57 $* |
| Jan-16-2025 | 0.16 $* | 0.3 $* |
Характеристики
item | value |
Warranty | 1 month |
Certification | Reach |
Customized support | OEM |
Place of Origin | Jilin,China |
Brand Name | ZOOLIED |
Material | Optical glass |
Surface Quality | 60/40 |
Dimension Tolerance | +/-0.1mm |
Angle Tolerance | 3secs - 3 mins |
Flatness | 4L~L/10 |
Material | BK7, Fused Silica |
S/D | 60/40 - 40/20 |
Shape | Cube |
Dimensional tol | ±0.1mm |
Angle tol | less than 3 min |
Flatness | L/2 - L/10 |
R/T data | 10/90, 20/80, 30/70, 40/60, 50/50, 60/40,70/30, 80/20 |
Coating type | splitting and AR coating |
Wavelength | VIS |
Application | splitting light |

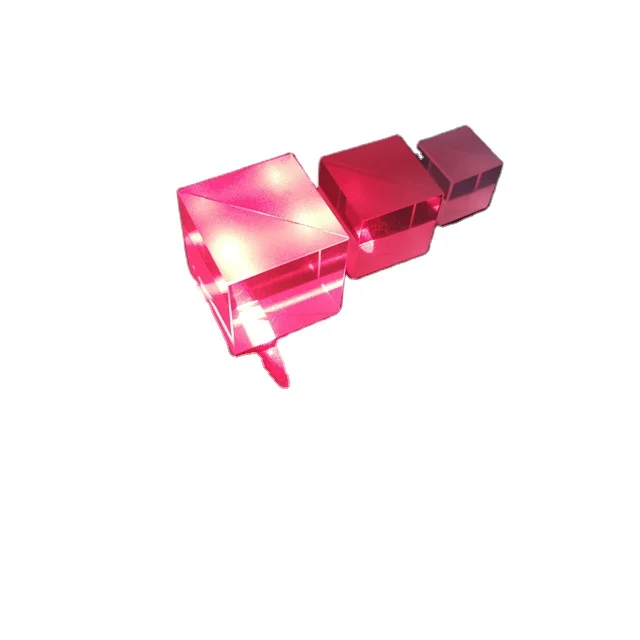

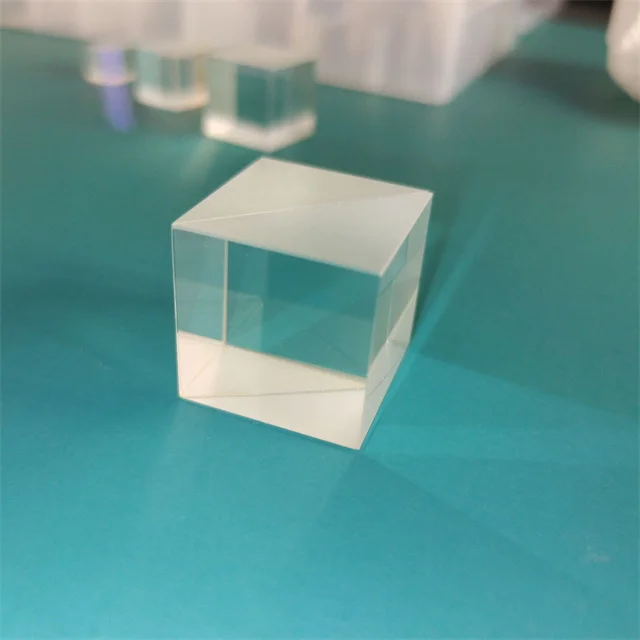

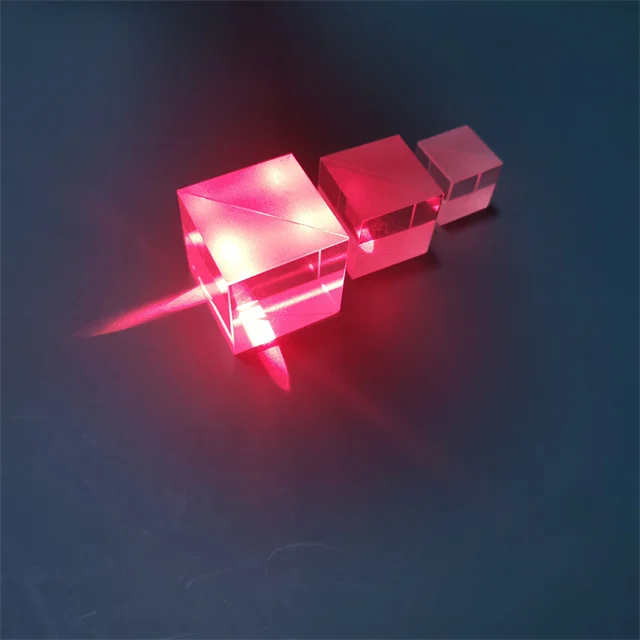

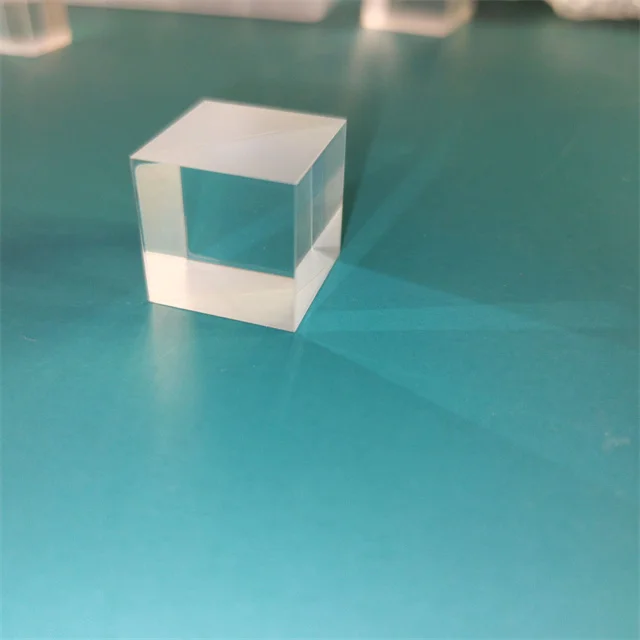

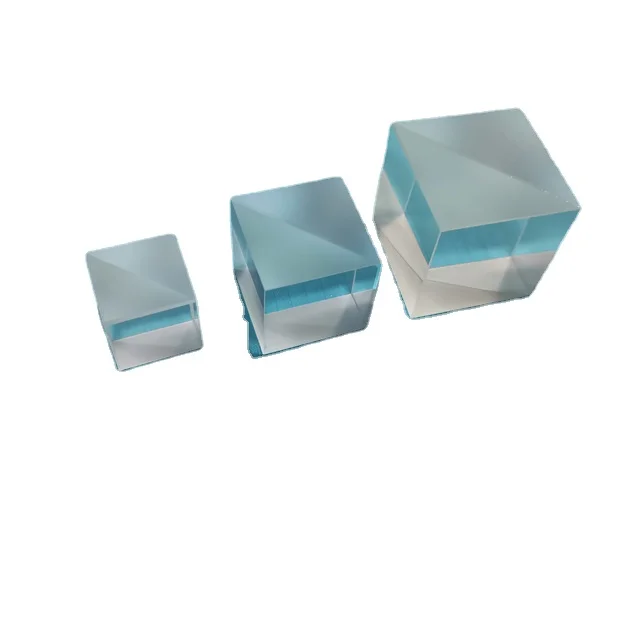

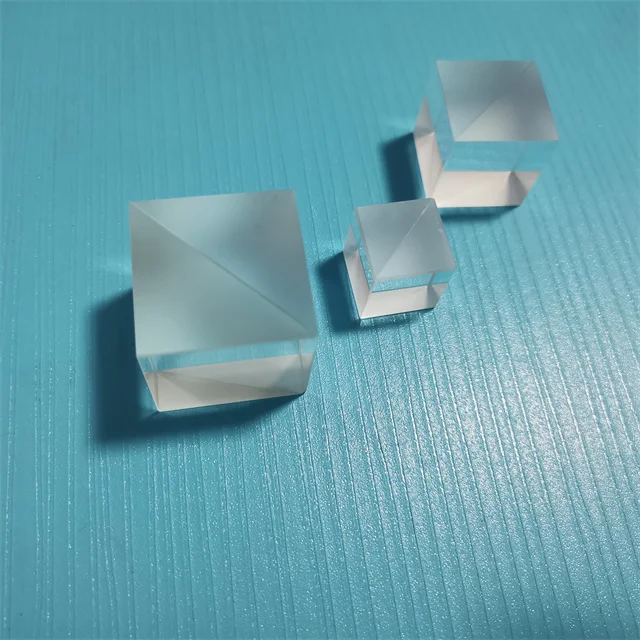

Zoolied provides Standard Cube Beamsplitters. Multiple sizes of our prisms are available, including 5mm, 10mm, 15mm, 20mm, 25mm,30mm, and 50mm Optical glass beamsplitter, at the same time, we also offers multi-layer dielectric coating.
Optical Prisms are used to redirect light at a designated angle. Optical glass prisms are ideal for ray deviation, or for adjusting the orientation of an image. An Optical Prism’s design determines how light interacts with it. When light enters an optical glass prism it either reflects off an individual surface or several surfaces before exiting, or is refracted as it travels through the substrate. For example, when light enters Optical glass prism, it reflects off a single surface, causing the light to redirect at 90°. When light enters a wedge prism, though, a change in substrate thickness causes the light to deviate through refraction.
Zoolied offers a wide range of high precision prisms in a variety of designs, substrates, or coating options. Designs include
Right Angle, Amici, Penta, Schmidt, Wedge, Anamorphic, Equilateral, Dove, or Rhomboid prisms, in addition to Corner Cube
Retroreflectors or Light Pipe Homogenizing Rods. Anti-reflection coatings include MgF2, UV-VIS, UV-AR, VIS 0°, VIS-NIR, or multiple laser line options.
Optical Prisms are used to redirect light at a designated angle. Optical glass prisms are ideal for ray deviation, or for adjusting the orientation of an image. An Optical Prism’s design determines how light interacts with it. When light enters an optical glass prism it either reflects off an individual surface or several surfaces before exiting, or is refracted as it travels through the substrate. For example, when light enters Optical glass prism, it reflects off a single surface, causing the light to redirect at 90°. When light enters a wedge prism, though, a change in substrate thickness causes the light to deviate through refraction.
Zoolied offers a wide range of high precision prisms in a variety of designs, substrates, or coating options. Designs include
Right Angle, Amici, Penta, Schmidt, Wedge, Anamorphic, Equilateral, Dove, or Rhomboid prisms, in addition to Corner Cube
Retroreflectors or Light Pipe Homogenizing Rods. Anti-reflection coatings include MgF2, UV-VIS, UV-AR, VIS 0°, VIS-NIR, or multiple laser line options.
