High-Quality Dactory Direct OTP Custom Multi-Play Sound Chip IC For Plush Toys And Dolls
- Категория: LED Drivers >>>
- Поставщик: Shenzhen,Waytronic,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.32 $* | 0.56 $* |
| Aug-15-2025 | 0.33 $* | 0.94 $* |
| Jul-15-2025 | 0.58 $* | 0.33 $* |
| Jun-15-2025 | 0.33 $* | 0.11 $* |
| May-15-2025 | 0.60 $* | 0.68 $* |
| Apr-15-2025 | 0.75 $* | 0.92 $* |
| Mar-15-2025 | 0.34 $* | 0.34 $* |
| Feb-15-2025 | 0.92 $* | 0.95 $* |
| Jan-15-2025 | 0.54 $* | 0.19 $* |
Характеристики
1.Overview

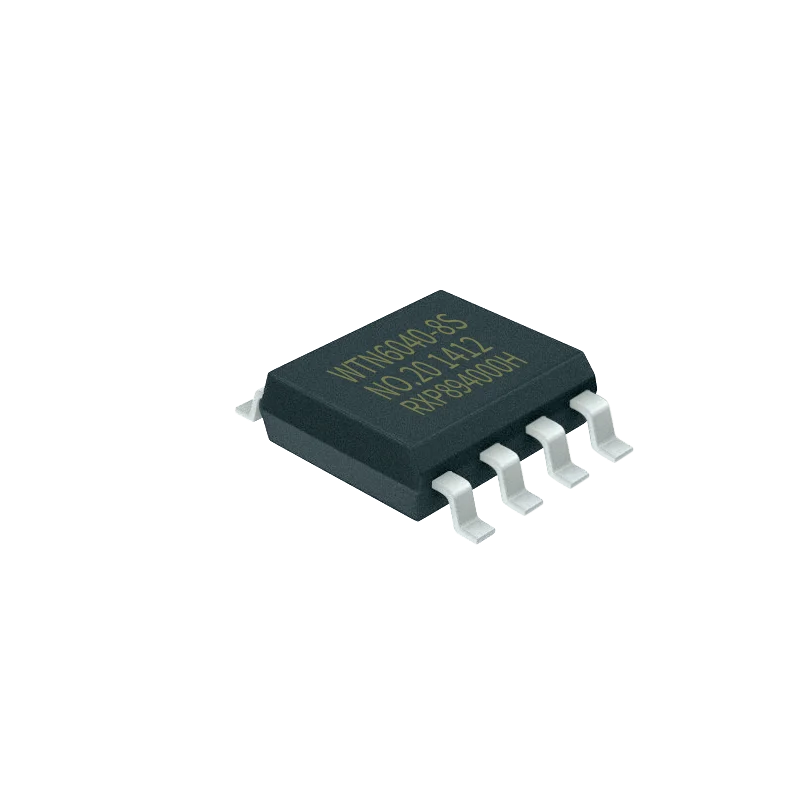

WTN6040 Product Introduction
WTN6 series is 4-bit controller. At present there are kinds of chip:
WTN6040, WTN6096, WTN6170 (voice length is 40s, 170s independently).
WTN6040 have been put into market. Audio sample rate is up to 64kHz
maximally, 16-level volume control. Two audio output modes: PWM output and
DAC output. Accurate+/-1% internal shock, no need to have external shock,
ultra-low power consumption in standby mode.
WTN6040, WTN6096, WTN6170 (voice length is 40s, 170s independently).
WTN6040 have been put into market. Audio sample rate is up to 64kHz
maximally, 16-level volume control. Two audio output modes: PWM output and
DAC output. Accurate+/-1% internal shock, no need to have external shock,
ultra-low power consumption in standby mode.
2.Functions
Working voltage:2.4V~5.2V.
In standby mode,quiescent current less than 5uA.
Accurate+/-1% interna lshock,with the function of low voltage reset(LVR=1.8V),
watchdog timekeeping and I/O reset.
PWM audio output,able to drive 8Ω/0.5W speaker and buzzer directly; DAC audio output,able to have external amplifier.
Built in watchdog.
With serial port control mode : one-line serial port,two-line serial port(can load 224 pieces of voice at most, more details later).
Support output function in BUSY state.
In standby mode,quiescent current less than 5uA.
Accurate+/-1% interna lshock,with the function of low voltage reset(LVR=1.8V),
watchdog timekeeping and I/O reset.
PWM audio output,able to drive 8Ω/0.5W speaker and buzzer directly; DAC audio output,able to have external amplifier.
Built in watchdog.
With serial port control mode : one-line serial port,two-line serial port(can load 224 pieces of voice at most, more details later).
Support output function in BUSY state.

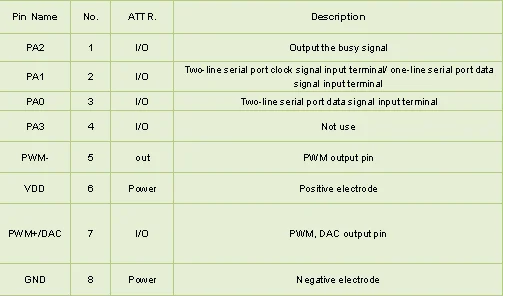

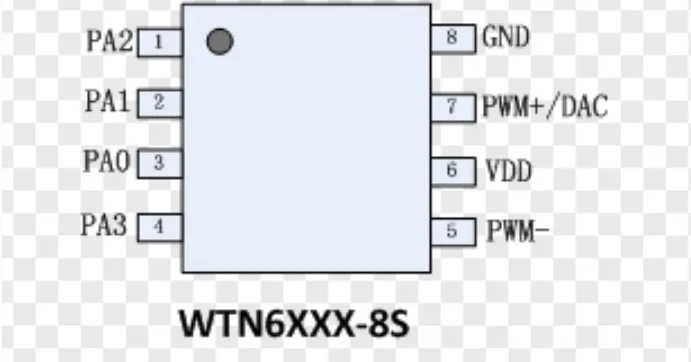

3.Pin Description
4.Limited Parameters

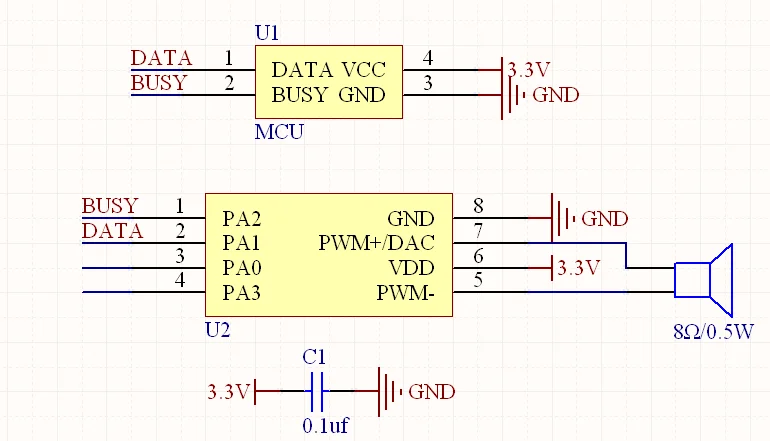

5.One-line serial port
As a convenient and stable voice chip,This chip can be applied to many fields,like automotive electronics,security alarms,consumer electronics,electroniclocks, medical equipment,sweepers,shared bicycles,shared umbrellas,shared mobile power machines,GPS guide sticks,sound and light alarm lights,ticke tgates...Car(anti-theft alarm,reversin radar,GPS navigator, electronic dog,central control lock.

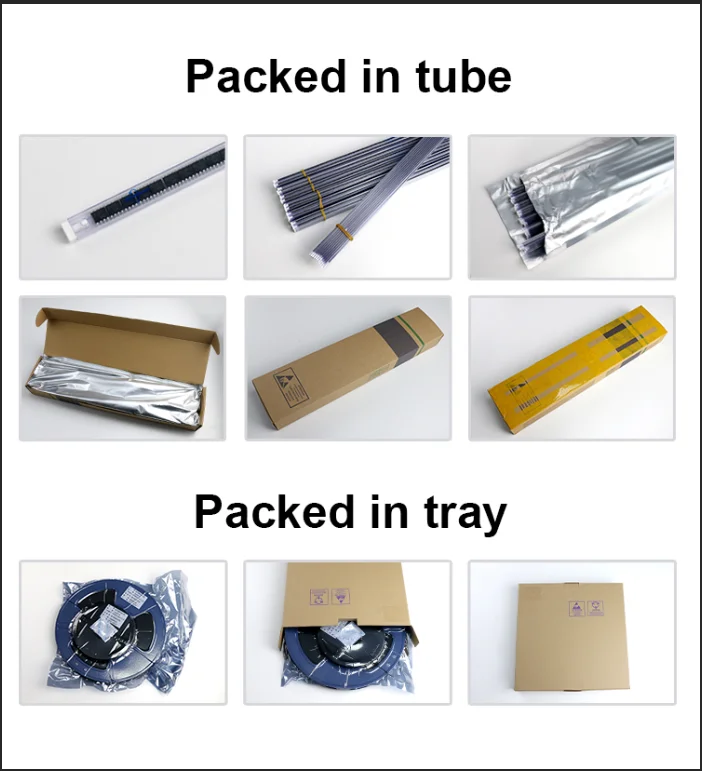

We have two packaging methods: tube packaging and tray packaging
Tube： 100PCS/Tube 10000/ BOX （100 Tube）
Tray packaging: 4000PCS/Tray
We will take every package seriously to ensure that you receive a perfect product
Shipping And Payment
Shipping
We provide customers with the following three modes of transportation
1 If you have a fedex or DHL account, we will use your account to help you arrange packaging and transportation.
2 Using your designated source agent, your courier can come to our company to pick up the goods directly.
3 If you do not have the above two options, we will provide our transportation agency service and quotation.
2 Using your designated source agent, your courier can come to our company to pick up the goods directly.
3 If you do not have the above two options, we will provide our transportation agency service and quotation.
Payment
Payment methods For overseas buyers, we have the following payment methods 1 Bank transfer (USD)-for large-value secure transactions 2 PayPal for sample orders and small batch orders 3 Alibaba transaction 4 Various RMB transactions if you can.
Our communication channels
1 WeChat For fast technical support, we have several professional sales engineers waiting for your inquiry online .
2 skype provides fast support for overseas customers who cannot use WeChat .
3 Email All formal business and technical communication.
4 Of course Alibaba and WhatsApp.
3 Email All formal business and technical communication.
4 Of course Alibaba and WhatsApp.
Company Profile
Who are we？
Shenzhen Waytronic Electronics Co., Ltd located in Baoan district , Shenzhen city , Guangdong province , was founded in Guangzhou.
in 1999 . After more than 20 years ' development , accumulated more than 30,00 cases of high-quality cooperative development and application, and has excellent IC software and hardware.
in 1999 . After more than 20 years ' development , accumulated more than 30,00 cases of high-quality cooperative development and application, and has excellent IC software and hardware.
The company currently ranks among the top three private enterprises in China's voice chips.
Our Mission & Our Vision
Our Mission: Provide more intelligent interactive experience, make the complex simple, make life better.
Our Vision: Be the most influential company in the voice industry and intelligent internet of things.
Our Values: Create and share together,Create the best value for customers, achieve staff dreams.
Staff Code of Conduct: I am the root of all problems. Problems will end here.
Our Vision: Be the most influential company in the voice industry and intelligent internet of things.
Our Values: Create and share together,Create the best value for customers, achieve staff dreams.
Staff Code of Conduct: I am the root of all problems. Problems will end here.
Structure of company
Our business team
Our company has a senior sales team of 30 people
Factory scale:
With a factory area of 2,000 square meters, it has more than 200 employees, can reach the monthly production capacity of more than 15 million pieces. According to customer needs, rapid research and development, rapid sample preparation and rapid delivery.
Our service model
Waytronic always insists on providing fast voice and intelligent Internet of Things application solutions for customer engineers and shortening the product development cycle. With the goal of meeting and exceeding the expectations of customer engineers , we are committed to providing customer engineers with high -quality voice solutions and comprehensive optimal BOM that exceed expectations.
Triangle service model
1) Sales Engineer: Understand the specific needs of customers and be familiar with customer applications
2) Scheme Engineer: Grasp the customer's application requirements in depth to provide fast application, high-quality voice scheme and comprehensive optimal BOM
3)FAES Engineer: It is composed of experienced senior engineers in the industry, and provides one-to-one/many-to-one technical support services.
3)FAES Engineer: It is composed of experienced senior engineers in the industry, and provides one-to-one/many-to-one technical support services.
Passed ISO9001：2015 quality Management system certification.
SGS | CE | RoHs inspection and certification.
