Экструдер для пластиковых нитей с маленькой 3D печатью
US $400.00-$700.00
Машина для экструзии полиэтиленовых труб сельскохозяйственное орошение машина производства из полиэтилена высокой
- Категория: Plastic Extruders >>>
- Поставщик: Zhangjiagang,Kiwex,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 39984.99 $* | 41983.30 $* |
| Aug-17-2025 | 39648.54 $* | 41630.1 $* |
| Jul-17-2025 | 33264.80 $* | 34927.45 $* |
| Jun-17-2025 | 38976.68 $* | 40925.83 $* |
| May-17-2025 | 33936.14 $* | 35633.35 $* |
| Apr-17-2025 | 38304.74 $* | 40219.96 $* |
| Mar-17-2025 | 37968.21 $* | 39866.80 $* |
| Feb-17-2025 | 37632.29 $* | 39514.38 $* |
| Jan-17-2025 | 37296.14 $* | 39161.88 $* |
Характеристики

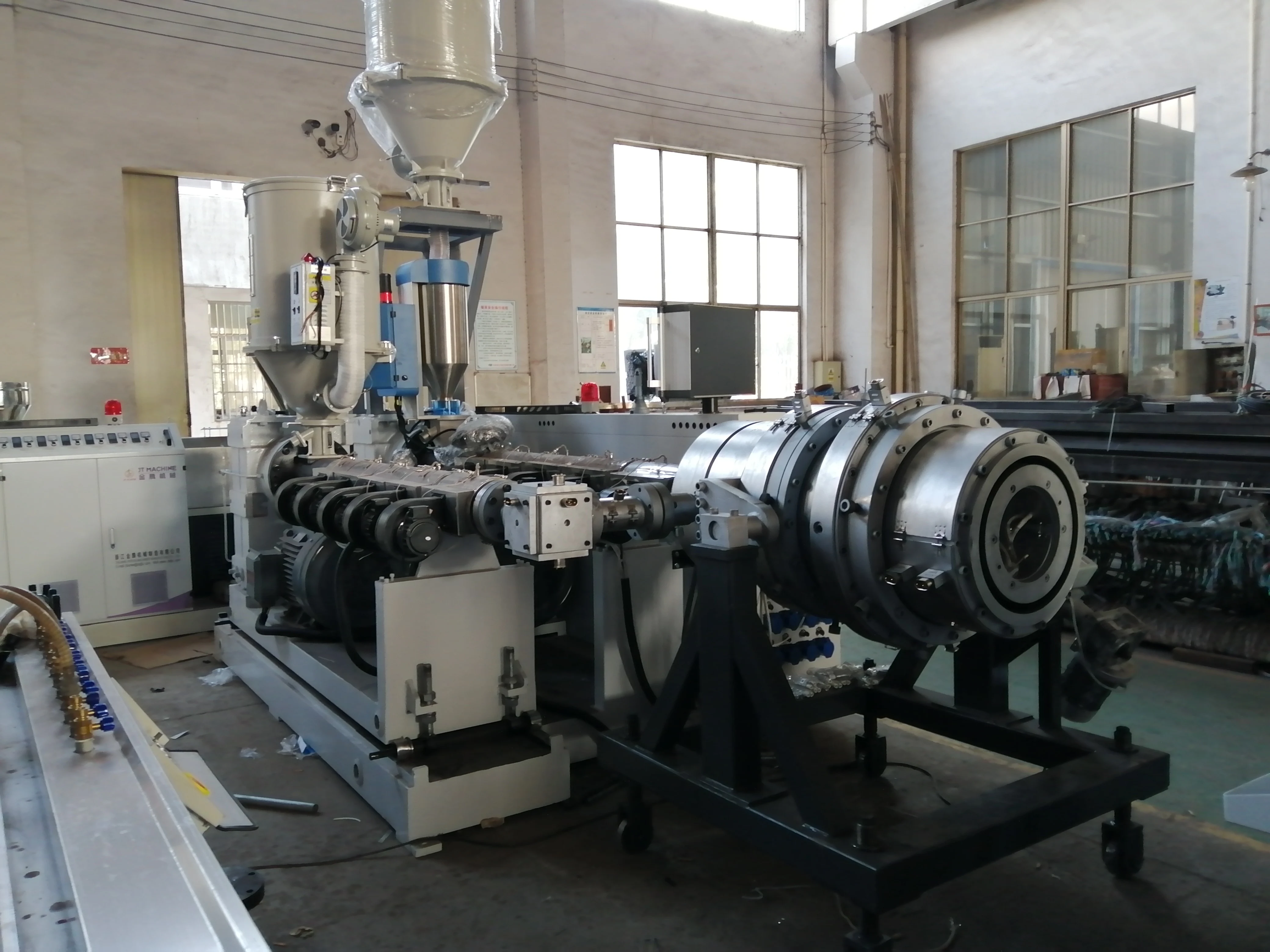

SJ65/33 High-Effective Single-screw Extruder
According to the features of PE, LD of this extruder is 33, so the materials can be compressed, force fed, melted,separated and mixed in barrel in adequate time. The separated screw, equipped with pineapple head and barrier segment, can realize low melting temperature and ensure excellent plasticized performance and stable extrusion output.The reduction box is from Jiangyin, floor type, with hard tooth surface, which can ensure max moment of extruder output.
Transducers are from ABB, RKC temperature controller, Siemens contactors. Mould heater and electric cabinet adopt aviation connection. (all the above-mentioned are equipped according to user’s requests ), PLC from Siemens brand.
Transducers are from ABB, RKC temperature controller, Siemens contactors. Mould heater and electric cabinet adopt aviation connection. (all the above-mentioned are equipped according to user’s requests ), PLC from Siemens brand.

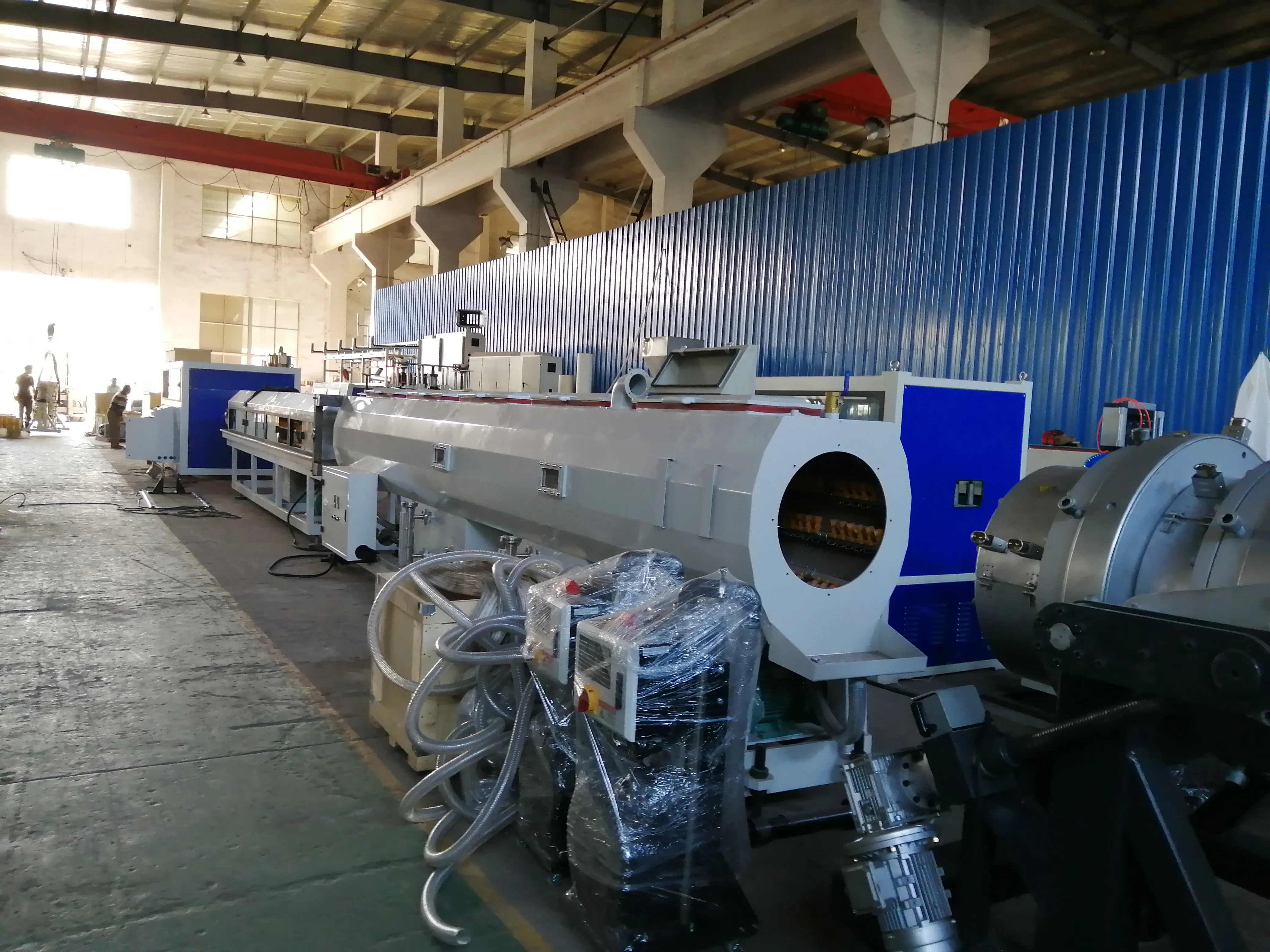

Vacuum Calibration Tank
The whole forming box is divided into two rooms, which is convenient for cooling pipes as they entering into forming box by 40%, waste pipe length is reduced and smooth pipe traction is ensured. The vacuum degrees of two rooms can be adjusted separately, so the technology is more flexible. Vacuum system and water pump system for cool forming are equipped on the vacuum forming machine. Water pump uses circling water in box, with temperature control and water level control devices. Nozzles are distributed in high density. The fog nozzles outlets can cool pipes adequately. R type diameter board is equipped in box. Longitude moving device, manual direction adjusting devices are equipped on the vacuum forming machine.
The vacuum forming machine is mainly composed of the following parts: rack, vacuum forming box, back and forward adjusting device,left and right adjusting device, vacuum system and water pump system.With water temperature setting, the required water temperature is 15-20℃, if temperature is too high, the user should prepare cooling water system, otherwise the pipe forming will be affected and the capacity also will be reduced. The box is made of stainless steel.
The vacuum forming machine is mainly composed of the following parts: rack, vacuum forming box, back and forward adjusting device,left and right adjusting device, vacuum system and water pump system.With water temperature setting, the required water temperature is 15-20℃, if temperature is too high, the user should prepare cooling water system, otherwise the pipe forming will be affected and the capacity also will be reduced. The box is made of stainless steel.
Haul-off Unit
The function of traction is to provide certain traction force and speed for the pipes extruded out of die head already in primary profile and dimension. It can haul off pipes evenly and adjust pipe wall thickness through traction speed.Adopt mechanical pedrail adjusting, equipped with pneumatic compressing device. Center adjustment is controlled by PLC.

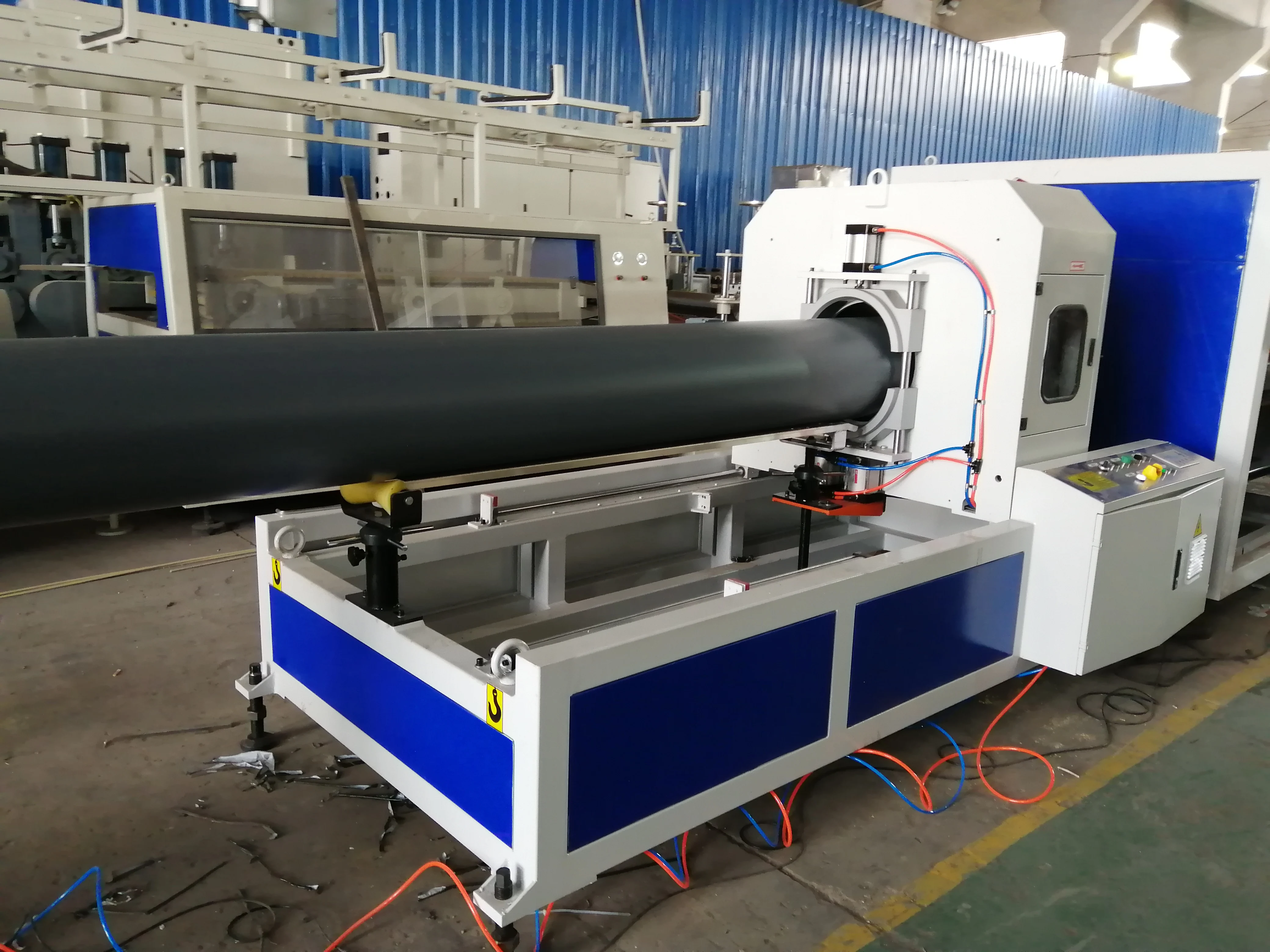

Knife Cutting Unit
QG63 no-scraps cutter is a kind of large cutter with complete cutting performance. It can cut not only the PE pipes with large diameters and thick pipe walls but also similar elliptical hard pipes. It has features including precise cutting, convenient operation, low cutting noise, safety and reliability, etc.
Double-station Winding Machine
Torque motor: 40N.m YLJ Torque motor or 60N.m YLJ Torque motor
Type: Double stations
Winder range： Ф16-110mm
Type: Double stations
Winder range： Ф16-110mm
Optional
Laser coding machine
Laser power:20W or 30WCooling type: air
Wave length: 1064 nm
Line width: 0.01 mm
Markable depth: 0.05-0.2 mm
Speed: 0-150 min
Environment: Temperature 5-45℃ , humidity below 95%
Interface: Etherent, USB, RS232, multiple definition I/O
Wave length: 1064 nm
Line width: 0.01 mm
Markable depth: 0.05-0.2 mm
Speed: 0-150 min
Environment: Temperature 5-45℃ , humidity below 95%
Interface: Etherent, USB, RS232, multiple definition I/O
Model | Pipe Specification(mm) | Extruder | Max Capacity(kg/h) | Total Power(kw) |
KWX-80 | 20-63 | SJ60/30 SJ25/25 | 80-160 | 130 |
KWX-160 | 50-160 | SJ65/33 SJ25/25 | 120-220 | 130 |
KWX-250 | 110-250 | SJ75/33 SJ25/25 | 280-350 | 280 |
KWX-450 | 160-450 | SJ90/33 SJ25/25 | 350-500 | 400 |
KWX-630 | 315-630 | SJ120/33 SJ30/25 | 550-980 | 550 |
KWX-800 | 400-800 | SJ90/33*2 SJ30/25 | 800-1400 | 750 |
KWX-1600 | 800-1600 | SJ120/33*2 SJ30/25 | 800-1400 | 1200 |
