Солнечный контроллер 60A MPPT заряда для солнечной
- Категория: Solar Charger Controllers >>>
- Поставщик: Raygleam,New,Energy,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.64 $* | 0.65 $* |
| Aug-18-2025 | 0.1 $* | 0.79 $* |
| Jul-18-2025 | 0.84 $* | 0.0 $* |
| Jun-18-2025 | 0.60 $* | 0.5 $* |
| May-18-2025 | 0.12 $* | 0.22 $* |
| Apr-18-2025 | 0.47 $* | 0.35 $* |
| Mar-18-2025 | 0.6 $* | 0.61 $* |
| Feb-18-2025 | 0.48 $* | 0.18 $* |
| Jan-18-2025 | 0.30 $* | 0.44 $* |
Характеристики
Product Description

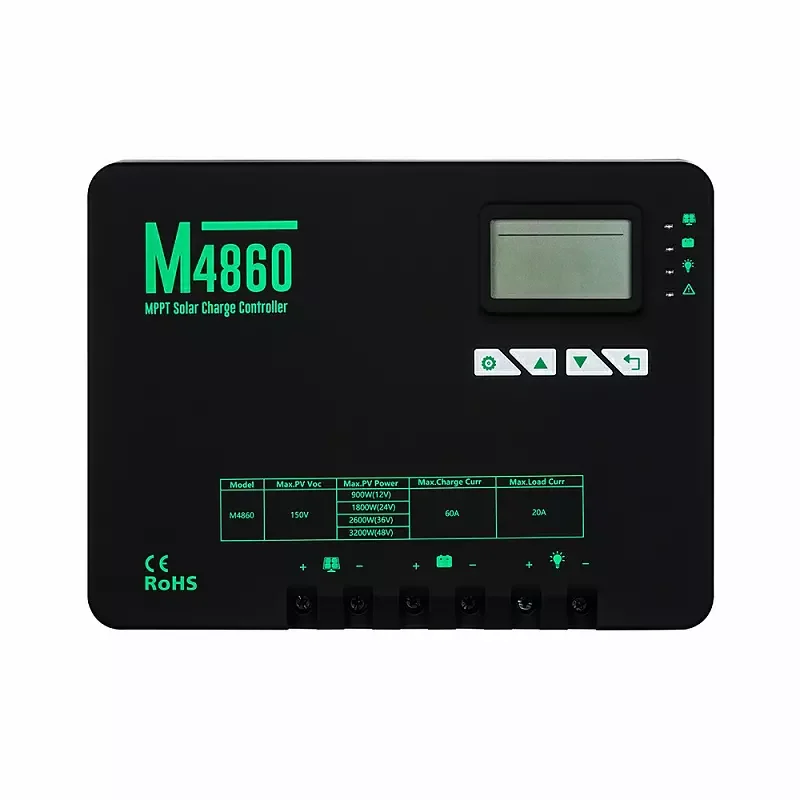

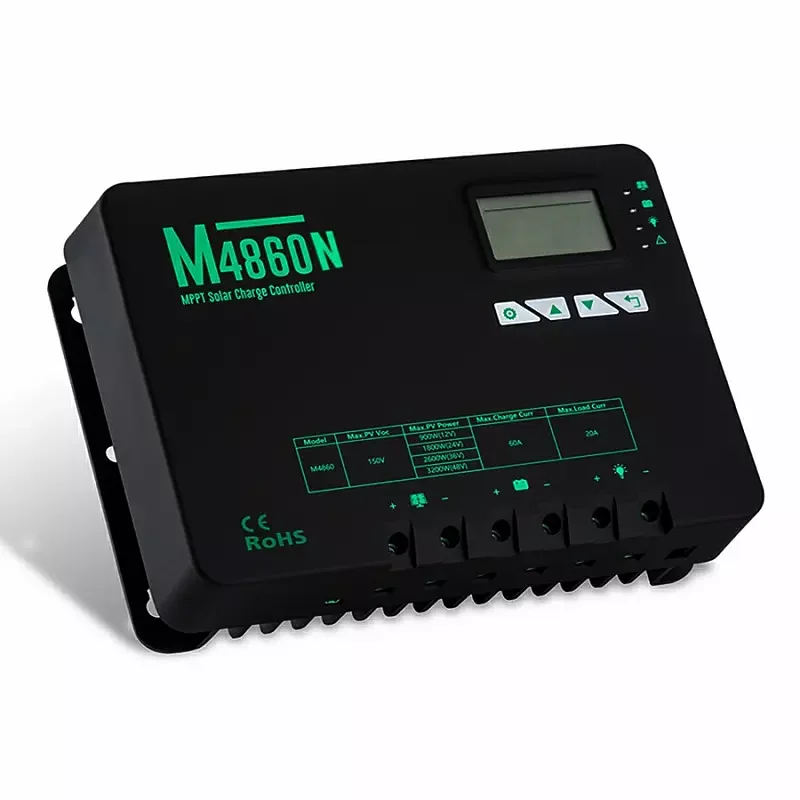

M4860/M4860N (Negative Grounded Model) is a solar controller with advanced Maximum Power Point Tracking (MPPT) technology, mainly used in small & medium size solar stand alone power systems up to 3.2KW. Additionally, it's a negative grounded model, meets the electrical wiring standard that is widely required in solar power system in North America.
Key Features
★ 12/24/36/48V battery system auto recognition
★ 60A max charge current
★ 150Voc max PV input voltage
★ 3.2KW max PV input power
★ 0.3W max self power consumption
★ 300 days max data logging
★ Negative grounded design
★ Inbuilt BT module for APP operation
★ 60A max charge current
★ 150Voc max PV input voltage
★ 3.2KW max PV input power
★ 0.3W max self power consumption
★ 300 days max data logging
★ Negative grounded design
★ Inbuilt BT module for APP operation
Advantage of Our products
Advanced Maximum Power Point Tracking (MPPT) Technology
- Fast MPPT start with ultra fast of sweeping of the entire V-I curve
- Smart MPPT algorithm ensures a better tracking in multiple power points
- High PV harvest performance in weak sunlight conditions
- Excellent peak efficiency exceeds 98%
High Quality & Function
- No cooling fan; over rating size heating sink
- Over rating electronic components to minimize the power loss from heating
- Full charge power output up to 45ºC
- Compensates battery charge voltages with use of temperature sensor
- LCD screen display; key operation for parameter settings
- Lead-acid AGM/GEL/Flooded & Lithium batteries supportable
Reliable Electronic Protections
- Advanced protections for battery charge & discharge
- Over-heating protection by power derating if temperature is high
- Allow max 25% exceeding rated power without controller damage
- Extensive protections including PV reverse polarity & reverse current protection
Extensive Device Functions
- RS485 port for Modbus communication
- Extra 20A DC load output control with various of load modes

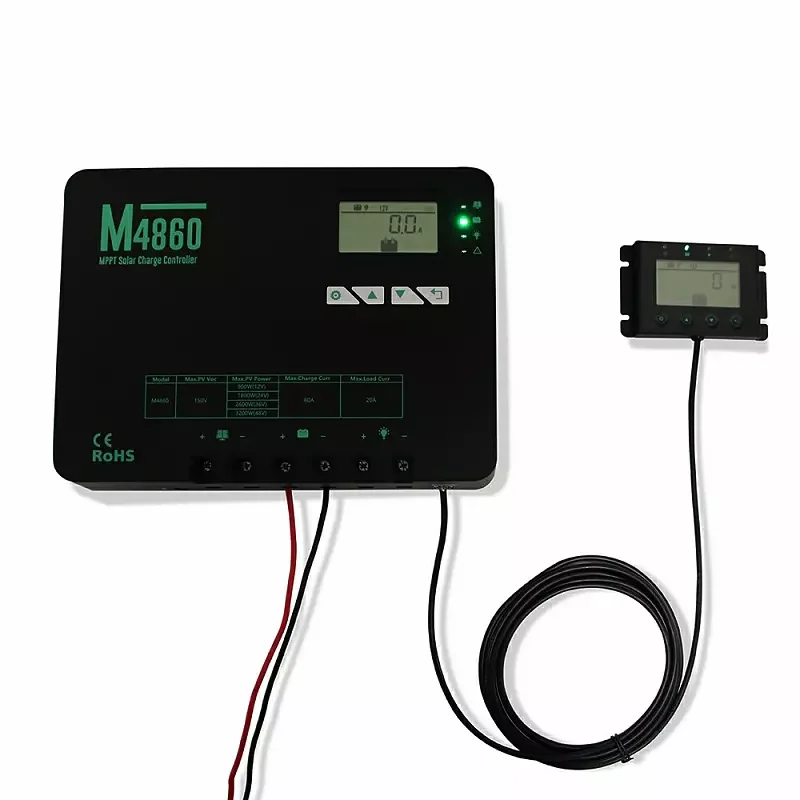

- External remote LCD display connection
- Inbuilt Bluetooth module for APP operation
- Fast MPPT start with ultra fast of sweeping of the entire V-I curve
- Smart MPPT algorithm ensures a better tracking in multiple power points
- High PV harvest performance in weak sunlight conditions
- Excellent peak efficiency exceeds 98%
High Quality & Function
- No cooling fan; over rating size heating sink
- Over rating electronic components to minimize the power loss from heating
- Full charge power output up to 45ºC
- Compensates battery charge voltages with use of temperature sensor
- LCD screen display; key operation for parameter settings
- Lead-acid AGM/GEL/Flooded & Lithium batteries supportable
Reliable Electronic Protections
- Advanced protections for battery charge & discharge
- Over-heating protection by power derating if temperature is high
- Allow max 25% exceeding rated power without controller damage
- Extensive protections including PV reverse polarity & reverse current protection
Extensive Device Functions
- RS485 port for Modbus communication
- Extra 20A DC load output control with various of load modes
- External remote LCD display connection
- Inbuilt Bluetooth module for APP operation
Specification
