48 в кВА MPPT солнечный инвертор для солнечной энергетической
- Категория: Solar Charger Controllers >>>
- Поставщик: SRNE,Solar,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 785.66 $* | 824.65 $* |
| Aug-15-2025 | 779.98 $* | 818.81 $* |
| Jul-15-2025 | 653.30 $* | 686.79 $* |
| Jun-15-2025 | 766.50 $* | 804.34 $* |
| May-15-2025 | 667.5 $* | 700.13 $* |
| Apr-15-2025 | 752.67 $* | 790.64 $* |
| Mar-15-2025 | 746.33 $* | 783.83 $* |
| Feb-15-2025 | 739.40 $* | 776.36 $* |
| Jan-15-2025 | 733.3 $* | 770.43 $* |
Характеристики
Product Overview

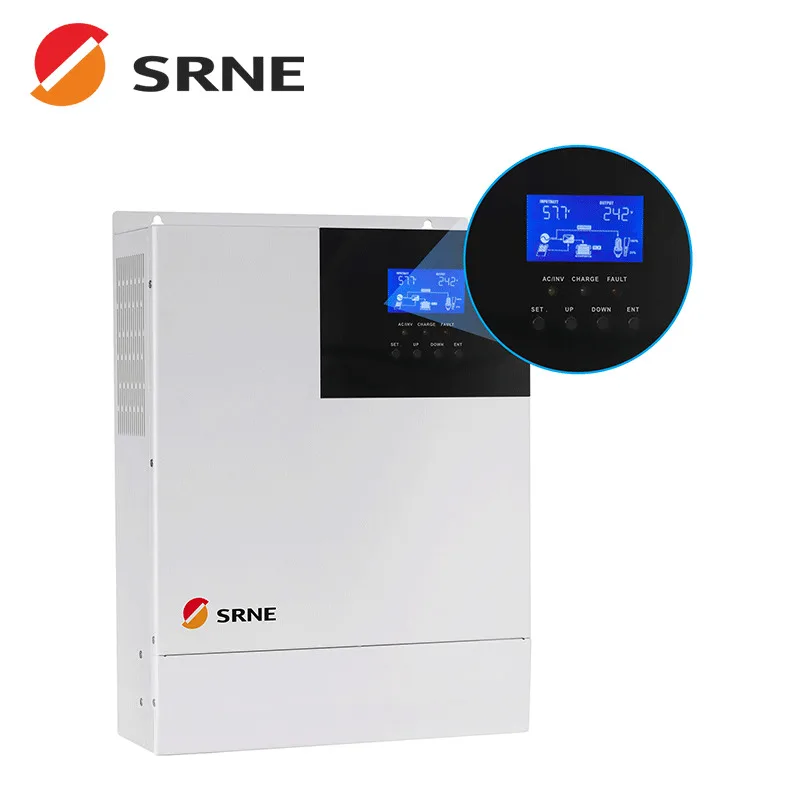

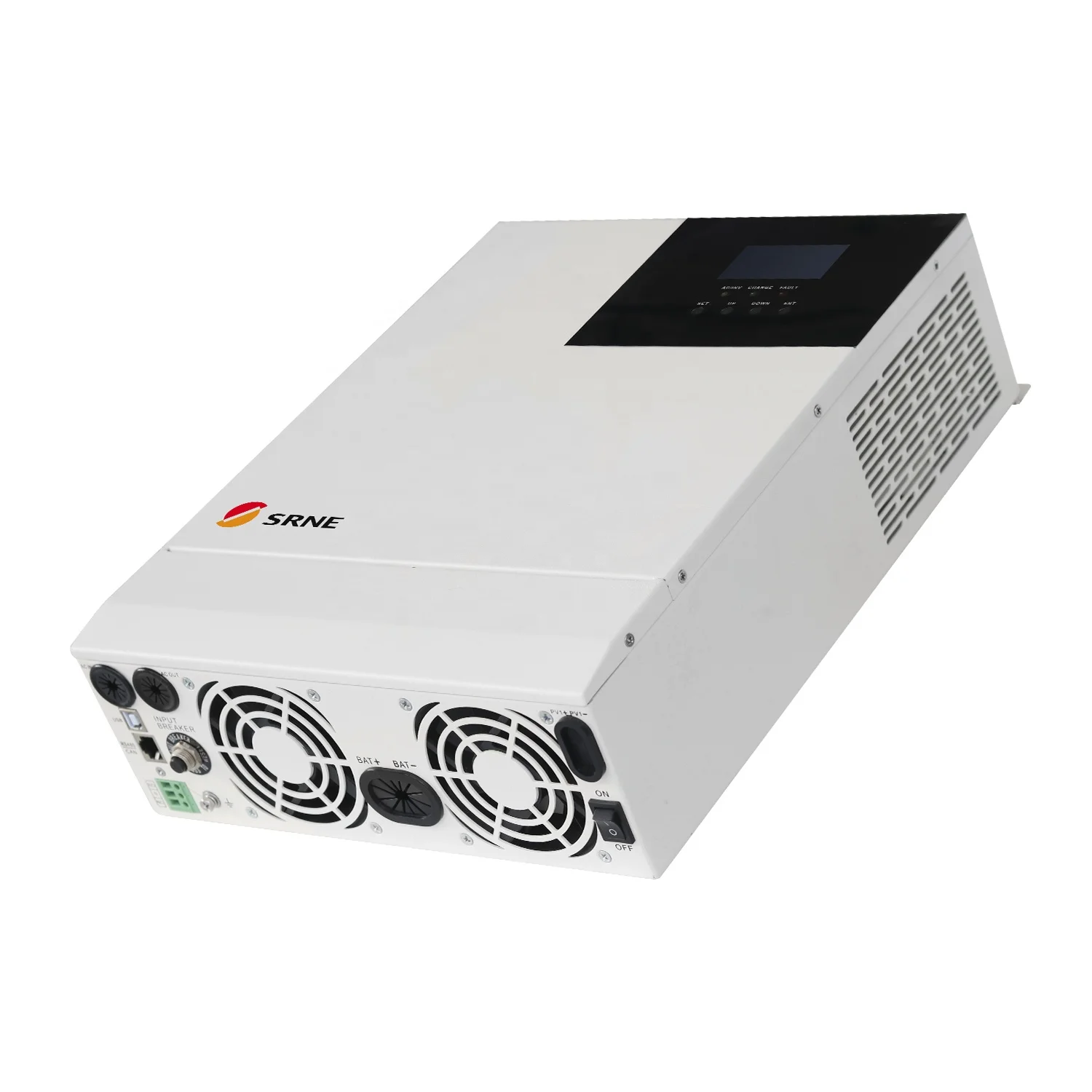

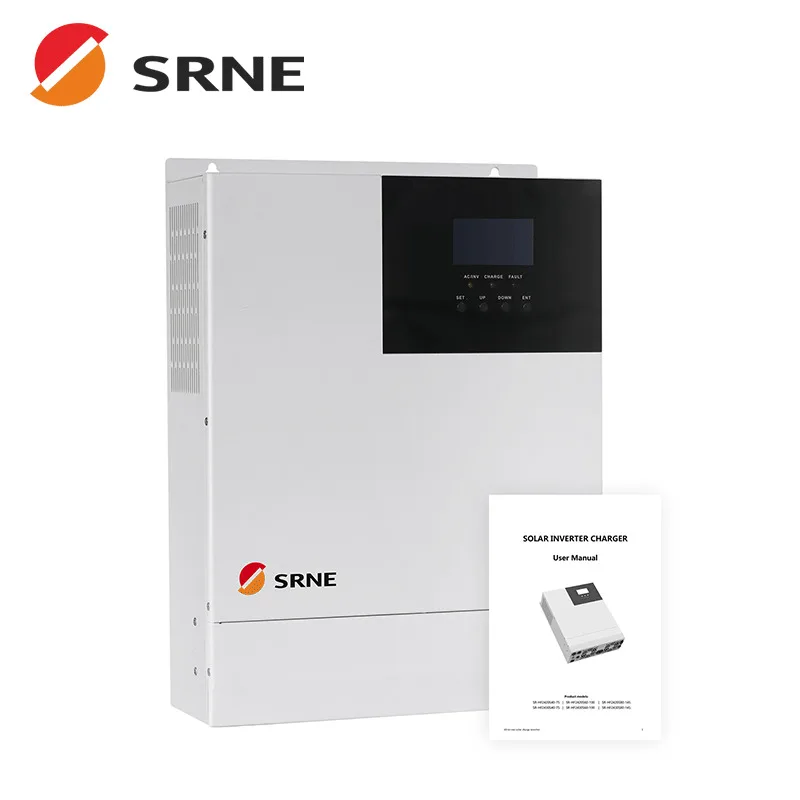

SRNE 48v 3.5kva inverters for off-grid solar with MPPT solar charge controller build in
This is inverter for 48v DC 110v AC
Now we have ETL,CE and ROHS certification,this one is very popular in American market
Now we have ETL,CE and ROHS certification,this one is very popular in American market
If you need more message,welcome to contact me
FEATURES AT A GLANCE
Feature
1:Two output modes: mains bypass and inverter output; uninterrupted power supply.
2:Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.
3:Lithium battey can be activated by both mains and PV.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | SRNE 48v 3.5kva inverters for off-grid solar with MPPT solar charge controller build in | Data | |
A | AC mode | ||
1 | Output voltage | 110/120v AC | |
2 | Frequency | 50Hz/60Hz(Auto detection) | |
3 | conversion time(bypass and inverter) | 10ms | |
4 | Inverter Efficiency | >95% | |
B | Inverter mode | ||
1 | Output voltage waveform | Pure sine wave | |
2 | Rated power | 3.5KW | |
3 | output voltage error | +5%/-5% | |
4 | Efficiency | >91% | |
5 | Power factor | 1 | |
6 | Peak power | 5000VA | |
7 | Loaded motor capability | 2HP | |
8 | Rated battery input voltage | 48v(Mini start voltage 44v) | |
C | AC charging | ||
1 | MAX AC charging current | 40A | |
2 | charge voltage range | 40-60v dc | |
3 | Battery type | Lead acid or Lithium battery | |
D | PV charging | ||
1 | Maximum PV VOC | 145V dc | |
2 | PV operating voltage range | 60-145v dc | |
3 | Max output power | 4200w | |
4 | PV charging current | 0-80A | |
E | Others | ||
1 | Weight | 10.8KG | |
2 | operating voltage | -15-55 °C | |
3 | Noise | <=60db | |

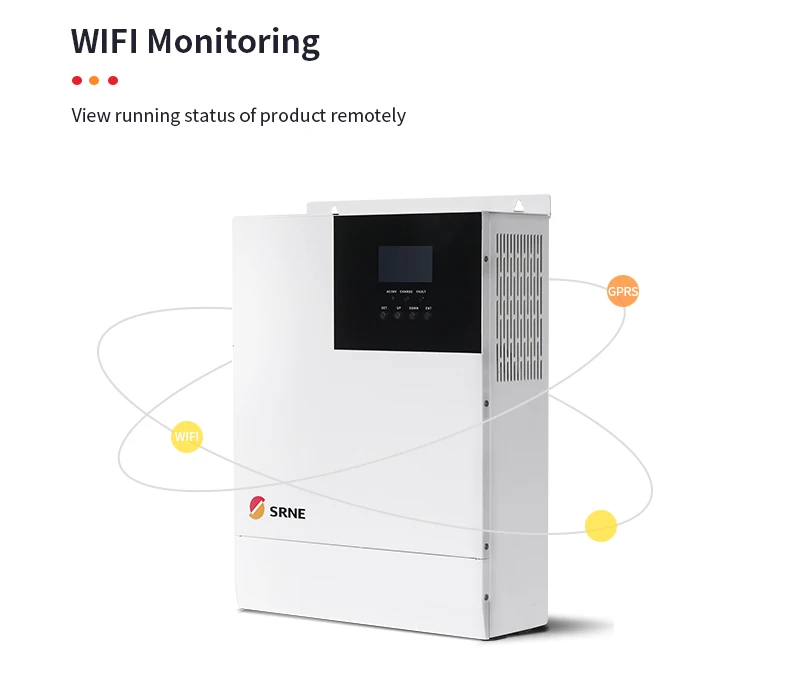

4 | Wifi connection | SUPPORT | |
5 | Size | 426*322*124 | |
6 | Warranty | 12 months | |
PRODUCT CONFIGURATION
Successful Project
Project in China
Project in USA
Project in Nigeria
SALES AND SERVICE NETWORK

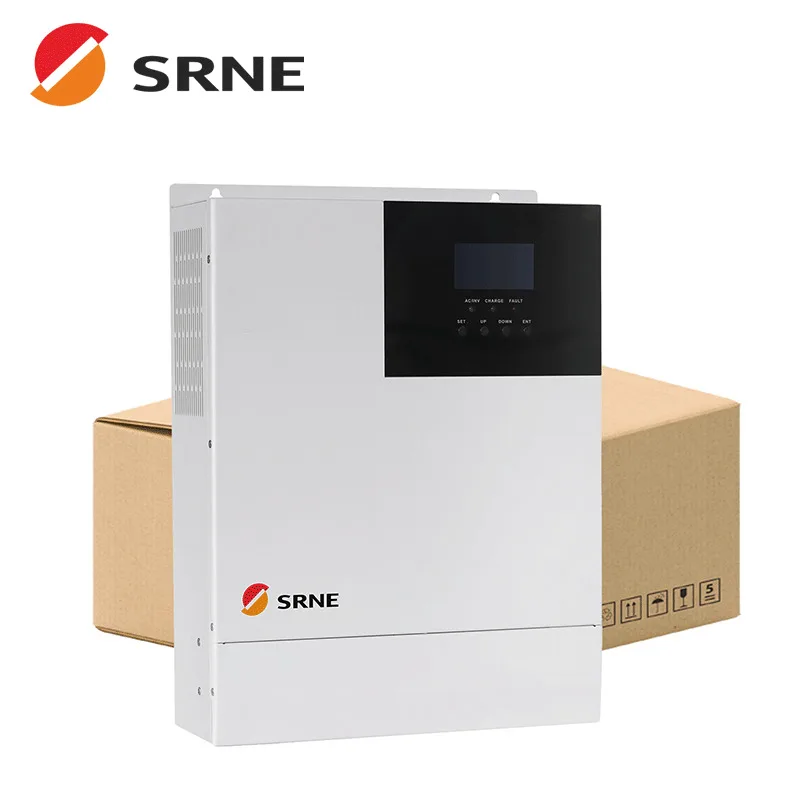

Package information
Exhibition in Russia
Exhibition in Germany
