Малая китайская травяная медицина экстракция и концентрация гинкго билоба оборудование для сухой экстракции
- Категория: Pharmaceutical Machinery >>>
- Поставщик: Shanghai,Yuyan,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 8330.69 $* | 8747.92 $* |
| Aug-18-2025 | 8260.51 $* | 8673.93 $* |
| Jul-18-2025 | 6930.87 $* | 7277.56 $* |
| Jun-18-2025 | 8120.70 $* | 8526.52 $* |
| May-18-2025 | 7070.36 $* | 7424.82 $* |
| Apr-18-2025 | 7980.51 $* | 8379.40 $* |
| Mar-18-2025 | 7910.70 $* | 8306.92 $* |
| Feb-18-2025 | 7840.23 $* | 8232.37 $* |
| Jan-18-2025 | 7770.38 $* | 8159.87 $* |
Характеристики
Product Introduction

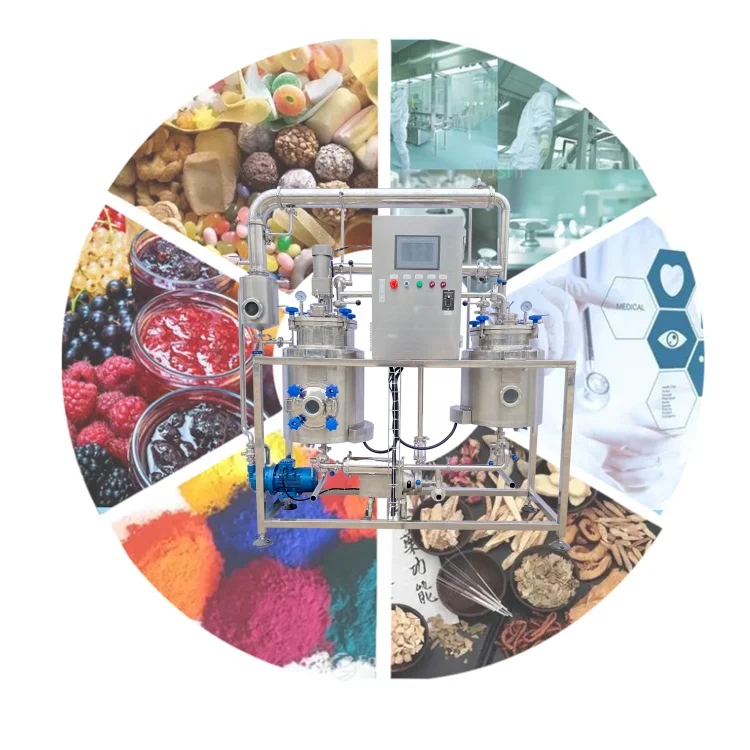

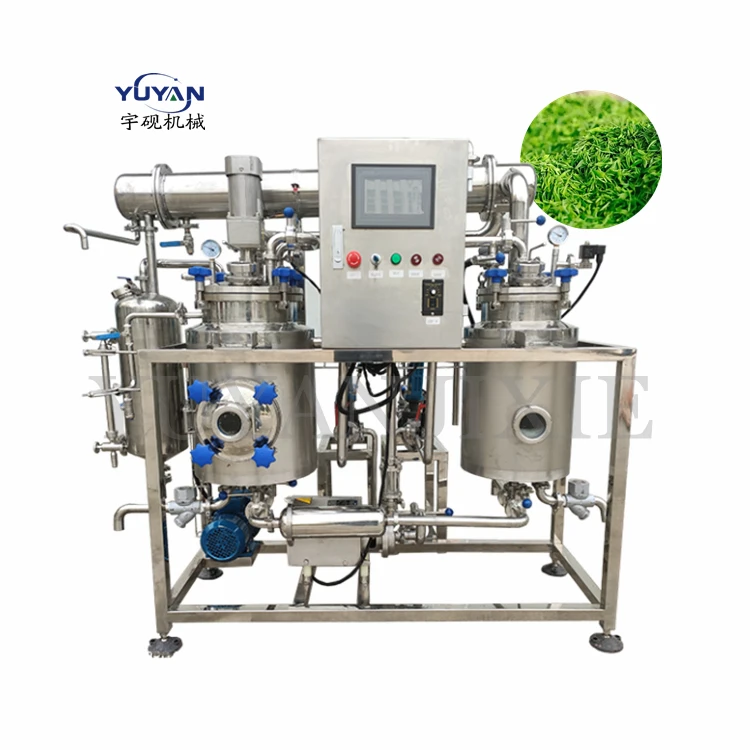

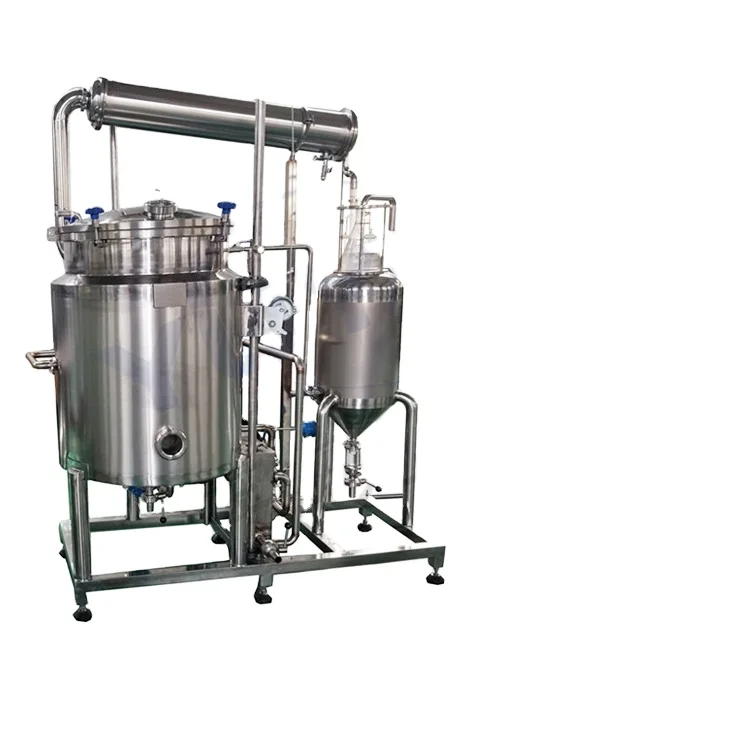

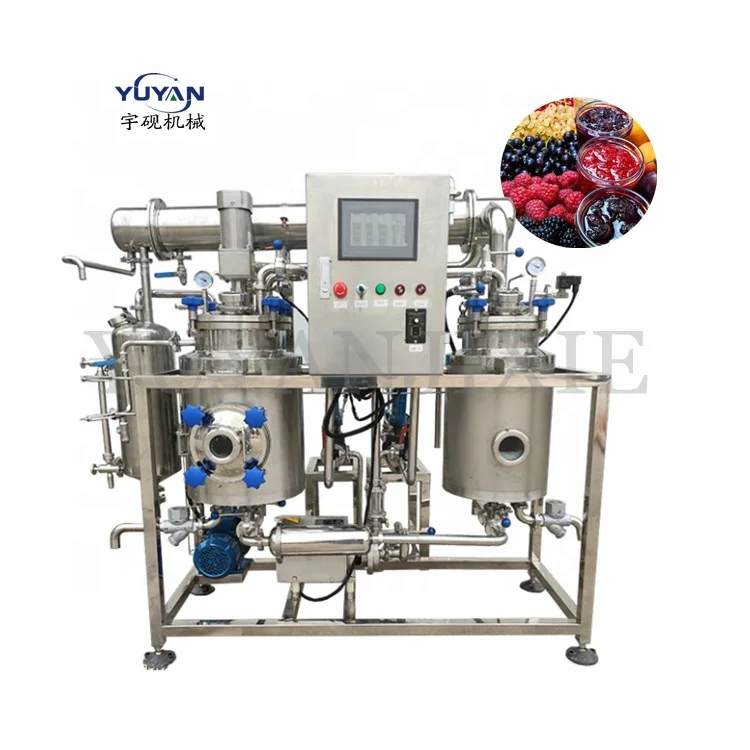

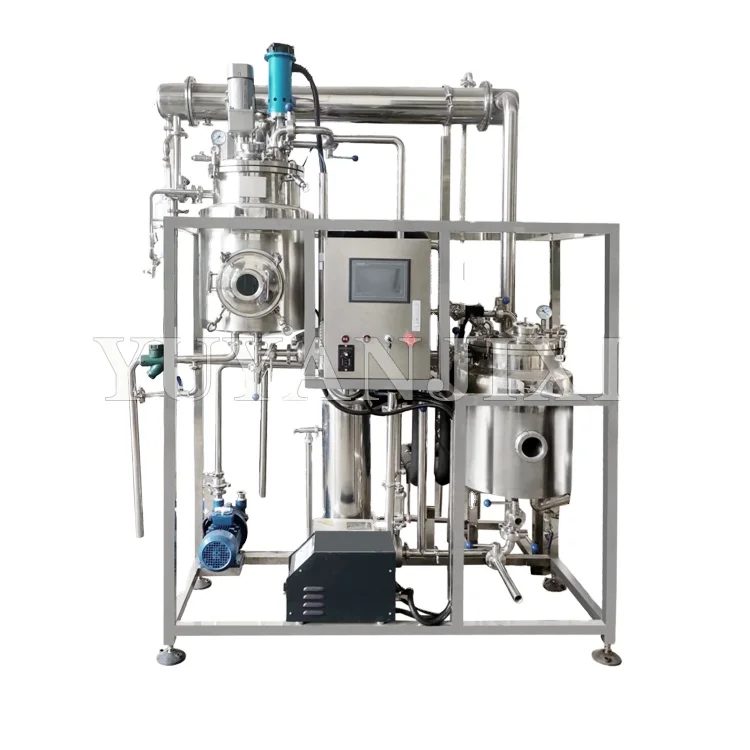

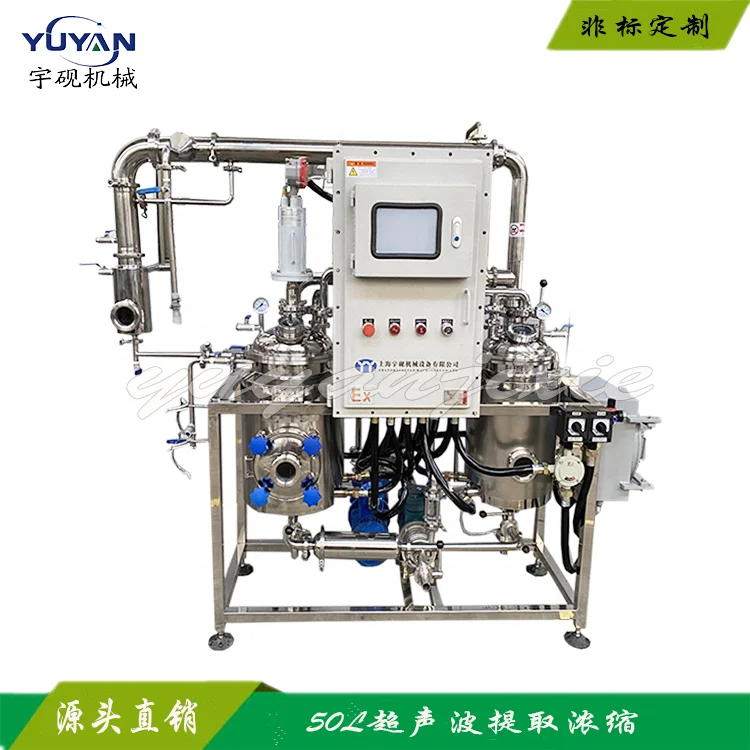

Extraction And Concentration Equipment
This equipment is suitable for various processes such as normal pressure, micro pressure, water decocting, warm soaking, hot reflux, permeation, extraction of aromatic oil components and recovery of organic solvents in the industries of traditional Chinese medicine, plants, animals, food, beverages, and chemical industries. It adopts countercurrent dynamic extraction, ultrasonic extraction, short time and high efficiency; this equipment adopts electric heating method with high degree of automation. The whole equipment is equipped with CIP cleaning device, which conforms to GMP medical standards. This equipment is mainly suitable for universities, research institutes, enterprises and institutions Experimental research and development and pilot production use.
Technological Process
Model | Y-YN-10 | Y-TN-20 | Y-TN-30 | Y-TN-50 | Y-TN-100 | Y-TN-200 | Y-TN-300 | Y-TN-500 | Y-TN-1000 | ||||||||
Volume | 10 | 20 | 30 | 50 | 100 | 200 | 300 | 500 | 1000 | ||||||||
Material | Stainless steel 304 / 316 / high borosilicate | ||||||||||||||||
Stirring power | 200W | 370W | 370W | 550W | 1100W | 3000W | |||||||||||
Condensation system | Tube condenser + coil cooler | ||||||||||||||||
Concentration method | Single effect concentration / vacuum concentration tank / ball concentrator / scraper concentration | ||||||||||||||||
heating method | Electric heating | Electric / steam heating | Steam heating | ||||||||||||||
Vacuum | -0.03~0.09 | ||||||||||||||||
Steam consumption | 0 | 18KG/H | 35KG/H | 70KG/H | 120KG/H | 200KG/H | 250KG/H | ||||||||||
Expandable function | Organic solvent explosion-proof extraction, Soxhlet extraction, ultrasonic extraction, valve automation, automatic pin bubble function, online concentration detection function | ||||||||||||||||
Main Parts
Control system
Imported brand high-quality electrical components,
PLC control system, independent programming, can realize digital production.
Equipped with buzzer alarm and production time warning function.
Touch screen control, easy to operate and learn, and the production process saves more time.
Extraction tank
Three layer stainless steel 304 tank body, heat insulation, improve extraction efficiency and ensure production safety.
The surface of the tank is treated by wire drawing to reduce the reflected light,
The mirror inside the tank body is polished to reduce material stickiness and easy to clean,
The tank is equipped with a visual device to facilitate the observation of the extraction progress.
Concentration tank
The three-layer stainless steel 304 tank body is insulated to accelerate the concentration speed and ensure production safety.
The surface of the tank is treated by wire drawing to reduce the reflected light,
The mirror inside the tank body is polished to reduce material stickiness and easy to clean,
The tank body is equipped with a visual device to facilitate the observation of concentration effect.
Equipment Parameters
Applicable Materials
Application Area
Top selling products
Packing&Shipping
Case shot
Company Introduction
Shanghai Yuyan mechanical equipment Co., Ltd. is located in Fengxian Bay Economic Development Zone, Shanghai. It is a new comprehensive enterprise integrating product design, development, manufacturing, engineering installation and after-sales service.
The company's products are designed and manufactured in strict accordance with the ISO international quality certification system and relevant national equipment standards. The products involve pharmaceutical engineering, dairy equipment, beverage equipment, bioengineering, chemical engineering, oil refining equipment and experimental equipment processing and manufacturing as well as the whole plant installation engineering.
The company has experienced technical service team to provide customers with process design, factory layout, product formula, technical consultation and turnkey engineering services for new or expanded projects.
After years of hard work and continuous innovation, the company has rapidly grown into a superior enterprise in the same industry facing domestic and international markets, with advanced production, testing and testing equipment, relatively complete product varieties, advanced technology and excellent service.
The company's products are designed and manufactured in strict accordance with the ISO international quality certification system and relevant national equipment standards. The products involve pharmaceutical engineering, dairy equipment, beverage equipment, bioengineering, chemical engineering, oil refining equipment and experimental equipment processing and manufacturing as well as the whole plant installation engineering.
The company has experienced technical service team to provide customers with process design, factory layout, product formula, technical consultation and turnkey engineering services for new or expanded projects.
After years of hard work and continuous innovation, the company has rapidly grown into a superior enterprise in the same industry facing domestic and international markets, with advanced production, testing and testing equipment, relatively complete product varieties, advanced technology and excellent service.
Our Services & Strength
Our factory is a professional modern mechanical engineering equipment manufacturer integrating scientific research, manufacturing and installation, with more than 130 countries and regions, many years of mechanical manufacturing experience, and a wide range of products.
We are proud to guarantee that with our strong technical support and communication ability, our sales support engineers can answer your most complex questions in English on the phone Technical problems
Our cooperation customers
Contact us
FAQ
1. Can I use this machine to extract some raw materials?
A: Yes, in order to help you better, we suggest you provide the name of the raw material you want to process.
2. Can I use my own raw materials for extraction test?
A: Yes, of course. We can do extraction tests and send videos and test reports for your reference.
3. Do you have OEM service? Do you provide parts?
A: Yes, we will, as long as you provide us with your drawings and detailed requirements.
A: Yes, of course. We can do extraction tests and send videos and test reports for your reference.
3. Do you have OEM service? Do you provide parts?
A: Yes, we will, as long as you provide us with your drawings and detailed requirements.
4. How can we visit your factory?
A: you can fly to Shanghai airport, or if you arrive in Shanghai, you can tell us your specific location. We will arrange a driver to pick you up.
5. How to transport equipmen?
A: we usually choose sea transportation. Laboratory models can be shipped by air according to customer requirements.
6. What is the voltage of the equipment?
A: the equipment voltage is 380V, if the user requires 220V, the specific can be customized according to the voltage standard of the country where your equipment is used.
7. what is your after-sales service?
A: we provide the English manual of the equipment manual. If you need, we will send an engineer to install and train workers.
