Характеристики
Product Description
Factory IQF tunnel freezer freezing machine / tunnel freezer liquid nitrogen / freezing equipment for sale
The food quick-freezing is to put the pre-processed food into the low-temperature appliance, and through the zone of maximum ice crystal formation within 30 minutes, the core temperature falls below to -50℃.The diameter of generated ice-crystal is less than 100um; the core temperature of quick- frozen food must reach the food refrigeration technique under - 180℃. Generally speaking, the quick-frozen food can be sent to customers under the continuous low temperature condition under -180℃ after being packaged rapidly.
Performance characteristics:

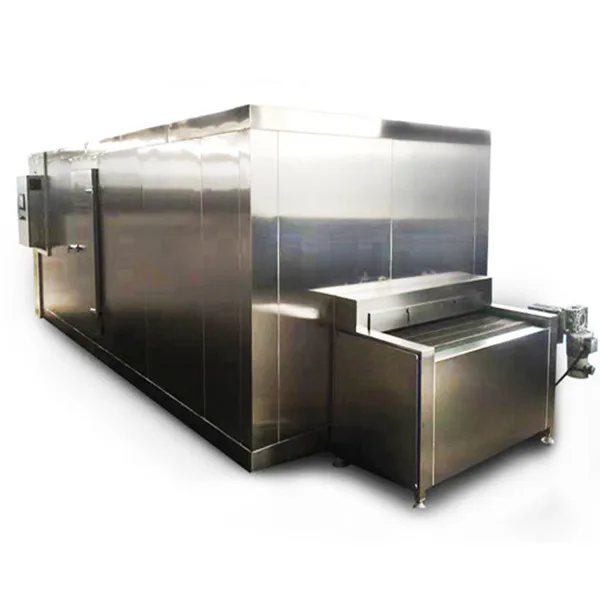

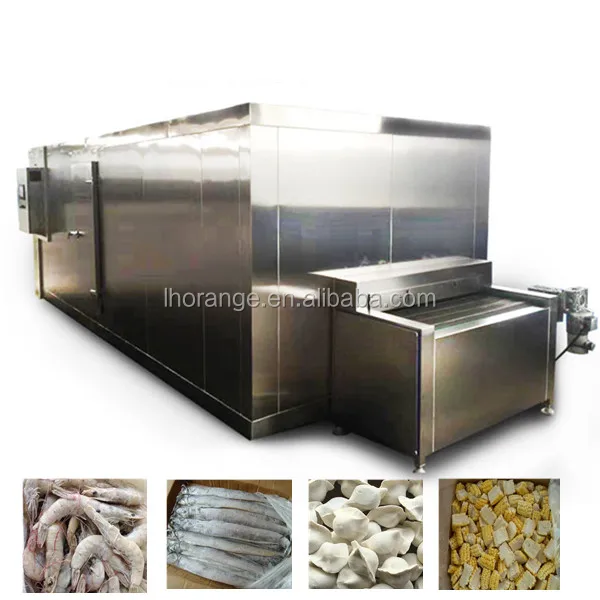

The tunnel-type quick-freezing machine is a large-scale quick-freezing machine suitable for large-scale processing and production of the factory assembly line. It has strong quick-freezing ability, simple operation and high degree of automation.The freezing time and temperature can be adjusted. Suitable for freezing seafood, meat, fruits, vegetables and dairy products.
Features：
1. Mesh belt drive: the speed of mesh belt is adjusted stepless by imported inverter, and the freezing time is adjustable from 6-60 minutes, which can adapt to the processing of various frozen products.
2. Ice scraping device for feeding belt to reduce damage to steel belt caused by ice and foreign matter.
3. Compressor refrigeration, no freon, green protection, odor, antibacterial, energy saving, low operating costs.
4. Unique Tong efficiency ventilation device, the reasonable air distribution, uniform air distribution, make the material fully exposed to the strong cold wind, high freezing efficiency.
5. Food transport network, transport speed can be flexible according to different products, suitable for a variety of frozen food processing.
6. According to the production requirements can choose single, double net belt combination.
7. The e belt shall be tightened and adjusted to ensure the smooth and long running of the food conveyor belt.
8. The storage body is made of rigid polyurethane foam with good insulation performance. The inner and outer cover and the inner and outer support of the storage body are made of stainless steel, which is easy to clean and meets the requirements of HACCP for food hygiene.
9. The control system has two automatic and manual cooling modes, which can be selected according to different production needs.
10. With continuous production line, safe and durable, easy to operate, long service life.
11. Adopt water to flush frost way, safeguard clean sanitation.
12. The equipment can be customized according to the needs of users.
2. Ice scraping device for feeding belt to reduce damage to steel belt caused by ice and foreign matter.
3. Compressor refrigeration, no freon, green protection, odor, antibacterial, energy saving, low operating costs.
4. Unique Tong efficiency ventilation device, the reasonable air distribution, uniform air distribution, make the material fully exposed to the strong cold wind, high freezing efficiency.
5. Food transport network, transport speed can be flexible according to different products, suitable for a variety of frozen food processing.
6. According to the production requirements can choose single, double net belt combination.
7. The e belt shall be tightened and adjusted to ensure the smooth and long running of the food conveyor belt.
8. The storage body is made of rigid polyurethane foam with good insulation performance. The inner and outer cover and the inner and outer support of the storage body are made of stainless steel, which is easy to clean and meets the requirements of HACCP for food hygiene.
9. The control system has two automatic and manual cooling modes, which can be selected according to different production needs.
10. With continuous production line, safe and durable, easy to operate, long service life.
11. Adopt water to flush frost way, safeguard clean sanitation.
12. The equipment can be customized according to the needs of users.
Product Paramenters
Model | Output | Installed Power | Refrigeration Consumption | Dimension L*W*H | Belt Width |
OR100 | 100kg/h | 2.25kw | 15kw | 7.4*1.5*2.2m | 1000mm |
OR150 | 150kg/h | 2.95kw | 21.5kw | 8.0*1.8*2.3m | 1300mm |
OR200 | 200kg/h | 4.5kw | 30kw | 10.2*1.8*2.3m | 1300mm |
OR300 | 300kg/h | 6.5kw | 43.5kw | 11.2*2.3*2.3m | 1800mm |
OR500 | 500kg/h | 10.3kw | 75kw | 13.5*3.0*2.5m | 2500mm |
OR1000 | 1000kg/h | 19.8kw | 142kw | 22.9*3.0*2.5m | 2500mm |
OR1500 | 1500kg/h | 28.6kw | 225kw | 26.4*3.5*2.5m | 3000mm |
Detailed Images
