4x8ft 3D резьба по дереву машины RC1325S-ATC с автоматическим изменением температуры
- Категория: Other Machinery & Industry Equipment >>>
- Поставщик: Roctech,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.27 $* | 0.4 $* |
| Aug-17-2025 | 0.69 $* | 0.80 $* |
| Jul-17-2025 | 0.68 $* | 0.79 $* |
| Jun-17-2025 | 0.80 $* | 0.70 $* |
| May-17-2025 | 0.67 $* | 0.74 $* |
| Apr-17-2025 | 0.29 $* | 0.58 $* |
| Mar-17-2025 | 0.6 $* | 0.46 $* |
| Feb-17-2025 | 0.32 $* | 0.84 $* |
| Jan-17-2025 | 0.34 $* | 0.72 $* |
Характеристики

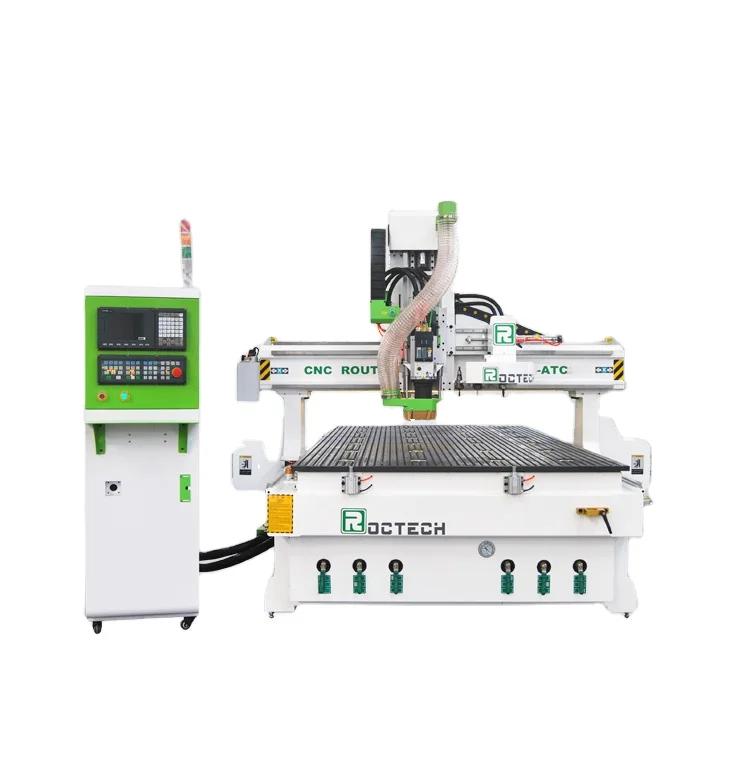

RC2030-ATC CNC Router Wood Furniture Machine Automatic Machine
1.Brief introduction
With hard steel structure, the machine is fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoor decoration, and it is qualified for mass- producing of furniture with the Vacuum holding way and dust collector.
WIth ATC spindle and linear tool changing magazine, the machine can automatically change many tools during the work, more efficiently.
In the front part of the machine, there is a rotary system. It can hold 1000mm length and 250mm diameter round materials.
2.Performance parameter
Number | Description | Parameter |
1 | X,Y,Z Working Area | 2000mmX3050mmX300*1000X250mm |
2 | Table Size | 2050×3150mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot table) |
6 | Frame | Welded structure |
7 | X, Y Structure | Rack and Pinion Drive, SKF Rail Linear Bearings |
8 | Z Structure | SKF Rail Linear Bearings and Ball Screw |
9 | Max. Power Consumption | (Without Spindle) 4.5kw |
10 | Max. Rapid Travel Rate | 45000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | 9kw |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | Yaskawa servo |
15 | Working Voltage | AC 380V/50/60Hz,3PH |
16 | Command Language | G Code |
17 | Operating System | Syntec Control System |
18 | Computer Interface | Ethernet |
19 | Flash Memory | 256M with CF card |
20 | Collet | ER32 |
21 | X,Y Resolution | <0.03mm |
22 | Software Compatibility | Type3 software , Artcam software |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | Packing Size | 4700X2300X1900mm |
26 | N.W. | 2600KG |
27 | G.W. | 2800KG |
28 | options | Dust Collector |
Rotary System | ||
Mist-cooling System |
3.Detail Pictures of the machine

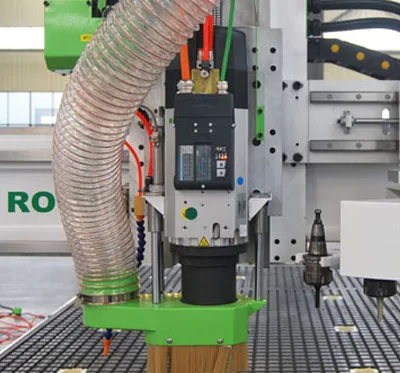

9kw HSD ATC spindle Original from Italy

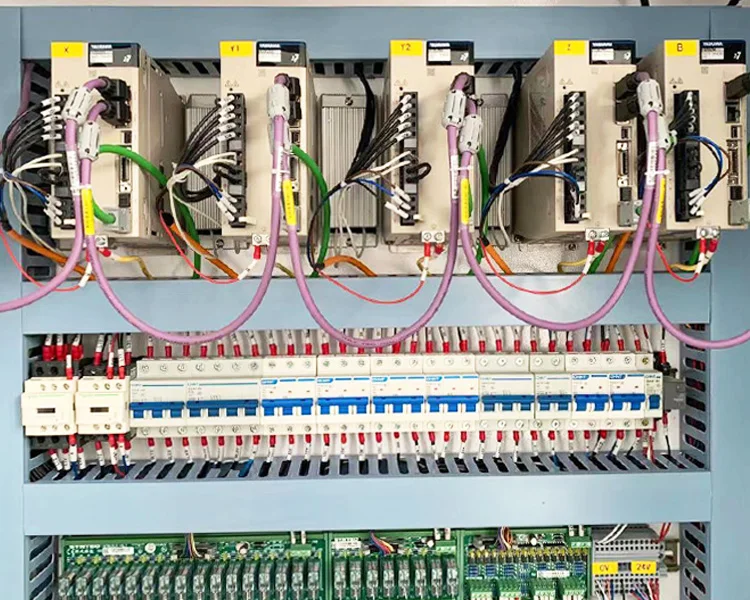

11kw VFD-B Delta Inverter from Taiwan

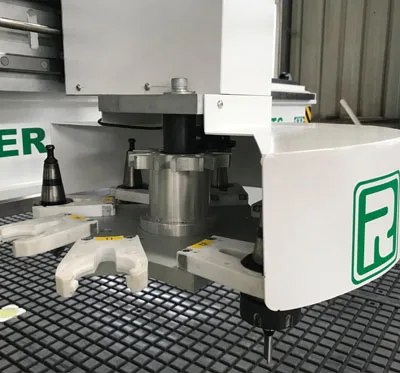

Linear Tool Changing Magazine

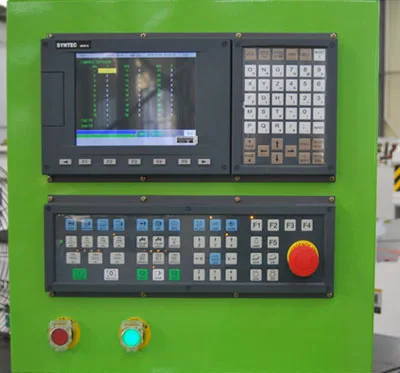

Syntec Control System
4.Samples
Our Services
5. Guarantee & After Sales Service
1). The machine is guaranteed for 12 months.
2). Technical support by phone, email or MSN around the clock.
3). Friendly English version manual and operation video CD disk.
Packaging & Shipping
