Производственная линия гидроксида натрия каустической соды
US $4000000-$7000000
Горизонтальный Ленточный Смеситель для корма
- Категория: >>>
- Поставщик: Liaoyang,Shenzhou,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 3546.97 $* | 3723.94 $* |
| Aug-15-2025 | 3516.4 $* | 3692.17 $* |
| Jul-15-2025 | 2950.93 $* | 3098.60 $* |
| Jun-15-2025 | 3457.0 $* | 3630.66 $* |
| May-15-2025 | 3010.67 $* | 3161.91 $* |
| Apr-15-2025 | 3397.20 $* | 3567.66 $* |
| Mar-15-2025 | 3367.87 $* | 3535.96 $* |
| Feb-15-2025 | 3338.55 $* | 3505.37 $* |
| Jan-15-2025 | 3308.99 $* | 3473.29 $* |
Характеристики
Product Description
Double Ribbon Type Chemical Blending Equipment for Flavouring Powder
Questions for Buyer:
Please answer below questions and send answers to email, and then we will send you offer as soon as possible.1, What materials do you mix? (Names of raw materials?)
2, What is the power fineness (or particle size)? (mesh, mm)
3, What is the bulk density (or specific gravity) of mixed materials? (kg/liter, kg/m3)
4, How many kgs or liters to be mixed per batch?
5, What is the distance from bottom discharge outlet to ground? (cm, mm, m)
6, What construction materials do you require? (Please choose below option)
A, all construction materials mild steel;
B, contact parts stainless steel, non-contact parts mild steel;
C, all construction materials stainless steel;
Questions for Buyer:
Please answer below questions and send answers to email, and then we will send you offer as soon as possible.1, What materials do you mix? (Names of raw materials?)
2, What is the power fineness (or particle size)? (mesh, mm)
3, What is the bulk density (or specific gravity) of mixed materials? (kg/liter, kg/m3)
4, How many kgs or liters to be mixed per batch?
5, What is the distance from bottom discharge outlet to ground? (cm, mm, m)
6, What construction materials do you require? (Please choose below option)
A, all construction materials mild steel;
B, contact parts stainless steel, non-contact parts mild steel;
C, all construction materials stainless steel;
Working Principle

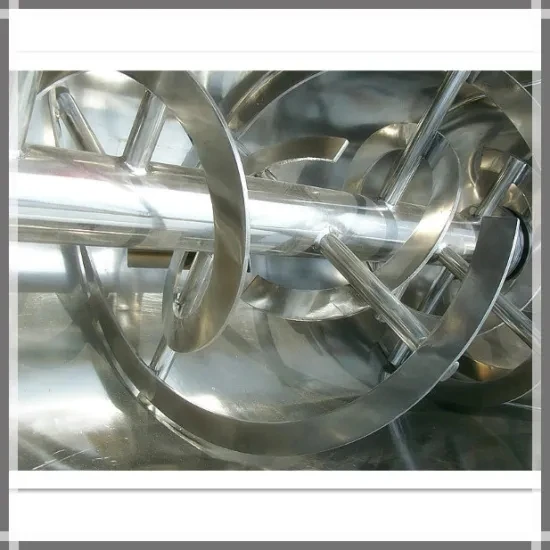

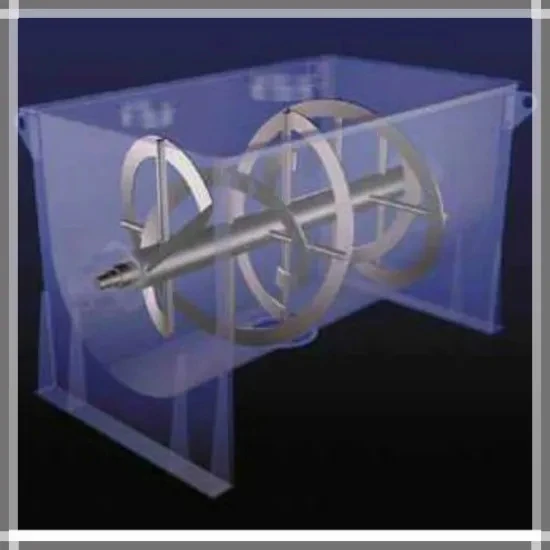

SZPR series horizontal double ribbon mixer consist of horizontal U-shaped tank, top cover with (or without) openings, single shaft equipped with double layers ribbon mixing agitator, transmission unit, support frame, sealing element, discharge structure and so on. Ribbon blades are always two layers. Outer layer ribbon make materials get together from two ends to center and inner layer ribbon make materials spread from center to two ends. Materials forms vortex during repeatedly movement and homogeneous mixing are achieved.
Performance characteristics
2.01 Material: stainless steel 304 / 316L or mild steel Q235;
2.02 Surface treatment: paint (mild steel), polish/sandblasting (stainless steel);
2.03 Ribbon agitator: double layers & double directions;
2.04 Mixer tank: horizontal, U-shaped tank;
2.05 Shaft: horizontal, hollow, integral single shaft;
2.06 Mixing time: 5-15 minutes;
2.07 Working model: batch mixing;
2.08 Speed reducer: cycloid reducer;
2.09 Rotation speed: fixed speed;
2.10 Main shaft seal: (Teflon) stuffing seal or air purge seal;
2.11 Openings: feeding inlet, manhole, and inspection / connection port;
2.12 Discharge valve: pneumatic or manual flap discharge valve;
2.13 Working condition: NPT (normal pressure and temperature);
2.14 Not heavy duty: mixer can not be started with loading materials;
2.15 Power supply: 220V 50HZ single phase/ 380V 50HZ 3 phase;
2.16 Non ex-proof electronics (motor, electronic elements, control cabinet);
2.02 Surface treatment: paint (mild steel), polish/sandblasting (stainless steel);
2.03 Ribbon agitator: double layers & double directions;
2.04 Mixer tank: horizontal, U-shaped tank;
2.05 Shaft: horizontal, hollow, integral single shaft;
2.06 Mixing time: 5-15 minutes;
2.07 Working model: batch mixing;
2.08 Speed reducer: cycloid reducer;
2.09 Rotation speed: fixed speed;
2.10 Main shaft seal: (Teflon) stuffing seal or air purge seal;
2.11 Openings: feeding inlet, manhole, and inspection / connection port;
2.12 Discharge valve: pneumatic or manual flap discharge valve;
2.13 Working condition: NPT (normal pressure and temperature);
2.14 Not heavy duty: mixer can not be started with loading materials;
2.15 Power supply: 220V 50HZ single phase/ 380V 50HZ 3 phase;
2.16 Non ex-proof electronics (motor, electronic elements, control cabinet);
Optional features:
The following optional features are available: wear-resistant and anti-corrosion materials; surface treatment; single direction and single layer ribbons, three layers ribbons; three-parts shaft; continuous mixing; gear box reducer; changeable speed; mechanical seal; customized openings and discharge valves; temperature control; pressure requirement; heavy-duty configuration; motors, electronic elements, electronic control panel are customized to different power and ex-proof requirements; light glass; sampling device; liquid spraying device; scrappers etc.
Specification
Model | Working capacity (L) | Rotation speed (rpm) | Power (kw) | Dimension (mm) | Weight (kg) |
SZPR-50 | 20-30 | 40 | 1.5 | 1000×500×510 | 210 |
SZPR-100 | 40-60 | 40 | 2.2 | 1200×570×750 | 300 |
SZPR-300 | 120-180 | 40 | 3 | 1300×950×1150 | 690 |
SZPR-500 | 200-300 | 40 | 4 | 1500×1100×1400 | 950 |
SZPR-1000 | 400-600 | 30 | 5.5 | 2000×1450×1550 | 1600 |
SZPR-1500 | 600-900 | 30 | 7.5 | 2200×1420×1790 | 1800 |
SZPR-2000 | 800-1200 | 30 | 11 | 2500×1500×1900 | 2000 |
SZPR-3000 | 1200-1800 | 30 | 15 | 2900×1900×2000 | 3100 |
SZPR-4000 | 1600-2400 | 25 | 22 | 3000×1900×2200 | 4100 |
SZPR-5000 | 2000-3000 | 20 | 30 | 3500×1950×2300 | 4700 |
SZPR-6000 | 2400-3600 | 20 | 37 | 3900×1700×2300 | 6000 |
SZPR-8000 | 3200-4800 | 20 | 45 | 4300×2000×3100 | 7500 |
SZPR-10000 | 4000-6000 | 15 | 45 | 4500×2100×2700 | 8000 |
SZPR-12000 | 4800-7200 | 15 | 55 | 4500×2250×2800 | 10000 |
SZPR-15000 | 6000-9000 | 15 | 55 | 5400×2300×3050 | 11000 |
SZPR-18000 | 7200-10800 | 12 | 75 | 5500×2400×3250 | 12000 |
SZPR-20000 | 8000-12000 | 12 | 75 | 5800×2500×3500 | 13500 |
SZPR-25000 | 10000-15000 | 10 | 90 | 6000×2600×3700 | 15000 |
SZPR-30000 | 12000-18000 | 10 | 110 | 6300×2900×3800 | 17000 |
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
FAQ
1. who are we?
We are based in Liaoning, China, start from 2018,sell to South America(12.00%),Southeast Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South Asia(8.00%),Central America(6.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Centrifuge,Separator,Packing machine,Drying machine,Filling & Sealing machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
We are based in Liaoning, China, start from 2018,sell to South America(12.00%),Southeast Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South Asia(8.00%),Central America(6.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Centrifuge,Separator,Packing machine,Drying machine,Filling & Sealing machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
