Машина для продольной резки выпрямления разматывания стальных пластин катушек
- Категория: Metal Straightening Machinery >>>
- Поставщик: Dongguan,Qiaosen,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 2380.25 $* | 2499.32 $* |
| Aug-18-2025 | 2360.65 $* | 2478.45 $* |
| Jul-18-2025 | 1980.20 $* | 2079.68 $* |
| Jun-18-2025 | 2320.84 $* | 2436.42 $* |
| May-18-2025 | 2020.12 $* | 2121.19 $* |
| Apr-18-2025 | 2280.49 $* | 2394.99 $* |
| Mar-18-2025 | 2260.22 $* | 2373.53 $* |
| Feb-18-2025 | 2240.74 $* | 2352.73 $* |
| Jan-18-2025 | 2220.26 $* | 2331.84 $* |
Характеристики

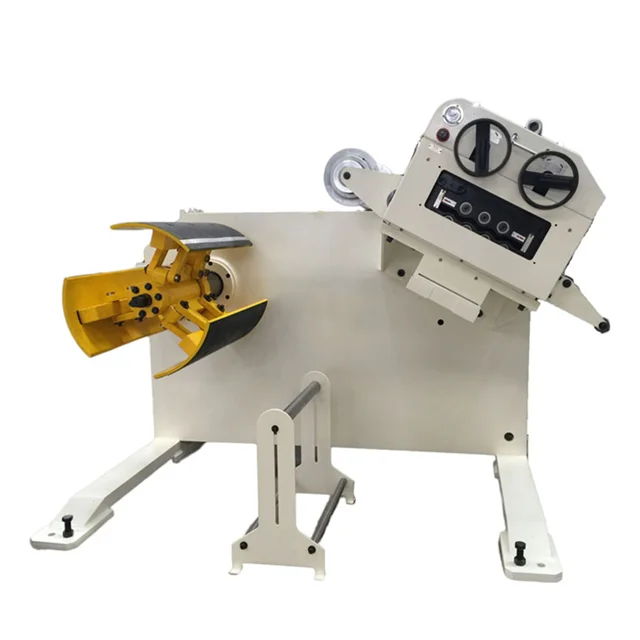

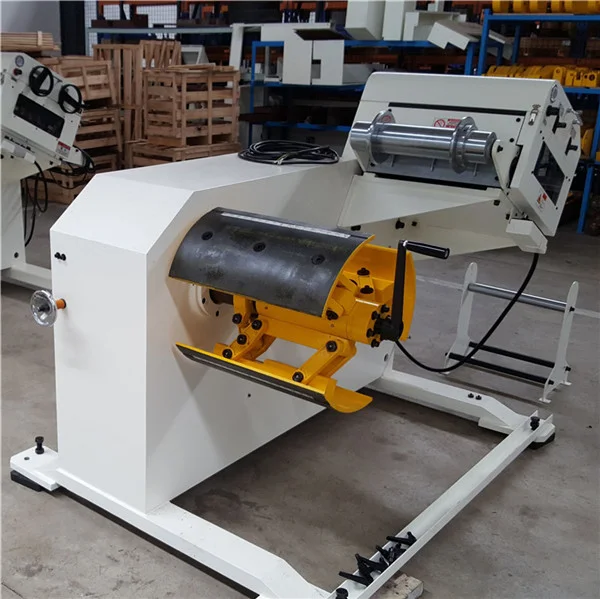

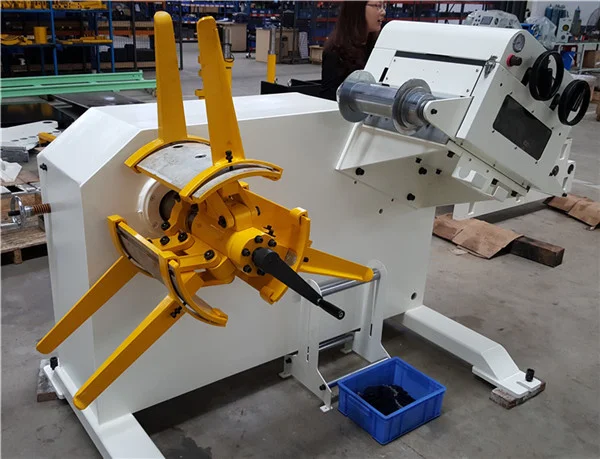

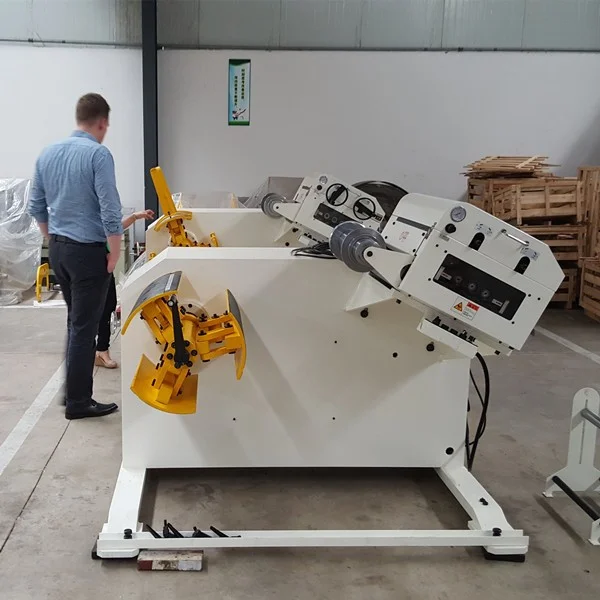

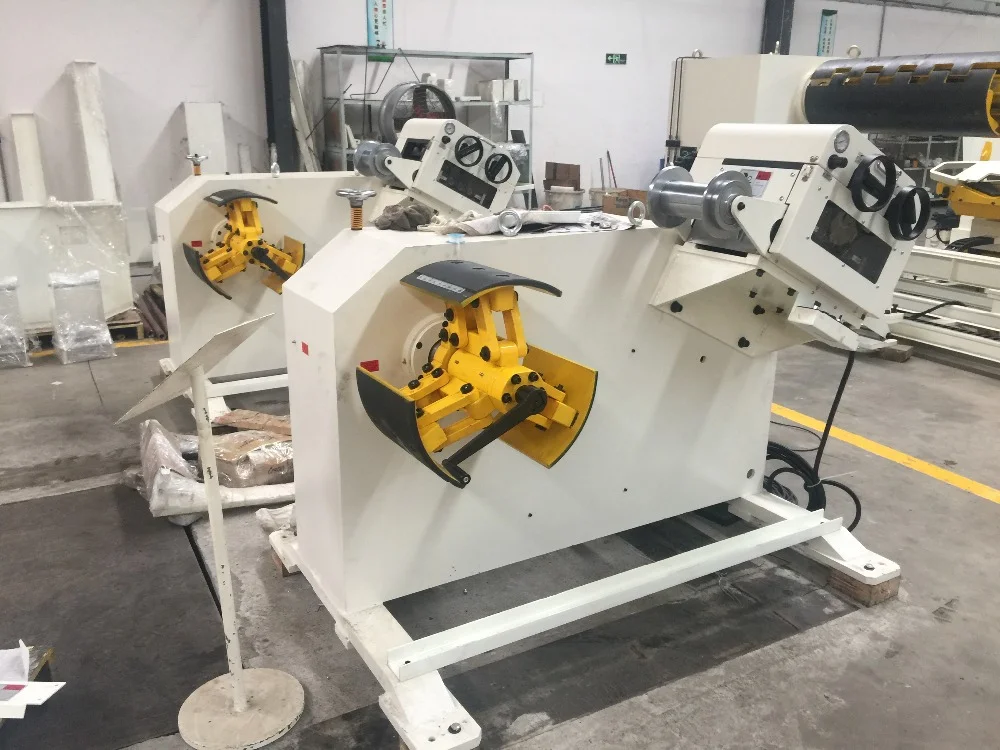

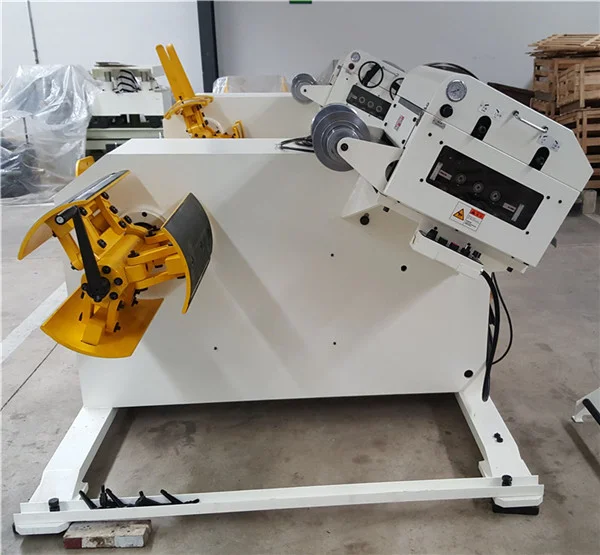

Roll forming machine decoiler sheet metal straightening machine roller feeder decoiler machine
PRODUCT SPECIFICATIONS
Item name | GO200 | GO300 | GO400 | GO500 | GO600 | GO700 |
Material width(mm) | 200 | 300 | 400 | 500 | 600 | 700 |
Leveling thickness(mm) | 0.5-3.2 | 0.5-3.2 | 0.5-3.2 | 0.5-3.2 | 0.5-3.2 | 0.5-3.2 |
Material diameter | 450-530 | 450-530 | 450-530 | 450-530 | 450-530 | 450-530 |
Material outer diameter(mm) | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
Material weight(kg) | 800 | 1000 | 1200 | 2000 | 2500 | 2500 |
Correction speed | 15m/mim | 15m/mim | 15m/mim | 15m/mim | 15m/mim | 15m/mim |
Motor HP | 1HP | 2HP | 2HP | 3HP | 3HP | 3HP |
Expansion method | Manual | Manual | Manual | Manual | Manual | Manual |
Machine weight(kg) | 1000 | 1100 | 1200 | 1400 | 1600 | 1800 |
Overall dimension(mm) | 2000*1400*1400 | 2100*1500*1500 | 2200*1600*1600 | 2300*1700*1700 | 2400*1800*1800 | 2500*1900*1900 |
Feature:
1. Suitable for the collection and delivery of various coil materials, both thin metal and non-metal materials
2. Motor power can be added to match the feeding device
3. The tension of the brake device can be adjusted, and the main shaft uses a reinforced type to make the material reel rotate
more smoothly and increase the load force
4. Indispensable parts for fully automatic production of presses, saving manpower, material resources, reducing costs, and achieving
ideal results
5. Imported parts are used, with fewer failures and long life
1. Suitable for the collection and delivery of various coil materials, both thin metal and non-metal materials
2. Motor power can be added to match the feeding device
3. The tension of the brake device can be adjusted, and the main shaft uses a reinforced type to make the material reel rotate
more smoothly and increase the load force
4. Indispensable parts for fully automatic production of presses, saving manpower, material resources, reducing costs, and achieving
ideal results
5. Imported parts are used, with fewer failures and long life
