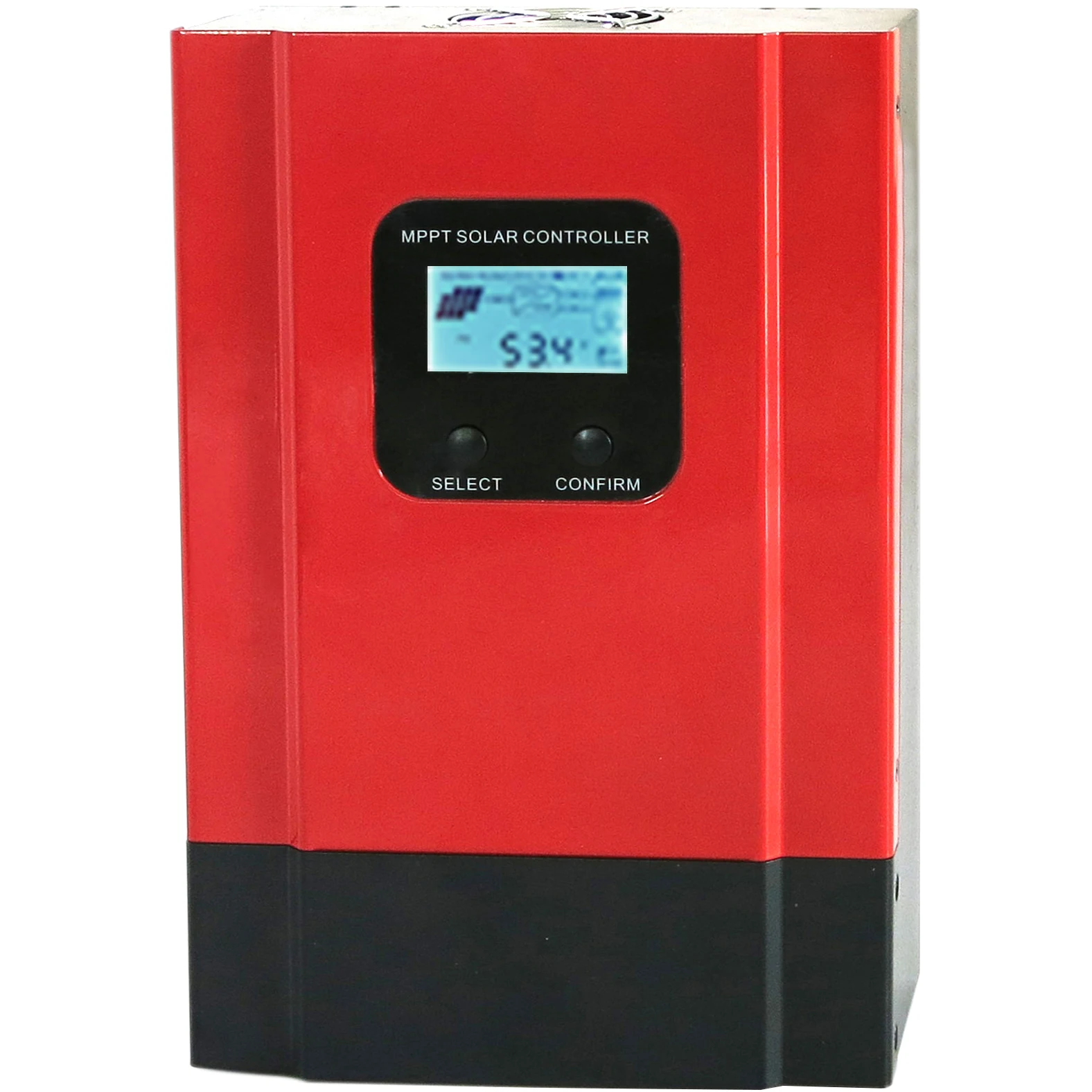

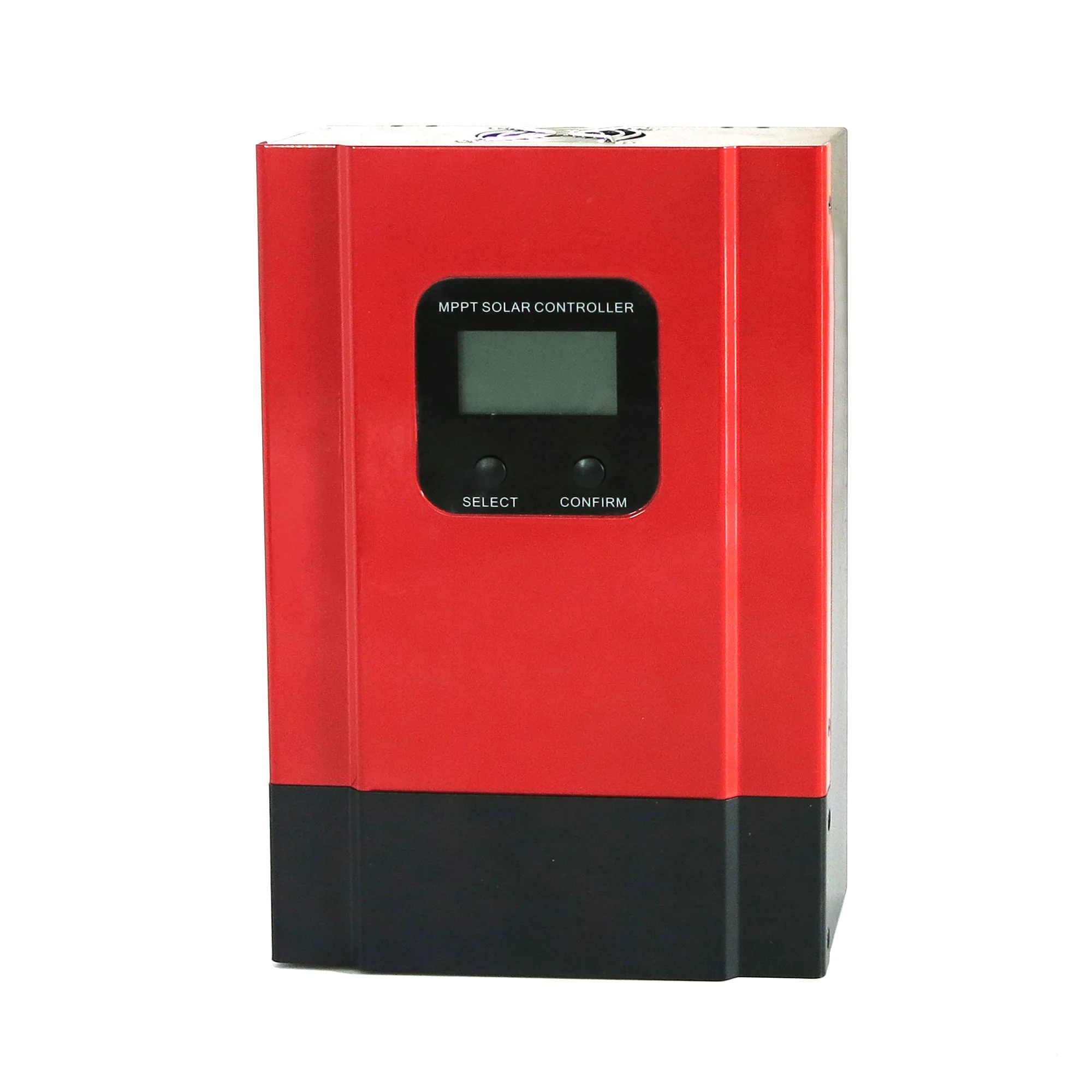

Solar Energy System MPPT Controller 30A 12V/24V/36V/48V Power Charger Home
- Категория: Solar Charger Controllers >>>
- Поставщик: Jiangxi,Boman,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 95.65 $* | 97.90 $* |
| Jul-18-2025 | 77.21 $* | 79.21 $* |
| Jun-18-2025 | 94.37 $* | 96.45 $* |
| May-18-2025 | 93.94 $* | 95.41 $* |
| Apr-18-2025 | 74.26 $* | 75.4 $* |
| Mar-18-2025 | 92.3 $* | 94.79 $* |
| Feb-18-2025 | 91.83 $* | 93.4 $* |
| Jan-18-2025 | 90.3 $* | 92.1 $* |
Характеристики
Product Description
Product category | Controller Properties | MPPT (maximum power point tracking) |
MPPT efficiency | ≥99.5% | |
Standby power | 0.5W~1.2W | |
System voltage | Automatic recognition | |
Heat-dissipating method | Intelligent fan cooling | |
Range of system voltage identification | 12V system (DC9V~DC15V) 24V system (DC18V~DC30V) 36V system (DC32V~DC40V) 48V system (DC42V~DC60V) | |
Input Characteristics | Max.PV input voltage(VOC) | DC150V |
Start the charge voltage point | Battery voltage + 3V | |
Low input voltage protection point | Battery voltage + 2V | |
Over voltage protection point | DC150V | |
Over voltage recovery point | DC145V | |
Rated PV power | 12V system (390W) 24V system (780W) 36V system (1170W) 48V system (1560W) | |
Charge Characteristics | Selectable Battery Types (Default Gel battery) | Sealed lead acid, Gel battery, Flooded (Other types of the batteries also can be defined) |
Charge rated current | 30A | |
Temperature Compensation | -3mV/℃/2V (default) | |
Charge Method | 3-Stage: constant current(fast charging)-constant voltage-floating charge | |
Output Voltage Stability Precision | ≤±1.5% | |
LOAD Characteristics | Load voltage | The same as the battery voltage |
Load rated current | 40A | |
Load control mode | On\\Off mode, PV voltage control mode, Dual-time control mode, PV + Time control mode | |
Low voltage protection | The default protection point is 10.5V, and it is restored to 11V (can be set) | |
Setup mode | PC software /APP/ controller display | |
Display & Communication | Display mode | High-definition LCD segment code backlight display |

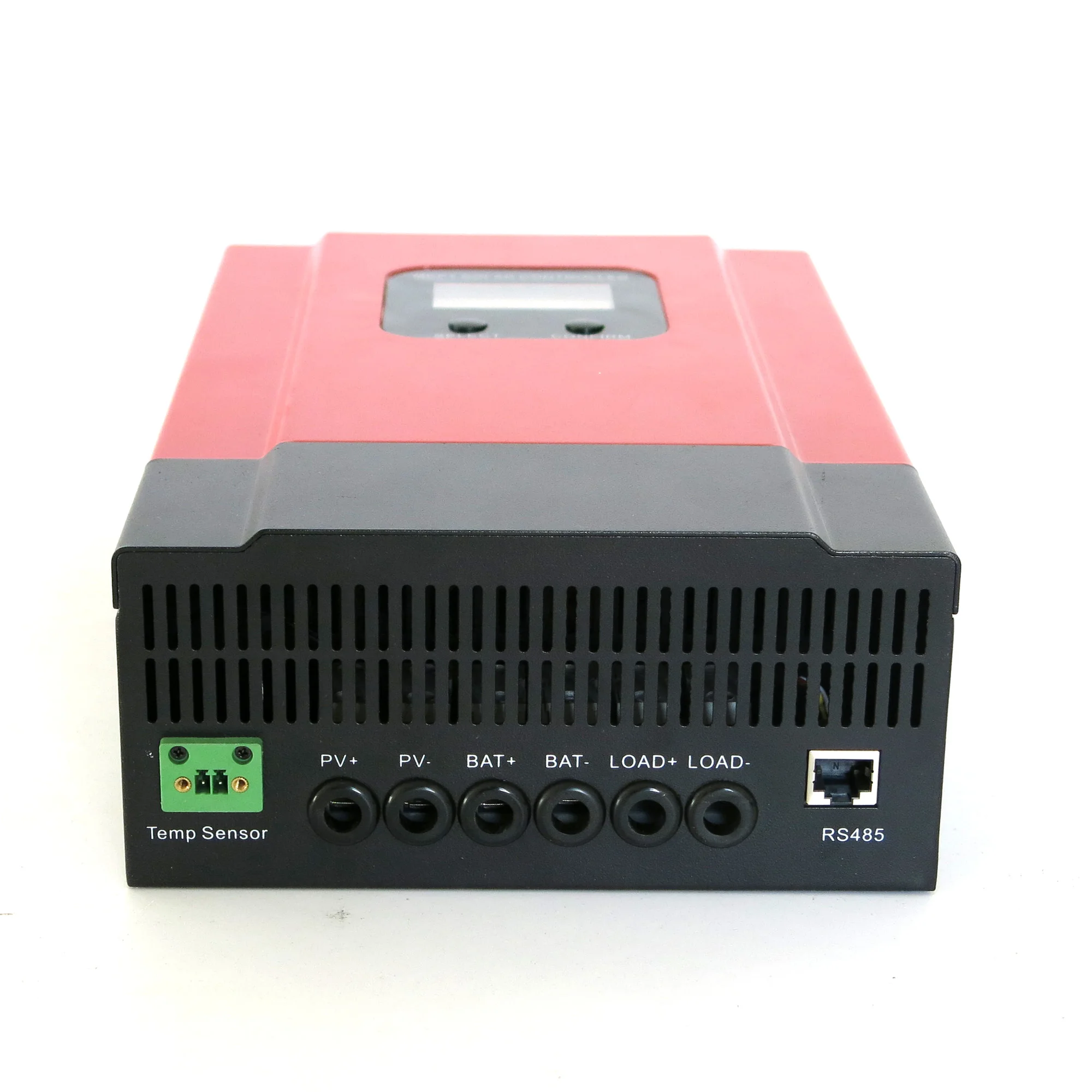

8-pin RJ45 port/RS485/support PC software monitoring/ support WiFi module to realize APP cloud monitoring | ||
Other Parameters | Input-output over \\ under voltage protection, Prevention of connection reverse protection,battery shedding protection etc | |
Operation Temperature | -20℃~+50℃ | |
Storage Temperature | -40℃~+75℃ | |
IP(Ingress protection) | IP21 | |
Noise | ≤40dB | |
Altitude | 0~3000m | |
Max. connection size | 20mm2 | |
Net Weight (kg) | 2.3 | |
Gross Weight (kg) | 3 | |
Product Size（mm） | 240*168*66 | |
Packing Size(mm) | 289*204*101 |
Remark:Extra accessories can be purchased
1.RS485 to USB cable;
2.RS485 to wifi modular
1.RS485 to USB cable;
2.RS485 to wifi modular
If there is any part missing, please contact us!
