Характеристики

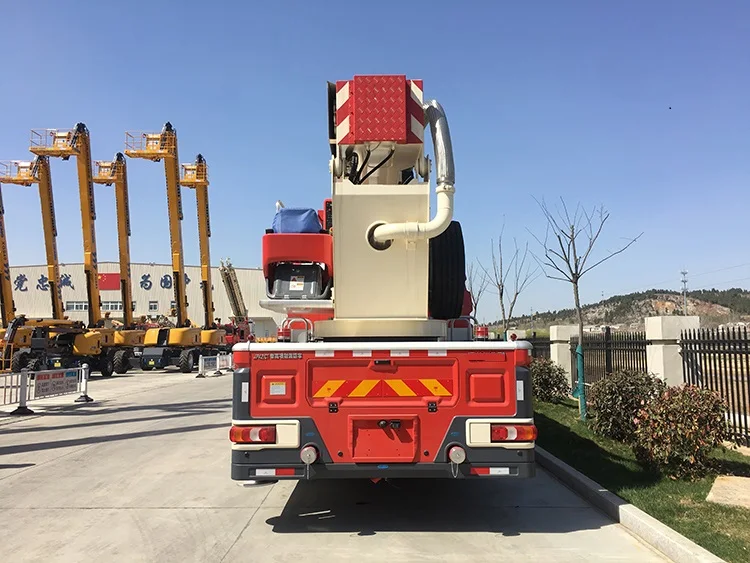

DG68 68m Aerial Ladder platform Fire Fighting Truck.
DG68 aerial ladder fire truck with features of flexible, strong adaptive capacity of site, quick rescue speed and high technical security It is widely used for fire-fighting and rescue operation of mid-rise buildings in cities and towns, mines, oil field and factories, it is the necessary equipment to put out fires in mid-rise buildings, rescue person in distress and property.
Advantages and highlights:
DG68 aerial ladder fire truck with features of flexible, strong adaptive capacity of site, quick rescue speed and high technical security It is widely used for fire-fighting and rescue operation of mid-rise buildings in cities and towns, mines, oil field and factories, it is the necessary equipment to put out fires in mid-rise buildings, rescue person in distress and property.
Advantages and highlights:
1. DG68 chassis adopts Benz chassis with advanced performance and large loading capacity, with sufficient margin of power.
2. The firefighting system is equipped with full functions and the pump gun has excellent performance.
The inlet and outlet and control valves are well equipped and easy to operate.
The inlet and outlet and control valves are well equipped and easy to operate.
3. Various working condition curves control mode can efficiently improves rescuing capability of the fire truck and bring the functions of fire truck into full play.
4. Independent working platform has quick disassembly and reassembly function so as to realize various working conditions.
Specification
Type | Items | Unit | Parameters | ||||
Dimension parameters | Overall length of whole machine | mm | 15060 | ||||
Overall height of whole machine | mm | 4000 | |||||
Overall width of whole machine | mm | 2500 | |||||
Axle distance | Axle 1—Axle 2 | mm | 1700 | ||||
Axle 2—Axle 3 | mm | 3400 | |||||
Axle 2—Axle 3 | mm | 1350 | |||||
Axle 2—Axle 3 | mm | 1350 | |||||
Quality parameters | Curb weight | 48050 | Axle load of Axle 1 and 2 | kg | 16000 | ||
Axle load of Axle 3 and 4 | kg | 24700 | |||||
Axle load of Axle 5 | kg | 7350 | |||||
Full mass | 48200 | Axle load of Axle 1 and 2 | kg | 16240 | |||
Axle load of Axle 3 and 4 | kg | 24620 | |||||
Axle load of Axle 5 | kg | 7340 | |||||
Power parameters | Engine type | OM501LA.Ⅲ/17 | |||||
Engine power/speed | kw/r/min | 300kw/1800rpm | |||||
Driving parameters | Max. vehicle speed | Km/h | ≥85 | ||||
Min. turning diameter | m | ≤24 | |||||
Approach angle | ° | 9 | |||||
Departure angle | ° | 9 | |||||
Braking distance (vehicle speed 30km/h) | m | ≤9.5 | |||||
Min. ground clearance | mm | 331 | |||||
Max. gradient | % | ≥25% | |||||
