Product Description

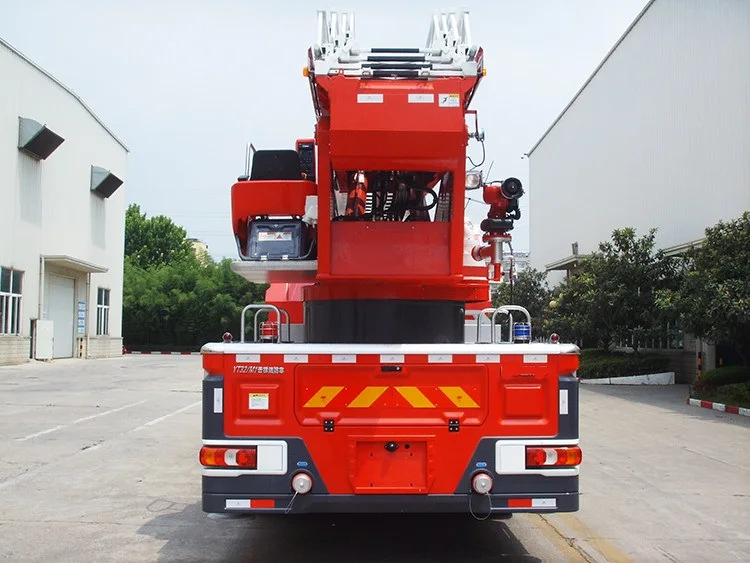

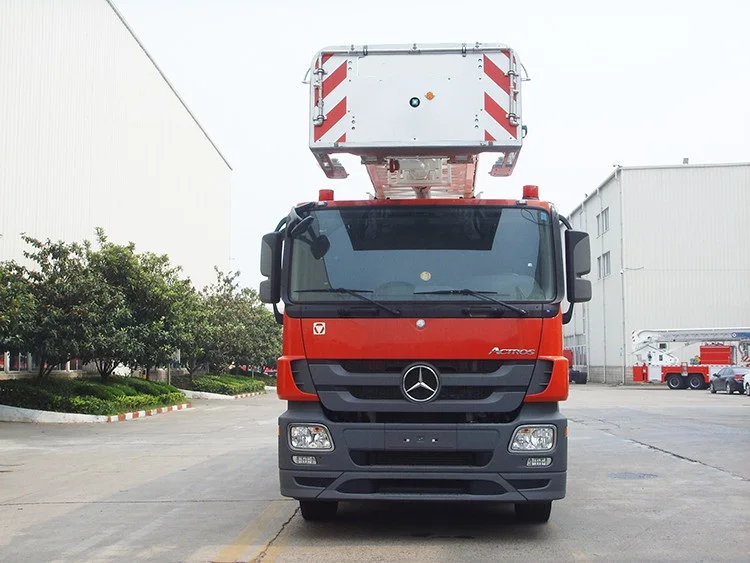

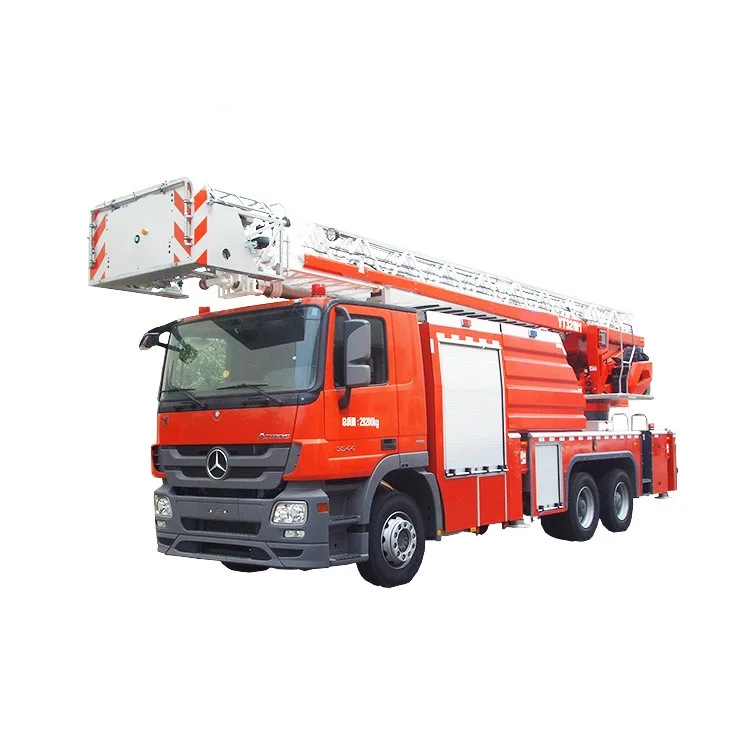

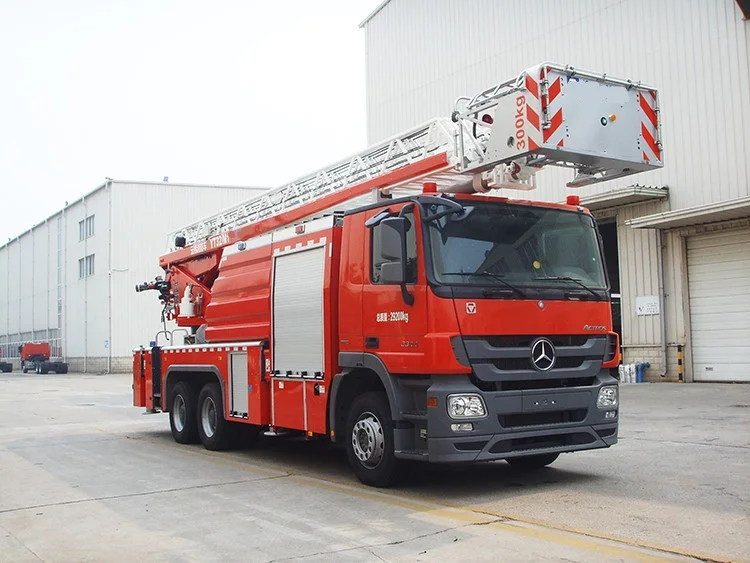

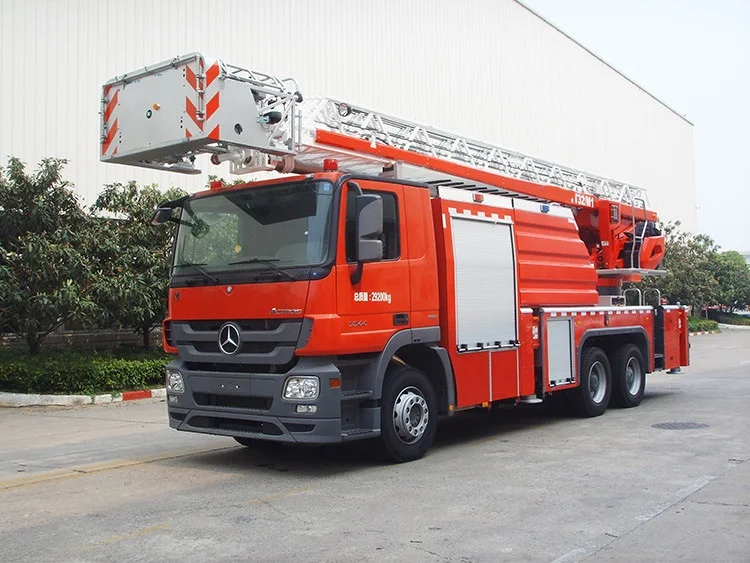

YT53M1 53m Aerial Ladder platform Fire Fighting Truck.
YT53M1 aerial ladder fire truck with features of flexible, strong adaptive capacity of site, quick rescue speed and high technical security It is widely used for fire-fighting and rescue operation of mid-rise buildings in cities and towns, mines, oil field and factories, it is the necessary equipment to put out fires in mid-rise buildings, rescue person in distress and property.
Advantages and highlights:
YT53M1 aerial ladder fire truck with features of flexible, strong adaptive capacity of site, quick rescue speed and high technical security It is widely used for fire-fighting and rescue operation of mid-rise buildings in cities and towns, mines, oil field and factories, it is the necessary equipment to put out fires in mid-rise buildings, rescue person in distress and property.
Advantages and highlights:
1. YT53M1 chassis adopts Benz chassis with advanced performance and large loading capacity, with
sufficient margin of power.
sufficient margin of power.
2. The firefighting system is equipped with full functions and the pump gun has excellent performance.
The inlet and outlet and control valves are well equipped and easy to operate.
The inlet and outlet and control valves are well equipped and easy to operate.
3. Various working condition curves control mode can efficiently improves rescuing capability of the fire truck and bring the functions of fire truck into full play.
4. Independent working platform has quick disassembly and reassembly function so as to realize various working conditions.
Outline dimension (L×W×H) | 12200×2500×4000mm | ||
Max. total mass | 31000kg(±5%) | ||
Max. travel speed | ≥100km/h | ||
Min. turning diameter | ≤20m | ||
Approach angle | ≥15° | ||
Departure angle | ≥9° | ||
Max. grade ability | ≥25% | ||
Outrigger span | Longitudinal span | 5750mm | |
Lateral span | 5200mm | ||
Load capacity of working platform | 270kg | ||
Rated load of lifting bucket | 180kg | ||
Max. working height | 53m | ||
Rated working radius | 18m | ||
Boom elevating range | -12°~+75° | ||
Slewing range | 360° full-rotation | ||
Outrigger unfolding time | ≤30s | ||
Time for boom raising to rated height and rotating 90° | ≤120s | ||
Max. slewing speed of turntable | 0.5~1.5r/min | ||
Tank volume | 1500kg | ||
Fire pump | Rated flow | Hill RSD100 | |
Rated pressure | 100 L/s | ||
Model | 1.0 MPa | ||
Fire monitor | Rated flow | Elkhart PSKD80-7200EXM | |
Rated pressure | 80L/s | ||
Reach | 1.0Mpa | ||
Rated flow | 70m | ||
