Product Description

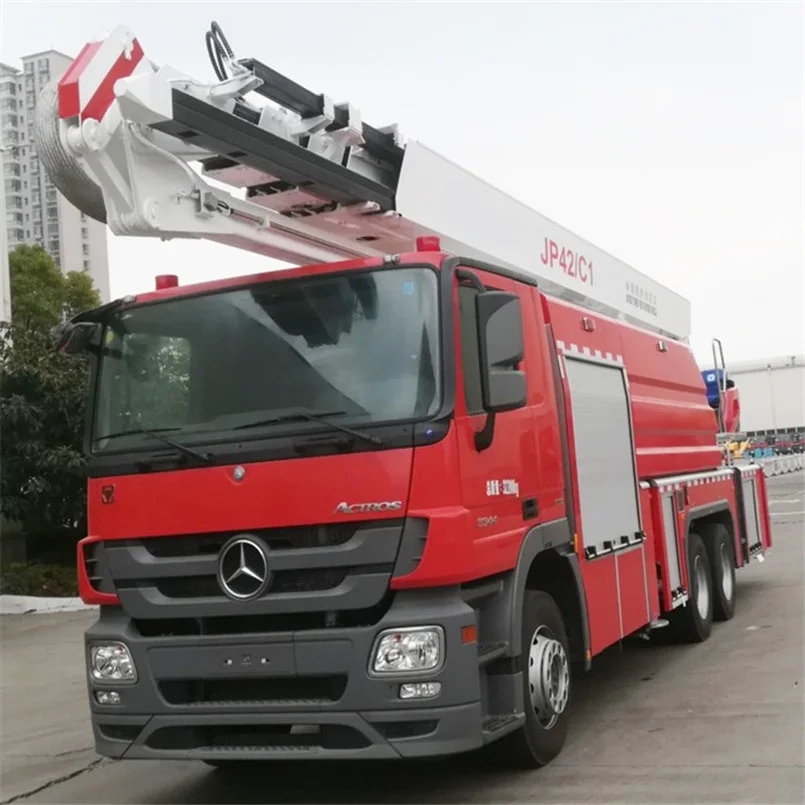

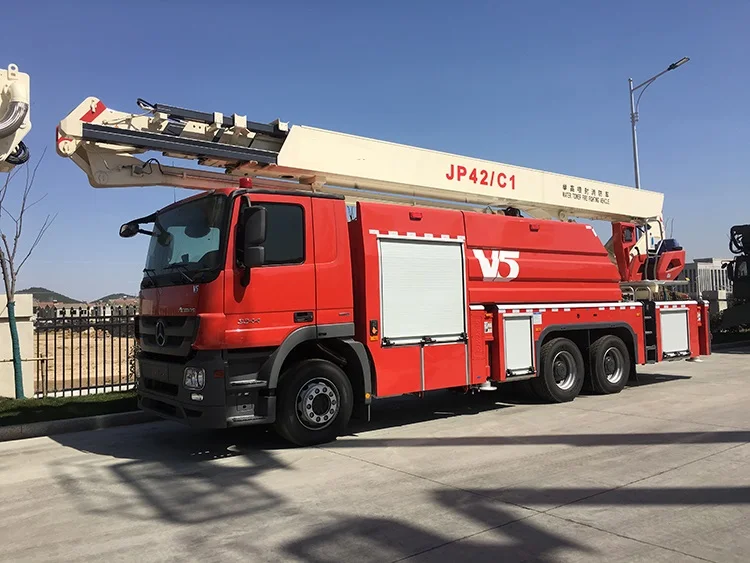

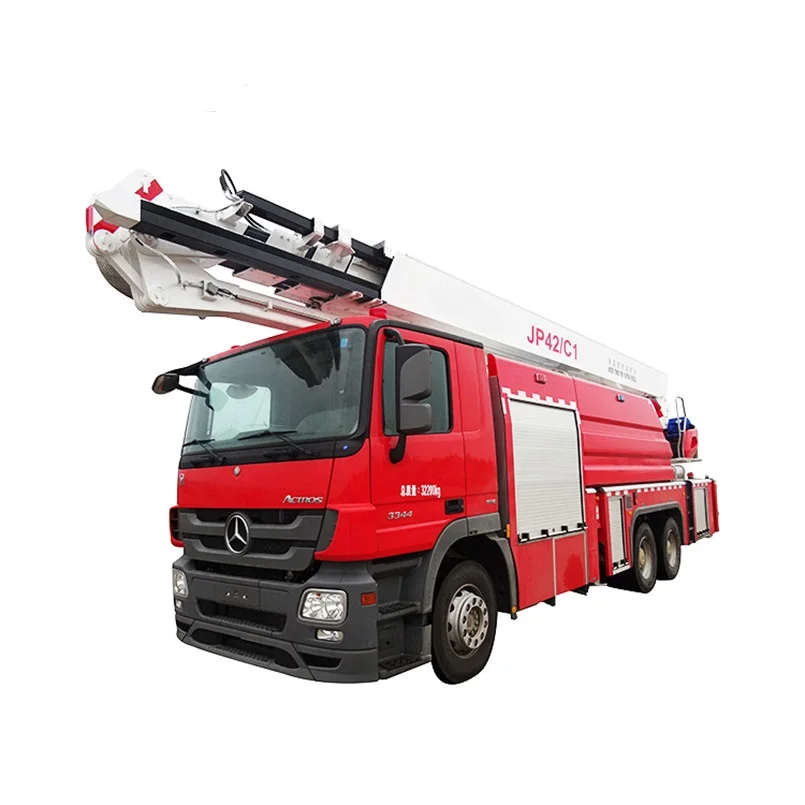

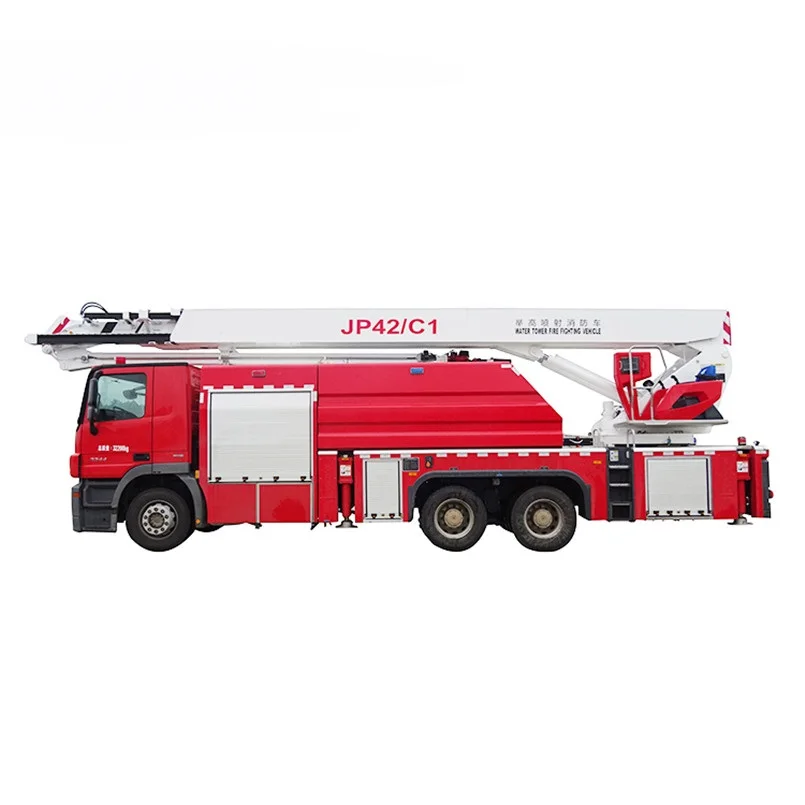

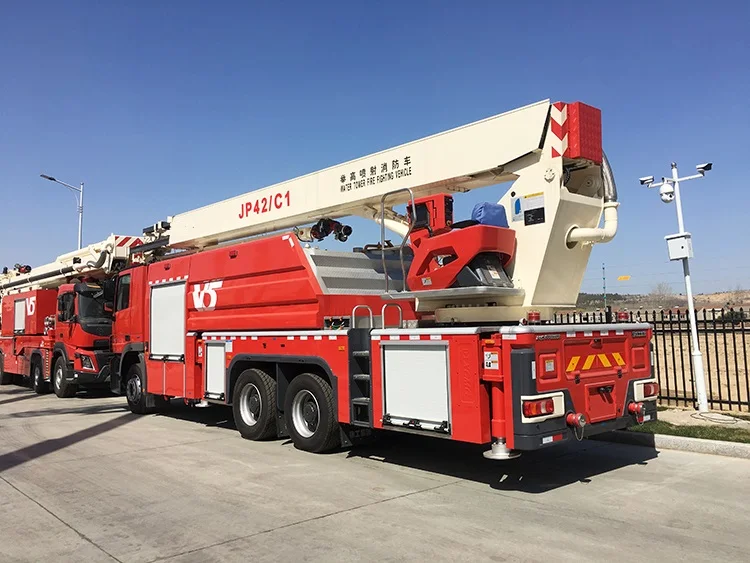

Official JP42C1 water tower fire fighting truck.
JP42C1 water tower fire truck is a main battle vehicle having functions of water tanker, foam truck and high-spray truck. It is widely used in fire fighting and rescue work in middle and high-rise buildings in towns, mines, oil fields, and factories. It is a preferred equipment in fire fighting of middle and high-rise buildings, in rescue of person in distress and rescue of property.
Advantages and highlights:
JP42C1 water tower fire truck is a main battle vehicle having functions of water tanker, foam truck and high-spray truck. It is widely used in fire fighting and rescue work in middle and high-rise buildings in towns, mines, oil fields, and factories. It is a preferred equipment in fire fighting of middle and high-rise buildings, in rescue of person in distress and rescue of property.
Advantages and highlights:
1.The JP42C1 chassis adopts the German Mercedes-Benz 3344 chassis Class-II chassis, featuring with the National-V emission, advanced performance, large carrying capacity, full power reserve, and specific power 10.
2.Perfect functions of fire fighting system.
3. As the truck adopts the distributed control technology based on PLC and CAN bus, the luffing angle and extension can be detected reliably by a new device, to achieve the automatic and reliable leveling, the dynamic monitoring of actions of superstructure and lower structure, the rick information provided on the human-computer interaction interface, and the smooth action of the superstructure without impact.
4. The hydraulic system adopts a variable displacement pump + electro-hydraulic proportional closed center-core load sensing control system. The system flow is stable, so that the operating speed is not affected by the load change. This system has no pressure loss and is energy-saving and environmentally friendly.
5. The machine adopts a professional new appearance design, with a generous appearance and good user-friendly operation.
Overall size : (L x W x H) | 11980×2500×3990mm | ||||
Full-load weight | 32450kg | ||||
Maximum truck speed | ≥90km/h (Electronic speed limit) | ||||
Minimum turning diameter | ≤21m | ||||
Approach angle | ≥15° | ||||
Departure angle | ≥8° | ||||
Maximum gradeability | ≥25% | ||||
Outrigger span | Outrigger longitudinal span | 6000mm | |||
Outrigger transversal span | 5420mm | ||||
Maximum working height | 42m | ||||
Maximum working radius | 21 | ||||
Jib rack luffing angle | Telescopic boom: -3°-85° | ||||
Folding arm and telescopic boom: 0°-180° | |||||
Turning range | 360° full rotation | ||||
Leg deployment time | ≤35s | ||||
Time from boom lifting to rated height to rotation of 90° | ≤90s | ||||
Maximum turning speed | 0.5~1.5r/min | ||||
Fire pump | Rated flow | 70 L/s | |||
Rated pressure | 1.4MPa | ||||
Fire monitor | Rated flow | 64 L/s | 64 L/s | ||
Rated pressure | 0.9MPa | 0.9MPa | |||
Shoot range | 70m | 65 m | |||
Liquid | Water | Foam | |||
