Автоматические отходы метка бумаги зачистки гашения сепаратор/дробилка для

Автоматические отходы метка бумаги зачистки гашения сепаратор/дробилка для

Категория: Paper Processing Machinery >>>
Поставщик: Wenzhou,Qianding,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.9 $*	0.10 $*
Aug-18-2025	0.46 $*	0.39 $*
Jul-18-2025	0.18 $*	0.17 $*
Jun-18-2025	0.84 $*	0.11 $*
May-18-2025	0.24 $*	0.45 $*
Apr-18-2025	0.97 $*	0.45 $*
Mar-18-2025	0.73 $*	0.48 $*
Feb-18-2025	0.89 $*	0.87 $*
Jan-18-2025	0.76 $*	0.16 $*

Характеристики

Products Description

QDQF-920B

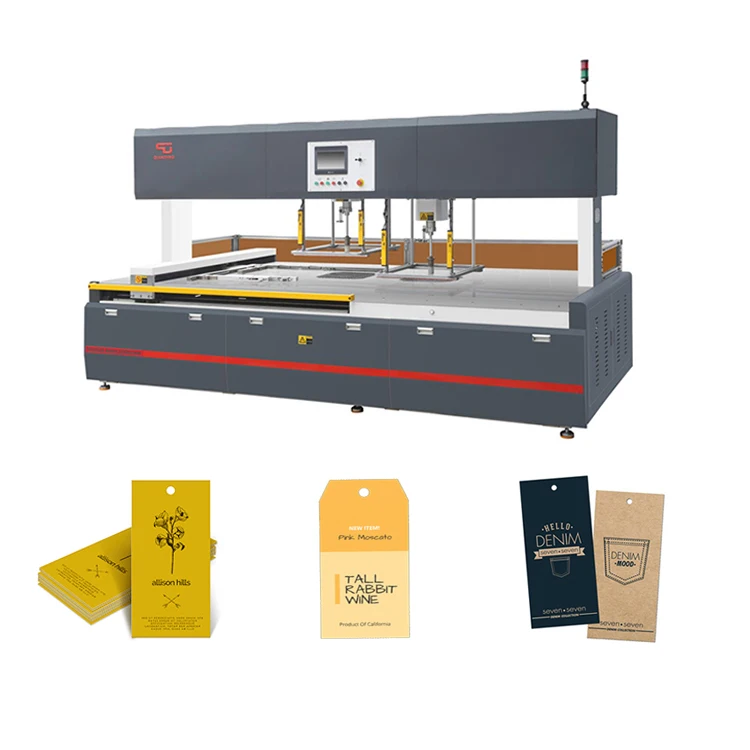

Automatic Stripping Machine with Double Head

Model	QDQF-920B	QDQF-1080B
Machine Size	3600x1750x1950	3800x1850x1950
Max sheet size (X x Y) mm	920 x 680	1080 x 780
Min sheet size (X x Y) mm	550 x 400	650 x 450
Max pile height mm	100	100
Min pile height mm	40	40
Work table height mm	850	850
Max product size to be punched out	420*420	450 x 450
Min. product size to be punched out	30*30	30*30
Stripping speed times/min	15-22	15-22
Max. force (bar)	70	70
Air consumption L/min	3	3
Max Power	5kw 380V	5kw 380V
Net Weight	2.9T	3.3T
Package Size	3800x1950x2150	4000x2150x2150
Gross Weight	3.1T	3.5T
Package Size	2000x1800x1900	2000x1800x1900
Package Size		2700x1950x2250	3100x2250x2250
Gross Weight	3.6T	4.0T

Main Function:

1. Taking out finished products after die cutting process,for waste stripping.
2. Applied for many die cutted product such as labels, hang tags, business cards, gift boxes, food boxes, paper cups and other die cutting products in paper or plastic, PU leather.
3. Two work heads for easy stripping of the opposite die cutting products.
4. PLC controlled with smart & easy operation.
5. Automatic lubrication system for machine better maintenance.
6. Different shapes can be custom-made as customer requirement..

Adjustable hydraulic system

Safety fence

Centralized lubrication system

Paper gauge with hidden motor and ball screw
