Контроллер заряда солнечной батареи MPPT 80A 60A 40A автоматический приспосабливающийся контроллер для зарядного устройства с максимальной мощностью 40 А 12 В 24 36
- Категория: Solar Charger Controllers >>>
- Поставщик: Guangdong,Techfine,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 74.32 $* | 78.83 $* |
| Aug-18-2025 | 73.41 $* | 77.74 $* |
| Jul-18-2025 | 61.33 $* | 64.38 $* |
| Jun-18-2025 | 72.30 $* | 76.60 $* |
| May-18-2025 | 63.58 $* | 66.67 $* |
| Apr-18-2025 | 71.4 $* | 75.87 $* |
| Mar-18-2025 | 70.68 $* | 74.14 $* |
| Feb-18-2025 | 69.78 $* | 72.6 $* |
| Jan-18-2025 | 69.26 $* | 72.36 $* |
Характеристики
Our Advantages
❤20 YEARS industrial experience with three production bases in China & Malaysia. Owns advanced equipment and instruments and builds Automatic production line.
❤Automatic equipment production: stan dardizied quality、high efficiency production.
❤Three-stage smart charging, Adjustable parameters by pressing buttons, 12V/24V/48V adaptive.
❤Production: High voltage protection,Over load protection,Battery reverse connected protection, Low voltage protection,
Overheating protection, Output short-circuit protection.
❤The maximum utilization rate of solar energy can reach 99%,
With super fast charging algorithm, efficiency increased by 30%
❤ Strictly comply with ISO quality management system , products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.
❤Automatic equipment production: stan dardizied quality、high efficiency production.
❤Three-stage smart charging, Adjustable parameters by pressing buttons, 12V/24V/48V adaptive.
❤Production: High voltage protection,Over load protection,Battery reverse connected protection, Low voltage protection,
Overheating protection, Output short-circuit protection.
❤The maximum utilization rate of solar energy can reach 99%,
With super fast charging algorithm, efficiency increased by 30%
❤ Strictly comply with ISO quality management system , products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.
Products Details
Product Paramenters
Model | 40A | 60A | 80A | 100A | |||||||||
System voltage | 12V/24V/36V/48V(Adaptive) | ||||||||||||
Nominal current | 40A | 60A | 80A | 100A | |||||||||
Charging mode | MPPT maximum power point tracking | ||||||||||||
Applicable battery type | Sealed lead acid battery, GEL lead acid battery, open lead acid battery (can also customize parameters for other types of battery charging | ||||||||||||
Charging method | Three stages: constant current, constant voltage, floating charge | ||||||||||||
PV input maximum open circuit voltage (VOC) | DC150V | ||||||||||||
Starting time | ≤10s | ||||||||||||
Dynamic response recovery time | ≤500us | ||||||||||||
Static power | ≤1W | ≤1.2W | |||||||||||
Overall efficiency | ≥98.5% | ≥99.5% | |||||||||||
System identified voltage | 12V | 8～16V | |||||||||||
24V | 17～30V | ||||||||||||
36V | 30～42V | ||||||||||||
48V | 42～64V | ||||||||||||
Photovoltaic input voltage | 12V | 17～150V | |||||||||||
24V | 30～150V | ||||||||||||
36V | 41～150V | ||||||||||||
48V | 53～150V | ||||||||||||
Solar panel rated input power | 12V | 540W | 800W | 1040W | 1300W | ||||||||
24V | 1080W | 1600W | 2080W | 2600W | |||||||||
36V | 1620W | 2400W | 3240W | 3900W | |||||||||
48V | 2160W | 3200W | 4160W | 5200W | |||||||||
Load voltage | Same as the battery voltage | ||||||||||||
Nominal load current | 40A | 60A | 80A | 100A | |||||||||
Load control method | Normally on&off mode | ||||||||||||
Load undervoltage protection | 10.5V*N（N stands for batteries number）Parameters can be adjustable | ||||||||||||
Display | HD LCD backlight display | ||||||||||||
Protections | Input and output over-voltage protection, input and output anti-reverse protection, over-temperature protection, load over-current protection | ||||||||||||
Working temperature | ▬20℃～+50℃ | ||||||||||||
Storage temperature | ▬40℃～+70℃ | ||||||||||||
Accoustic Noise(db) | ≤50dB | ||||||||||||
Humidity | 0～90%RH | ||||||||||||
orking altitude | 0～3000M | ||||||||||||

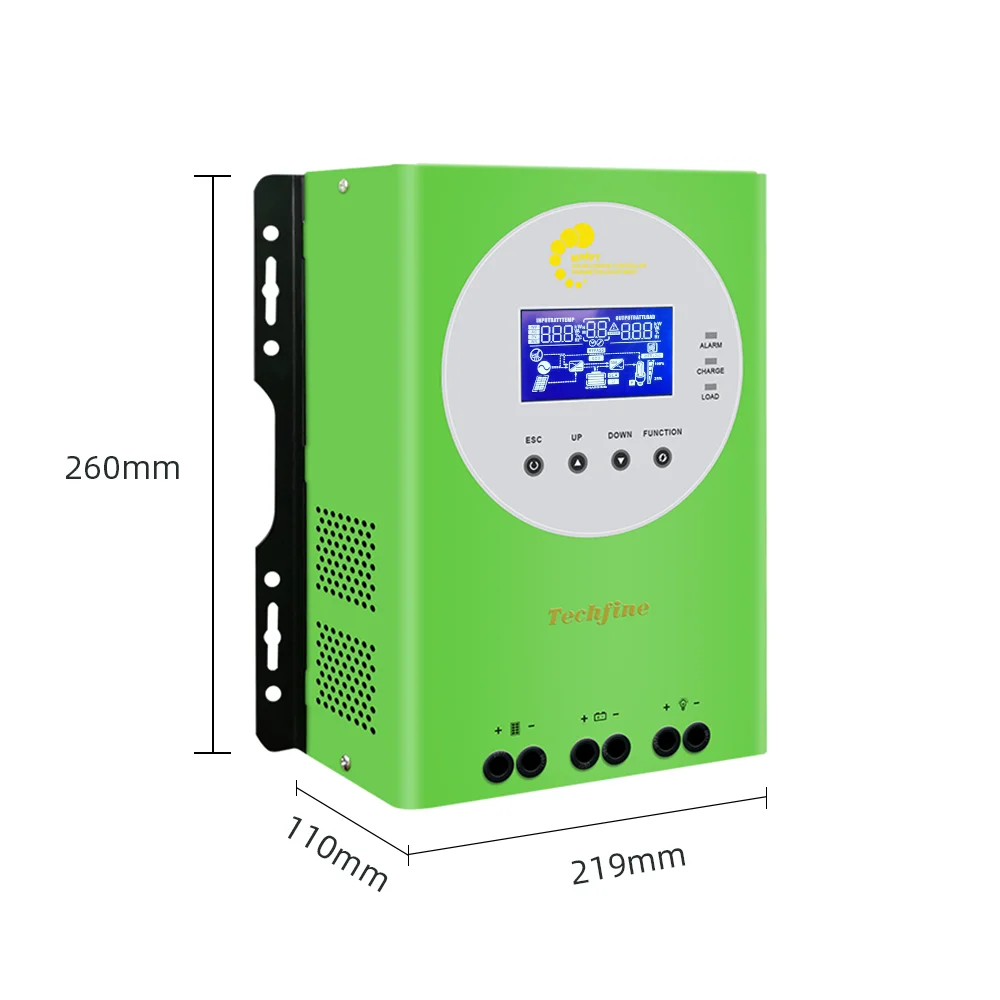

Dimension, L×W×H | 180*300*110mm | 440*325*120mm | |||||||||||
Net Weight（KG） | 4.3KG | 9.46KG | |||||||||||
More Products
Our Factory
Five-star Alibaba verified supplier
20 years rich
experience professional
Strict product testing
High-quality pre-sales and
after-sales services
Customer Service
Transport
FAQ
Q1:May I take some samples to test before placing the order ?
A1:Yes, welcome to take some sample to test!
Q2:How about the delivery time?
A2:7 days for sample; 25 days for bulk order.
Q3:What is the warranty of the controller?
A3:1 years warranty.
Q4:How to solve the technical problems?
A4:24 hours after-service consultancy just for you and to make your problem to be solved
Q5:Do you have any certifications for your products?
A5:We have ISO9001:2000, CE, RoHS, certificates for all of our products.
Q2:How about the delivery time?
A2:7 days for sample; 25 days for bulk order.
Q3:What is the warranty of the controller?
A3:1 years warranty.
Q4:How to solve the technical problems?
A4:24 hours after-service consultancy just for you and to make your problem to be solved
Q5:Do you have any certifications for your products?
A5:We have ISO9001:2000, CE, RoHS, certificates for all of our products.
