Автоматическая машина для резки ткани с чпу/резак

Автоматическая машина для резки ткани с чпу/резак

Категория: Textile Machinery >>>
Поставщик: Jinan,Hitec,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.70 $*	0.8 $*
Aug-18-2025	0.67 $*	0.10 $*
Jul-18-2025	0.51 $*	0.60 $*
Jun-18-2025	0.96 $*	0.2 $*
May-18-2025	0.44 $*	0.62 $*
Apr-18-2025	0.3 $*	0.41 $*
Mar-18-2025	0.2 $*	0.46 $*
Feb-18-2025	0.97 $*	0.51 $*
Jan-18-2025	0.4 $*	0.60 $*

Характеристики

Product Description

1600*2500mm cnc oscillating knife automatic leather cutting machine can cut a variety of gaskets,including cork rubber gasket, non asbestos gasket, rubber gasket, graphite seal gasket, reinforced gasket without air pollution, no burnt edge, it can also cut fabric, leather, cardboard, plastic, paper, rubber, sponge and foam, etc.

Application of Auto feeding CNC fabric cutting machine / textile cloth cutter

CNC Gasket Machine For Sale can process fabric,knitting vamps, non-woven, leather, rexine, cotton, felt, silk, lace, polyester, fleece , soft shell,jeans,alcantara,neoprene ,Corrugated board, cardboard, white board,gray board, sticker, PVC film,foam board, artificial leather, leather, gasket,sponge, Prepreg,acrylic, honeycomb board, fiberboard, epoxy resin board, organic glass, car mat, fiber,composite material and other soft materials, etc.

Auto feeding CNC fabric cutting machine / textile cloth cutter Advantage

1. More flexible; the gasket automatic cutting machine does not need a mold, only need to import the processing data (PLT, DXF, AI format) into the system, can cut, and can modify the size and shape of the gasket.
2. Save materials; automatic nesting software can complete typesetting quickly and accurately, without manual nesting. After actual testing, using an automatic cutter saves more than 10% of material compared to manual cutting.
3. Guarantee product quality; CNC cutting is more precise and meets the high-precision cutting requirements of sealing gaskets.
4. Reducing the dependence of production on labor; CNC gasket cutting machine operation is very simple, low requirements for workers, solving the problem of high worker costs and difficulty in recruiting workers.

Parameter of cnc oscillating knife cutter machine
Parameter/Model	HTO-1625	HTO-2030
Rated Power	12KW	14KW
Dimension	339127231235mm	389131731235mm
Max Working Size	2500*1600	3050*2050
Multi-functional Cutting Head	Replaceable oscillating knife, half knife, full knife, oblique knife and creasing wheel etc.
Tools configuration	Various cutting tools, creasing wheels, pen, cross positioning laser
Safety	High sensitivity infrared induction (optional)
Moving Speed	Max. 1200mm/s
Cutting Speed	Max. 800mm/s(please set the speed according to the material)
Material Applicable	Corrugated paper, non woven fabric , PVC expansion sheet, KT board, foam board, grey paperboard, cardboard, vehicle sticker, adhesive sticker etc.
Cutting Depth	Max 50mm (depends on the material)
Material Fixing Method	Strong power vacuum absorption and intelligence Partition
Resetting Positioning Accuracy	Max 0.01mm
Mechanical Precision	Max 0.02mm
Drive System	Steel Simultaneous Belt, AC Panasonic servo motor. Linear guide rail
Control System	digital oscillation control systerm
Display	English LCD touch screen
Data Transmission	Ethernet
Command	HP-GL compatible format
Buffering Capacity	Standard--4GB
Rated voltage	Customized
Hitec Cnc Option : - machine size can be customized according your request - auto feeding system - multi function cutting head - auto nesting cutting software - CCD camera visual cutting system - Projector cutting system

Features of Auto feeding CNC fabric cutting machine / textile cloth cutter

1. Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable
working performance.

2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures
high accuracy, no deformation and super long service life

3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.

4. Hitec digital cutting machine was designed easy to install, set-up and operate.

5. Being equipped with infrared sensor and emergency stop devices, guarantees safety.

6. Cutting by knife not laser, no air pollution , no burnt edge, cutting speed is 5-8 times faster than laser cutting machine.

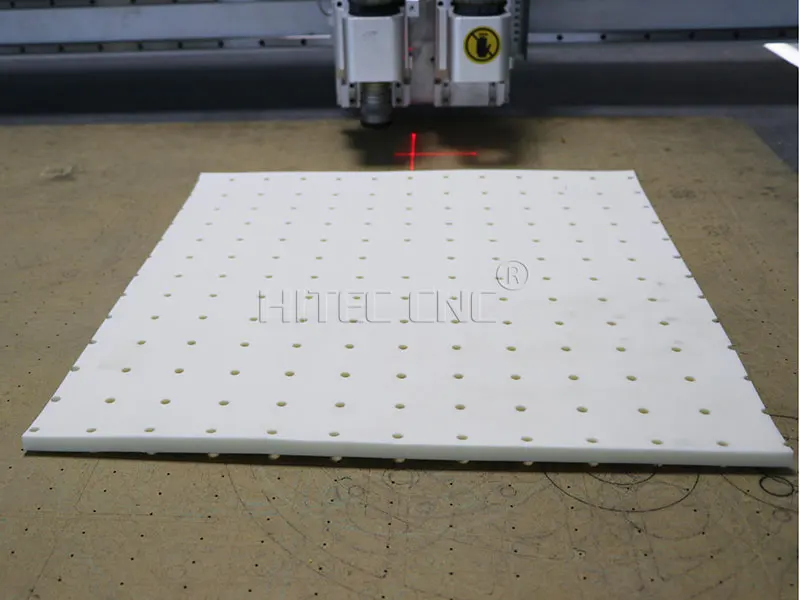

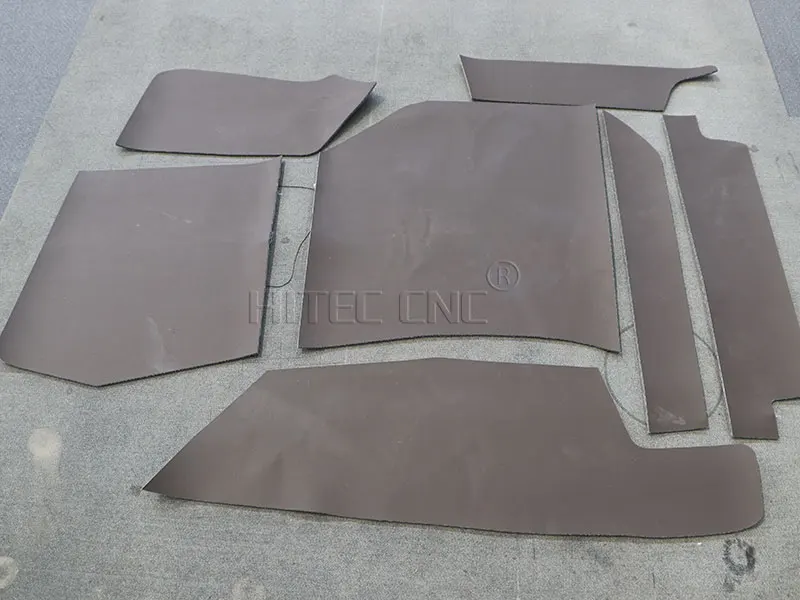

Samples

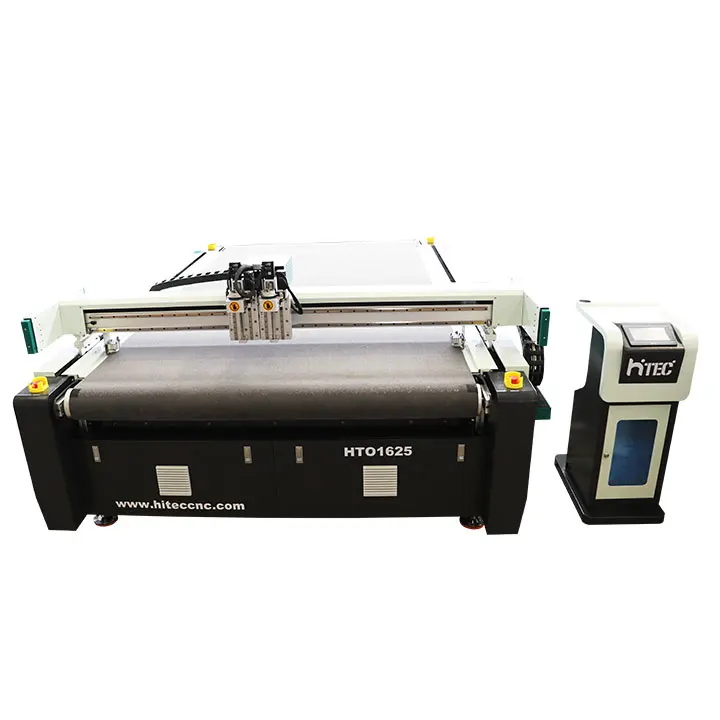

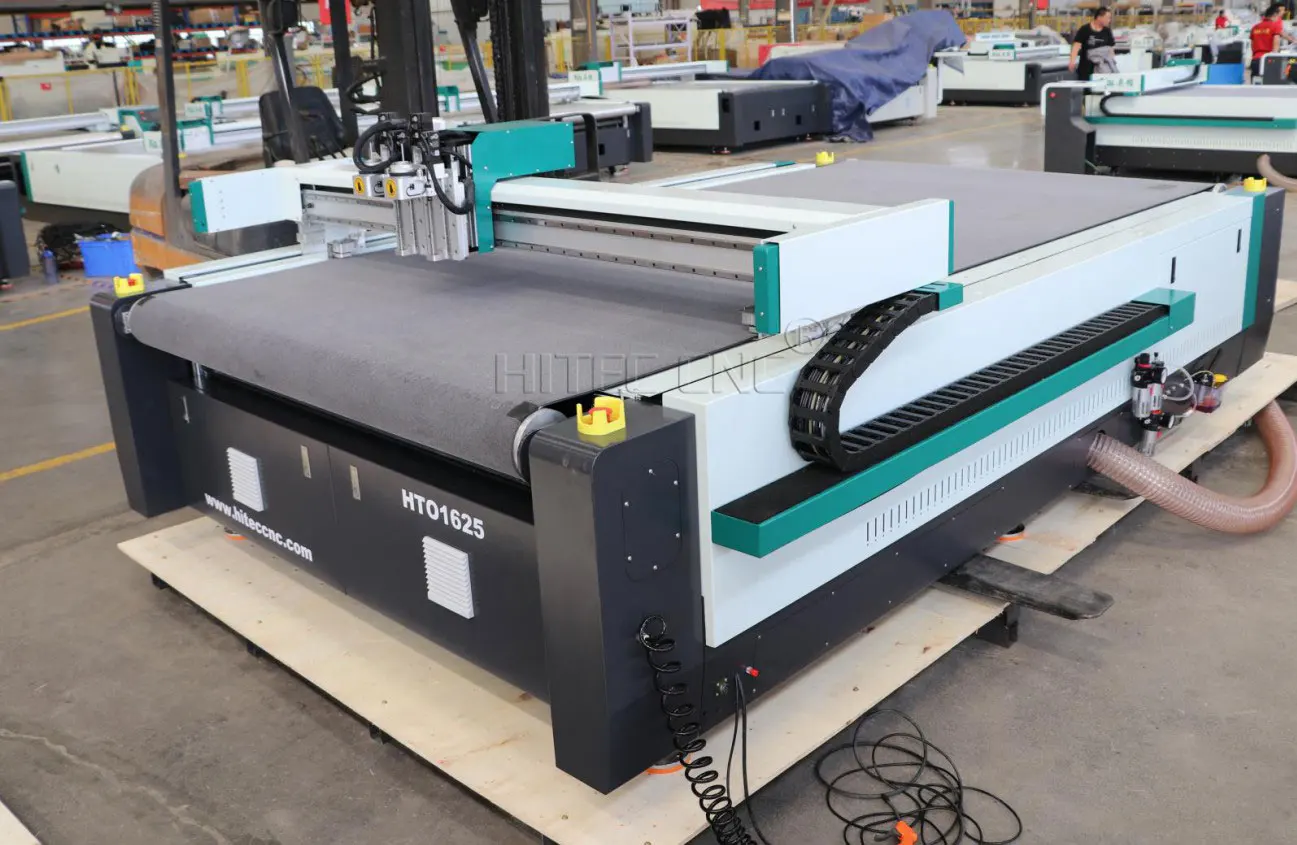

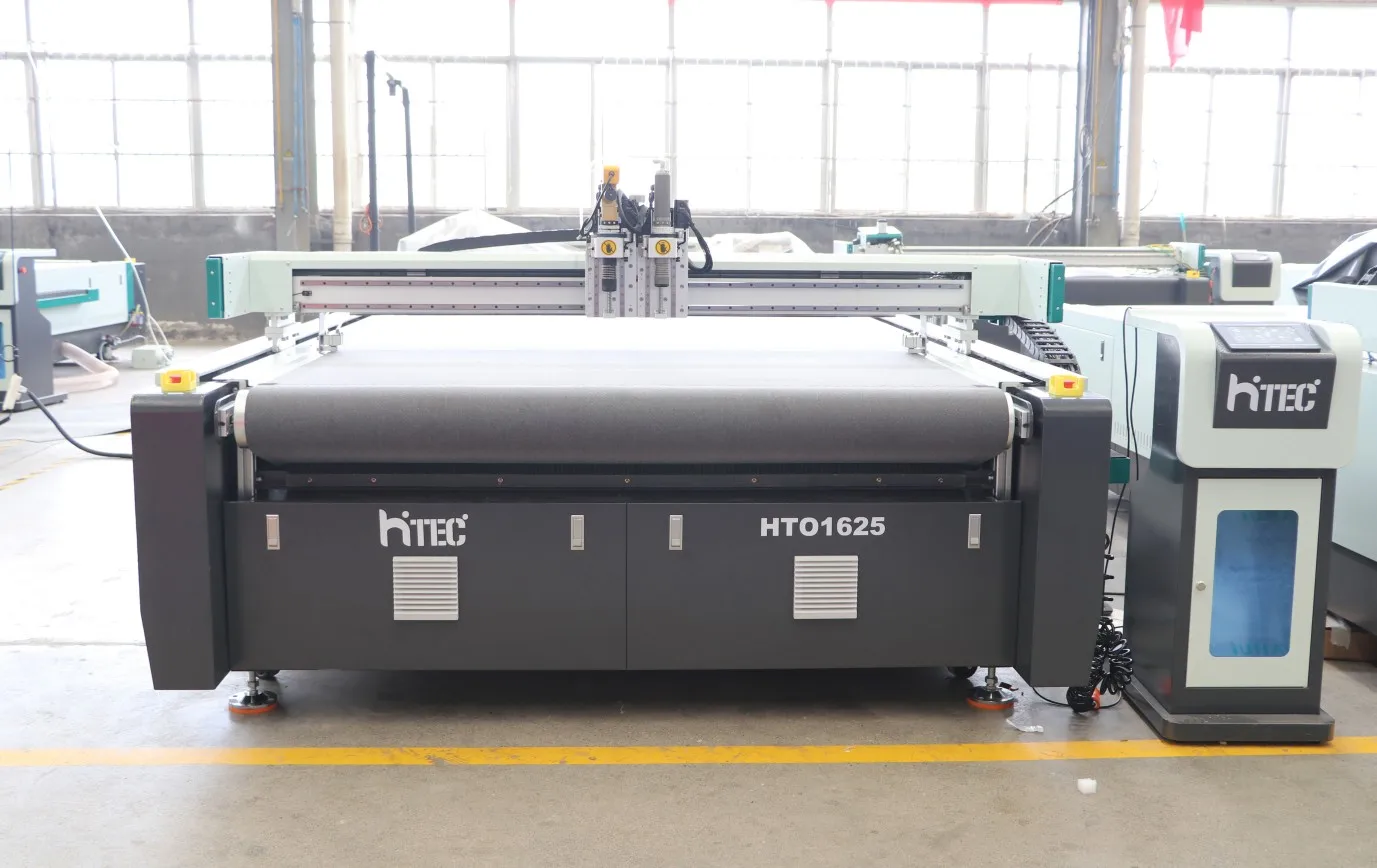

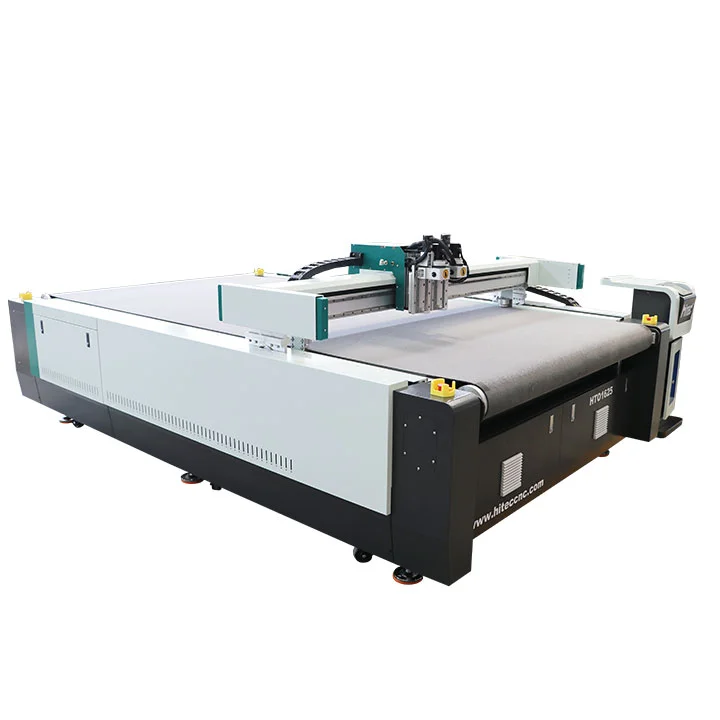

Detailed Images

QC And Service

5 face cnc milling machine which process accurancy can be 0.001mm,to improve all the machine hardware precision,from machine bed,gantry parts to tapping.
All the machine parts Assembe by our machine milling and lathe machine,can be guarantee the machine precision and fast delivery time

Service

Technology support
We welcome all our buyers come to visit our factory for directly free training, our professional engineer will support you to study the machine operation.
We will supply machine operation manual, training videos and machine parameters, our engineer will supply online machine installation and training.
The customers’ technicians can keep in touch with our engineer at any time, through wechat/whatsapp/mobile phone or email, our engineer will help to solve your problems as soon as possible.
If customer need, we will send our engineer to the customers’ place to provide install and train the customer to use the
machine,our engineer will stay at customers’ place for 5-7days,customers should pay the round-trip airkets/hotels/food for our engineer.

The main purpose of pre-sales service is to assist customers to do engineering planning and system requirements analysis, so that
our products can meet the needs of users to the greatest extent, and at the same time make the customer's investment play the
largest comprehensive economic benefit.

1. Strengthen user communication and exchange on project progress at any time; 2. As far as possible to meet the changes of the
user's reasonable temporary needs;
3. Collaborate friendly with users to deliver qualified products.

Guarantee Policy

The guarantee period of quality shall be 3 years counting from the date on which the commodity arrives at the port of destination.
Except the damage is artificial, we are responsible for offering the fittings free of charge during the guarantee period, but you
need to send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. Out of
the guaranteed period, should the parts required to be repaired or replaced, if any, the parts will be charged.

Standard Package

Inside Package

1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.

Plywood Package

1. Strong plywood package

2. Avoid collision

3. Customer made

Company Profile

JINAN HITEC MACHINERY CO.,LTD

Established in the year 2002,We are manufacturer and develop of the high technology machines. Hitec products are used in a wide variety of industries, markets and applications thoughout all over the world.Hitec is highly committed to offering the most advanced,capable and efficient manufacturing technology backed by unsurpassed service and support. We offer laser cutting machine, fiber laser cutter machine, cnc router machine, wood cnc lathe machine, cnc plasma cutter, cnc oscillating knife cutter machine.
