Солнечный насос, инвертор для орошения 20 кВт 55 кВт, трехфазный
US $100.00-$500.00
Частотно-регулируемый гибридный усилитель со слежением за максимальной точкой мощности частотно-регулируемым приводом pv батарея 2 7 5 500 кВт один 3 фазы 220v Водяной насос на солнечных батареях
- Категория: Solar Pump Inverter >>>
- Поставщик: Foshan,Hober,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.54 $* | 0.11 $* |
| Aug-18-2025 | 0.73 $* | 0.88 $* |
| Jul-18-2025 | 0.6 $* | 0.24 $* |
| Jun-18-2025 | 0.80 $* | 0.24 $* |
| May-18-2025 | 0.77 $* | 0.63 $* |
| Apr-18-2025 | 0.63 $* | 0.14 $* |
| Mar-18-2025 | 0.10 $* | 0.69 $* |
| Feb-18-2025 | 0.41 $* | 0.34 $* |
| Jan-18-2025 | 0.36 $* | 0.1 $* |
Характеристики
Model | HSPH1500L | ||
Rated power | 1.5KW | ||
Solar Panel DC Input | Vmp Min - Voc Max Voltage | 200V~450V | |
Recommend Vmp Voltage | ≥300V (Only Solar), ≥340 V (Hybrid Power) | ||
Max MPPT Efficiency | 99% | ||
Max Input Current | |||
Hybrid AC/Generator Input | Voltage | 1 Phase 220/240V | |
Max Input Current | 14A | ||
AC Output | Max Adapted AC Pump Horse Power | 2HP | |
Max Adapted AC Pump Power | 1500W | ||
Drive Mode | 3Phase Variable Frequency Drive | ||
Max Output frequency | 50 ~ 60 Hz | ||
Max Output Current | 15 A | ||
Water Level Sensor(Borehole / Tank) | Yes | ||
GPRS Module Monitor&Controller | YES(Optional) | ||
Support Remote Monitoring & Control System | YES(Optional) | ||
Display | LCD display | ||
Waterproof | IP65 | ||
Cooling Method | Force Cooling by Fan | ||
Package | Size | 550*350*285 MM | |
Weight | 14KG | ||
Inverter Feature:
Smart:
Full automatic operation, no need programming, user-friendly
Modular design, easy install , operate & maintain
Support remote monitoring & control (2G/4G/WIFI for option)
Support Logo/Lable/Color/Function OEM Serive
Efficient:
1:1 match to AC pumps with strong overload capacity
30% more water output with advanced inverter control algorithm
Maximum power point tracking (MPPT) efficiency reach 99% with advanced MPPT algorithm
Built-in booster with lower solar operating voltage to reduce solar panels costs
Good ROI (Return on Investment) against diesel powered pumping
Reliable:
Hybrid function –Solar power priority, grid power/generator dual input as compensation

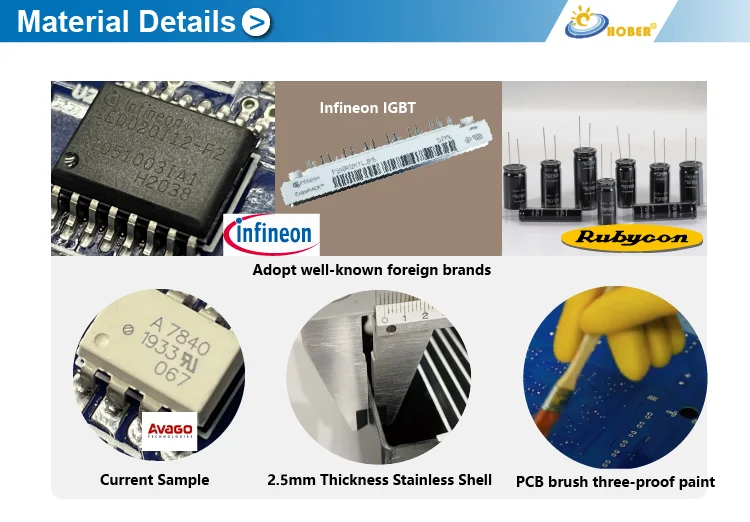

Key parts use famous brand components, longer service life
Wide range of input voltage
IP65 design, continuous full-load operation between -10℃ to +60℃
Compatible with all AC pumps (0.37kw-150kw)
Certification qualified from authoritative third party, inverters can be exported to all countries
Professional & Independent R&D team, good service for pre-sales and after-sales
Fast delivery and quick response
Comprehensive Protections:
Soft start
DC Input Anti-reverse
AC Input/Output Phase lost(3Phase)
AC Output Short Circuit
AC Output Unbalance (3Phase)
Pump Dry run protection By sensor/ software
Water Over Flow of Tank
Solar Low power
Over Load
AC Output Over Current
Full automatic operation, no need programming, user-friendly
Modular design, easy install , operate & maintain
Support remote monitoring & control (2G/4G/WIFI for option)
Support Logo/Lable/Color/Function OEM Serive
Efficient:
1:1 match to AC pumps with strong overload capacity
30% more water output with advanced inverter control algorithm
Maximum power point tracking (MPPT) efficiency reach 99% with advanced MPPT algorithm
Built-in booster with lower solar operating voltage to reduce solar panels costs
Good ROI (Return on Investment) against diesel powered pumping
Reliable:
Hybrid function –Solar power priority, grid power/generator dual input as compensation
Key parts use famous brand components, longer service life
Wide range of input voltage
IP65 design, continuous full-load operation between -10℃ to +60℃
Compatible with all AC pumps (0.37kw-150kw)
Certification qualified from authoritative third party, inverters can be exported to all countries
Professional & Independent R&D team, good service for pre-sales and after-sales
Fast delivery and quick response
Comprehensive Protections:
Soft start
DC Input Anti-reverse
AC Input/Output Phase lost(3Phase)
AC Output Short Circuit
AC Output Unbalance (3Phase)
Pump Dry run protection By sensor/ software
Water Over Flow of Tank
Solar Low power
Over Load
AC Output Over Current
FAQ
Q1.What's the different between inverter and solar inverter?
1)}Hybrid function –Solar power priority, grid power/generator dual input as compensation automatically.It more save power.And it can pumping water 24 hours.
2)LCD Screen display.So you no need check the CODE meaning.
3) Key parts use famous brand components, longer service life
4)IP65 Waterproof.You can install outdoor.
5)Professional & Independent R&D team, good service for pre-sales and after-sales.
Q2.What payment methods are accepted?
T/T, Western Union, Paypal, Ali online payment...etc
Q3.Shiping time
3-5 days for sample order;7-15 days for bulk order.
Q4. why should you buy from us not from other suppliers?
Professional Manufacturer and Solution provider
Professional Manufacturer and Solution provider
Pay more attention to R&D OEM/ODM/OBM service available
Quick response for after-sales service
Online Trainning/ insallation technical support
