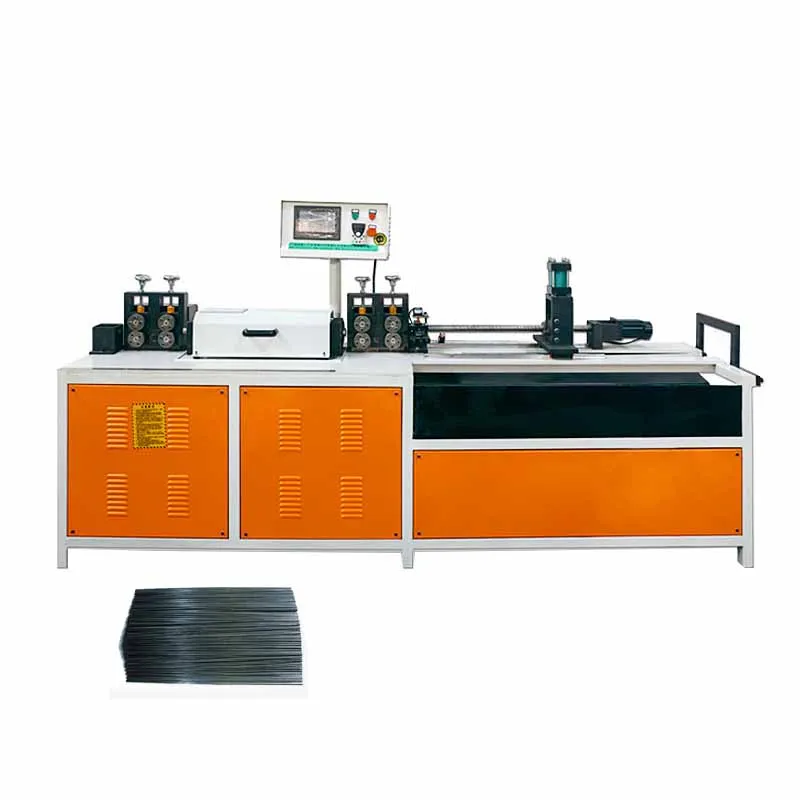

Полностью автоматическая машина для резки и выпрямления металлической проволоки с серводвигателем 2-6
- Категория: Metal Straightening Machinery >>>
- Поставщик: Guangzhou,Minder-Hightech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.40 $* | 0.10 $* |
| Aug-15-2025 | 0.42 $* | 0.57 $* |
| Jul-15-2025 | 0.87 $* | 0.93 $* |
| Jun-15-2025 | 0.57 $* | 0.37 $* |
| May-15-2025 | 0.45 $* | 0.84 $* |
| Apr-15-2025 | 0.89 $* | 0.9 $* |
| Mar-15-2025 | 0.29 $* | 0.40 $* |
| Feb-15-2025 | 0.45 $* | 0.78 $* |
| Jan-15-2025 | 0.31 $* | 0.48 $* |
Характеристики
Product Description
The straightening machine is widely used for straightening and cutting of metal wires such as round flat iron wire, stainless steel wire, galvanized wire, aluminum wire and gouache wire,etc.
Application
The straightening machine is widely used for straightening and cutting of metal wires such as round flat iron wire, stainless steel wire, galvanized wire, aluminum wire and gouache wire,etc.
Feature
1, The CNC start-stop servo flying shear mechanism developed by our company has an advanced level, and its production speed and precision have also reached advanced level.
2, The wire conveying consists of two sets of conveying boxes, which can ensure the stability of the wire speed during the straightening process.
3, High-speed straightening cylinder mechanism: The straightening cylinder rotates at high speed to remove stress and straighten the wire. The straightening block mode and roller straightening mode can be configured according to user requirements.
Machine Parameters
CNC straightening machine technical parameters | |
Cutting wire diameter | 2mm-6mm |
Power | 2.2KW-2P+0.75KW |
Cutting length range | More than 300mm-infinite |
Wire feed speed | Adjustable speed 30-50 m / min |
Length error | ± 0.5mm |
Straight-wire material | Ordinary carbon steel wire, stainless steel, dip wire |
Machine dimension | 1500*350*1600mm |
Pay-off strand | 600*600*500mm |
Wire feed motor | 1.1KW |
Straightening motor | 2.2KW |
Cutting servo motor | 0.75KW, 1500rpm |
Number of wire feed groups | 2 groups ( 4 pairs of wheels) |
Number of straightening blocks | 8 pcs |
Oil pump motor | 1.5KW |
Used for cutting hydro-cylinder | MOB63-20 |
Straightening speed | 50m / min |
Pay-off strand size (length * width * height) | 2670*710*1450mm |
Product Details
FAQ
Q: How to buy your products ?
A: We have some products in stock , you can take away the products after you arrange the payment ;
If we don’t have the products in stock you want, we will start production once getting the payment.
Q: What’s the warranty for the products ?
A: The free warranty is one year from the date of commissioning qualified.
Q: Can we visit your factory ?
A: Of course, welcome to visit our factory if you come to China.
Q: How long is the validity of quotation ?
A: Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately as the
price fluctuation of raw material in the market.
Q: What’s the production date after we confirm the order ?
A: This depends on the quantity. Normally, for the mass production, we need about one week to finish the production
Q: What’s the warranty for the products ?
A: The free warranty is one year from the date of commissioning qualified.
Q: Can we visit your factory ?
A: Of course, welcome to visit our factory if you come to China.
Q: How long is the validity of quotation ?
A: Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately as the
price fluctuation of raw material in the market.
Q: What’s the production date after we confirm the order ?
A: This depends on the quantity. Normally, for the mass production, we need about one week to finish the production
