Характеристики
Product Description

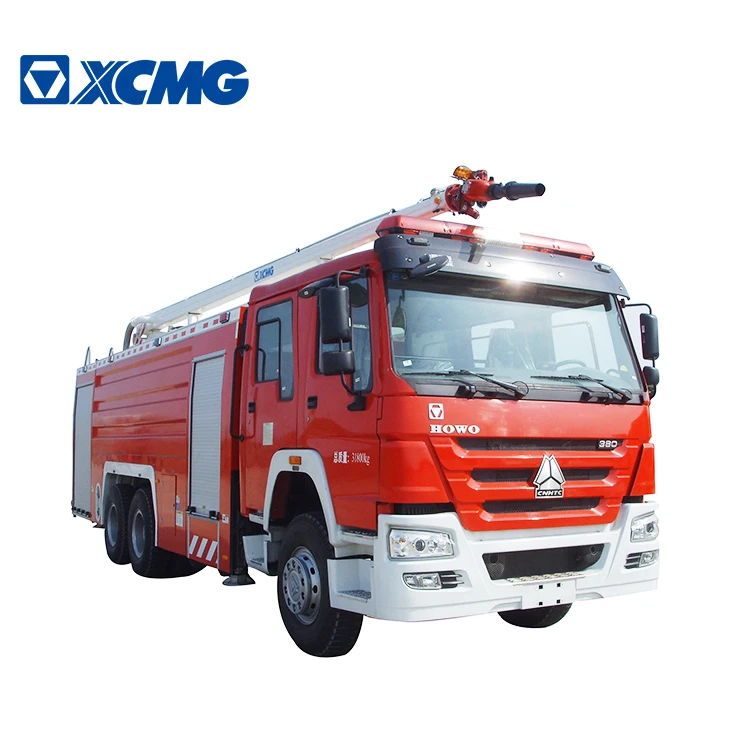

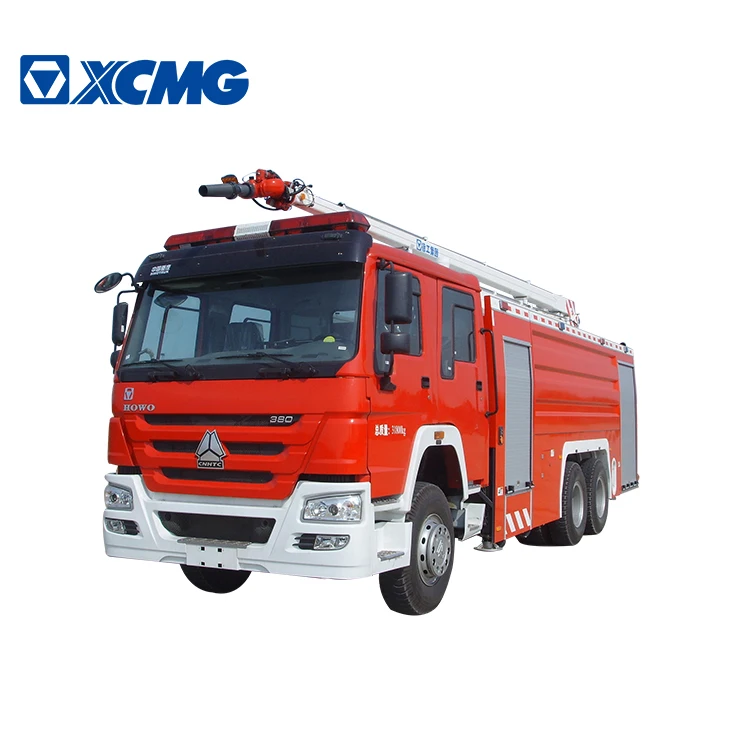

XCMG Official JP20C2 New Mini 6X4 Foam Water Tank Fire Fighting Truck Resuce Fire Engine Fire Truck

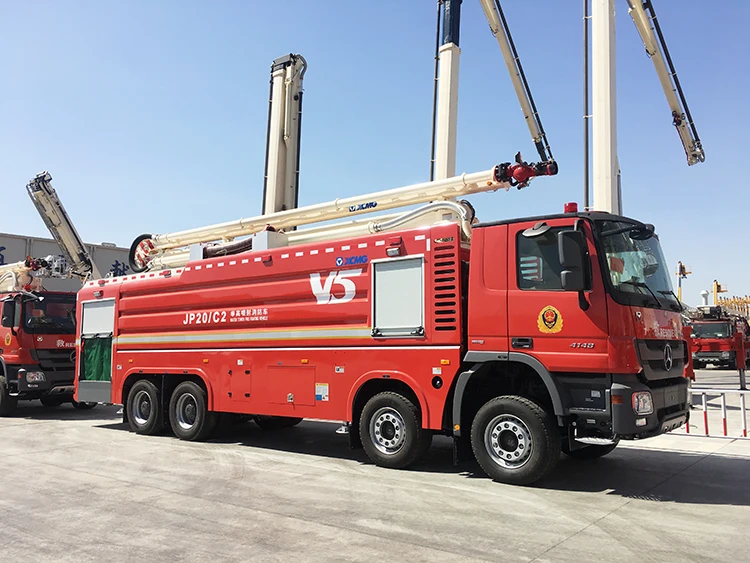

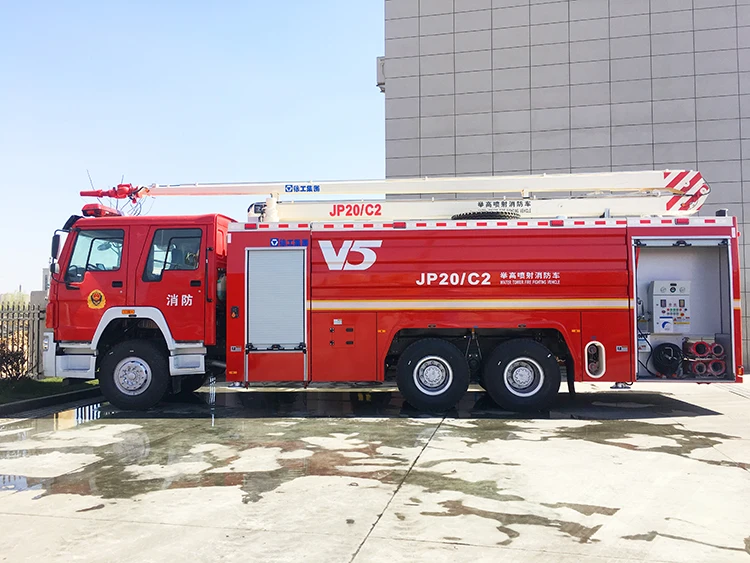

The JP20C2 water tower fire truck is a multi-functional fire fighting vehicle that adds the extinguishing fluid and a foam device on a high-spray vehicle, and combines a large tanker, a foam car, and a high-ejection fire engine. It is mainly used for fire suppression in low-rise buildings such as cities and towns, industrial and mining enterprises, and petrochemical enterprises, oil tanks, and warehouses.
The upper vehicle arm frame adopts a two-section folding arm structure, and each movement mechanism adopts an electrically controlled hydraulic driving mode, which makes the vehicle easy to operate, flexible in movement, safe and reliable, and practical. It adopts the automatic control of the limit position to decelerate and stop, so that the operation is rapid, labor-saving, convenient, and stable, and has a large range of speed adjustment, micro-vibration, and accurate movement.
The upper vehicle arm frame adopts a two-section folding arm structure, and each movement mechanism adopts an electrically controlled hydraulic driving mode, which makes the vehicle easy to operate, flexible in movement, safe and reliable, and practical. It adopts the automatic control of the limit position to decelerate and stop, so that the operation is rapid, labor-saving, convenient, and stable, and has a large range of speed adjustment, micro-vibration, and accurate movement.
Product Paramenters
Overall size : (L x W x H) | 10620×2500×3880mm | ||
Full-load weight | 32250kg | ||
Maximum truck speed | ≥90km/h | ||
Minimum turning diameter | ≤23m | ||
Approach angle | ≥16° | ||
Departure angle | ≥9° | ||
Maximum gradeability | ≥25% | ||
Outrigger span | Outrigger longitudinal span | 5835mm | |
Outrigger transversal span | 2270mm | ||
Maximum working height | 20m | ||
Maximum working radius | 12m | ||
Jib rack luffing angle | First section arm (related to water level): 0°~85° | ||
Second section arm (related to water level): 0°~170° | |||
Turning range | 360° continuous rotation | ||
Leg deployment time | ≤20s | ||
Boom operation time | ≤45s | ||
Rotation speed of the boom | 0.5~1.5r/min | ||
Fire pump | Rated flow | ≥50 L/s | |
Rated pressure | ≥1.4 MPa | ||
Fire monitor | Model | PLKD64 | |
Rated flow | 50 L/s | ||
Rated pressure | ≤0.9 MPa | ||
Shoot range | ≥60m | ||
