Светодиодная линейная панель RGBW IP67 DMX PMMA молочно-белая крышка LEDWallWasher высокие шкалы серого 65536 16

Betterway BW-L3X96-B Led Linear Bar Features :

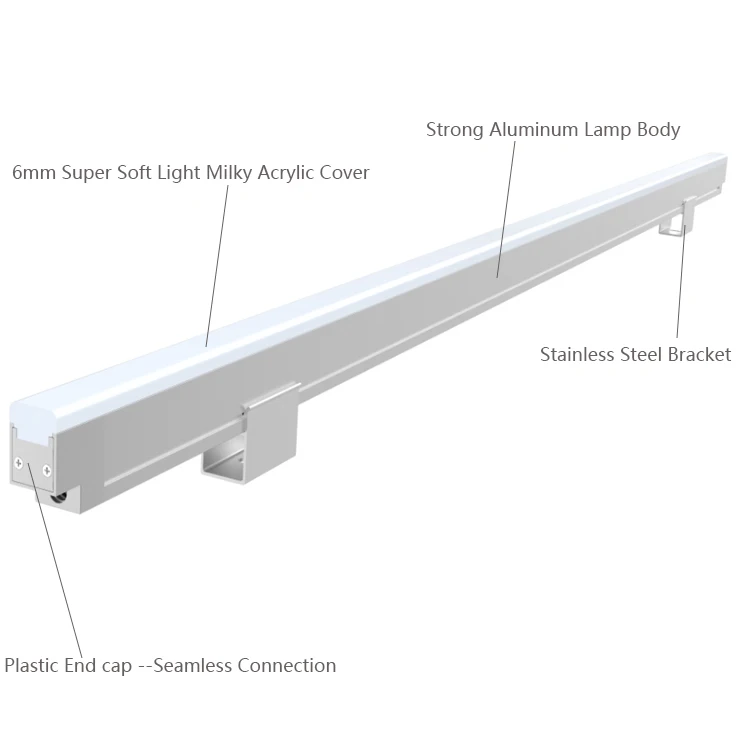

1.Two options for Acrylic cover thickness --2mm & 6mm

2.Adopt plastic end-cap with excellent light guidance performance --perfectly realize seamless connection among lamps ,and no dark space at the joint

3.Multiple options for pixel per 100cm --1/2/4/8 or Customized

4.Adopt high quality super soft Acrylic material & with High grayscale 65536 16 bit --for super soft light and excellent light distribution ,won't see any dot

5.Multiple brackets for different installation nodes

6.Automatically setting address code when power on --save the installation & debugging time and labors costs

	Item NO.	BW-L3X96-B
	Size	L1000*W18*32MM
	Length	100CM ,50CM ,25CM or Customized
	Rated voltage	DC24V
	Power	15W
	Color	DMX RGBW
	CCT	3000K,4000K,5000K
	Thickness of cover	6mm or 2mm
	Material	6063 Aluminum + Milky Acrylic cover
	Certificates	CE ROHS EMC
	Warranty	Regural is 3 Years

Product Advantages of DMX Linear Bar Series (Betterway Hotspot Product Series )

Size is slim,Shape is smart ,Quality is stable .

One LED one pixel ,3 LEDS One pixel,6 LEDS one pixel or customzied .

High grayscale 65536(16 bit).

Seamless connection .

Voltage DC12V ,DC24V,DC36V,DC48V.

Detachable connector .

Various sizes are available .

Type :Single Color ;DMX Single color 'DMX RGB;DMX RGBW.

Product Descriptions

1.Adopt high brightness SMD5050 which it's UV resistant ,Waterproof ,Dustproof .

2.The structure of this series can be seamless stitching .

3.The bar shell can be sprayed with the requirement color to fit the project .

4.Back side has trunking,cables can be hidden,to reduce the cable aging and extra tibet wire cost .

5.Surface with special material ,strong anti-yellowing properties ,hardy till minus 40℃.

6.Can live working ,resistant hot swappable .

7.constant current design .

8.Diversification installation .

9.Fully support color fading ,skipping ,scanning ,chasing ,play flash and vedio to music ,etc..

10.Compatible with MADRIX and BW software and other softwares .

11.Length:0.5M,1M,1.5M,2M or customized .

12.Energy-saving ,Low-cost maintenance ,Long-life span .

Our Equipments

Our Certificates

CUSTOMIZED PRODUCT DESIGN SUPPORT

A good product design is the key point for successful project .

With years of professional experience ,Betterway Lighting is available to Circuit Schematic Diagrams ,3D Drawing ,Technical Layout Drawing,Lighting Simulation Renderings ,Testing Report,etc.

Especially for our uncontrolled dimming technology ,the brightness can be adjusted at any time after installation .

And our products support RDM protocol which enables remote monitoring & control of lamps ,real-time feedback

of relevant information ,such as lamps position ,working temperature ,working current ,working voltage ,etc.

PROVIDE PRODUCT SAMPLES

After project product scheme is confirmed ,Betterway Lighting will prepare samples for client for site testing and

quality checking ASAP .Normal sample lead time is 2-3 days ,customized sample lead time is 7 days .

PROJECT INSTALLATION & TESTING

Betterway Lighting has a professional team with on-site construction guidance training ,rich knowledge of lighting ,and proficient in lighting system installation .Ensure that the project's lighting system & installation correctly to

meet the specifications of project's requirements,in testing and commissioning of project ,it can arrange technicians to guide on-site instruction or remote instruction .
