Машина для выпрямления и резки проволоки LE3-6 прямые
- Категория: Metal Straightening Machinery >>>
- Поставщик: Anping,County,Laien,Wire,Mesh,Machine,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 12495.97 $* | 13120.86 $* |
| Aug-19-2025 | 12390.18 $* | 13010.69 $* |
| Jul-19-2025 | 10395.48 $* | 10915.71 $* |
| Jun-19-2025 | 12180.37 $* | 12789.61 $* |
| May-19-2025 | 10605.25 $* | 11135.85 $* |
| Apr-19-2025 | 11970.33 $* | 12569.17 $* |
| Mar-19-2025 | 11865.31 $* | 12458.65 $* |
| Feb-19-2025 | 11760.75 $* | 12348.91 $* |
| Jan-19-2025 | 11655.92 $* | 12238.80 $* |
Характеристики
3-6mm high speed wire straightening and cutting machine
Product Description
3-6mm High speed wire straightening and cutting machine parameters
| Model | LE3-6H | LE6-12H |
| Diameter | 3-6mm | 6-12mm |
| cutting length | 100-3000/4000/5000/6000mm | 800-12000mm |
| cut error | +/- 1mm | +/-1mm |
| speed1 | 110m/min | 70m/110m/130m |
| motor | 5.5kw | 27.5kw |
| control system | PLC control | PLC control |
♣Introduction about our wire straightening and cutting machines
1.Wire straightener and cutting machine can straighten and cut stainless steel wire, aluminum wire, cold-drawing wire and steel wire.
2.This kind of machine wire diameter is from 1.5 to 12mm.
3.The length could adjust according to customers demand. It is used in straightening-cutting stainless steel wire, aluminum wire, cold-drawing wire, and steel wire with plastics.
4.This machine has many advantages, such as neat cutting mouth, less error and good functions.
♣ Normal Speed Wire Straigtening and Cutting Machine Main Parameter
Model
| LE1.5-3.5 | LE2-5 | LE3-6 | LE4-8 | LE4-12 | LE5-12 |
wire diameter | 1.5-3.5mm | 2.0-5.0mm | 3.0-6.0mm | 4.0-8.0mm | 4.0-12mm | 5-12mm |
Cutting length | 30-2000mm | 30-6000mm | 30-6000mm | 200-6000mm | 200-6000 | 600-12000mm |
Cut error | +/- 1mm | +/- 1mm | +/- 1mm | +/- 1mm | +/- 1mm | +/- 10mm |
Speed | 25m/min | 30m/min | 30m/min | 35m/min | 30m/min | 45m/min |
Straight motor | 1.5kw | 1.5kw | 2.2kw | 4.0kw | 7.5 | 11kw |
Cut motor | 0.75kw | 0.75kw | 0.75kw | 3.0kw | 4.0 | 4kw |
Overall size | 1.7x0.4x0.8m | 1.2x0.4x0.9m | 1.2x0.5x1.1m | 7.3x0.6x1.2m | 8x0.8x1.3m | 2.1x0.7x1.3m |
Weight | 130KG | 150KG | 180KG | 650KG | 1000KG | 1200KG |

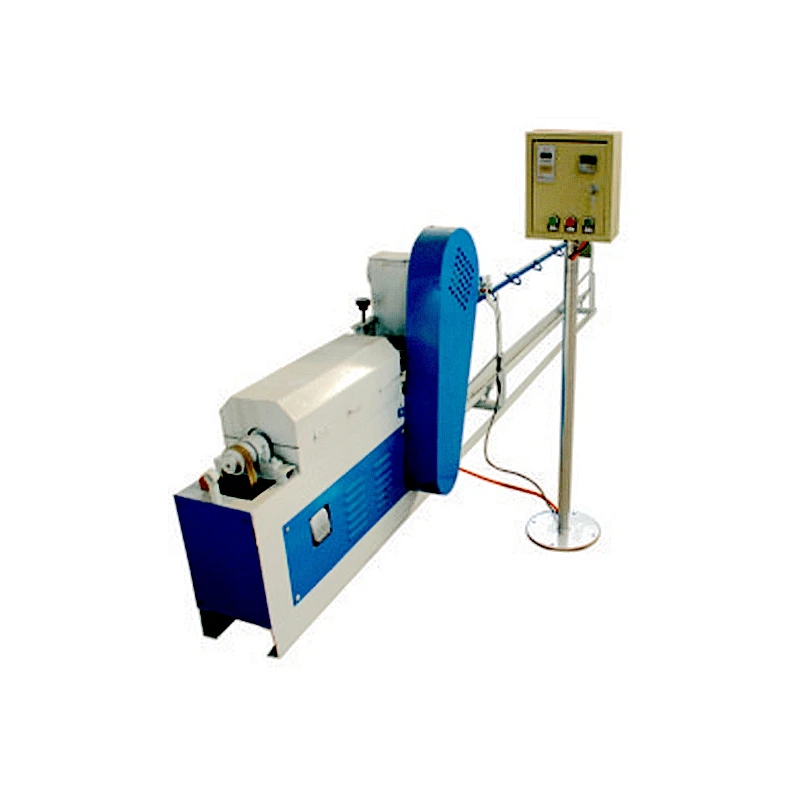

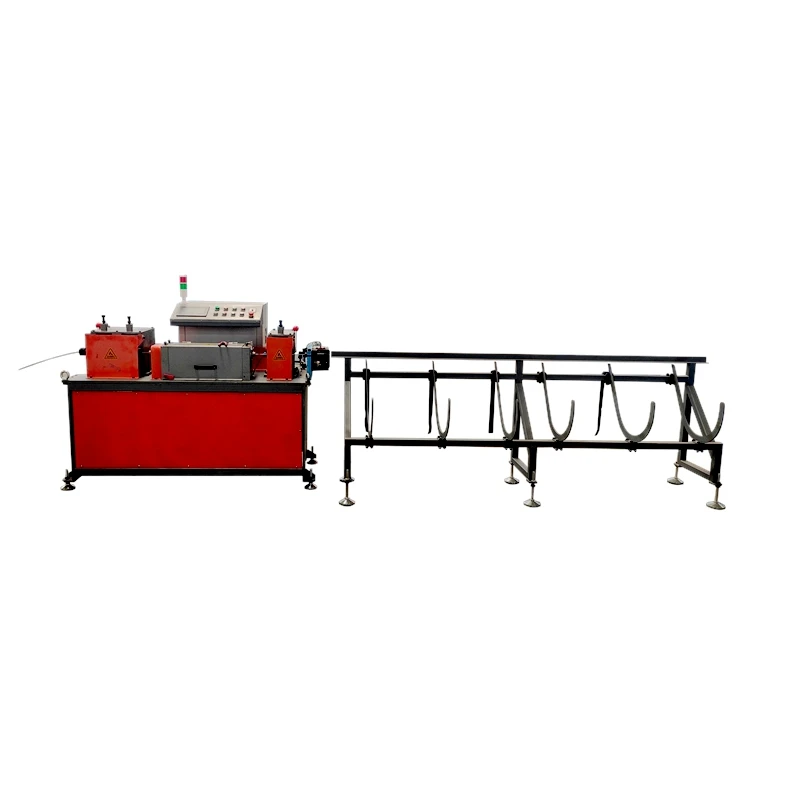

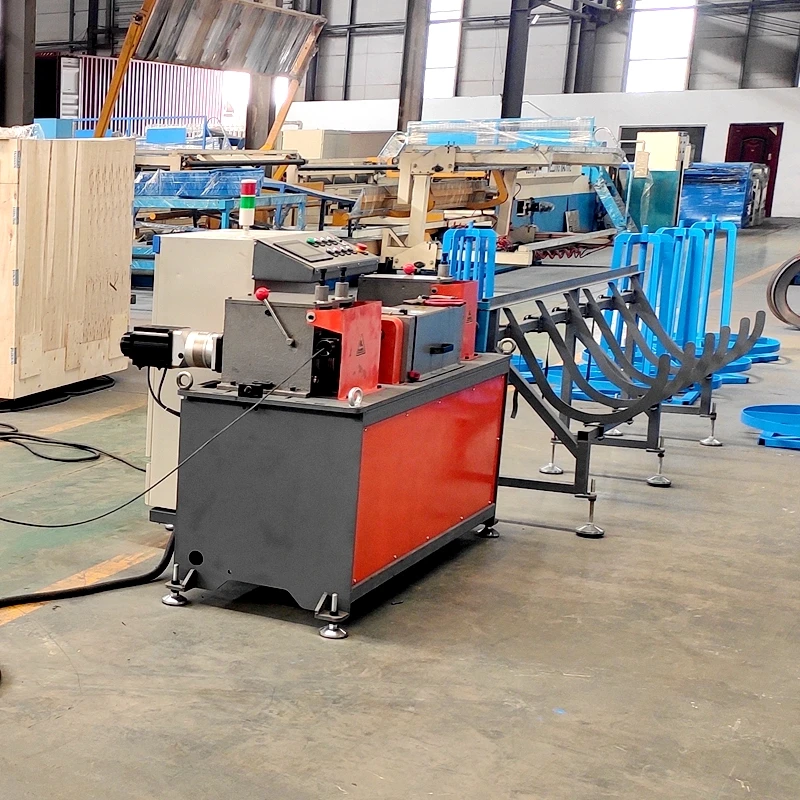

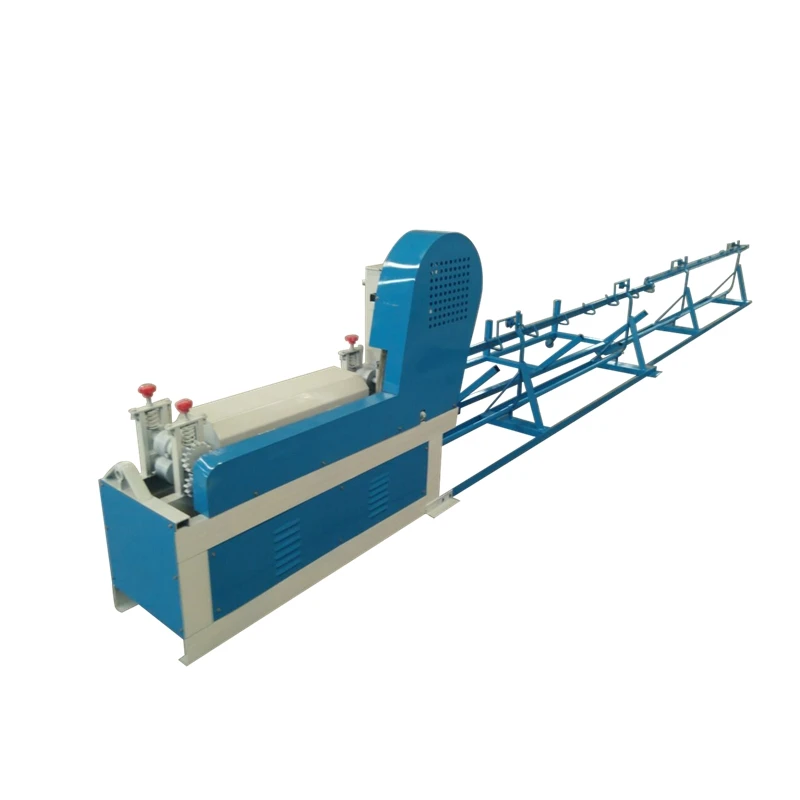

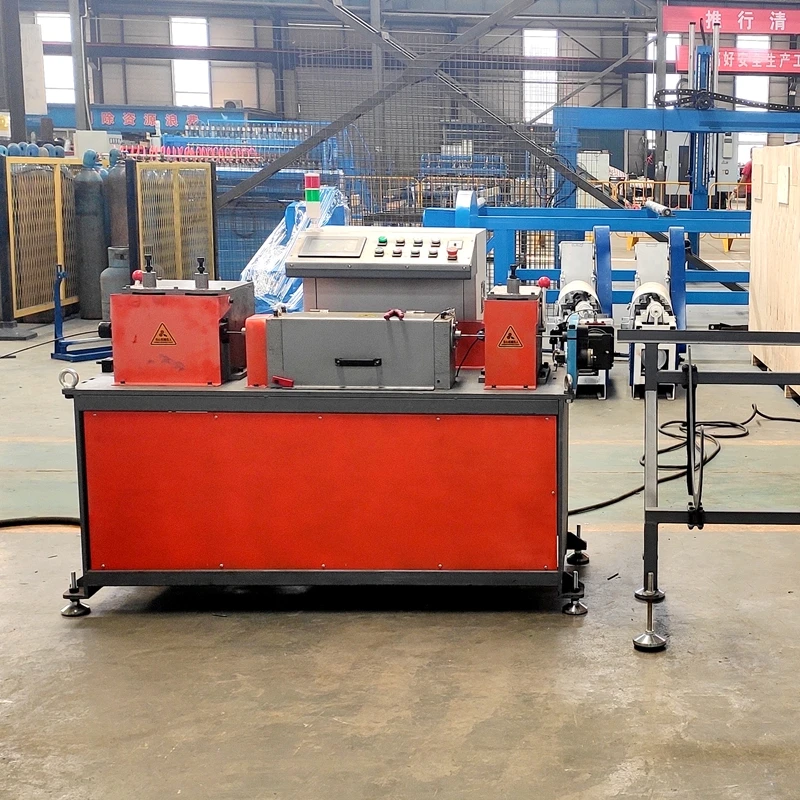

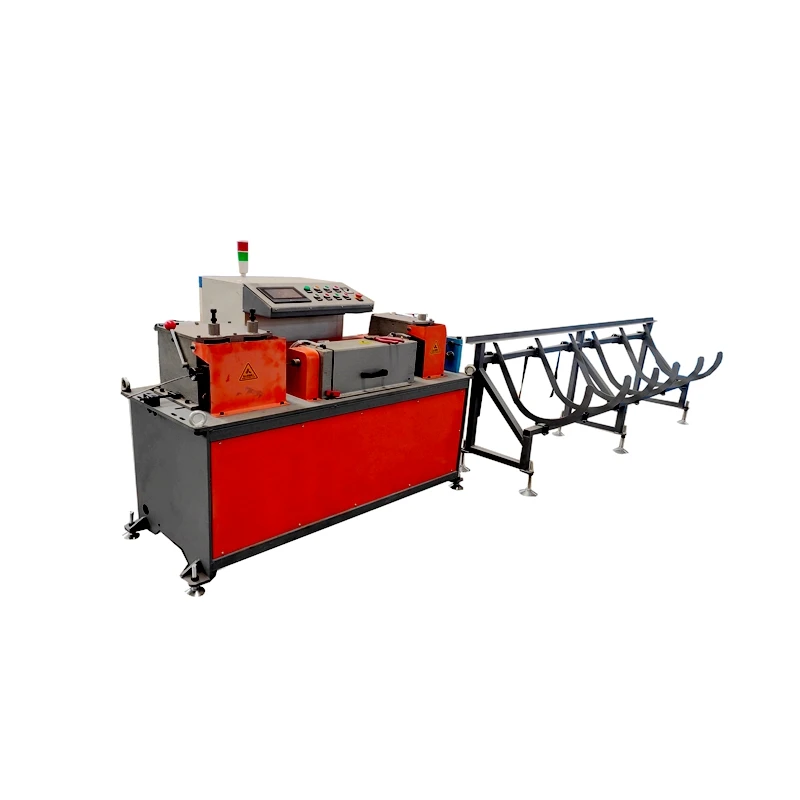

♣Machine pictures
Note:Our factory also can produce the special size according to the client’s requirement
After Sales Service
NOTICE
Please read following tips carefully.
ABOUT AFTER SALES SERVICE:
1. Machine to be installed and commissioned by our technicians. We can send our technician to install the machine accordingly if the buyer need.
2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD100/person/day for salary.
3. Technician: Normally need one or two technician.
4. Training time: one week (contains the time of installation and adjustment)
5. It is in same condition if the buyer need the seller to send the interpreter.
GUARANTEE:
1. Warranty period: Except the wearing parts, 12 months guarantee for machine and 6 months guarantee for electric appliance after shipment. During guarantee time, if the parts are broken caused by the product problem, seller will offer the parts by free,and we will provide the technical support for the whole life.
2. Breakage problem: If the parts were broken caused by the mishandling by buyer, buyer needs to buy the parts from seller.
Company Information
Hebei LaiEn Wire Mesh Machine Manufacuring Co., Ltd is a professional manufacturing specializing in producing and exporting various machinery and equipment. Factory covers about 67000 square meters,there are more than 200 employees in our company, including over 30 engineers and technicians. We have high quality professional teams, skillful talents, strong technical forces, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.We have passed through both ISO9001-2008 quality system and SGS inspection. Our machines have been exported to more than 60 countries till now.
Our product mainly kinds of mesh machines and full line reletive production line.
Wire mesh machine including: welded wire mesh machine, constriction welding mesh machine, scaffold mesh welding machine, animal cage welding machine, cable tray roll forming machine, full automatic chain link fence machine, hexagonal wire netting machines, gabion machine, gabion box machine, grassland fence machine, weaving machine, crimped wire mesh machine, expanded metal machine, flatten machine, flatter machine, perforated metal machine, dust suppression sheet machine, wire pvc coating machine , wire drawing machines, nail making machines etc.
Full line proctuction line: perforated type cable tray full production line, sound barrier production line, wire mesh welding cable tray production line, welding mesh rack production line, mesh cage welding full line, roller pvc coated line etc.
We believe that our machines with good quality&best price will be satify by you.
We adhere to the quality first, friendly service, your need is our guide!
FAQ
Other Machines use together with wire straightening and cutting machines
