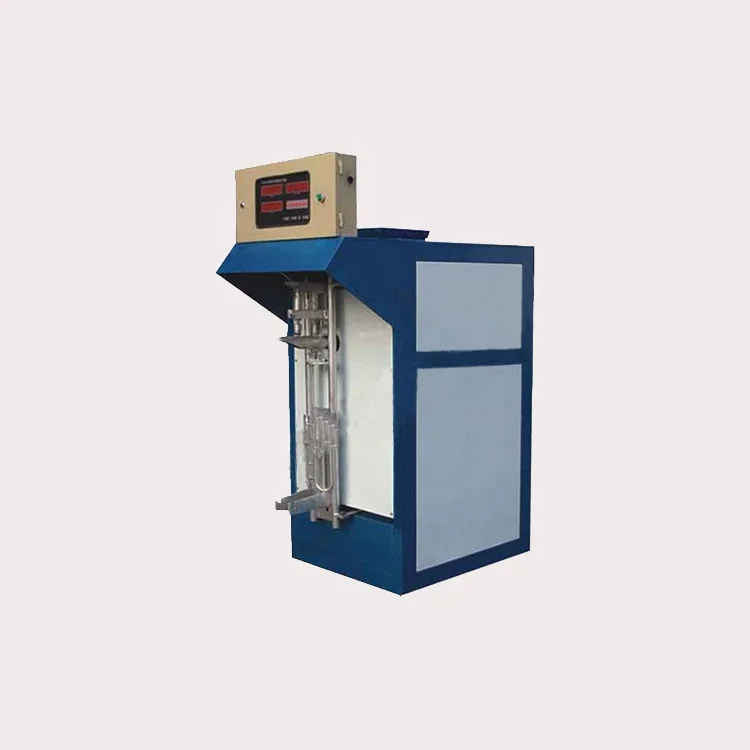

Высокоэффективная упаковочная машина для порошковых клапанов химической

Высокоэффективная упаковочная машина для порошковых клапанов химической

Категория: Other Chemical Equipment >>>
Поставщик: Shenyang,Beiteng,Chemical,Machinery,Co.,Ltd.

Цена:980,00 $ - 1 100,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	1166.82 $*	1224.1 $*
Aug-19-2025	1156.12 $*	1214.97 $*
Jul-19-2025	970.35 $*	1019.79 $*
Jun-19-2025	1137.45 $*	1194.83 $*
May-19-2025	990.20 $*	1040.17 $*
Apr-19-2025	1117.91 $*	1173.51 $*
Mar-19-2025	1107.6 $*	1162.53 $*
Feb-19-2025	1098.51 $*	1153.87 $*
Jan-19-2025	1088.59 $*	1142.82 $*

Характеристики

Product Description

Product advantage:

For the improved valve port type powder packaging machine, Due to use the larger caliber filling pipe, the initial filling speed is accelerated, the pipe blocking phenomenon is reduced, the adaptive range of materials is increased, and the packaging speed is accelerated, while the multi-stage joint control of flow speed in the later stage can quickly reduce the material flow rate and ensure the packaging accuracy. Dust collection cover is installed at the packaging mouth to effectively reduce dust diffusion and improve the working environment.

The form of valve port packaging is very common in the product packaging of the powder industry, such as cement packaging is widely used in the valve port packaging machine. The feeding forms of valve port packaging machine can be divided into two forms: impeller feeding and spiral feeding, the former is suitable for the packaging of materials with relatively large particles, and the latter is more suitable for the packaging of materials with relatively small particles.

Model	FBZ 50-1	FBZ 50-2	FBZ 50-3	FBZ 50-4
Discharge nozzles/PCS	1	2	3	4
Production capacity t/h	10	20	30	40
Discharge power kW	4	4*2	4*4	4*4
Weighing scale kg	20-50（Adjustable）
Measuring accuracy kg	±0.5
Bag weight pass rate	≧95%
Equipment weight kg	510	660	860	1060

Working principle:

The feeding forms of valve port packaging machine can be divided into two forms: impeller feeding and spiral feeding, the former is suitable for the packaging of materials with relatively large particles, and the latter is more suitable for the packaging of materials with relatively small particles. The composition of dry powder mortar is relatively complicated, and there are obvious differences in the range of particle diameter and specific gravity.

In order to expand the packaging range of the packaging machine as much as possible and improve the packaging accuracy, the following measures have been taken in terms of feeding speed:

The speed of the motor is steplessly adjusted by the frequency converter. at this time, the flow rate of the material in the feed pipe is adjusted by the air flow, and the whole process is completed by a microcomputer. The specific method is that in the initial stage of material filling, The high-speed impeller or spiral blade feeds the material into the filling port, and the resulting thrust and compressed air located in the filling tube help to quickly flow the material into the packing bag. When the material is filled to about 70% of the required weight, the motor begins to slow down, until the required packing weight is reached, the flow-assisted pressure decreases gradually, and the cross section of the canned tube is gradually reduced under the action of the cylinder until the precise weighing is finished and completely closed.
