SG-VS500A автоматическая машина для ламинирования бумаги кормления с подъемным столом разделителем укладчиком и
- Категория: Laminating Machines >>>
- Поставщик: Hangzhou,Fuyang,Sigo,Office,Supplies,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 5474.77 $* | 5748.1 $* |
| Aug-19-2025 | 5428.56 $* | 5699.87 $* |
| Jul-19-2025 | 4554.88 $* | 4782.38 $* |
| Jun-19-2025 | 5336.84 $* | 5603.46 $* |
| May-19-2025 | 4646.94 $* | 4878.85 $* |
| Apr-19-2025 | 5244.88 $* | 5506.46 $* |
| Mar-19-2025 | 5198.35 $* | 5458.48 $* |
| Feb-19-2025 | 5152.53 $* | 5410.81 $* |
| Jan-19-2025 | 5106.51 $* | 5361.24 $* |
Характеристики
Product Description

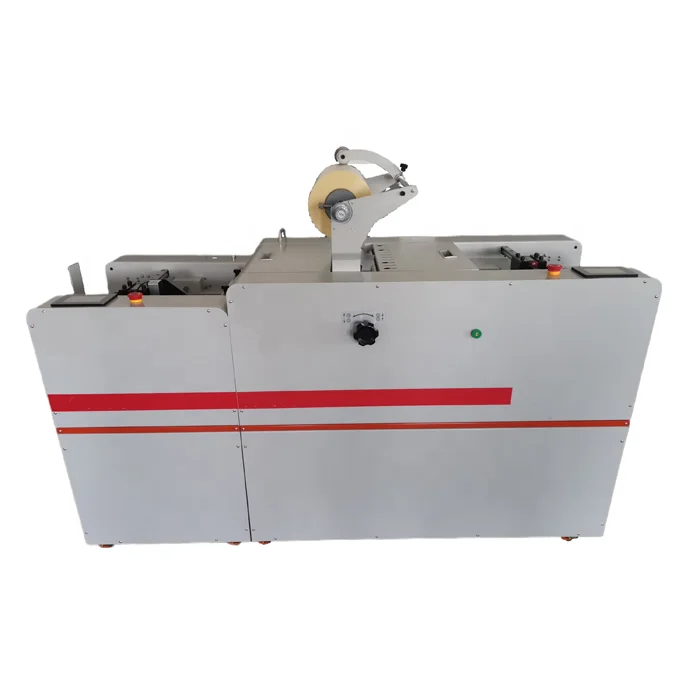

Automatic Feeding Paper Laminating Machine With Lifting Table & Seperator & Stacker & Overlap
SG-VS500A is A3+ size DIGIT Lamination Machine. Feeding paper by air suction automatic, it adopt automatic lifting table that can load max. 800mm. It equal to about 9000 sheets of copy paper (70gsm).
The new software design has a more user-friendly operation interface, which improves the laminating speed of the whole machine, and the accuracy of lap and pull-off, so that the whole machine runs more stably, and the productivity is greatly improved.
Model | SG-VS500A | SG-VS500B | |
Working type | Single lamination | ||
Heating type | Stainless steel roller | ||
Pressure roller dia. | 105mm | ||
Lamination temp | 60-120°C | ||
Lamination thickness | 157～400 gsm | ||
Film inner dia. | 1" & 3" | ||
Heating time | 5-10 mins | ||
Lamination speed | 1-15m/min | ||
Max. lamination width | 350mm | ||
Display | Colorful touch display | ||
Temp. control | Electronic temperature control | ||
Pressure | Spring control | ||
Feeding paper | Air suction auto feeding | ||
Cutting & perforating blade | Yes | ||
Anti-curl paper | Support | ||
Collecting paper | By stacker | By table | |
Seperator paper | Automatic | ||
Advantages:
.The super-large lifting paper feeding system avoids frequent paper feeding by customers, improves productivity and liberates labor.
Imported heating rubber roller, long service life. Enlarging the heating steel rod, the diameter reaches 105mm, which greatly
improves the coating speed.
improves the coating speed.
Large-capacity receiver, with automatic paper shooting function, so that the finished products after the peritoneum are stacked
neatly and orderly, which is convenient for the development of the next process.
neatly and orderly, which is convenient for the development of the next process.
The breaking structure adopts the encoder feedback coordination system of online detection, which realizes the automatic change of the breaking position, and does not need to manually set the breaking distance, ensuring that papers of different lengths can be perfectly broken.
The intelligent software uses the system's own calculation and detection to automatically adjust the edge and pull-off position
when the length of the paper is different. Satisfy customers with different paper laminating at the same time.
when the length of the paper is different. Satisfy customers with different paper laminating at the same time.
When the paper is mixed with small paper, the paper length is monitored online through intelligent software. When the paper is
detected to be less than the distance between the two conveying rollers, the machine will immediately stop and report an error,
prompting to clean the small paper.
detected to be less than the distance between the two conveying rollers, the machine will immediately stop and report an error,
prompting to clean the small paper.
Operating Display:
The new operation interface is more user-friendly, and the intelligent software design makes the operator more convenient and easy to understand, and no longer requires dedicated operation and professional management and maintenance.
The intelligent software design allows the whole machine to detect the state and display the current state at all times when it is turned on, making it easier for the operator to understand.
A more user-friendly background check function is convenient for users to check machine status and maintenance personnel to judge faults. Each electronic component can be tested independently.
The addition of an independent sensor detection interface makes it more straightforward and clear that no professional person is required to take responsible measurements to determine the fault of the sensor. The sensor can be tested directly on the machine.
Packing & Delivery
Automatic Feeding Paper Laminating Machine With Lifting Table & Seperator & Stacker & Overlap
Packaging For Digit Laminating Machine | ||
Size | Laminator: 122*71*110cm Stacker: 71*60*95cm | |
Weight | Laminator: 200 KG Stacker: 50 KG | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated. If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Hot Sale Product
Automatic Feeding Paper Laminating Machine With Lifting Table & Seperator & Stacker & Overlap
Paper Cutter
100%Response Rate
Perfect Binding Machine
100%Response Rate
Laminating Machine
100%Response Rate
Automatic Feeding Paper Laminating Machine With Lifting Table & Seperator & Stacker & Overlap
Creasing machine
100%Response Rate
UV Coating Machine
100%Response Rate
Paper Folding Machine
100%Response Rate
Automatic Feeding Paper Laminating Machine With Lifting Table & Seperator & Stacker & Overlap
Card Cutter
100%Response Rate
Laminator
100%Response Rate
Foil Stamping Machine
100%Response Rate
Certifications
System Certification:
*GBT/TB28001-2011 Occupational health and Safety Management System;
*The generator passed CCC, CE,GS,SGS,EU2,SASO,SONCAP certifications, etc.
FAQ
Q1. Can we take one unit of VS500A Digital laminating machine?
A: Yes, The sample order is okay. Welcome to test and check quality.
Q2. For delivery time, when you send lamination machine to us?
A:We have stock for the machine. The machine will be send within 7 days. If you paid by T/T, please send bank slip so we prepare cargo and shipment in advance.
Q3. Do you have warranty for laminating machine? How about the spare parts?
A: We have one year warranty for all equipment. Within warranty we provide free part. The machine come with quick-wear parts, you don't need to take extra spare parts in stock.
Q4. How do you ship the sheet to sheet digital lamination machine?
A: The laminating machine is heavy. Generally we ship it by sea to save freight. If you have shipping forwarder in China, it's okay to delivery cargo to them.
Q5. How to start order for oil heating hydraulic laminating machine VS500A?
A: 1 please send the requirement of machine, we will suggest the best one to you.
2 After confirm the product, we need to confirm shipment. If you have agent in China, we can delivery cargo to them. If not, we can arrange shipping by sea/airplane as you want.
3 confirm the payment. We accept T/T, Western Union, Money-gram, Credit card, etc.
4 After confirm above question, we will make proforma invoice for you. You can arrange payment according to it. And then we will arrange production and shipment after collect money.
2 After confirm the product, we need to confirm shipment. If you have agent in China, we can delivery cargo to them. If not, we can arrange shipping by sea/airplane as you want.
3 confirm the payment. We accept T/T, Western Union, Money-gram, Credit card, etc.
4 After confirm above question, we will make proforma invoice for you. You can arrange payment according to it. And then we will arrange production and shipment after collect money.
Q6. Is it OK to print my logo on single side digital laminating machine?
A: No, we provide free sample without LOGO. If you need to do, you should pay for printing charge.
Q7: Are you a factory or trading company ?
A: Our factory is located in Hangzhou City, Zhejiang Province, China, around 1 hours train from Shanghai .Around 1hour from "Hanghou Internatil Airport "to our factory. All our clients, from home or abroad, are warmly welcome to visit us!
Our Company
Hangzhou Fuyang Sigao Office Supplies CO., LTD was founded in 2003. Our company is a synthetical enterprise occupying more than ten thousand square meters of factory building. We own import and export right.
The major products of our corporation are text binding machines, paper processing machinery, and various of file folder/binding materl (Binding plstic comb, double loops wire, spiral coil, paper cover, PVC cover, slide binder,etc). In addition, we also deal with office consumption, such as cover paper of binding,clamp bars, plastic and rubber rings, and iron rings. Our products have won high reputation among customer at home and abroad for the reliable performance and novel design.
Welcome to visit our company and cooperate with us.
Our Service
Thanks for your attention on SIGO. If you have any question regarding to Guillotine system---Laminator system---Binding system--Office & Printing system, Pls contact to me.
WhatsApp:+86 l56588264l6
Email: andy(@)chinasigo.com
