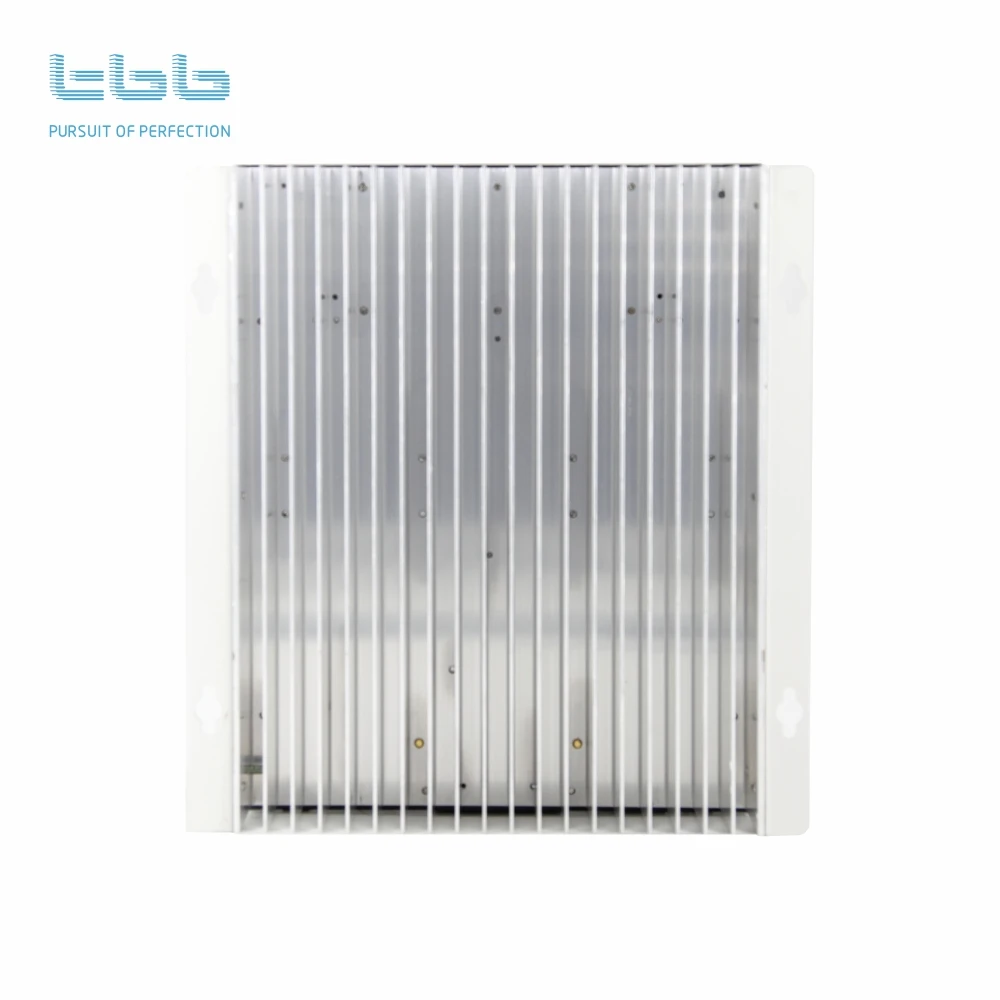

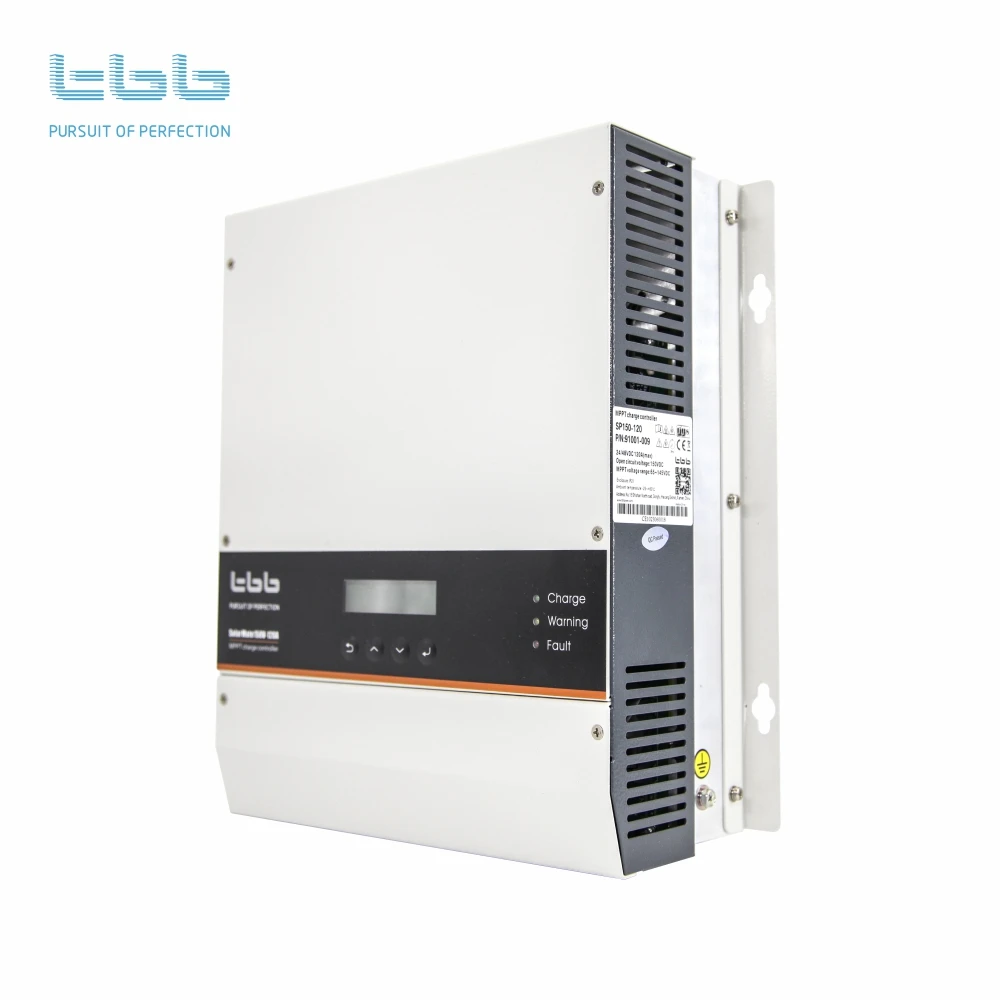

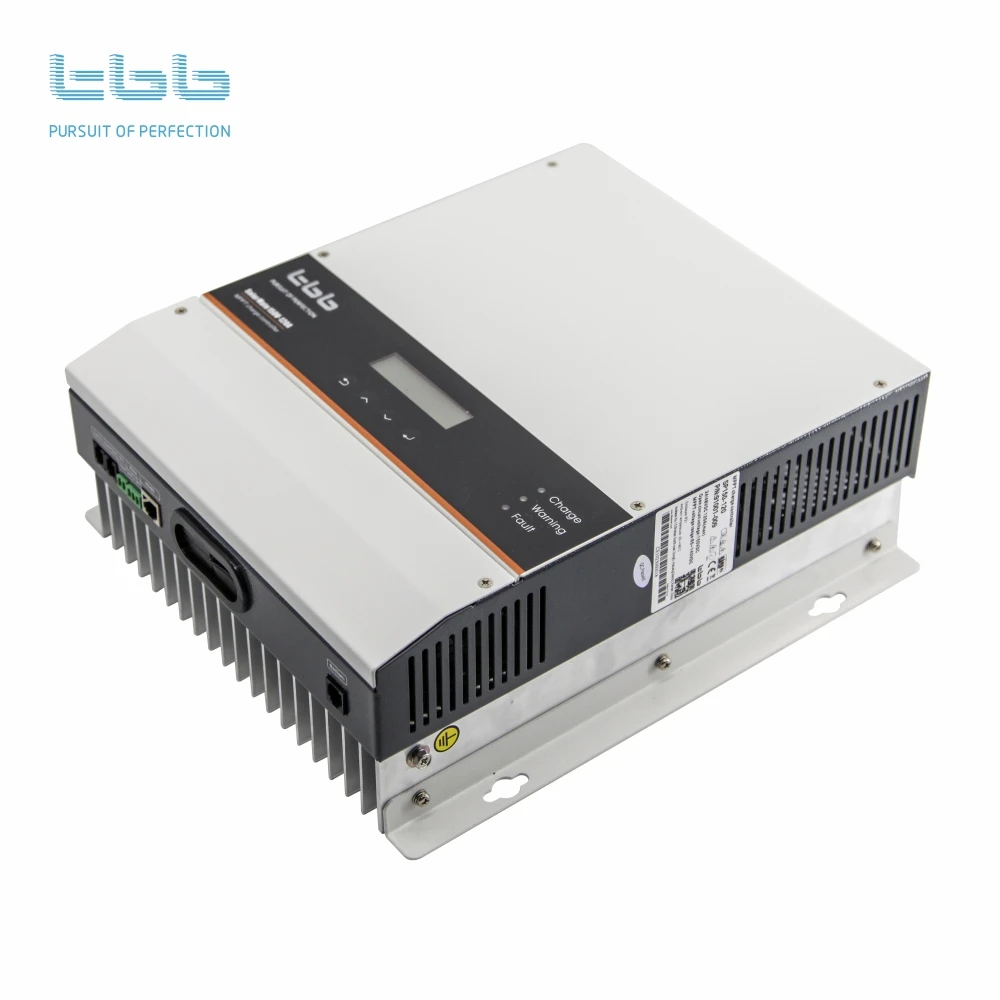

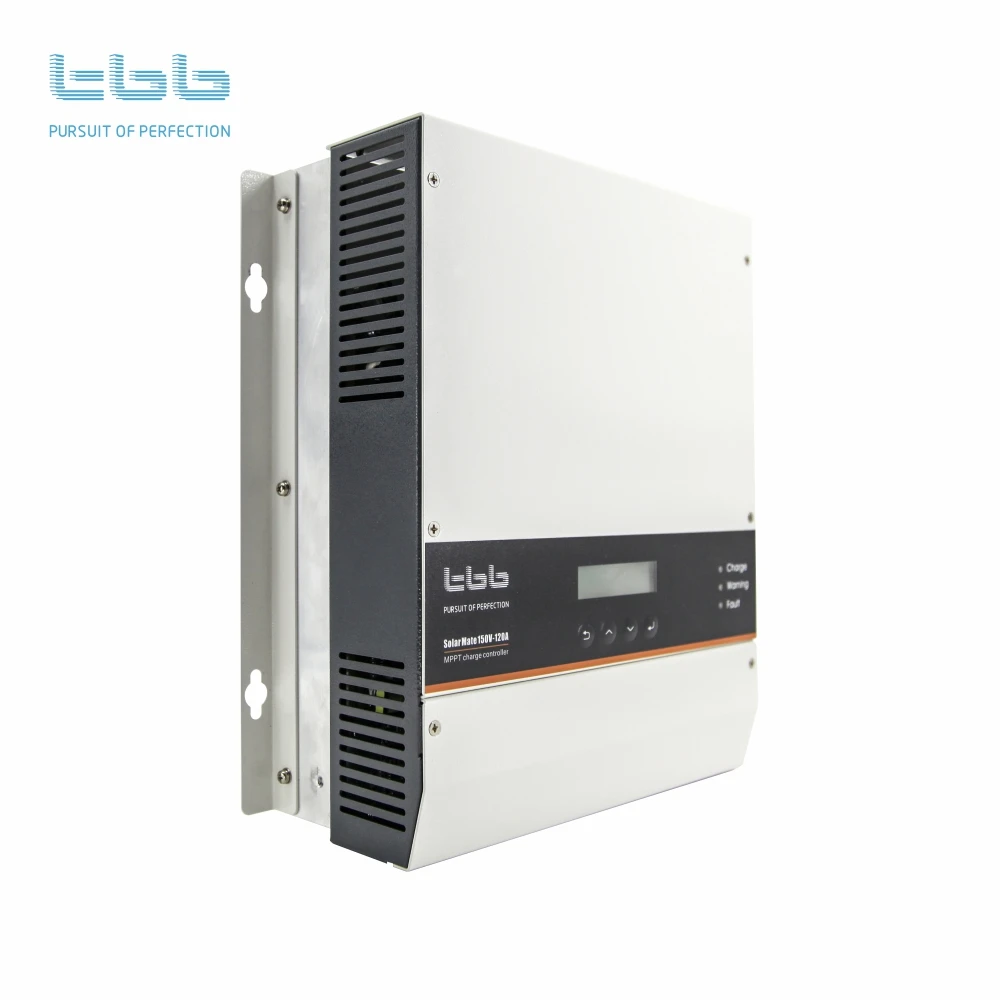

Высоковольтный контроллер солнечного зарядного устройства TBB 250 В 70 А функция MPPT для солнечной


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 0.70 $* 0.99 $*
Aug-15-2025 0.54 $* 0.60 $*
Jul-15-2025 0.67 $* 0.81 $*
Jun-15-2025 0.83 $* 0.71 $*
May-15-2025 0.8 $* 0.52 $*
Apr-15-2025 0.46 $* 0.2 $*
Mar-15-2025 0.5 $* 0.49 $*
Feb-15-2025 0.33 $* 0.97 $*
Jan-15-2025 0.21 $* 0.76 $*

Характеристики



TBB high voltage 250V 70A solar charger controller MPPT function for solar system






Product Description




Why choose the TBB SOLAR CHARGE CONTROLLER??


What is TBB solar charge controller?
Solar Mate is a solar charge controller with built in MPPT(Maximum Power Point Tracking)technology, which enables them to increase the output from a PV(solar photovoltaic) array by as much as 30% compared with non-MPPT designs.

Solar Mate can optimize the PV's output and eliminate the fluctuation due to shading or temperature variables.It is a multi-voltage MPPT with built in sophisticated battery charging algorithm for both lead acid battery or lithium-ion battery, of which could support a wide variety of system designs.Meanwhile,the data management with 365 days of history record can tell user actual performance of its system.

Thanks to its self cooling design, it is suitable for most rugged environment with dust or bugs.All range products can operate at their full rating in ambient temperatures as high as 40℃.

What are TBB solar charge controllers' advantages:
1.MPPT conversion efficiency 99.9%
No power derating for continuous output
2.Wide MPPT operating voltage range from 50V to 250V
3.Up to 8 units in parallel
4.12V/24V/48Vbattery system automatic recognition
5.TBB premium multiple stages charging for lead acid batteries
Low self consumption Data logging 365 days
What is the application of a solar charge controller?
Solar charge controllers are widely used in following DC systems


Where Need the SOLAR CHARGE CONTROLLER??


Solar Home System
Solar home system are typically used for home photovoltaic power
Generation system, to solve electricity demand of none power or unstable power region.
Also the power level rage is between hundred watts to kilowatts.


Solar RVs/Vessels System
Solar RVs/Vessels system are typically used for reducing the RVs and the vessels electricity cost, by setting up solar system to assist gasoline/diesel power generator.


1.DC consumers
Solar panels feed the consumers directly. The solar charge controller controls the voltages for the consumers and the batteries.
2.AC consumers
An inverter is added to provide the AC output for AC consumers..


Application:


3.Hybrid power
Generator is added to the system when there is no enough sun. An inverter charger is used instead of inverter.
4.Backup system
Solar energy can also combine with a grid connection, and when there is a power outage, a generator can be added to the system.


Specification


Model No.
SP100-20
SP100-40
SP150-60
SP150-80
SP150-120
SP250-70
SP250-100
Electrical
Nominal battery voltage
12VDC,24VDC or 48VDC
24 VDC or 48VDC
Maximum charging current (A)
20
40
60
80
120
70
100
Maximum charging power(W)
12VDC
294
588
N/A
24VDC
588
1176
1764
2352
3528
2058
2940
48VDC
1176
2352
3528
4704
7056
4116
5880
MaximumPV input power (W)
12VDC
300
600
N/A
24VDC
600
1200
2250
3000
4500
2700
3750
48VDC
1200
2400
4500
6000
9000
5400
7500
PV open circuit voltage (Voc) (VDC)
100
150
250
MPPT voltage range (VDC)
(Vbat+5)~95
(Vbat+5)~90
65~145
65~245
Max. PV short circuit current(A)
20
40
80
Max efficiency
98.2% @48Vdc system
98%@48Vdc system
Max MPPT efficiency
99.9%
Self-consumption (mA)
Less than 1mA@12Vdc/ 3mA @24Vdc/5mA@48Vdc
Less than 60mA@24Vdc/ 37mA @ 48Vdc
Charge voltage 'absorption' (VDC)
Default setting: 14.1/28.2/56.4
Default setting: 28.2/ 56.4
Charge voltage 'float' (VDC)
Default setting: 13.5 /27/54
Default setting: 27 / 54
Charging algorithum
TBB II multiple stages
Temperature compensation
Default setting: -3mV/℃/cell
Equalization charging
Programmable
Others
DisPlay
LED+LCD

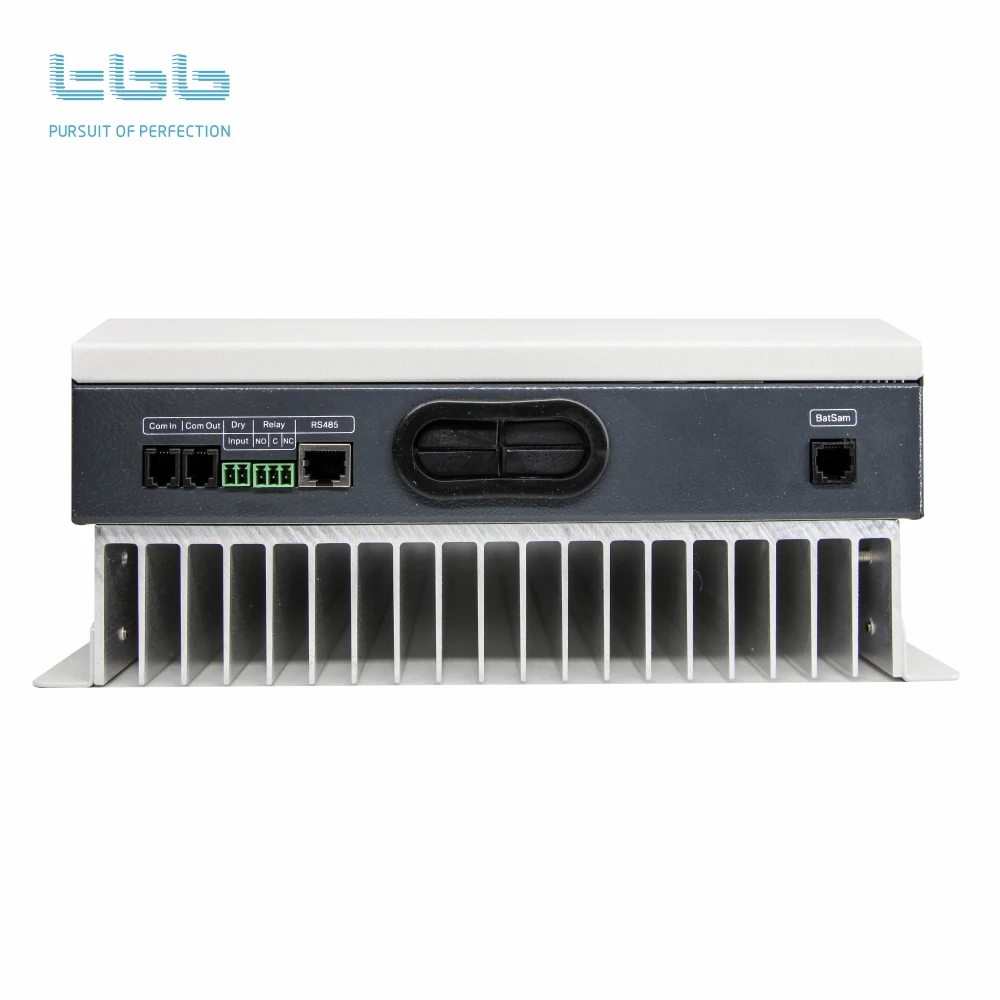

Communication port
RS485
Dry contact
30Vdc/2A
Remote on/off
Yes (2 pole connector)
Data logging
365 days of history record,daily,monthly and total production;Real time figure including solar array voltage,battery
voltage,charging current,charging power;Record the daily PV start charging time,absorb to floating transfer time,PV power loss
time and etc; Real time fault time and information.
Storage temperature
'-40℃~70℃
Operating temperature
'-40℃~70℃ (power derated above 50℃)
'-40℃~70℃ (power derated above 30℃)
'-25℃~ 60℃ (power derated above 40℃)
Humidity
'5%~95%, non-condensing
Altitude
'3000m (full rated output up to 2000m)
Max wire sizes (mm2)
16
35
Protection category
IP31
IP21
Dimension (L*W*H) - mm
205*160*65
327.5*293*116.2
353*293*116.2
Weight (kg)
1.4
7.2
7.5
Cooling
Natural cooling
Forced fan
Standard
EN61000-6-1,EN61000-6-3, EN62109-1


Packing & Delivery






To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile


Founded in 2007, TBB Power is a national high-tech enterprise specializing in integrated power supply solutions and intelligence.Head quartered in Dongfu Industrial Park, Haicang District, Xiamen, covers an area of over 10, 000 square meters. Products are exported to more than 50 countries and regions.
TBB Power has the most complete product line in the industry and is one of the world's best suppliers of modified car power systems and independent power solution.

The products mainly cover three markets:








TBB Power attaches great importance to technological innovation, The research and development team accounts for more than 30% of the total employees of the company. TBB Power has a complete production system and quality assurance system, and has passed ISO9001, IATF16949 certification. The product line has passed CE, EMARK, UL and other product certifications.


Certifications






Global Exhibitions




Project Reference




Our Team




FAQ


1. who are we?
We are based in Fujian, China, start from 2020,sell to Africa(40.00%),Southeast Asia(20.00%),Western Europe(5.00%),Eastern
Asia(5.00%),Northern Europe(5.00%),Oceania(5.00%),South Asia(5.00%),Eastern Europe(5.00%),Southern Europe(4.00%),Domestic
Market(2.00%),Mid East(2.00%),Central America(1.00%),South America(1.00%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
inverter,inverter chager,solar hybrid inverter,solar inverter,MPPT charge controller

4. why should you buy from us not from other suppliers?
Xiamen TBB-Startop Trading Co.,Ltd is the sole agent of TBB POWER CO.,LTD, which is the most professional off grid product and
solution provider in the world. More than 14 years experiences, 90 engineer, over 70,000 global installations.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Arabic,French
