45 мм 55 мм 77 мм Изолированная машина для формовки затвора двери
US $57500-$59500
Металл цинковая плитка кровельный лист машина для формовки
- Категория: Other Construction Material Making Machinery >>>
- Поставщик: Ibc,(tianjin),Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 16660.11 $* | 17493.35 $* |
| Aug-15-2025 | 16520.22 $* | 17346.27 $* |
| Jul-15-2025 | 13860.59 $* | 14553.70 $* |
| Jun-15-2025 | 16240.62 $* | 17052.77 $* |
| May-15-2025 | 14140.93 $* | 14847.84 $* |
| Apr-15-2025 | 15960.16 $* | 16758.61 $* |
| Mar-15-2025 | 15820.71 $* | 16611.64 $* |
| Feb-15-2025 | 15680.75 $* | 16464.1 $* |
| Jan-15-2025 | 15540.67 $* | 16317.50 $* |
Характеристики
Product Description
Forming Speed | 2-3m/min |
Forming station | Around 13 groups |
Total Power | About 5.5+4KW |
Total Weight | About4180KGS |
Voltage | 380v,60hz,3p |
Diameter of shaft | 70mm |
Installation Size | 15 * 1.54 M*1.4 |
Main parts material | ||
Item | Parameter | |
Forming Shaft | 45# steel with grinding process | |
Forming Roller | 45# steel with hard chrome coating | |
Cutting Blade | Cr12 with hard treatment | |
Control System | DELTA PLC& transducer, others are Schneider etc. | |
Electrical motor | China quality brand | |
Bearing | China quality brand | |
Chain | China quality brand | |
Hydraulic parts | China quality brand | |

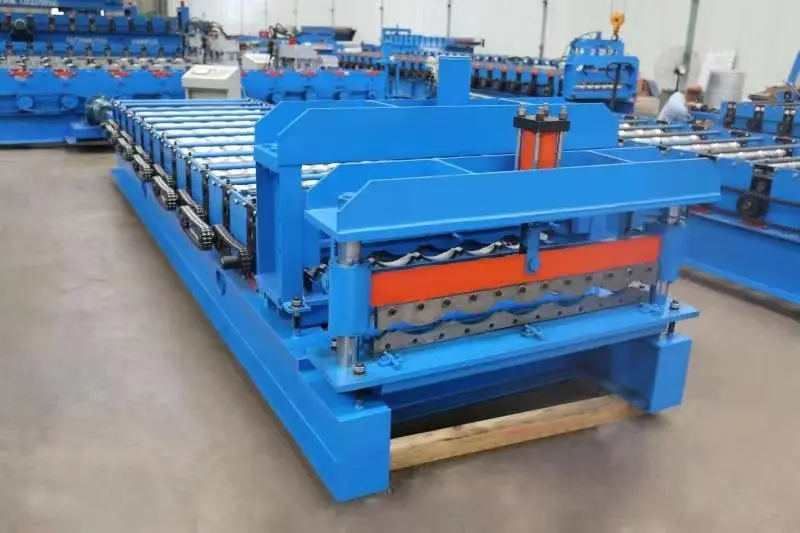

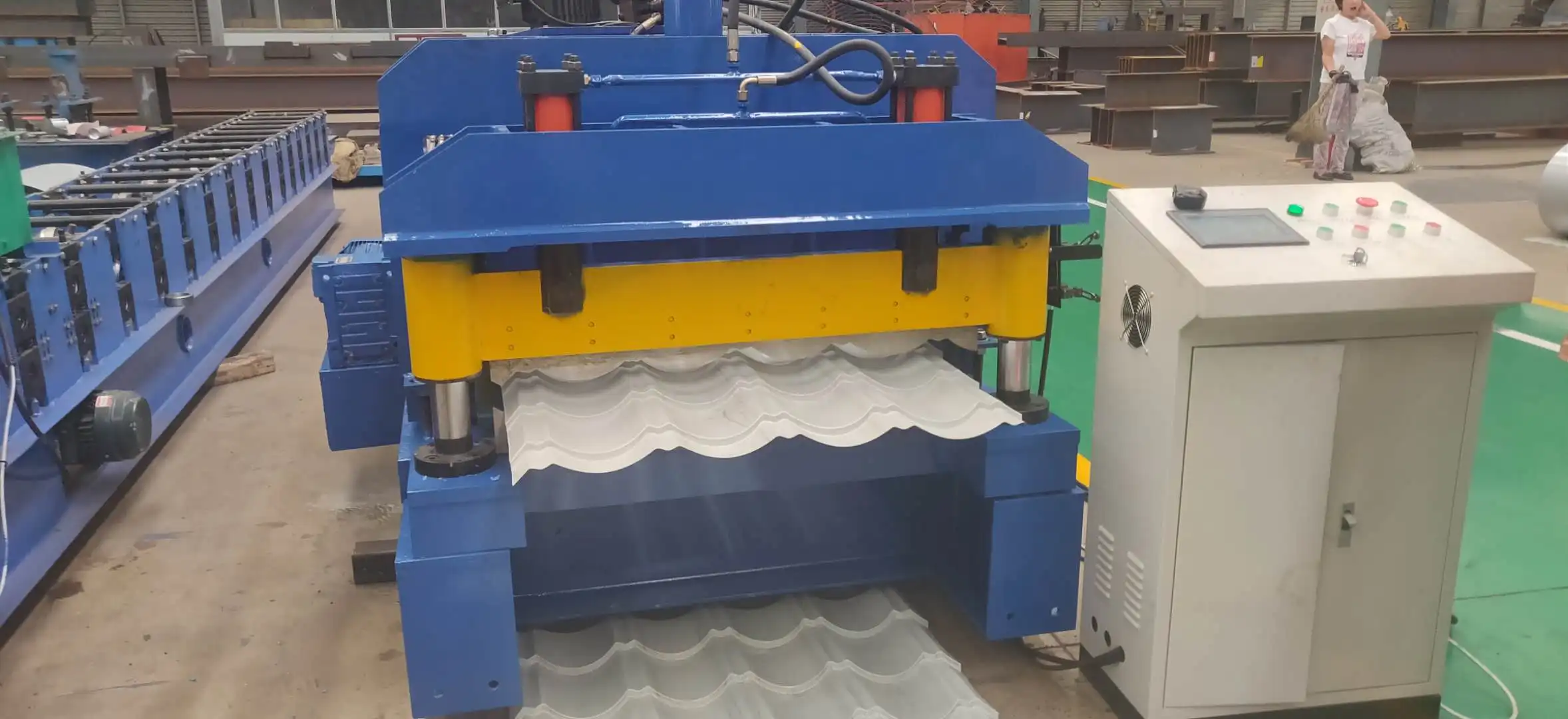

Detailed Images
DECOILER
Power: None
Power of the open and closure of segments: Mechanical
Power of rotation of segment: Pull by forming system
Number of segment: 4
Range of segment expansion: 480 ~ 520mm
Height of center of the mandrel: 0.65m

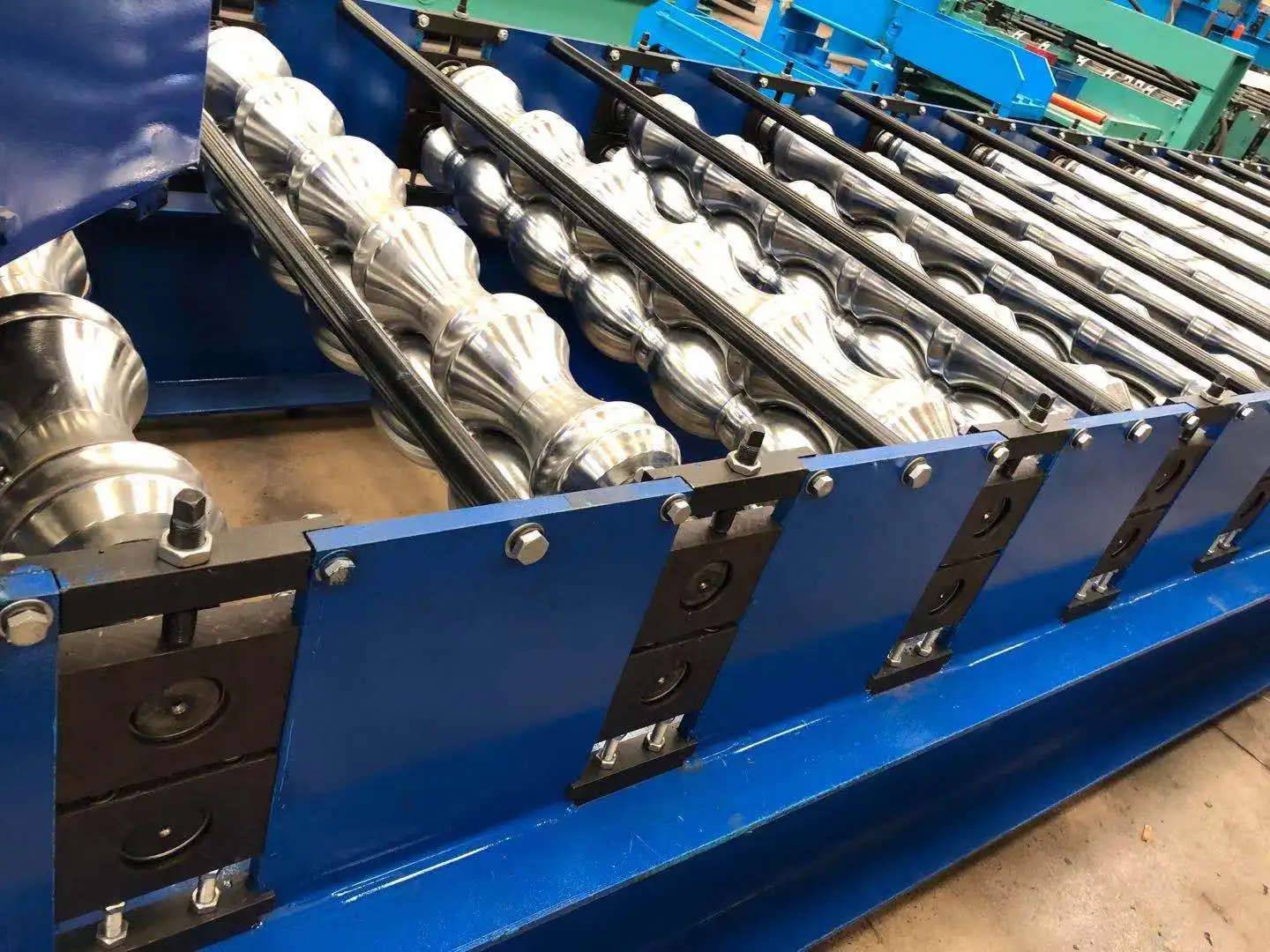

Forming system
Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome

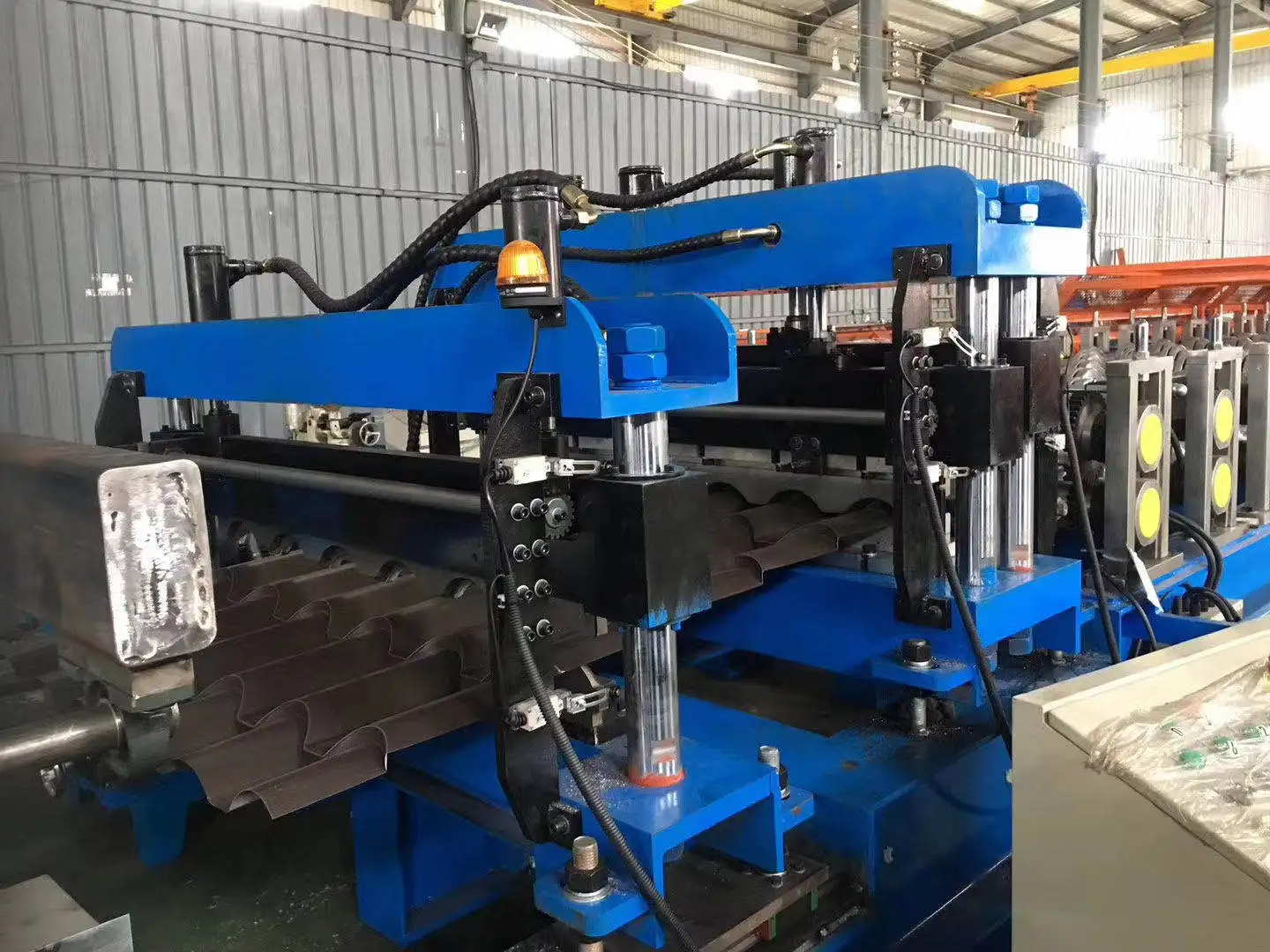

CUT-OFF DEVICE
1.material for cut-off modular: Cr12mov after treatment
2.hardness for heat treatment:HRC60-62°
3.Cut-off type: Hydraulic cut-off
4.Motor for Hydraulic stand:2.2KW
2.hardness for heat treatment:HRC60-62°
3.Cut-off type: Hydraulic cut-off
4.Motor for Hydraulic stand:2.2KW
Spare parts
Several Rely
1pcs Encoder
2pcs Fuses
2pcs Normal Button
2pcs Switch button
1pcs Emergency stop
4pcs Sensor
Finished products

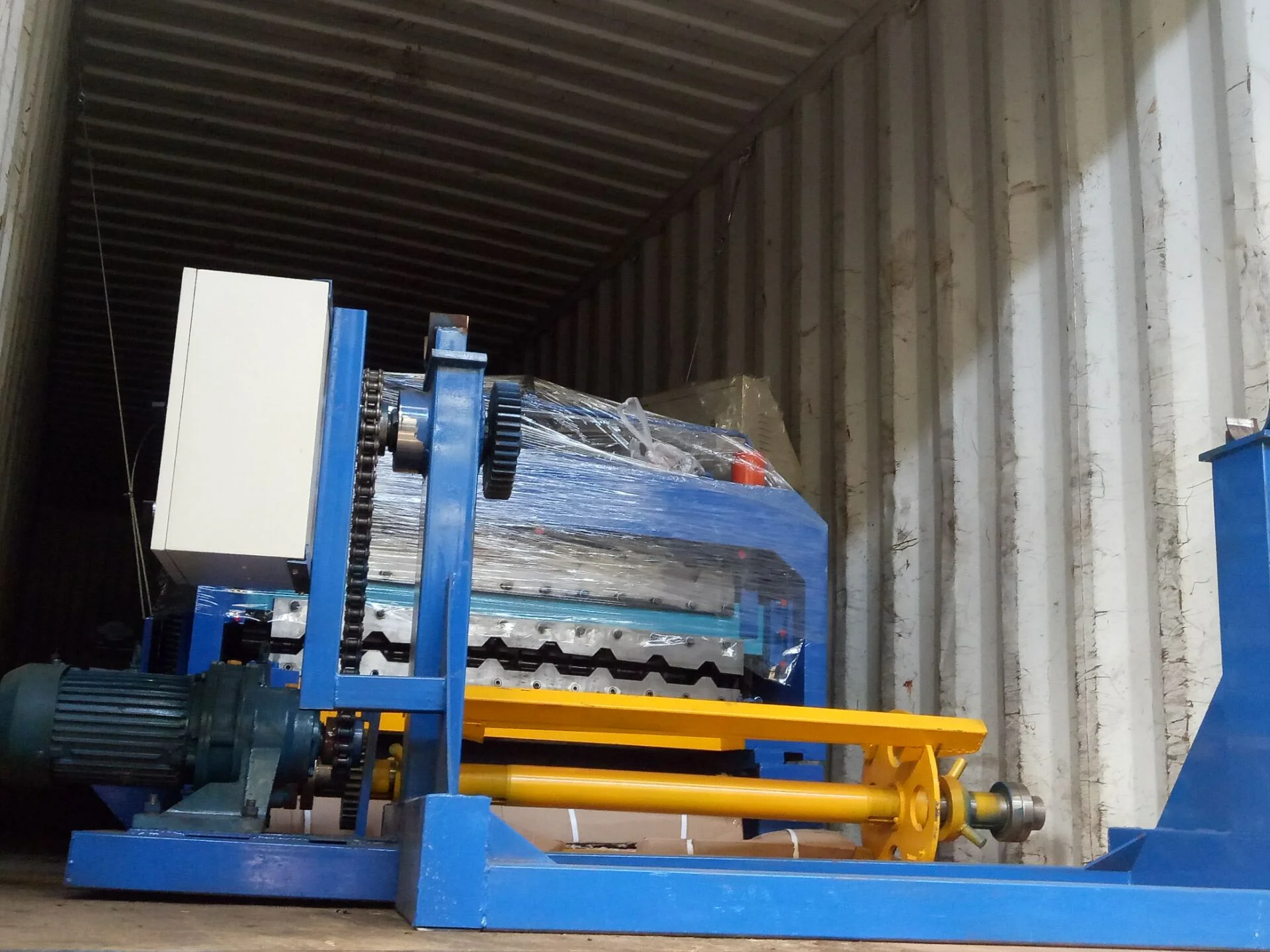

Packaging & Delivery
Factory photo
Company Profile
IBC MACHINERY
One-stop metal products and metal processing equipment supplier, we are specialize in OEM rolling from machine, Glazed roof making machine, floor deck machine, C&Z purlin mahcine, shutter door machine, special design forming machine, straightening and slitting machine, razor wire machine, fence&mesh machine, stroage transportation equipment.
