Горячая продажа символ ЖК-адаптер SPF8574 2004 пластина 1602
- Категория: Двухсторонняя печатная плата >>>
- Поставщик: Wuxi,Siminuo,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.18 $* | 0.86 $* |
| Aug-16-2025 | 0.5 $* | 0.79 $* |
| Jul-16-2025 | 0.31 $* | 0.14 $* |
| Jun-16-2025 | 0.92 $* | 0.41 $* |
| May-16-2025 | 0.4 $* | 0.54 $* |
| Apr-16-2025 | 0.58 $* | 0.16 $* |
| Mar-16-2025 | 0.14 $* | 0.48 $* |
| Feb-16-2025 | 0.41 $* | 0.0 $* |
| Jan-16-2025 | 0.10 $* | 0.87 $* |
Характеристики
Friendly Reminder：
If you want to learn more about products and information, please visit the company website:www.simair-lcd.com
Product Description
Features
There are only 20 IO ports on Arduino control board. Add some sensors, SD cards and so on. If there are too many relay modules, the IO ports will not be enough,the original 1602 screen needs 7 IO ports to drive. The module we developed can save you 5 IO ports.
Product parameters:
1. Power supply voltage is + 5V
2. Support I2C protocol
3. It has backlight and contrast adjusting potentiometer
4.4 line output is simpler
Product parameters:
1. Power supply voltage is + 5V
2. Support I2C protocol
3. It has backlight and contrast adjusting potentiometer
4.4 line output is simpler

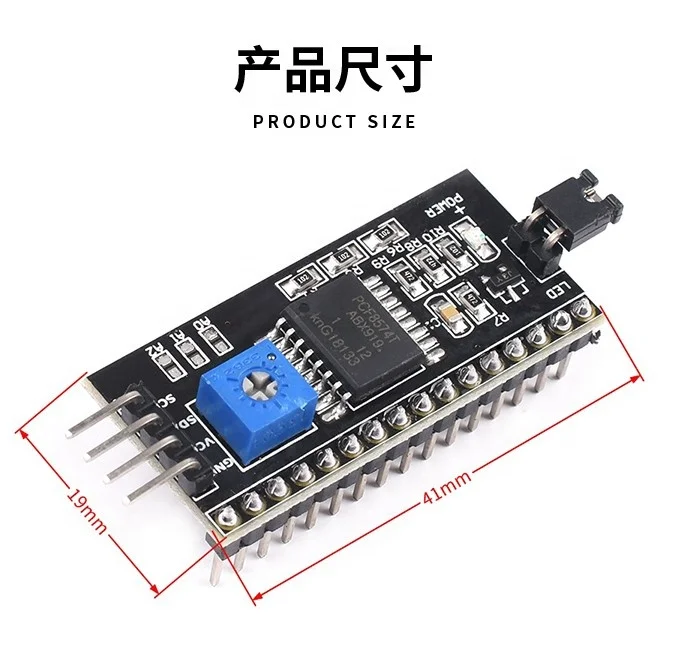

Extenal Dimensions
Pin Description
ITEM | SYMBOL | LEVEL | FUNCTION |
1 | GND | 0V | Power Ground |
2 | VCC | +2.6-5V | Power Supply For Logic |
3 | SDA | H/L | Serial Data |
4 | SCL | H/L | Serial Clock |
product details

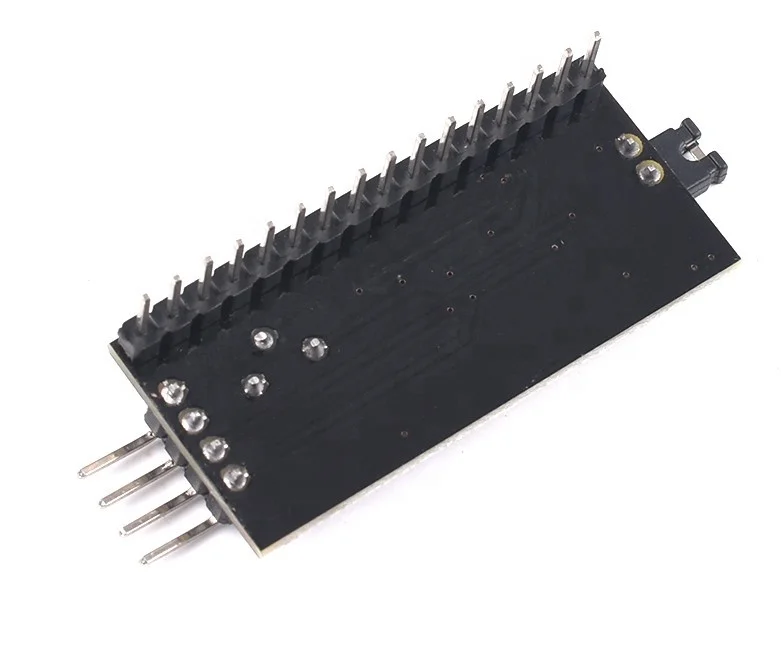

Product Display
The module adopts PCF8574, which can make most MCU realize remote | / O port expansion through two bidirectional buses (I2C). The device consists of an 8-bit quasi bidirectional port and an I2C bus interface. The current consumption of PCF8574 is very low, and the parallel output latch has high current driving ability, which can drive led directly. It also has an interrupt connection (int open drain output) which can be connected with the interrupt logic of MCU. By sending interrupt signal through int, remote I / O port can inform MCU whether there is data input from port without I2C bus communication.
Note:
Due to different batches from different manufacturers, the versions of PCF8574 on the board may also be different. At present, there are PCF8574T and PCF8574AT versions with the same pin function, but different I2C device addresses. When the module arrives, first check the chip model, and then modify the l2cid number in the program. Be sure to read the following description.
Note:
Due to different batches from different manufacturers, the versions of PCF8574 on the board may also be different. At present, there are PCF8574T and PCF8574AT versions with the same pin function, but different I2C device addresses. When the module arrives, first check the chip model, and then modify the l2cid number in the program. Be sure to read the following description.

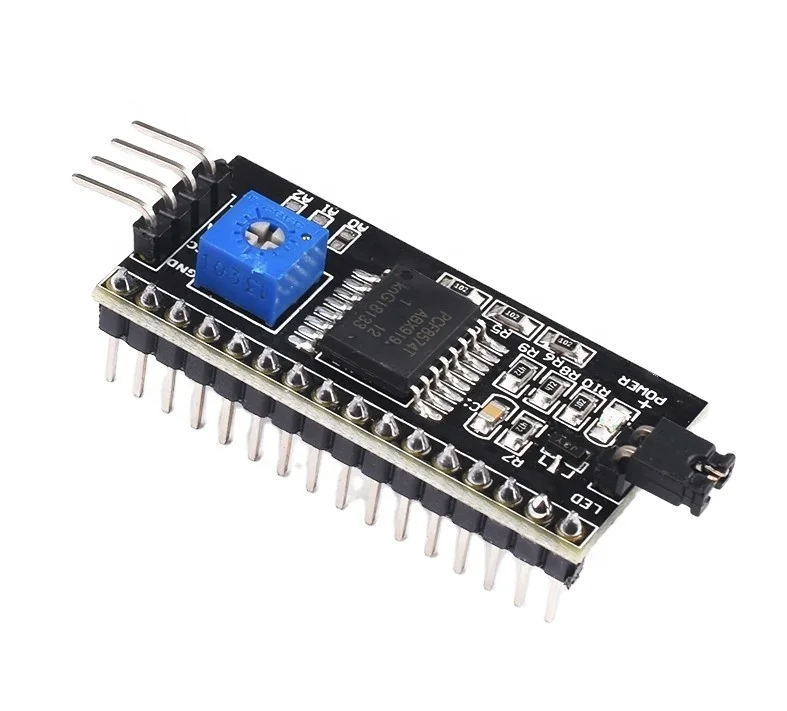

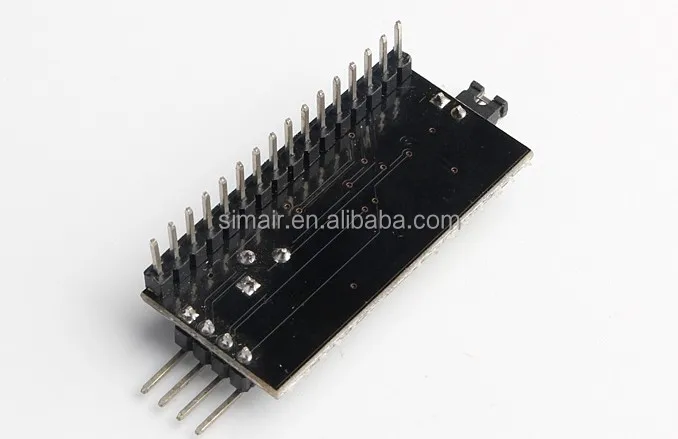

Singer row IIC Aadapter board
Instructions:
With backlight power control, you can set whether to connect the backlight power through the jumper cap. Plug in the jumper cap to connect the backlight power, pull out the jumper cap to disconnect the backlight power.
The contrast can be adjusted. Rotate the blue potentiometer to increase clockwise and decrease anticlockwise. Potentiometer design in the front, convenient for customers to adjust anytime, anywhere
Modules can be cascaded up to 8. Modify the device address by short circuiting A0 / A1 / A2.

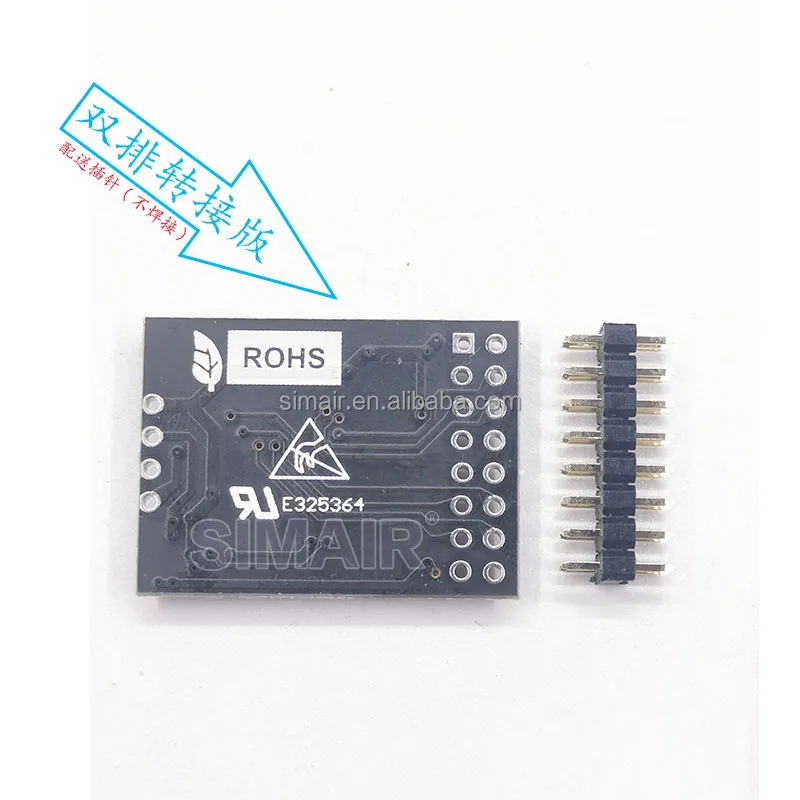

Double row IIC Aadapter board
Default address:
A2 ~ A0 are all suspended during delivery. The I2C address is the default address in the table below. If you want to modify the address yourself, note that the address pad dangling is 1 and the short circuit is 0.
IC Model NO. | I2C address High position in front | Default 7-bit address No read / write direction bit | Default 8-bit address With read / write direction bit |
PCF8574T | 0100 A2 A1 A0 R/W | 0100 111(0X27) | Write:0100 1110(0X4E) Read:0100 1111(0x4F) |
PCF8574AT | 0111 A2 A1 A0 R/W | 0111 111(0X3F) | Write:0111 1110(0x7E) Read:0111 1111(0x7F) |
