Products Description

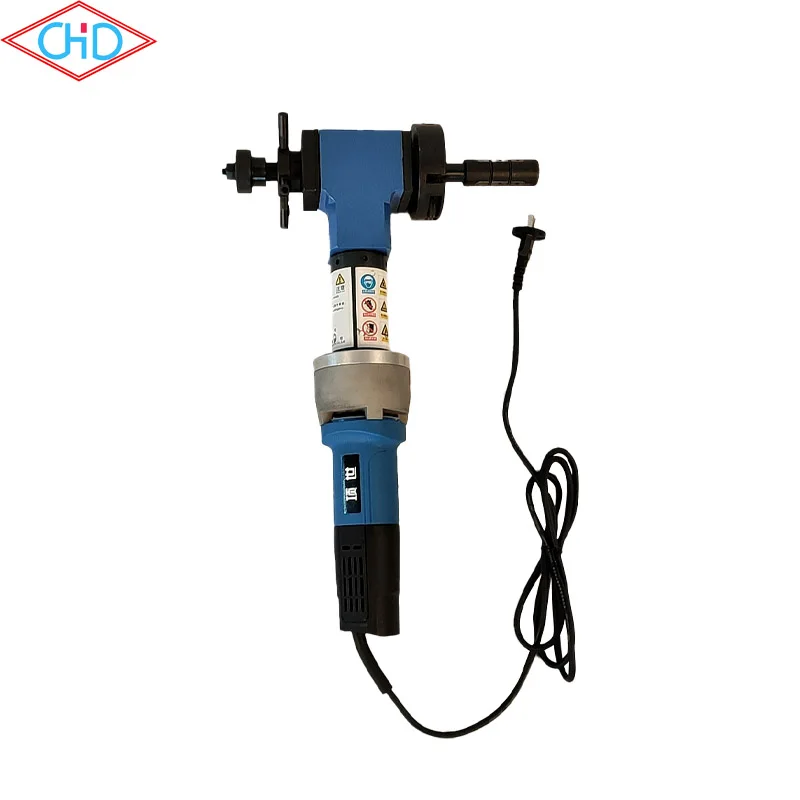

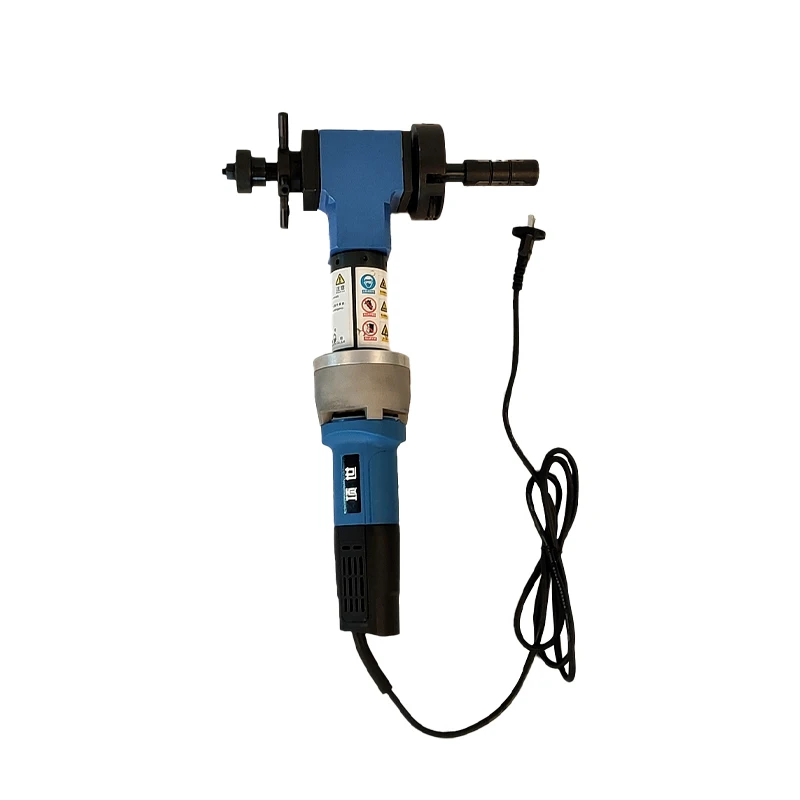

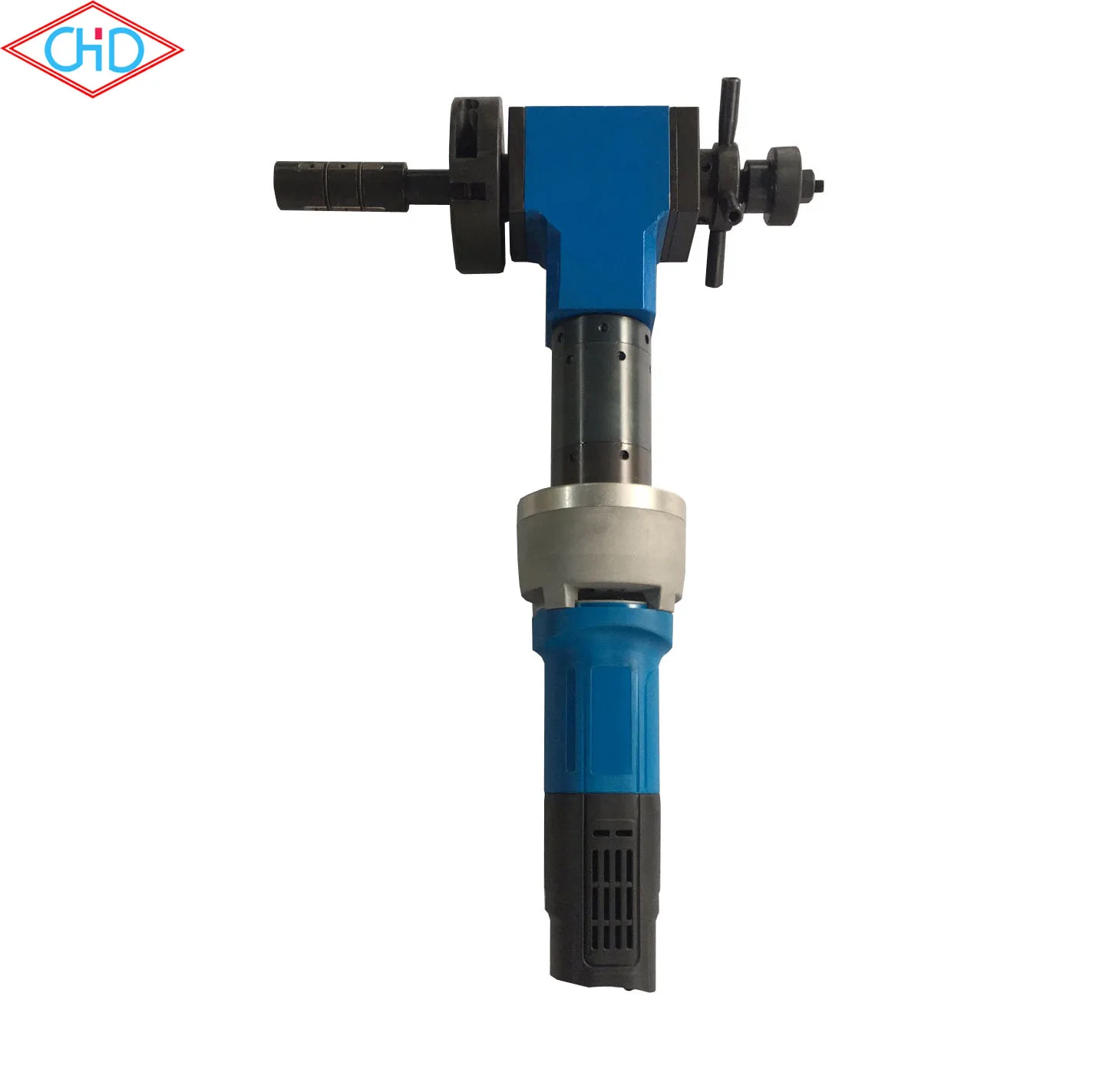

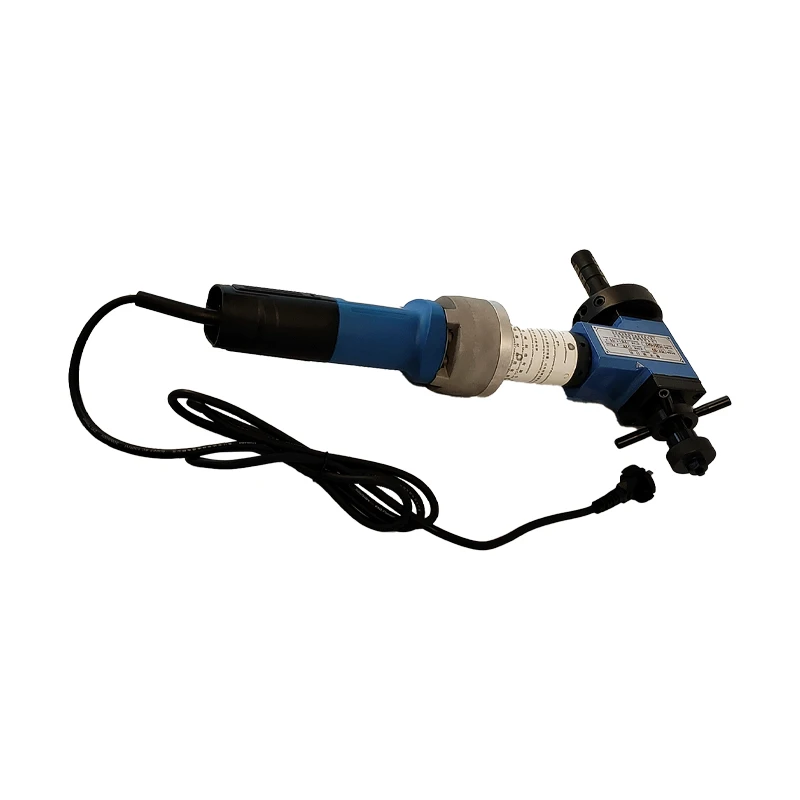

ISY-28 Electric High Quality Metal Pipe Edge Cold Beveling Machine for Repair
APPLICATION
This is Internal expansion type beveling machine. "T"shape design can be perfect for jobs at sny orientation in restricted areas. The portable design can realize indoor and outdoor grooving work as long as there is power supply. It is widely applied for pipeline construction and maintenance in various industry, such as pertrolum, chemical industry, electric power, water transportation, boiler, and so on.FUNCTION
The installation is simple and convenient, groove assignment is fast. It is applicable to various kinds of materials processing, and available to a wide range of pipe diameter. As it adopts mechnical cutting groove method, it can keep the mechinical properties of material quality well. And it also could do flat-end, V, X, U shape beveling to the pipe. Thus, it could meet with all the requirements for butt welding.
FEATURES
1. Portable design
2. Work at any orientation in restricted areas
3. Adopt high performance motor drive
4. Strong proplusion and smooth groove
5. Easy and quick operation, self-fixed at the pipe center
6. Can do 0°-37° groove
7. High beveling speed and labour saving
Drawing Design
ISY-28 Electric High Quality Metal Pipe Edge Cold Beveling Machine for Repair | ||||||||
DRIVE TYPE: ELECTRIC | PIPE DIAMETER(I.D.MM): 16-28(1/2"-1") | |||||||
VOLTAGE: AC 220V | WALL THICKNESS(MM): ≤10 | |||||||
RATED FREQUENCY: 50/60HZ | NET WEIGHT(KG):10 | |||||||
REATED POWER: 0.8-1.5KW | DIMENSION(L*W*H/MM):480*350*130 | |||||||
Notes:
1. If the wall thickness of pipe is less than 1% of pipe diameter, we advise to use the strengthened swelling blocks.
2. Above is the standard parameter, please contact us if there is the special requirements.
2. Above is the standard parameter, please contact us if there is the special requirements.
DETAIL IMAGES
Blades
Different blades could meet with all 0°-37° requirements of butt welding
Expansion block
Different expansion blocks could meet with the big range of pipe diameters.
Standard Technology Specification | ||||||||||
Model (with Electric motor) | Pipe Diameter (I.D)/mm | Wall Thickness/mm | Net Weight /kgs | Dimension (L*W*H)/mm | ||||||
ISY-28 | φ16-28 | 1/2"-1" | ≤10 | 10 | 480*350*130 | |||||
ISY-80 | φ28-76 | 1"-3" | ≤15 | 10.5 | 480*350*130 | |||||
ISY-120T | φ40-120 | 2"-6" | ≤15 | 15 | 670*300*200 | |||||
ISY-150T | φ65-159 | 2.5"-6" | ≤20 | 23 | 670*300*200 | |||||
ISY-150 | φ65-159 | 2.5"-6" | ≤20 | 20 | 670*300*200 | |||||
ISY-150B | φ65-159 | 2.5"-6" | ≤20 | 21 | 670*300*200 | |||||
ISY-250 | φ80-240 | 3"-10" | ≤20 | 31 | 670*350*230 | |||||
ISY-250-II | φ80-240 | 3"-10" | ≤75 | 38 | 670*350*230 | |||||
ISY-351 | φ150-330 | 6"-13" | ≤20 | 49 | 750*440*390 | |||||
ISY-351-II | φ150-330 | 6"-13" | ≤75 | 54 | 830*560*320 | |||||
ISY-630 | φ300-600 | 12"-24" | ≤20 | 100 | 900*680*420 | |||||
ISY-630-II | φ300-600 | 12"-24" | ≤75 | 100 | 950*750*420 | |||||
ISY-850-II | φ300-600 | 20"-34" | ≤75 | 266 | 1250*1000*950 | |||||
After Cold Beveling
Two Driven Ways for you to choose as below:
Electric driven motor by Metabo imported from Germany
Pneumatic driven motor assembly
Product Package & Delivery process
Company Profile
WHY CHOOSE US?
Certifications
Exhibition
PRODUCTS ON-SITE
Transportation
FAQ
1) Are you Manuacturer?
RE:Yes.
2) How to choose a right model?
RE: Please let us know more details about the pipe, such as the I.D, O.D, the materials of the pipe, the environment of the site and the requirement of the end face, etc. These will help us to choose the right model for you immediately.
3) Do you have another choice about the driven?
RE: Of course. We have many choice for you to choose, such as electric, pneumatic, hydraulic, NC, etc.
4) Which type of beveling machine do you have?
RE: Internal expansion type, external installed type, plate beveling machine, desktop precision pipe cutting machine.
5) Do you support the special needs?
RE: Yes, we have many engineers. We could design it according to your need.
6) How about the payment term?
RE: 30% advance payment and balance payment before the shipment by T/T.
