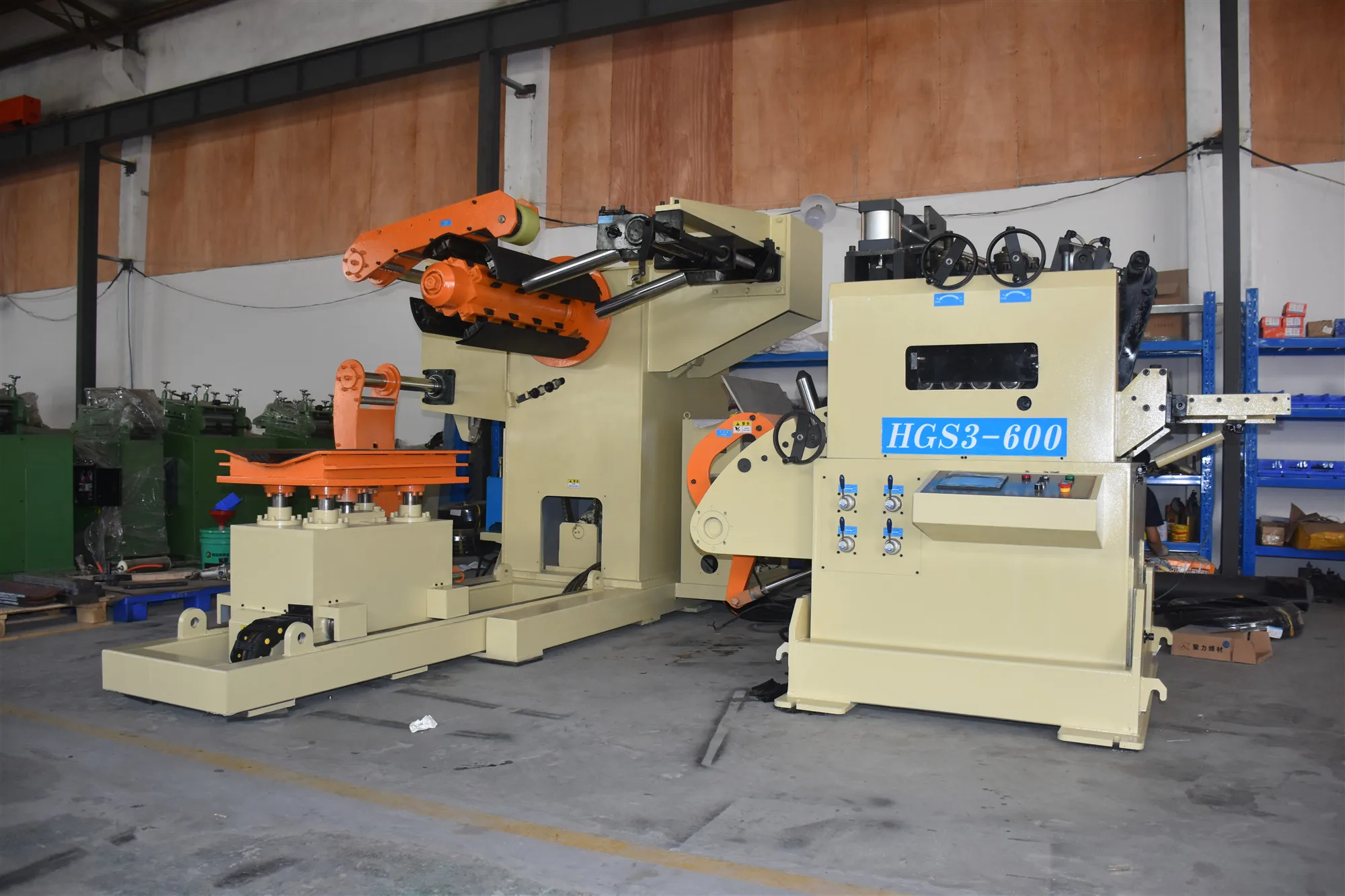

Yongheng гидравлический ISO9001 3 в 1 автоматическая машина для выпрямления с грузовой
- Категория: Metal Straightening Machinery >>>
- Поставщик: Foshan,Yongheng,Hydraulic,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 37604.75 $* | 39484.63 $* |
| Aug-18-2025 | 37288.17 $* | 39152.13 $* |
| Jul-18-2025 | 31284.51 $* | 32848.82 $* |
| Jun-18-2025 | 36656.84 $* | 38489.95 $* |
| May-18-2025 | 31916.44 $* | 33512.20 $* |
| Apr-18-2025 | 36024.60 $* | 37825.80 $* |
| Mar-18-2025 | 35708.0 $* | 37493.73 $* |
| Feb-18-2025 | 35392.36 $* | 37162.47 $* |
| Jan-18-2025 | 35076.35 $* | 36830.58 $* |
Характеристики
| DESCRIPTION | UNIT | HGS3A-400 |
| Coil Width | mm | 50-400 |
| Coil Thickness | mm | 0.3-4.5 |
| Max Coil Weight | kg | 3000 |
| Max Coil Outer Diameter | mm | 1400 |
| Max Coil Inner Diameter | mm | 508 |
| Feeding Length | mm | 9999.9 |
| Max Feeding Speed | m/min | 24 |
| Straightening roller quantity | pc | upper 4/lower 4 |
| Feeding roller quantity | pc | 1 |
| Motor Power | kw | AC 4.4 |
| Decoiler Motor | kw | 2.2 |
| Mandrel Expansion | Hydraulic | |
| Power Supply | v | 220-440 |
| Air Supply | mpa | 0.5 |
MAIN FEATURES A.Photoelectric arc control system B.Height electric adjustment device of feeding line C.Arc control roller D.Oil pressure expansion equipment of material rack E.Frequency control of material rack F.Press arm device G.The material rack includes air pressure disc brake device H.Oil pressure automatic loading trolley |
Table Of Correction Ability Of Servo Leveling Feeder
| Coil Thickness | UNIT | HGS3A-400 |
| 2.0 | mm | 400 |
| 2.3 | mm | 400 |
| 2.5 | mm | 400 |
| 2.8 | mm | 380 |
| 3.2 | mm | 300 |
| 4.5 | mm | 160 |
APPLICATION Suitable For Metal Sheet Coil decoiling, leveling or straightening with feeding function for metal sheet punching purpose. |
1. Foshan Yongheng Hydraulic Machinery Co., Ltd. Nanhai Branch, established in 1989. 2. It’s National High-tech Enterprise and High Performance Hydraulic Equipment Engineering Research Center. 3. We engaged in the research, development, production, sale and maintenance service of water bulging machine, deep drawing press, cold extrusion press and molding machine. 4. We owned various types of imported and domestic advanced production equipments, like milling and boring machine, drilling machine and lathe. 5. We has 100 employees working in our company for R & D, designing, manufacturing, inspection and foreign trade services. 6. Dedicated to strict quality control and thoughtful customer service, our experienced staff are always available to discuss your requirements and ensure full customer satisfaction. 7. In addition, we have obtained C E certificates , I S O 9 0 0 1 : 2 0 1 5 and T U V verified.
PERFECT PRODUCTION LINE Manufacturer of hydraulic press equipment integrating professional design, research and development, manufacturing and service. |
Foshan Yongheng Hydraulic Machinery Co., Ltd. sells well in many countries all over the country and the world. It is exported to Japan, South Korea, Singapore, India, Indonesia, Vietnam, Brazil, Israel, Russia, South Africa and other countries and regions, and is trusted and praised by customers at home and abroad. |
1. Machine is packed by steel Frame and wrapped with PE film for waterproof. 2. Spare parts will be packed by carton. 3. Steel Frame Size is according to machine size. 4. If special requests is need, kindly let us know. |
Q1. Are you a manufacturer or trading company? A1. We are hydraulic press manufacturer for 30years.
Q2. How long for machine warranty? A2. It is one year, but we will offer lifetime service for machine.
Q3. What is your delivery time? A3. 30days for standard machine and 45 days for special-made machines. |
