Шэньчжэнь OEM подгонял Многослойные 48 слоев PCB производитель двухсторонняя печатная
- Категория: Двухсторонняя печатная плата >>>
- Поставщик: Shenzhen,Jingbang,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.7 $* | 0.2 $* |
| Aug-16-2025 | 0.46 $* | 0.71 $* |
| Jul-16-2025 | 0.16 $* | 0.44 $* |
| Jun-16-2025 | 0.22 $* | 0.94 $* |
| May-16-2025 | 0.27 $* | 0.34 $* |
| Apr-16-2025 | 0.59 $* | 0.10 $* |
| Mar-16-2025 | 0.25 $* | 0.70 $* |
| Feb-16-2025 | 0.76 $* | 0.14 $* |
| Jan-16-2025 | 0.90 $* | 0.55 $* |
Характеристики

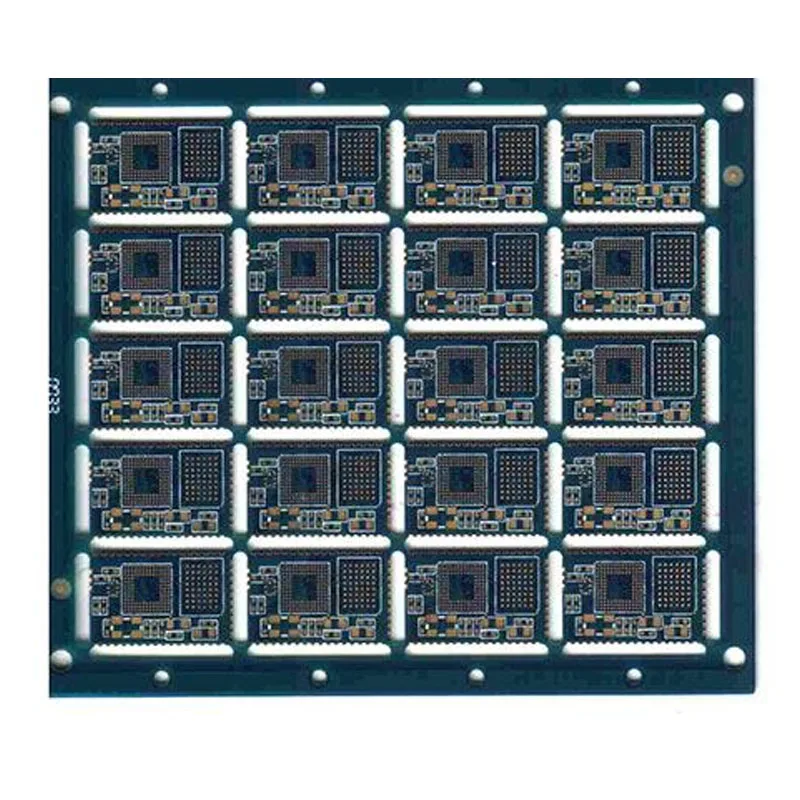

Shenzhen OEM Customized Multilayer 48 Layer PCB Manufacturer Double-sided PCB
Onestop PCB Assembly
One-Stop PCB Assembly:
Professional 20 Years One-Stop Solution: PCB Manufacturing + Components Sourcing + PCB Assembly + Testing.
(PCB bare board, single-layer, multi-layer, FR4, metal, creamic, rogers, FPC, HDI board, HASL, immersion gold&sil-ver&Au, OSP....)
Please click here to tell us your needs!!! We will provide you with customized VIP Services!!!! |
PCB Capability
| Article | Description | Capability |
| Material | Laminate materials | FR4, High TG FR4, High Frequency, Alum, FPC... |
| Board Cutting | Number of layers | 1-48 |
| Min.thickness for inner layers (Cu thickness are excluded) | 0.003”(0.07mm) | |
| Board Thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” | |
| 4layer:0.01±0.008” | ||
| 8layer:0.01±0.008” | ||
| Bow and twist | no more than 7/1000 | |
| Copper Weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z | |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) | |
| PTH hole tolerance | ±0.002″(0.005mm) | |
| NPTH hole tolerance | ±0.002″(0.005mm) | |
| Solder Mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) | |
| Thickness | (0.012*0.017mm) | |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) | |
| Max Size of Finish Board | 700*460mm | |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | |
| PCB Outline | Square,circle,irregular(with jigs) | |
| Package | QFN,BGA,SSOP,PLCC,LGA | |
Our Advantage
9 Inspection Procedures the Ultimate Experience of Quality
FASTPCBA has been selected as the “excellent partner of the year” by numerous well-known enterprises, and won many domestic and authorized certifications at home and abroad, such as Chinese high-tech project certification, ISO 9001, IATF 16949, ISO 13485 quality management system standard and customized CE, UL, FCC and other product certifications according to the customer's requirements.
Company Information
International equipment
The production and testing equipment introduced by FASTPCBA from the United States, Italy, Japan and other countries has helped us improve our manufacturing and testing capabilities
* Solder paste Jet * X-RAY
* Reflow * Surface mount machine
* On-line AOI * Wave soldering
* AOI * X-RAY counter
* MY-500 * SPI
| Contact US for Factory VR Panorama !!! |
FAQ
Q: What service do you have?
A: We provide turnkey solution including PCB fabrication, SMT, plastic injection & metal,final assembly, testing and other value-added service.
Q: What is your minimum order quantity (MOQ)?
A:As for MOQ, we have no request about it. Even 1 pcs is ok for us.
Q: What is needed for PCB & PCBA quotation?
A: For PCB: Quantity, Gerber file and technic requirements (material,size, surface finish treatment, copper thickness,board thickness).
For PCBA: PCB information, BOM,Testing documents.
Q: How to keep our product information and design file secret ?
A: We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.
Q: What are the main products of your PCB/PCBA services?
A: Automotive, Medical, Industry Control,IOT,Smart Home,Military.
Q: Are you factory?
A: Our factory is located in 1st Building, No. 18-1, Yuquan East Road, Yulv Village, Gongming Street, Guangming New District shenzhen, china.
(Contact us for factory VR panorama. )
