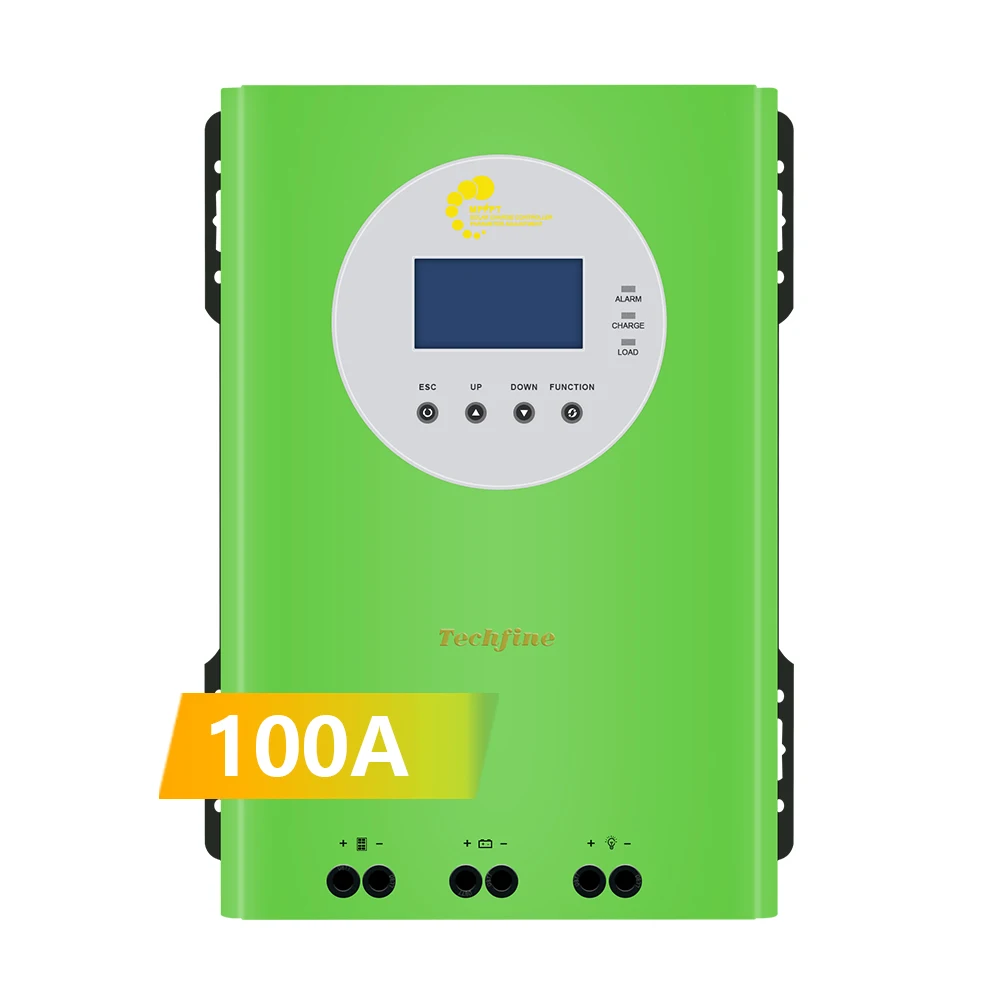

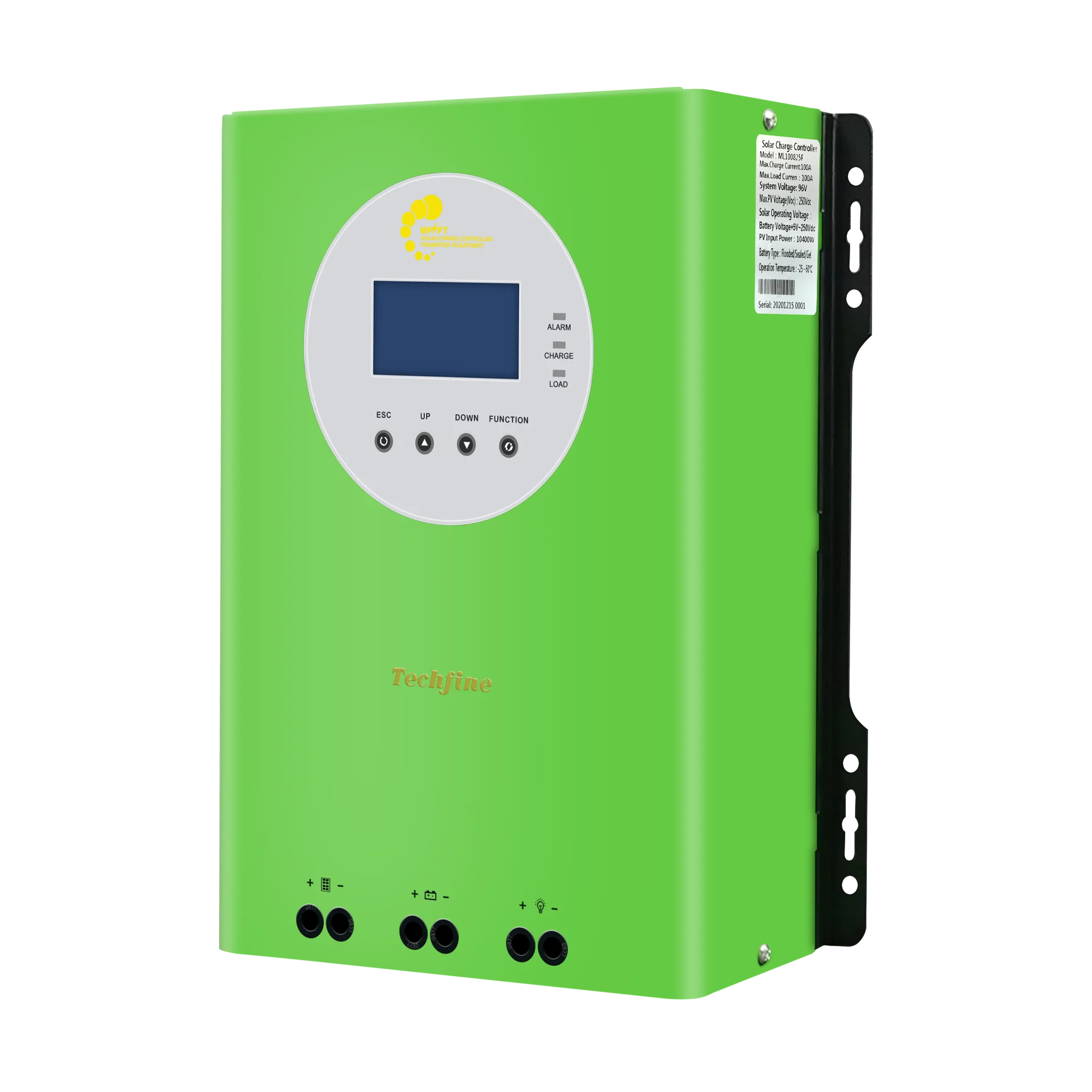

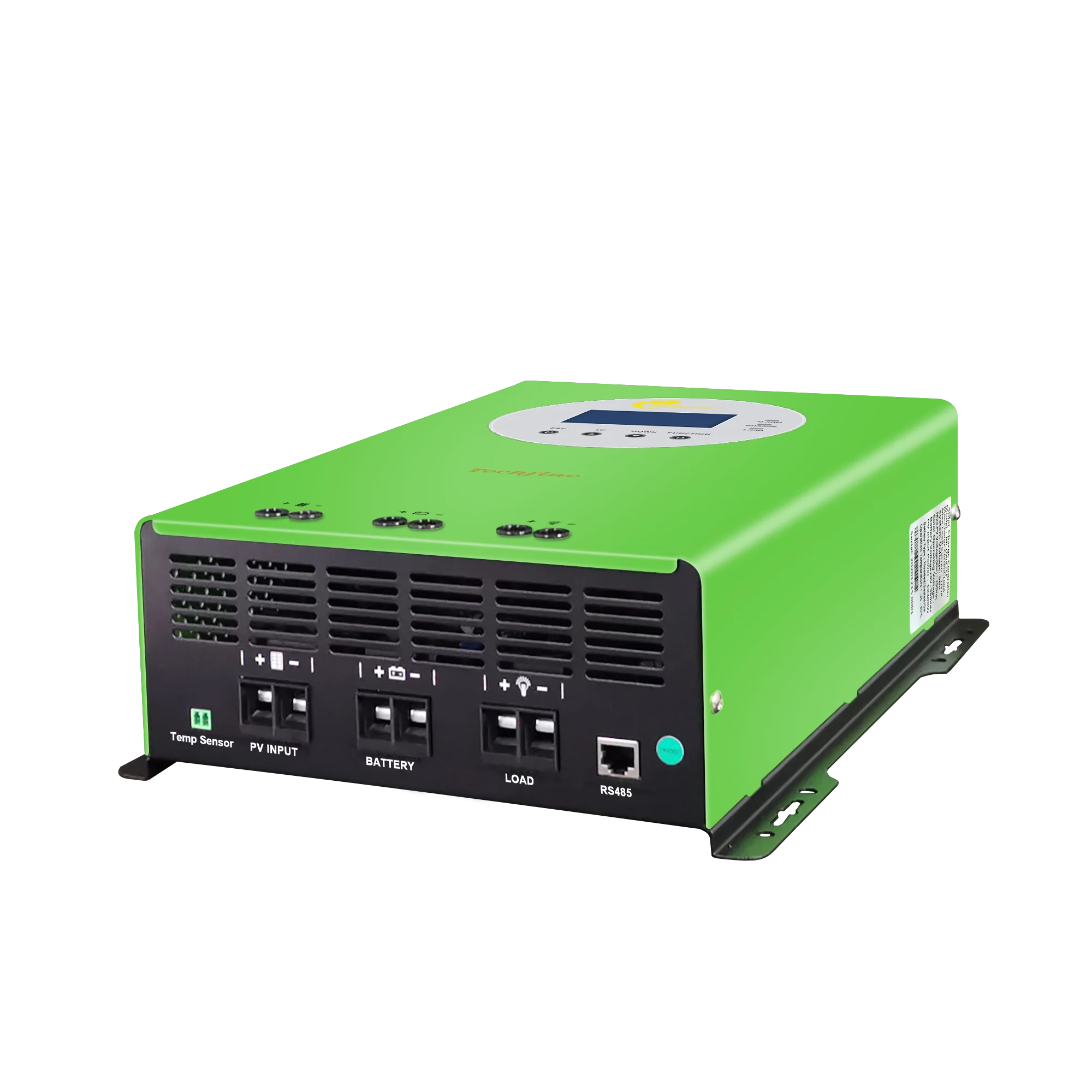

Techfine настенного монтажа 12V 24V 48V 100A автоматическая Настройка со слежением за максимальной точкой мощности солнечное зарядное устройство
- Категория: Solar Charger Controllers >>>
- Поставщик: Guangdong,Techfine,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 150.87 $* | 158.25 $* |
| Aug-18-2025 | 149.85 $* | 156.30 $* |
| Jul-18-2025 | 125.96 $* | 131.44 $* |
| Jun-18-2025 | 146.25 $* | 153.15 $* |
| May-18-2025 | 127.76 $* | 133.76 $* |
| Apr-18-2025 | 144.96 $* | 151.79 $* |
| Mar-18-2025 | 142.8 $* | 149.23 $* |
| Feb-18-2025 | 141.96 $* | 148.78 $* |
| Jan-18-2025 | 140.21 $* | 147.38 $* |
Характеристики
Our Advantages
❤20 YEARS industrial experience with three production bases in China & Malaysia. Owns advanced equipment and instruments and builds Automatic production line.
❤Automatic equipment production: stan dardizied quality、high efficiency production.
❤Three-stage smart charging, Adjustable parameters by pressing buttons, 12V/24V/48V adaptive.
❤Production: High voltage protection,Over load protection,Battery reverse connected protection, Low voltage protection,
Overheating protection, Output short-circuit protection.
❤The maximum utilization rate of solar energy can reach 99%,
With super fast charging algorithm, efficiency increased by 30%
❤ Strictly comply with ISO quality management system , products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.
❤Automatic equipment production: stan dardizied quality、high efficiency production.
❤Three-stage smart charging, Adjustable parameters by pressing buttons, 12V/24V/48V adaptive.
❤Production: High voltage protection,Over load protection,Battery reverse connected protection, Low voltage protection,
Overheating protection, Output short-circuit protection.
❤The maximum utilization rate of solar energy can reach 99%,
With super fast charging algorithm, efficiency increased by 30%
❤ Strictly comply with ISO quality management system , products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.

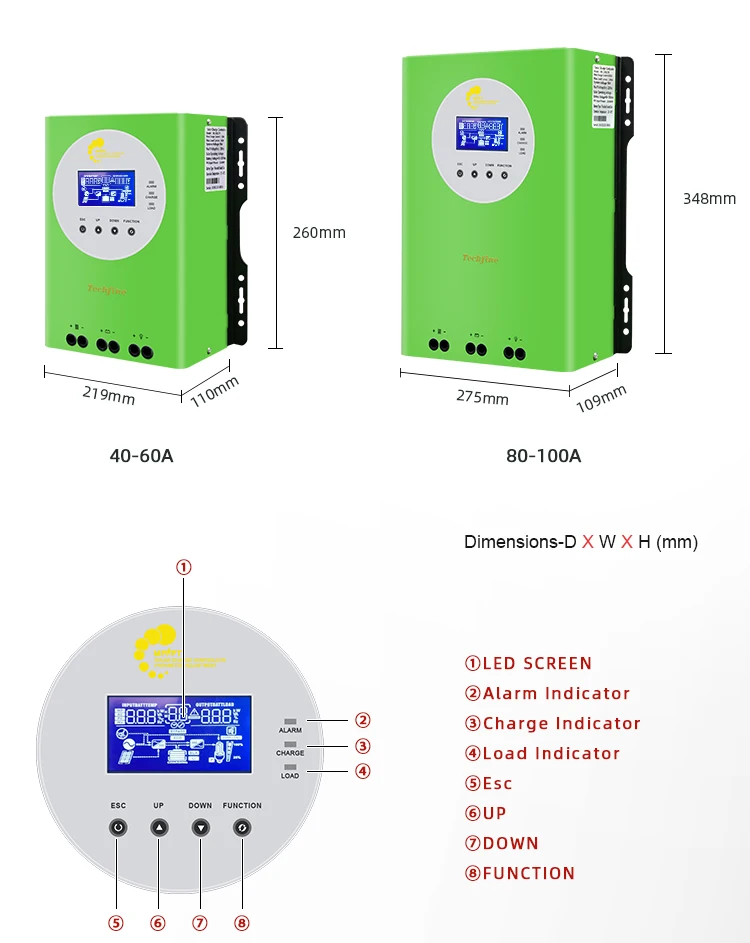

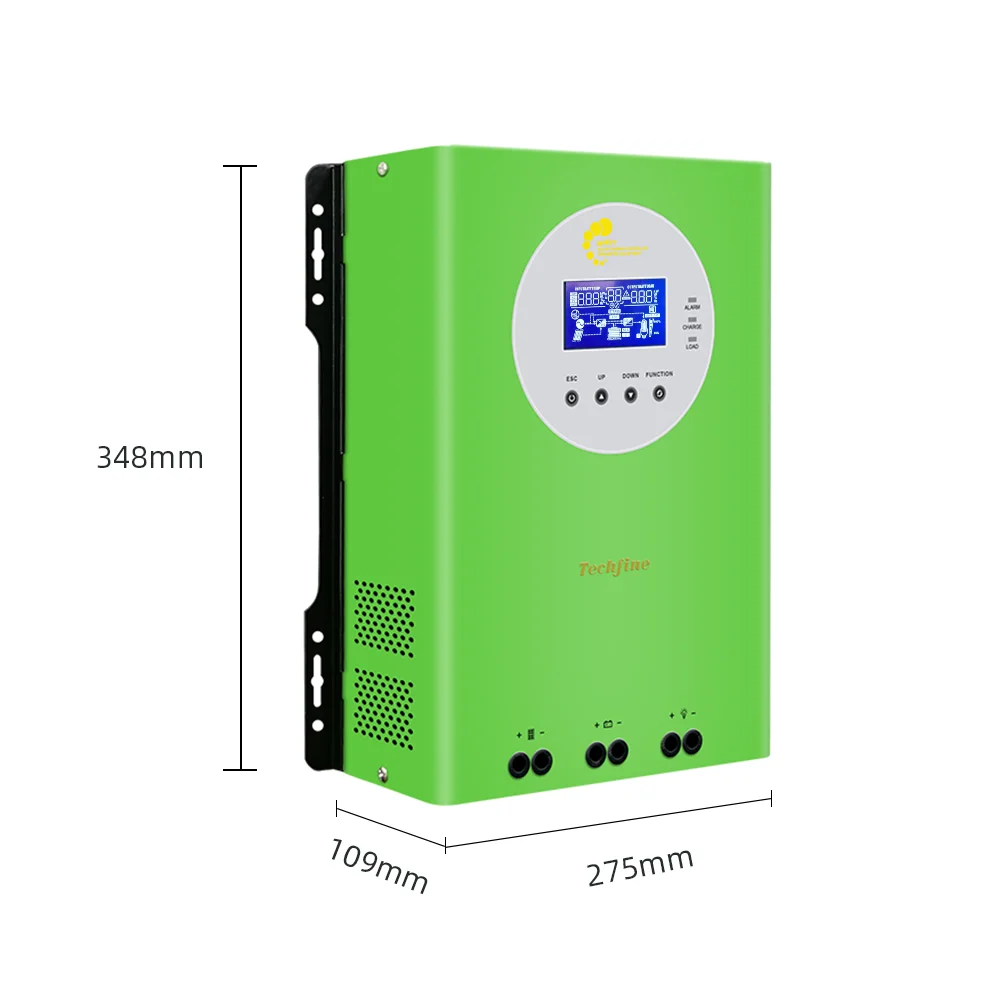

Products Details
Product Paramenters
Model | 40A | 60A | 80A | 100A | |||||||
System voltage | 12V/24V/36V/48V(Adaptive) | ||||||||||
Nominal current | 40A | 60A | 80A | 100A | |||||||
Charging mode | MPPT maximum power point tracking | ||||||||||
Applicable battery type | Lead acid battery;Gel battery;Flooded battery;Deep cycle battery | ||||||||||
Charging method | Four stages: constant current charge, constant voltage charge, floating charge,equalizing charge | ||||||||||
PV input maximum open circuit voltage (VOC) | DC150V | ||||||||||
System identified voltage | 12V | 8～16V | |||||||||
24V | 17～30V | ||||||||||
36V | 30～42V | ||||||||||
48V | 42～64V | ||||||||||
PV input voltage | 12V | 17～150V | |||||||||
24V | 30～150V | ||||||||||
36V | 41～150V | ||||||||||
48V | 53～150V | ||||||||||
Solar panel rated input power | 12V | 540W | 800W | 1040W | 1300W | ||||||
24V | 1080W | 1600W | 2160W | 2600W | |||||||
36V | 1620W | 2400W | 3240W | 3900W | |||||||
48V | 2160W | 3200W | 4320W | 5200W | |||||||
More Products
Our Factory
Five-star Alibaba verified supplier
20 years rich
experience professional
Strict product testing
High-quality pre-sales and
after-sales services
Customer Service
Transport
FAQ
Q1:May I take some samples to test before placing the order ?
A1:Yes, welcome to take some sample to test!
Q2:How about the delivery time?
A2:7 days for sample; 25 days for bulk order.
Q3:What is the warranty of the controller?
A3:1 years warranty.
Q4:How to solve the technical problems?
A4:24 hours after-service consultancy just for you and to make your problem to be solved
Q5:Do you have any certifications for your products?
A5:We have ISO9001:2000, CE, RoHS, certificates for all of our products.
Q2:How about the delivery time?
A2:7 days for sample; 25 days for bulk order.
Q3:What is the warranty of the controller?
A3:1 years warranty.
Q4:How to solve the technical problems?
A4:24 hours after-service consultancy just for you and to make your problem to be solved
Q5:Do you have any certifications for your products?
A5:We have ISO9001:2000, CE, RoHS, certificates for all of our products.
