Автоматическая штамповочная машина Guowang GW T106B с заглушкой для бумажного

Автоматическая штамповочная машина Guowang GW T106B с заглушкой для бумажного

Категория: Paper Processing Machinery >>>
Поставщик: Shanghai,Eureka,Machinery,Imp.,&,Exp.,Co.,Ltd.

Цена:380 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	452200.58 $*	474810.77 $*
Aug-19-2025	448400.40 $*	470820.70 $*
Jul-19-2025	376200.93 $*	395010.74 $*
Jun-19-2025	440800.69 $*	462840.1 $*
May-19-2025	383800.50 $*	402990.49 $*
Apr-19-2025	433200.25 $*	454860.31 $*
Mar-19-2025	429400.44 $*	450870.38 $*
Feb-19-2025	425600.6 $*	446880.76 $*
Jan-19-2025	421800.6 $*	442890.74 $*

Характеристики

Product Overview

AUTOMATIC DIECUTTER WITH BLANKING T106B

The new generation T106B has many new technologies and systems, which can help to improve your real efficiency and bring you competitive advantage. It has the function of automatic separation of pressboard. No matter how the printing layout and substrate are used, the waste can be removed accurately in high-speed operation, and the finished products can be separated orderly. The blanking frame adopts the pneumatic automatic up and down lifting function, and the stripping frame has the central line positioning function of the standard quick lock device, which can make the preparation operation faster and more convenient. The operation screen adopts the front and back dual high-definition led touch screen, which can make the most complex settings simple and intuitive, and can maximize the operation efficiency of the equipment.

FEATURES AT A GLANCE

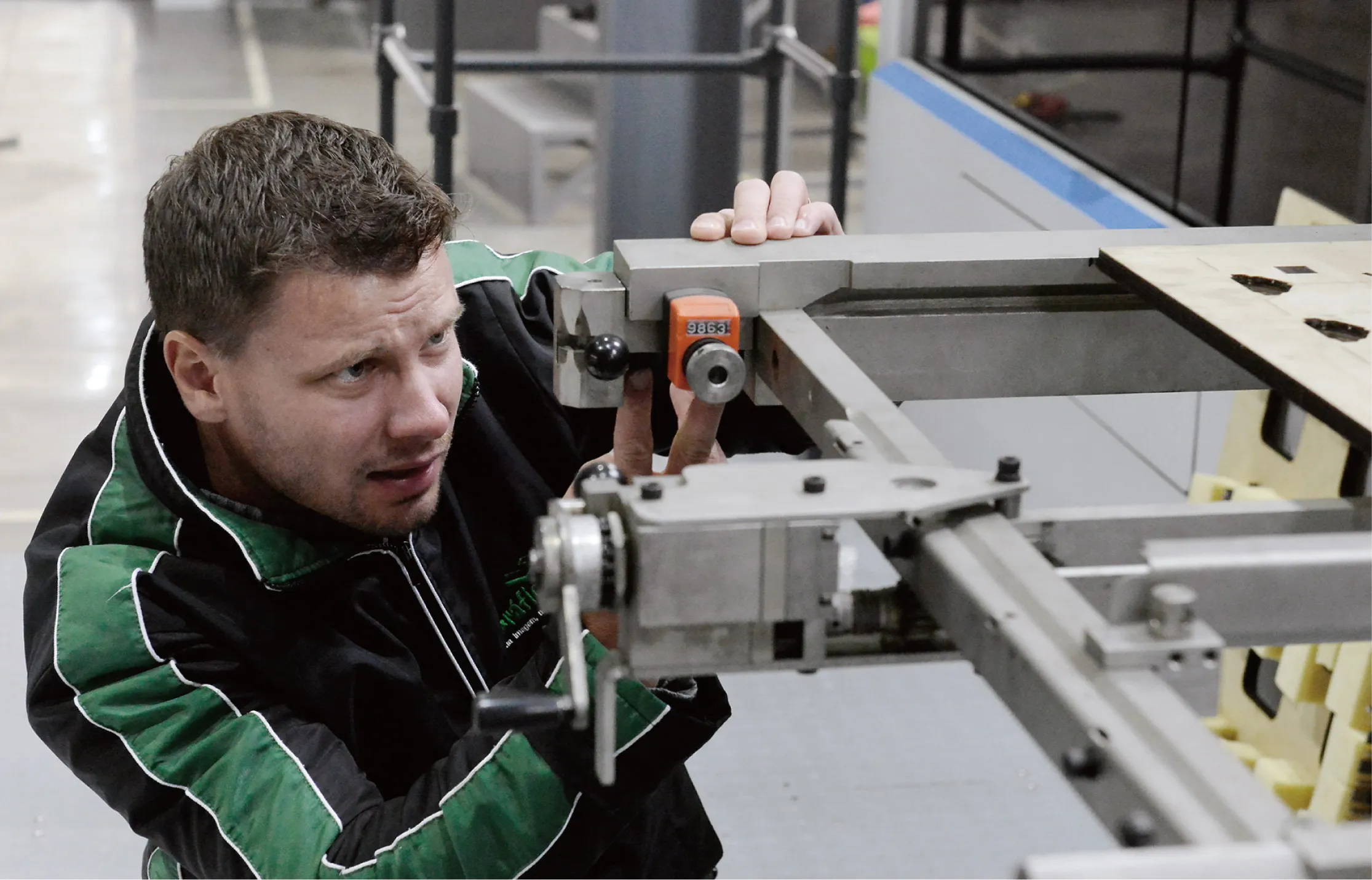

Quick lock system for stripping&blanking unit

Automatic pallet delivery and exchange

Centre line system

High quality feeder

CE certificate

Dual monitor

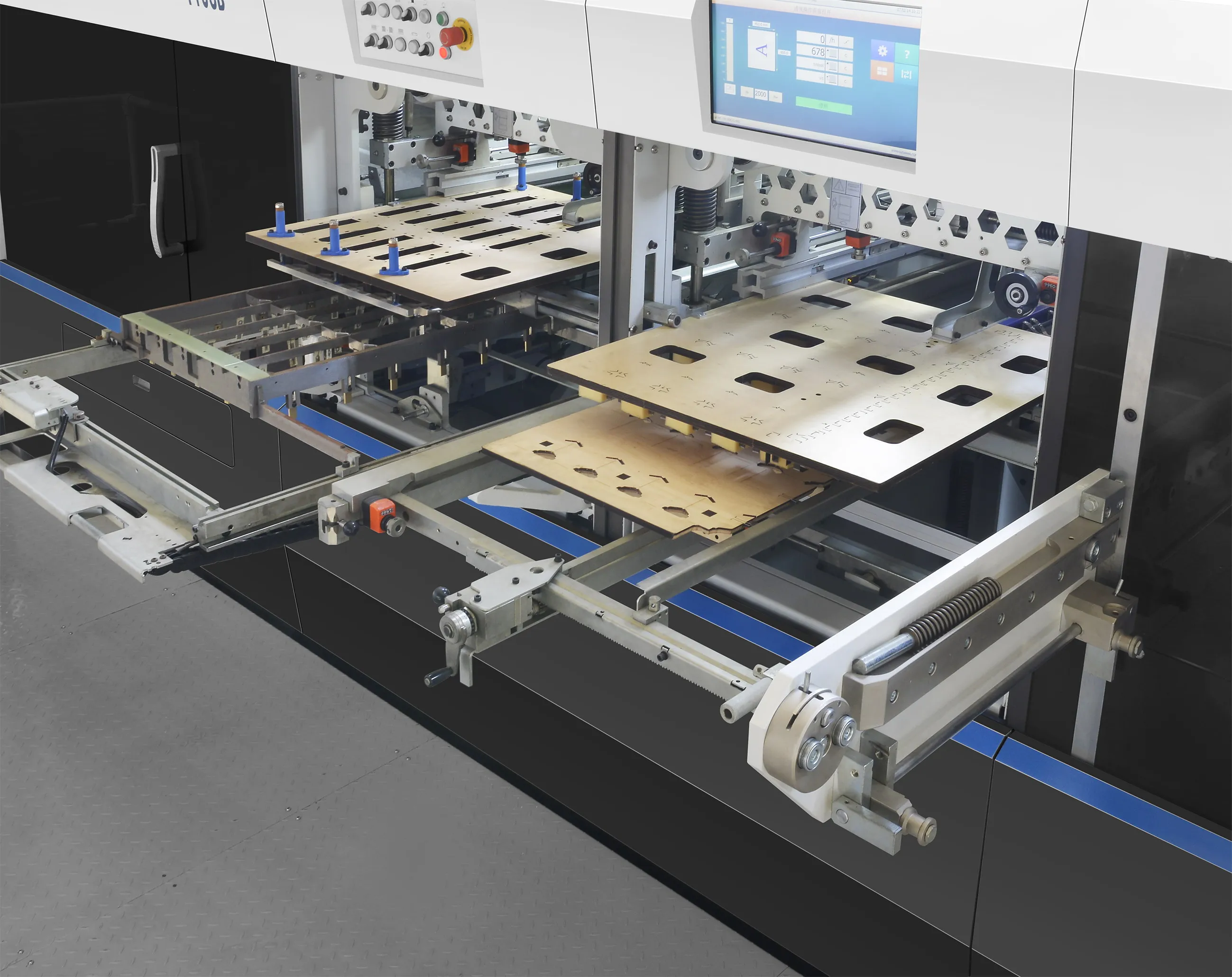

Blanking finished product

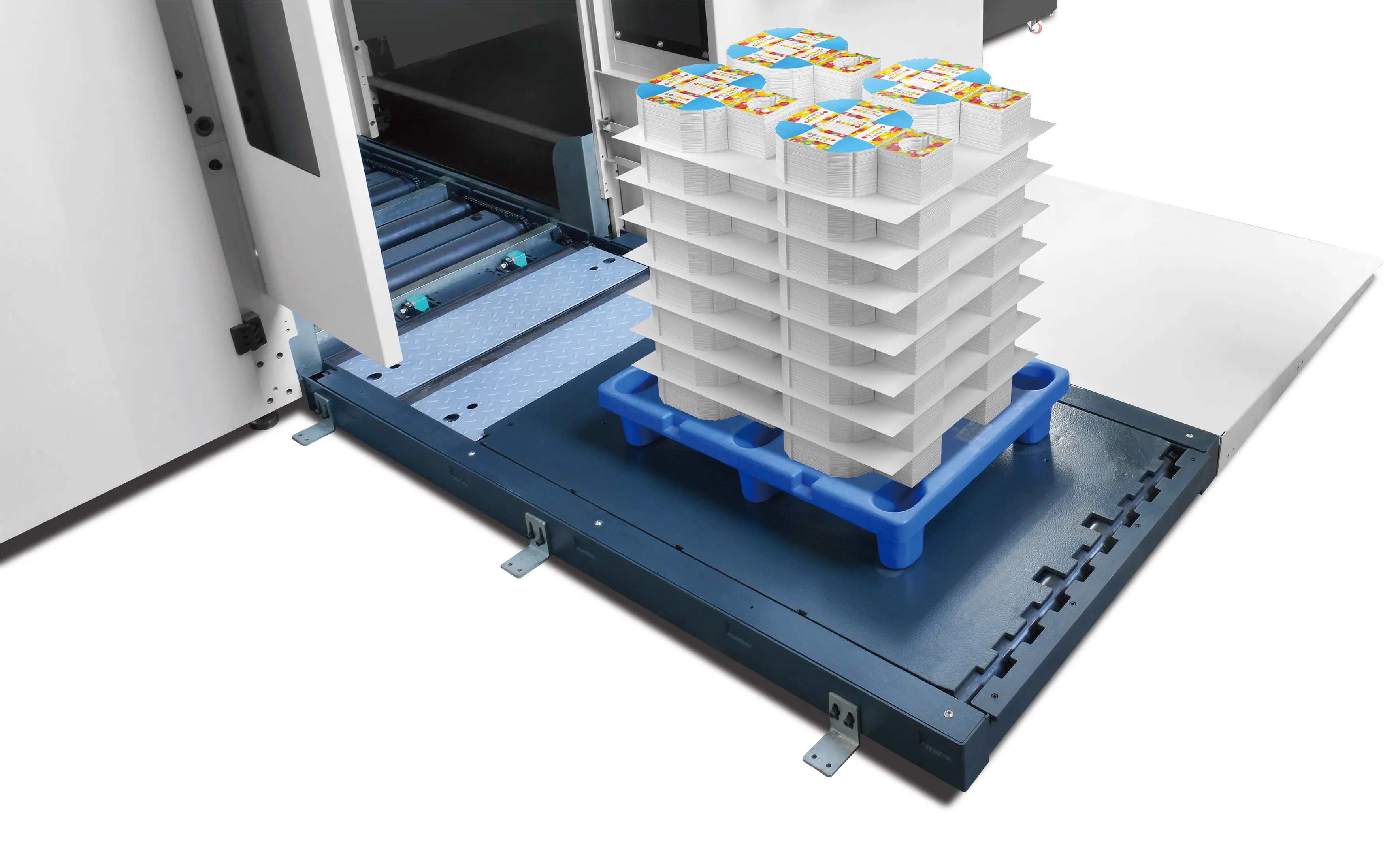

Automatic pallet delivery

Centre line system

PRODUCT SPECIFICATIONS

Model	T106B
Max. Sheet size	1060*760mm
Min. Sheet size	400*350mm
Max.Cutting size	1045*745mm
Max.Die-cutting speed	7500S/H
Max.working pressure	350ton
Max. Die-cutting plate size	1075*765
Die-cutting steel plate thickness	4+1mm/5mm
Cutting rule height	23.8mm
First die-cutting rule	13mm
Gripper Margin	7-17mm
Material spec.	90-2000gsm 0.1-3mm cardboard ≤4mm corrugated
Feeding plateform height(incl. pallet)	1800mm
Non-stop feeding height(incl. pallet)	1300mm
Delivery height(incl.pallet)	1400mm
Main power	18.5kw
Total power	24kw
Voltage	380v 50hz or by custom's demand
Cable thickness	10mm²
Air pressure requirement	6-8bar
Air comsumption	300L/min
