Конденсаторный блок с водяным охлаждением 25 л.с. R410a сверхнизкая температура хороший выбор для взрывозамораживания рыбы/мяса например замороженного
- Категория: Морозильное оборудование >>>
- Поставщик: Shanghai,Bowa,International,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 11160.41 $* | 11718.95 $* |
| Aug-15-2025 | 11066.46 $* | 11619.14 $* |
| Jul-15-2025 | 9284.67 $* | 9748.55 $* |
| Jun-15-2025 | 10878.22 $* | 11422.15 $* |
| May-15-2025 | 9472.7 $* | 9946.74 $* |
| Apr-15-2025 | 10691.91 $* | 11226.17 $* |
| Mar-15-2025 | 10597.71 $* | 11127.35 $* |
| Feb-15-2025 | 10503.62 $* | 11028.55 $* |
| Jan-15-2025 | 10410.58 $* | 10931.65 $* |
Характеристики
Product Overview

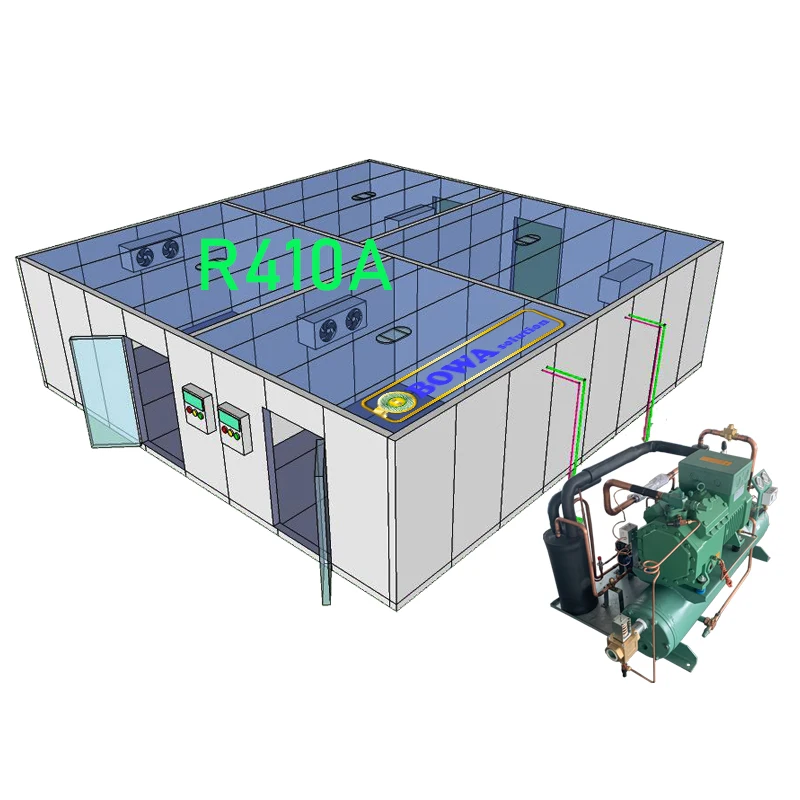

Water cooled R410a low temperature condensing unit
R410a condensing unit typically is a high side assembly of a -30~-50'C refrigeration system. It is an assembly of compressor, condenser, pressure operated water valve, controls and a mounting plate. It has the function of a heat exchanger to cool down and condense the incoming refrigerant vapor into liquid and a water valve for regulating outside water through the heat exchanger section to cool the refrigerant inside. Condensing units have various designs and come in many sizes ranging from small household appliance units to very large industrial units used in food and manufacturing processes.
FEATURES AT A GLANCE
* R410a /R32 refrigerant innovative applications in freezer
* Reach -51.36'C or less Evaporating Temp.
* Higher compressor gas transmission
* Higher compressor motor coefficience
* Complete compressor protection
* More stablity and smaller sizes
* Wonderful heat balance calculation
* Compact dimension
* Wide application
* Stong cooling capacity
In front View
In side view
in side view
PRODUCT SPECIFICATIONS
Basing on fresh fish specific heat 3.2KJ/KG.'C, inlet temp. 25'C | ||||||
Cooling Capacity | Frozen Capacity | Remark | ||||
-50'C: 14875W / 50768BTU | 5737kgs per day | Room Temperature -45'C | ||||
-45'C: 15838W / 54055BTU | 6578kgs per day | Room Temperature -40'C | ||||
-40'C: 22363W / 76323BTU | 10063kgs per day | Room Temperature -35'C | ||||
-35'C: 30108W/ 102757BTU | 14780kgs per day | Room Temperature -30'C | ||||
No | Main Setup | Key Parameters | ||||
1 | R410a Compressor | Dis. 110.5m3/h at 1450RPM | Semi-hermetic Reciprocating | |||
2 | Condenser | Tube & Shell heat exchanger | Water Cooled | |||
3 | Water flow regulator | Pressure drived water valve | ||||
4 | Safety device | Relief valve with shutoff valve | on liquid refrigerant reciever | |||
5 | Discharge Temperature control | Liquid injection Kit | ||||
6 | Compressing Ratio control | Dual pressure relay | ||||
7 | Oil management | Oil Separator, filter and sight glass | ||||
8 | Other protectors | Vibration absorber, check valve | ||||
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
SIMILAR PRODUCTS
FAQ
Q1：How to order the product ?
A1：We need the buyer provide these information.
1.) if professional buyer, please show us cooling capacity, evaporating and condensing temperature requirements.
2.) For common buyer, please show us (1.) What products (2) How much weight (3) from what temperature to whater temperature (4) within how much time (5) in what ambient temperature if air cooled.
