50-200 литров в минуту двухступенчатый высоковакуумный трансформатор изоляционная масляная фильтрационная

Working principle

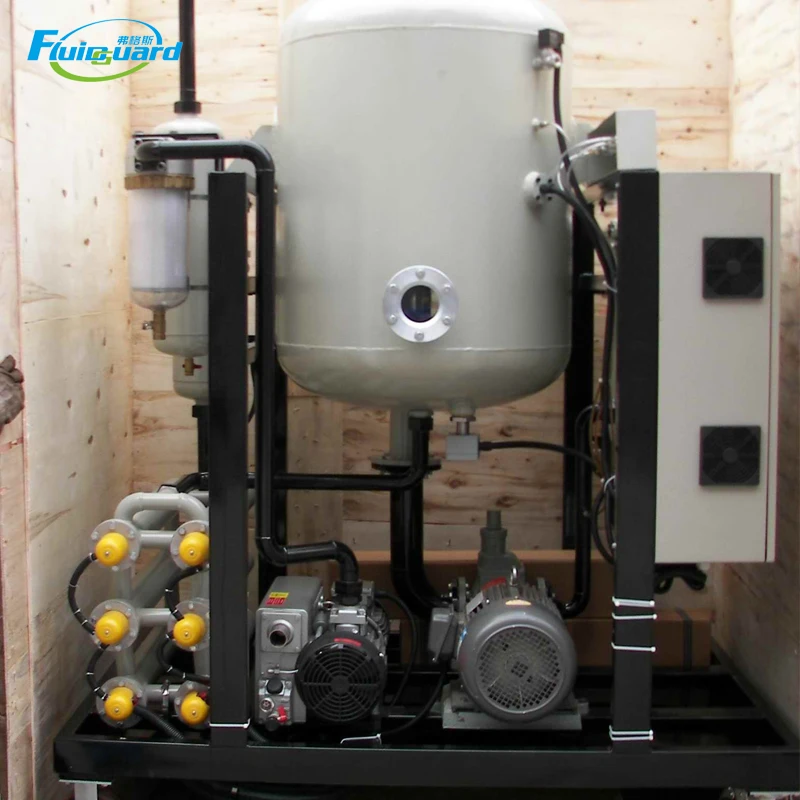

The vacuum oil purifier is designed according to the different principles of the boiling point of water and oil. It consists of a vacuum heating tank fine filter, condenser, primary filter, water tank, vacuum pump, oil drain pump and electrical cabinet. The vacuum pump draws out the air in the vacuum tank to form a vacuum. Under the action of atmospheric pressure, the external oil enters the primary filter through the inlet pipe to remove larger particles, and then enters the heating tank, and passes through the oil at 40~75℃ after heating. Automatic oil drift valve, this valve automatically controls the balance of the amount of oil entering the vacuum tank. The heated oil is separated into a semi-mist through the rapid rotation of the spray wing, and the water in the oil evaporates rapidly into water vapor and is continuously sucked into the condenser by the vacuum pump. The water vapor entering the condenser is cooled and then returned to the original water to be released. The oil in the vacuum heating tank is discharged into the fine filter by the oil drain pump, and the particulate impurities are filtered out through the oil filter paper or filter element, thereby completing the vacuum oil filter quickly The whole process of removing impurities, water and gas in the oil, so that the clean oil is discharged from the oil outlet.

It can be used to filter the following oil:

Turbine oil

Hydraulic oil

lubricating oil

Insulating oil

Transformer oil

Capacitor oil

Compressor oil
